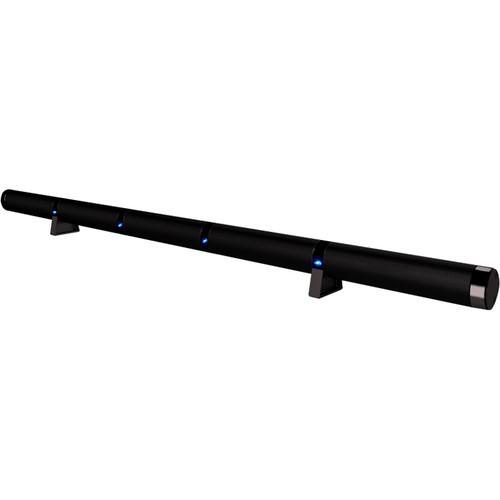

User Manual for Phoenix Audio Technologies MT600 Condor Multi-Microphone Array with Built-In SIP Phone Click to enlarge the picture
Contents of the user manual for the Phoenix Audio Technologies MT600 Condor Multi-Microphone
- Product category: Audio Conferencing Phoenix Audio Technologies
- Brand: Phoenix Audio Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phoenix Audio Technologies Audio Conferencing
|
User manual for the Phoenix Audio Technologies MT600 Condor Multi-Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phoenix Audio Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phoenix Audio Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phoenix Audio Technologies product will considerably shorten its lifespan!
|
Product description - About The Condor | Phoenix Audio Technologies
- Condor Demo with Multiple People Speaking | Phoenix Audio Technologies
The Phoenix Audio Condor is a beamforming SIP microphone that uses 15 microphones and DSP to pick up audio clearly, all while rejecting and cancelling out noises, echoes, and reverberation. As such, it is quite suitable for video-conferencing, especially when multiple parties are involved at either end of the connection.
In order to capture audio at a range of 30', the device deploys seven long-range beams, examining the output from these beams from a preset direction. At the same time, intelligent DSP analyzes the signal multiple times per second in order to make its decisions, thus concluding which audio to keep and which to discard. This results in clear audio, free of echoes and unwanted noises, with uniform levels of speech represented no matter how far away the speaker is standing from the Condor itself.
The Condor provides RCA inputs and outputs, so you can route other speakers (such as those found in standard visual monitors) into and out of the microphone, and thus, better utilize the Condor's echo-canceling functions. Networking is possible via RJ45 Ethernet link, while a USB port both powers the unit and allows you to access VoIP applications. No drivers are necessary when hooking the Condor up to computers, and you'll find automatic bridging between IP phone and USB communications. Two wall-brackets and two stands are included. - Key Features at a Glance
-
- Highly directional, 48-inch aperture
- 15-microphone array
- Seven fixed-direction directional beams with Constant Beamwidth design
- Pickup range up to 30' with recommended range of up to 25'
- Angular reception of 180°
- DSP-based noise- and echo-canceling, AGC, de-reverb
- 100% full duplex
- Digital interface using USB telephony protocol
- Analog interface for use with analog codecs
- Built-in IP phone (SIP)
- Automatic bridging between the IP phone and USB communication
- USB for data and power
- Connections
-
- Analog speaker inputs via two RCA jacks (left and right signals)
- Analog speaker outputs via two RCA jacks (left and right signals)
- Analog system out (microphone output) via RCA jack (line level)
- Digital speaker input via optical link (stereo)
- Digital speaker output via optical link (stereo)
- RJ45 Ethernet link – for network connection and IP phone
UPC: 854969001314 In the Box Phoenix Audio Technologies MT600 Condor Multi-Microphone Array with Built-In SIP Phone (30' Range) USB Cable 5V Power Supply 2 x Mounting Brackets 2 x Stands Limited 2-Year Warranty User Manual PDF 1.4mbdxwrybswre Table of Contents
|
Upload User Manual
Have you got an user manual for the Phoenix Audio Technologies MT600 Condor Multi-Microphone Array with Built-In SIP Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhoenix Audio Technologies MT600 Specs | Microphone | 15-microphone array | | Analog I/O | 2 x RCA speaker inputs
2 x RCA speaker outputs
1 x RCA microphone output | | Digital I/O | 1 x optical in
1 x optical out
1 x USB data and power | | Range | 30' / 9.1 m pickup range | | Frequency Response | 50 Hz to 16 kHz | | Noise Suppression | >15 dB, no pumping noise | | Echo Cancellation | >40 dB with conversion rate greater than 40 dB per second (residual echo suppressed to environment noise level preventing artificial ducking) | | Latency | 10 ms | | Power Consumption | 500 mA (from USB or PoE) | | Supported Codecs | G.711 (A-law and Mu-law), G.729A (Annex B), G.722, G.723 | | VoIP and Signaling | SIP -RFC 3261, SDP - RFC 2327 SIP over
TCP/UDP, redundancy, Ddigest
Authentication, PRACK, Early Media | | Data Protocol | IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, Static IP/DHCP IP Assignment, IEEE 802.1p/Q, HTTP/HTTPS/DHCP, NTP, FTP/TFTP | | Operating Systems | Windows 98 and up, Linux, and Mac OS | | Software | Recording Utility and Audio Setup Utility for Windows | | Drivers | Plug-and-play | | USB | For data and power | | Dimensions (L x Diam) | 48.0 x 2.5" / 121.9 x 6.4 cm | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 49.1 x 8.0 x 7.0" |
