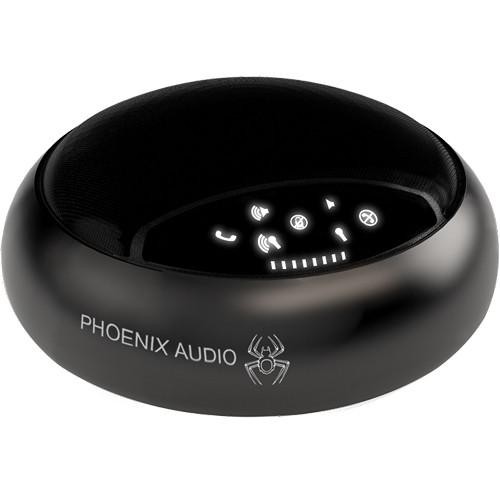

The black MT503 Smart Spider USB Conference Speakerphone is a high-quality conference speakerphone that is designed to turn any room into a professional conference room. It features a large pickup and broadcasting range, yet is small in size and discreet in design. The Smart Spider utilizes multiple microphones, a speaker, and helpful features such as acoustic echo and noise cancellation.
The MT503 Smart Spider model connects to any computer as well as many analog audio devices. It comes with a 2.5mm to 3.5mm cable adaptor that allows you to link to almost any smartphone or tablet device. The user interface is incorporated through LED lights that are discreetly placed throughout the unit.
Flexible Connectivity
USB to your computer: connection is for any session using your computer, such as Voice Over IP applications (Vidyo, BlueJeans, FuzeBox, Skype, Microsoft Lync, etc.)
Analog cable to your smart device: connection is done via a 2.5mm connector and a provided 2.5mm (male) to 3.5mm 4pin (male) cable or any standard analog cable you have with a 2.5mm connector
Features at a Glance:
Four microphone beamforming array
Full duplex communication
Echo cancelling
Noise suppression
De-reverb
Automatic gain control
Daisy chainable
Single source daisy chain powering
Bridging between USB and “Smart” device
Internal battery
Interchangeable interface modules
Metal case and metal grill mesh for high RFI immunity and product durability
LED lit control buttons
UPC: 854969001307 In the Box Phoenix Audio Technologies Smart Spider USB Conference Speakerphone (Black)
USB Cable
International Power Supply Adaptor
Daisy Chain Cable (Ethernet)
2.5mm (Male) to 3.5mm 4-pin (Male) Cable
Interchangeable Wire Slot Cover
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Phoenix Audio Technologies Smart Spider USB Conference Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Phoenix Audio Technologies MT503 Specs
Connections
USB interface (mini B connector) 3.5 mm external loudspeaker and microphone jack Daisy chain expandability of up to 15 units
Volume Control
Volume Up / Volume Down buttons
Power Consumption
5V 500 mA peak through USB and wall mount AC/DC converted
Audio
50 Hz - 16 kHz
Latency
10 ms
Broadcast Level
Broadcast level (peak): 92 dB SPL @1 m (5 W RMS)
Bridging Features
Three-way bridging capability
Noise Cancellation
Noise cancellation > 10 dB
Duplex Operation
100% full duplex - no attenuation (in either direction) during full duplex
Conformance
ITU-T G.167
Echo Cancellation
> 40 dB with conversion speed of 40 dB/sec, residual echo is suppressed to the environment noise level, preventing artificial ducking of signal
Microphones
4x directional microphones
Algorithm
Direction-finding algorithm (determines the presence and direction of a speaker) Beamforming algorithm (forms and directs audio beams towards a defined direction)
Output Level Adjustment
Automatic voice-level adjustment (AGC)
Software
Plug-and-play - No installation or drivers Audio setup utility is available for Windows The setup utility helps monitor the audio input and output level but is not required Recording utility is available for Windows Recording utility allows you to record conversations to your computer via the device Operating systems: Windows 98 and up / Linux / Mac OS
Color
Black
Dimensions
7" (17.8 cm) diameter, 1.9" (4.83 cm) height
Weight
1.75 lb (0.8 kg)
Package Weight
3.4 lb
Box Dimensions (LxWxH)
15.5 x 12.6 x 2.7"
