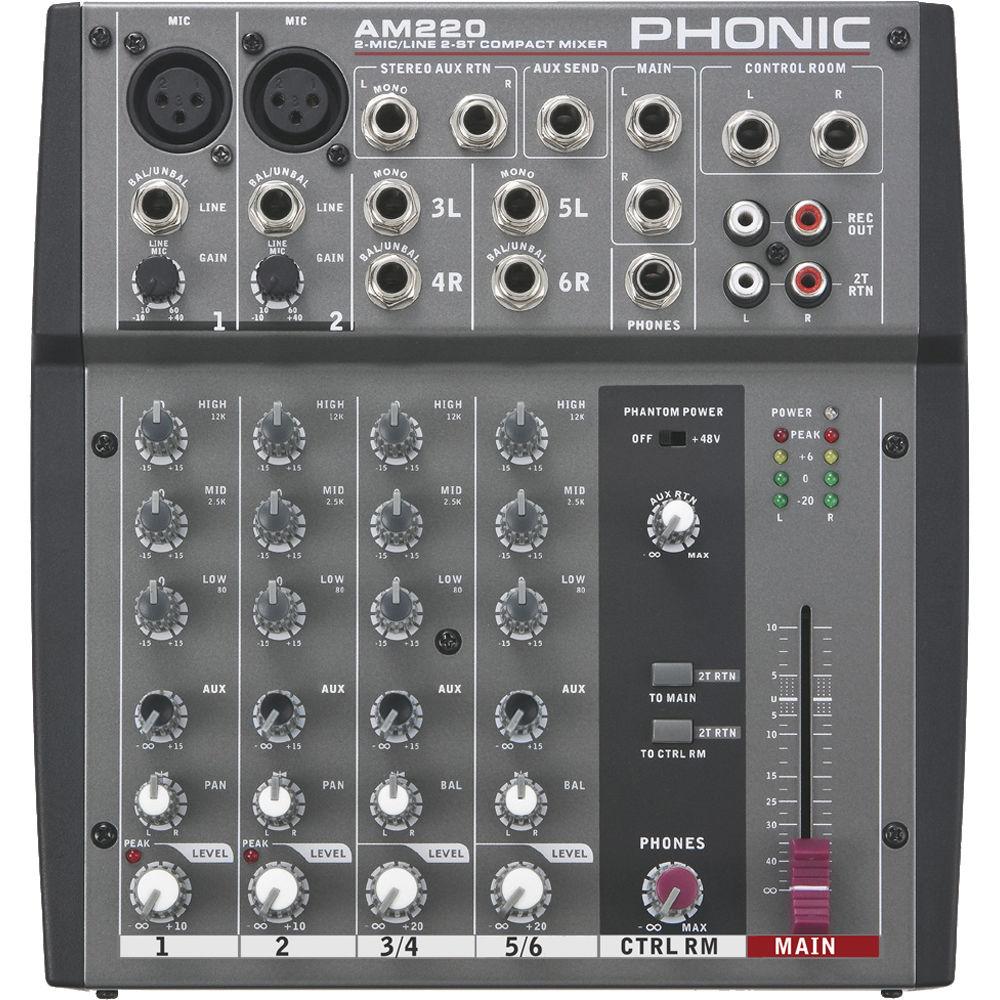

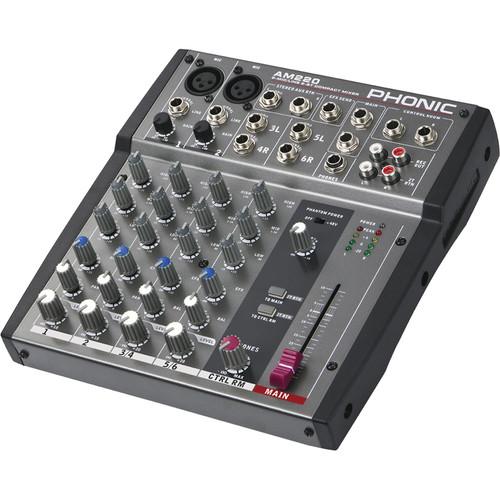

Product description The AM 220 2-Mic/Line 2-Stereo Input Compact Mixer from Phonic features ultra-low noise preamps, ensuring high quality sound suitable for project studios and sound reinforcement. The mixer has two balanced microphone/line inputs and two stereo line inputs, as well as a 3-band EQ on all 4 channel strips (2 mono, 2 stereo) for shaping the audio. Monitoring the mix is easy with the dual multi-segment LED level meters and high-volume headphone output. - Two balanced microphone/line inputs with 3-band EQ
- Two stereo inputs with 3-band EQ
- Post-fader EFX send on every input
- Peak indicators on each mono input channel
- 2T return assignable individually to main or control room
- Stereo AUX send cue for ease of monitoring individual channel
- Balanced master output with 60mm fader control
In the Box Phonic AM 220 2-Mic/Line 2-Stereo Input Compact Mixer AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM 220 2-Mic Line 2-Stereo Input Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM 220 Specs | Inputs | 2 x 3-pin XLR female, balanced mono microphone
6 x 1/4" TS/TRS unbalanced/balanced line
1 x L/R 1/4" TS stereo Aux return

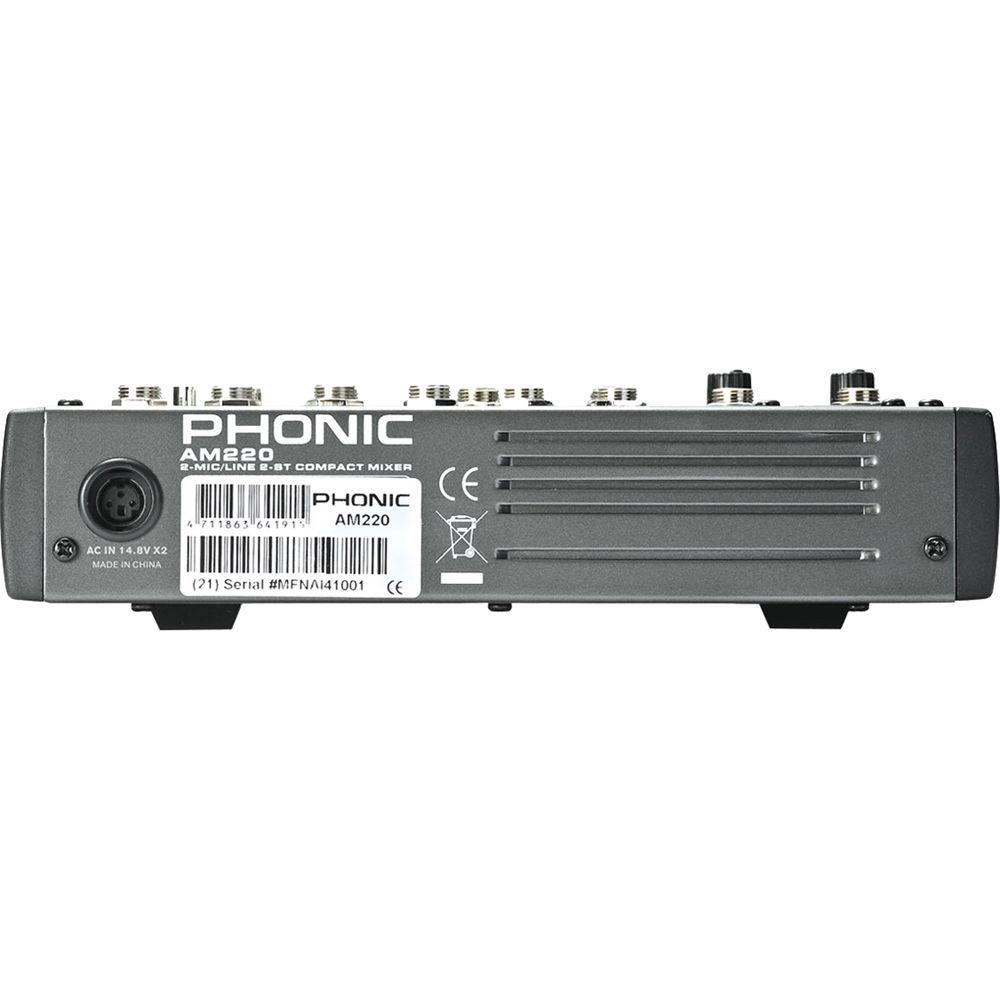

1 x RCA L/R stereo 2T return | | Outputs | 2 x 1/4" TRS balanced main L/R stereo
1 x L/R RCA stereo record
2 x 1/4" TS control room L/R
1 x 1/4" TS stereo Aux send
1 x Phones | | Channel | 4 x channel strips (2 mono, 2 stereo)
1 x Aux send per channel
1 x Pan/balance control per channel
1 x Rotary volume control per channel
1 x 3-band EQ control per channel
2 x Microphone/line gain control (mono channels 1 and 2 only) | | Master Section | 2 x Push button 2T return main/control room control
1 x Aux return control
1 x Phones level control
1 x 2.4" / 60mm fader, main L/R level control
1 x 4-segment LED stereo level meter
1 x Phantom power switch | | Phantom Power | 48 VDC | | Frequency Response | 20 Hz to 60 kHz: 0/-1 dB
20 Hz to 100 kHz: 0/-3 dB | | Crosstalk | Channel fader down, other channels at unity: <-90 dB | | Signal-to-Noise Ratio | Master at unity, channel fader down: -86.5 dBu
Master at unity, channel fader at unity: -84 dBu S/N Ratio, ref to 4: >90 dB | | E.I.N. Microphone Preamplifier | <-129.5 dBm (150 Ohms terminated, max gain) | | Total Harmonic Distortion (THD) | <0.005% (Any output, 1 kHz @ 14 dBu, 20 Hz to 20 kHz, channel inputs) | | CMMR | 80 dB (1 kHz @ -60 dBu, gain at maximum) | | Maximum Level | Microphone Preamp Input: 10 dBu
All Other Inputs: 22 dBu
Balanced Output: 28 dBu | | Impedance | Microphone Preamp Input: 2 kOhms
All Other Inputs (except insert): 10 kOhms
RCA 2T Output: 1.1 kOhms | | Equalization | 3-band, ±15 dB
Low EQ: 80 Hz
Mid EQ: 2.5 kHz
Hi EQ: 12 kHz | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions | 7.5 x 2.2 x 9.2" / 19.0 x 5.6 x 23.3 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.395 lb | | Box Dimensions (LxWxH) | 14.4 x 11.4 x 3.9" |
