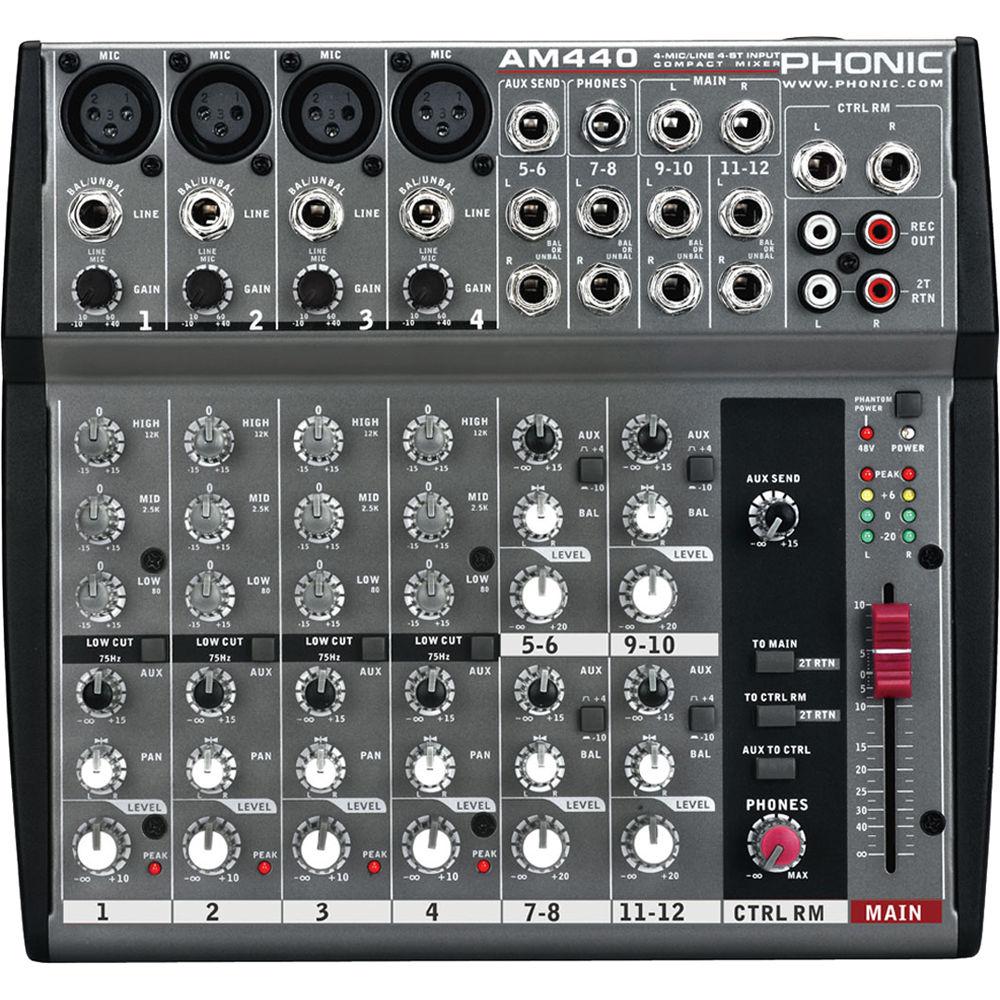

User Manual for Phonic AM 440 4-Mic Line 4-Stereo Input Compact Mixer Click to enlarge the picture
Contents of the user manual for the Phonic AM 440 4-Mic Line 4-Stereo
- Product category: Analog Recording Mixers Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Analog Recording Mixers
 |
User manual for the Phonic AM 440 4-Mic Line 4-Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|
Product description The AM 440 4-Mic/Line 4-Stereo Input Compact Mixer from Phonic features ultra-low noise pre-amps, ensuring high quality sound suitable for project studios and sound reinforcement. The mixer has four mono microphone/line channels, four stereo channels, as well as a 3-band EQ on each channel for shaping the audio. Monitoring the mix is easy with dual multi-segment LED level meters and high volume headphone outputs. The low-cut filters on mono channels eliminates unwanted sounds like stage rumble, P-pops, wind noise, and low frequency recording studio room resonances. - Audiophile-quality & ultra-low noise circuitry
- Four mono microphone/line channels and four stereo channels
- 75 Hz low-cut filter on mono channels
- 48V phantom power on microphone channels
In the Box Phonic AM 440 4-Mic/Line 4-Stereo Input Compact Mixer AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM 440 4-Mic Line 4-Stereo Input Compact Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM 440 Specs | Inputs | 4 x 3-pin XLR female, balanced microphone
4 x 1/4" TS/TRS unbalanced/balanced line
4 x 1/4" TS/TRS unbalanced/balanced stereo line
1 x stereo RCA 2T return | | Outputs | 2 x 1/4" TRS balanced main L/R stereo
1 x L/R RCA stereo record
2 x 1/4" TS control room L/R
1 x 1/4" TS aux send
1 x 1/4" phones | | Channel | 4 x AUX send bus control (1 to 4)
4 x pan/balance control (1 to 4)
4 x rotary volume control (1 to 4)
4 x 3-band EQ control (microphone channel)
4 x microphone/line gain control (1 to 4)
4 x stereo line input gain control (5 to 12)
4 x stereo line input balance control (5 to 12)
4 x stereo line input AUX send bus control (5 to 12) | | Master Section | 2 x push button 2T return main/control room
1 x phones level knob
1 x 2.4" / 60mm fader, main L/R level control
1 x 4-segment LED stereo level meter
1 x phantom power switch | | Phantom Power | 48 VDC | | Frequency Response | 20 Hz to 60 kHz: 0/-1 dB
20 Hz to 100 kHz: 0/-3 dB | | Crosstalk | Channel fader down, other channels at unity: <-90 dB | | Signal-to-Noise Ratio | Master at unity, channel fader down: -86.5 dBu
Master at unity, channel fader at unity: -84 dBu S/N Ratio, ref to 4: >90 dB | | E.I.N. Microphone Preamplifier | <-129.5 dBm (150 Ohms terminated, max gain) | | Total Harmonic Distortion (THD) | <0.005% (Any output, 1 kHz @ 14 dBu, 20 Hz to 20 kHz, channel inputs) | | CMMR | 80 dB (1 kHz @ -60 dBu, gain at maximum) | | Maximum Level | Microphone Preamp Input: 10 dBu
All Other Inputs: 22 dBu
Balanced Output: 28 dBu | | Impedance | Mic Preamp Input: 2 kOhms
All Other Inputs (except insert): 10 kOhms
RCA 2T Output: 1.1 kOhms | | Equalization | 3-band, ±15 dB
Low EQ: 80 Hz
Mid EQ: 2.5 kHz
Hi EQ: 12 kHz
Low Cut Filter: 75 Hz (-18 dB/oct) | | Effect | N/A | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions | 9.5 x 2.2 x 8.9" / 24.2 x 5.5 x 22.5 cm | | Weight | 3.75 lb / 1.7 kg |
