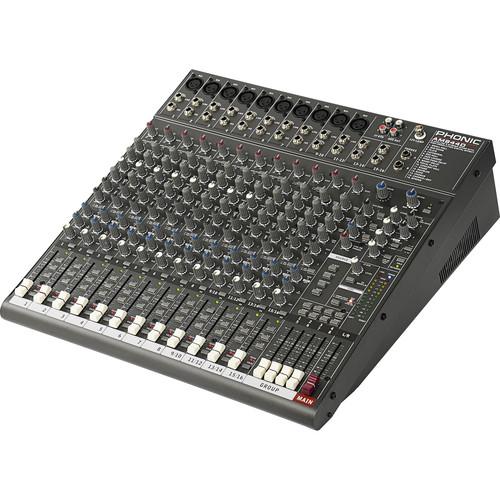

Phonic AM 844D 8-Mic Line 4-Stereo

User Manual for Phonic AM 844D 8-Mic Line 4-Stereo Mixer with DFX and USB Interface

• Product category: Analog Recording Mixers Phonic
• Brand: Phonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Phonic Analog Recording Mixers

Product description

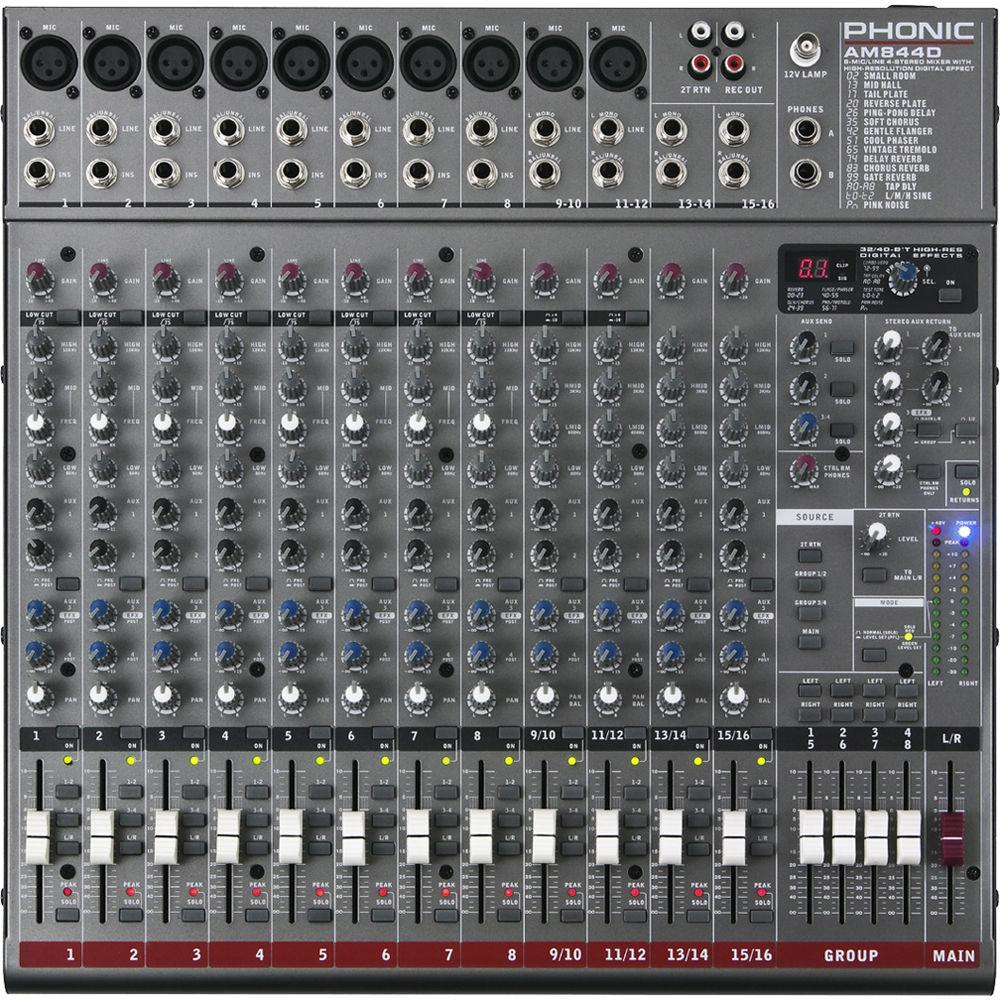

• Eight microphone/line mono channels with direct outputs, 3-band EQ, and compressor

• Four stereo channels (two with microphone input)

• 10 microphone preamps

• Stereo USB interface for PC or Mac recording

• Direct outputs for multitrack recording

• 3-band EQ with swept mid range plus low cut on each mono channel

• 18 dB/oct, 75 Hz low cut filter on each microphone channels

• Four Aux sends, Aux 1 & 2 with Pre/Post selector

• 32/40-bit digital stereo effect processor with 16 programs

• Four stereo Aux returns

• Solo selector on each input channel

• Control room phones with multi-input source matrix selector

• Eight subgroups with fader control and L-R assign buttons

• Record output

• 2T return with control level and main L/R assign button

• Built-in switching power supply with universal connector

• 12 V XLR connector for gooseneck lamp

• Solo switch selector for Aux returns

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Phonic AM 844D Specs

Inputs	8 x 3-pin XLR female balanced mono microphone feeding mono channels 2 x 3-pin XLR female balanced mono microphone feeding stereo channels 8 x 1/4" TS/TRS unbalanced/balanced mono line channel 4 x 1/4" TRS balanced line channel 2 x 1/4" TRS balanced Aux return stereo line channel 1 x 1/4" Footswitch: EFX on/off

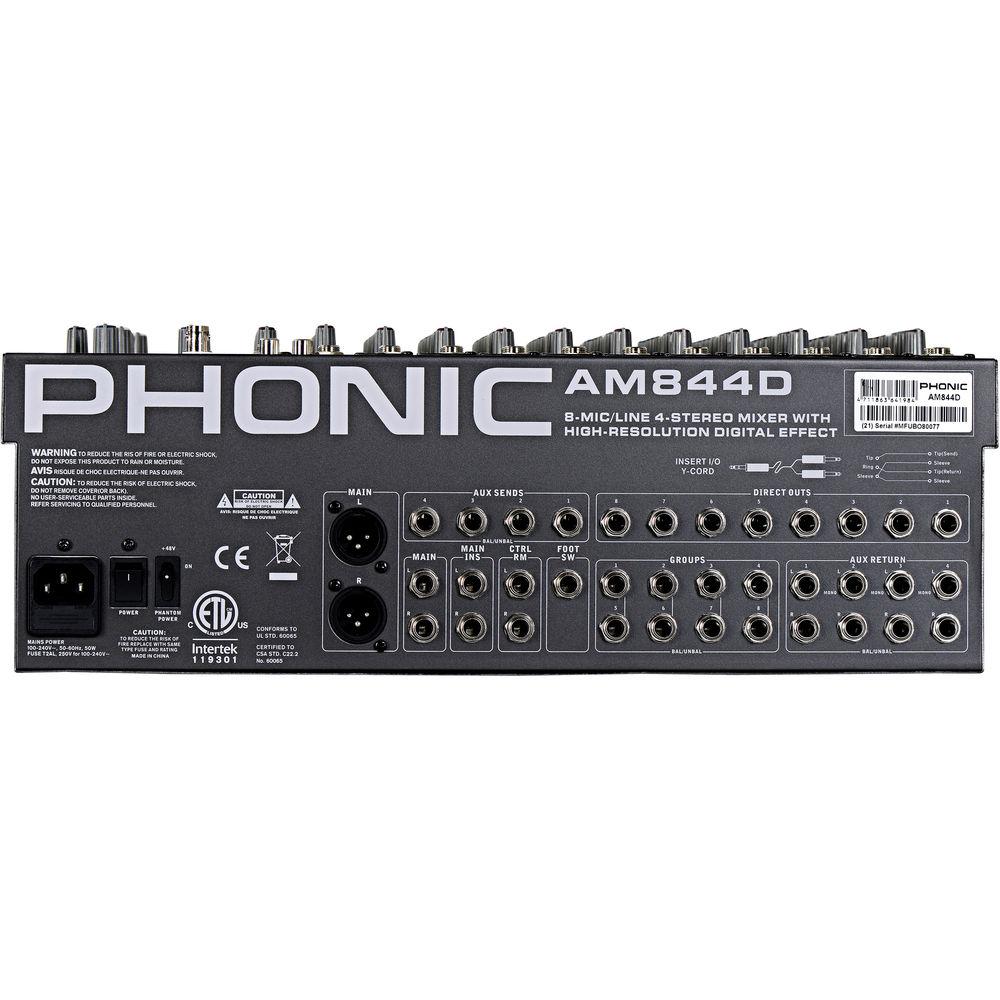

Outputs	2 x 1/4" TRS balanced main L/R stereo 2 x XLR main L/R stereo 8 x group 4 x 1/4" TRS Aux output 1 x mini stereo rec output 1 x stereo RCA rec out 2 x 1/4" TS control room L/R 2 x Phones
Channel	4 x EFX send Pan/Balance control 1 x 2.4" / 60mm fader, volume control 8 x inserts
Master Section	1 x Phones level control 1 x 2.4" / 60mm fader, main L/R level control 1 x 13-segment level meter
Phantom Power	48 VDC
Frequency Response	20 Hz to 60 kHz: 0/-1 dB 20 Hz to 100 kHz: 0/-3 dB
Crosstalk	Channel fader down, other channels at unity: <-90 dB
Signal-to-Noise Ratio	Master at unity, channel fader down: -86.5 dBu Master at unity, channel fader at unity: -84 dBu S/N Ratio, ref to 4: >90 dB
E.I.N. Microphone Preamplifier	<-129.5 dBm (150 Ohms terminated, max gain)
Total Harmonic Distortion (THD)	<0.005% (Any output, 1 kHz @ 14 dBu, 20 Hz to 20 kHz, channel inputs)
CMMR	80 dB (1 kHz @ -60 dBu, gain at maximum)
Maximum Level	Microphone Preamp Input: 10 dBu All Other Inputs: 22 dBu Balanced Output: 28 dBu
Impedance	Mic Preamp Input: 2 kOhms All Other Inputs (except insert): 10 kOhms RCA 2T Output: 1.1 kOhms
Equalization	3-band, Rating 90% users recommend this product to others. And what about you? This product has already been rated by 96 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
