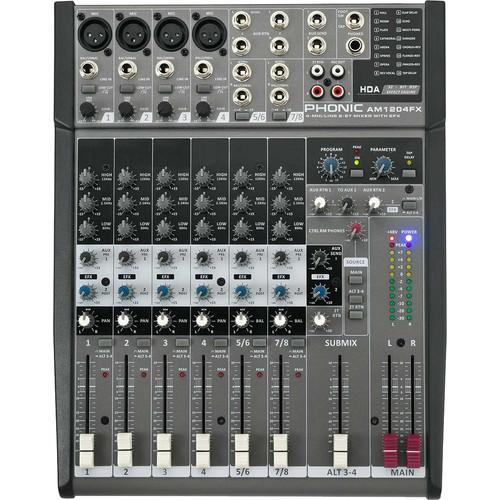

Product description The Phonic AM1204FX 8-channel mixer features a built-in effect engine and is ideal for use in home studio and live sound reinforcement applications for small bands, solo performers, DJs, lecturers, or presenters. With four low-noise mic preamps, 3-band EQ, FX, and aux sends on each channel, the mixer offers versatile features to suit a wide variety of configurations.In addition to the mic inputs, the AM1204FX includes four mono and two stereo line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players and recording devices. The mixer has rugged 60mm faders for all input channels, Alt 3/4 mix, as well as L/R main masters.The AM1204FX's 32-bit digital stereo multi-effect processor offers 16 different effects, including reverbs, delays, and choruses. Other features include global +48V phantom power, ALT 3/4 mix for diverting signals from muted channels, and a universal power supply. - Key Features
-
- 8-channel mixer ideal for sub mixes, small performances, studio applications, and more
- Four mono mic/line channels low-noise mic preamplifiers
- Two stereo channels with +4/-10 pad switches for input versatility
- Accepts balanced and unbalanced input connections
- Control room/Phones source matrix for monitor flexibility
- EFX and aux sends on each channel for creating monitor mixes and incorporating external signal processors
- Two stereo Aux returns for incorporating external signals into the mix
- Aux Return 1 features "to AUX 1" control for versatile EFX monitoring
- 3-band equalizer available on each channel
- 75 Hz low-cut filter on mono channel for removing stage rumble
- 32-bit digital effect processor
- 16 FX presets each with their own user-adjustable parameter—reverbs, delays, choruses
- Parameter control for adjusting each effect preset
- Stereo RCA 2T Tape I/O
- Global +48V phantom power
- Stereo, balanced XLR master outputs
- ALT 3/4 mix for diverting signals from muted channels
- Universal power supply
In the Box Phonic AM1204FX 8-Channel Mixer with Built-In FX Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM1204FX 8-Channel Mixer with Built-In FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM1204FX Specs | Inputs | Total Channels: 8
Balanced Mono Mic/Line Channels: 4
Balanced Stereo Line Channels: 2
Stereo Aux Returns: 2
Stereo 2T Inputs: 1 | | Outputs | Main L/R Stereo: 1 (2 x XLR)
Rec Out: 1 (2 x RCA)
Control Room L/R: 1 (2 x 1/4" TS)
Phones: 1
Aux Sends: 2 | | Channel Strips | EFX Send: 1
Pan/Balance Control: 1
Volume Control: 2.36" / 60 mm fader
Aux Sends: 2 | | Master Section | Phones Level Control: 1
Main L/R Level Control: 2.36" / 60 mm fader
Level Meter: 11 segments
Phantom Power Supply: +48 VDC | | Frequency Response | 20 Hz to 60 kHz: 0 /-1 dB
10 Hz to 100 kHz: 0 /-3 dB
(Mic input to any output) | | Crosstalk | <-90 dB, channel fader down, other channels at unity
(1 kHz at 0 dBu, 20 Hz to 20 kHz bandwidth, channel in to main L/R outputs) | | Noise | -86.5 dB, Master at unity, channel fader down
-84 dB, Master at unity, channel fader at unity
>90 dB, S/N ratio, ref to +4
(20 Hz to 20 kHz measured at main output, channels 1-4 unity gain, EQ flat, all channels on main mix, channels 1/3 as far left as possible, channels 2/4 as far right as possible, +6 dBu reference) | | EIN | <-129.5 dBm (microphone preamp, 150 Ohms terminated, max gain) | | THD | <0.005%
(Any output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, channel inputs) | | CMRR | 80 dB
(1 kHz at -60 dBu, gain at maximum) | | Maximum Level | Mic Preamp Input: +10 dBu
All Other Inputs: +22 dBu
Balanced Output: +28 dBu | | Impedance | Mic Preamp Input: 2 kOhms
All Other Inputs (Except Insert): 10 kOhms
RCA 2T Input: 1.1 kOhms | | Equalization | Low EQ: 80 Hz
Mid EQ: 2.5 kHz
Hi EQ: 12 kHz
Low-Cut Filter: 75 Hz (-18 dB/oct) | | Effect Processor | 16 effects with parameter control
Includes tap delay | | Power | 100-240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 9.65 x 4.11 x 13.39" / 245 x 104.5 x 340 mm | | Weight | 8.8 lb / 4.0 kg |
