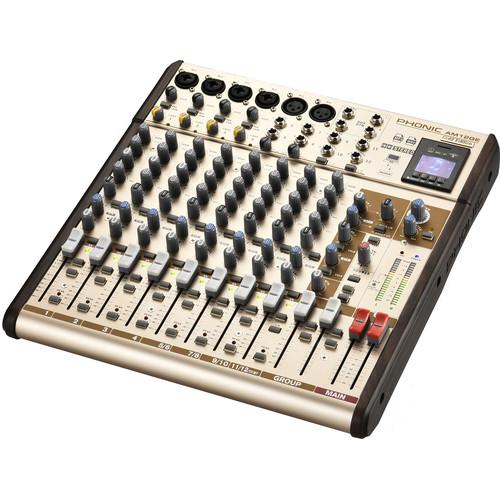

Product description Building upon the classic AM-Series mixers, the updated Phonic AM12GE Gold Edition is a 12-input, 8-channel mixer equipped with forward thinking features such as digital effects, wireless Bluetooth streaming, a stereo USB audio interface, and an integrated TF recorder. The mixer is well-suited for podcasters, web conferencing, project studios, and live sound reinforcement.

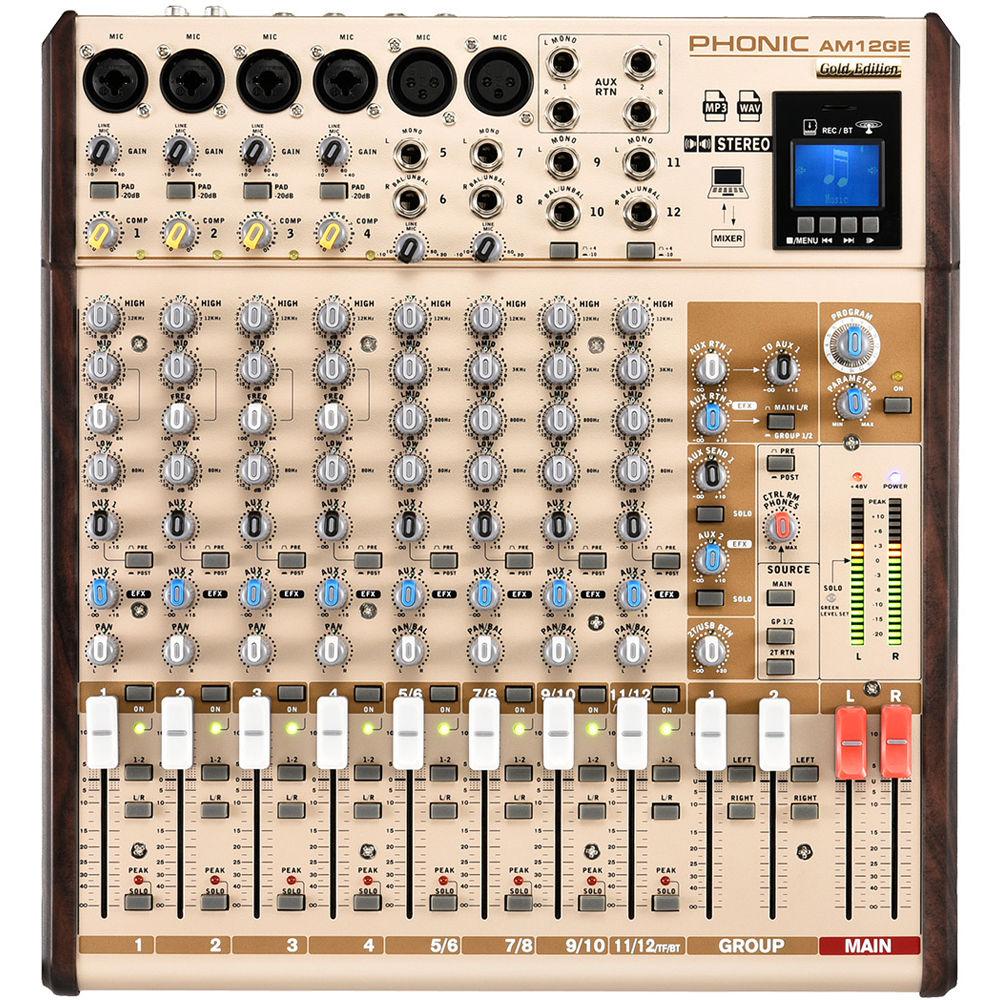

All channels feature a pan control, a fader level control, and two aux sends. Aux 1 is switchable between pre/post, while Aux 2 sends to the integrated digital effects and to a dedicated output. What's more, both Aux channels feature dedicated stereo returns. Channels 1-4 provide combo XLR-1/4" inputs, each with a -20 dB pad, a gain trim, a 3-band EQ, a single knob compressor, and global +48V phantom power for utilizing condenser microphones, while channels 5/6 and 7/8 offer stereo mic/line inputs with a mono XLR input, stereo 1/4" inputs, a mic/line gain trim, and a 4-band EQ. Channels 9/10 and 11/12 provide stereo 1/4" inputs with a +4/-10 switch for interfacing with a variety of signals, as well as a 4-band EQ. Additionally, channels 11/12 double as the 2.4 GHz Bluetooth and TF recorder playback channel. The stereo USB audio interface can send 24-bit / 48 kHz audio to and from any Windows or Mac computer, allows for professional-quality recordings, plus a user-assignable "loopback" return signal for monitoring or music playback.
The ultra-low-noise microphone preamps ensure high-quality sound for project studios or in sound reinforcement applications. The master section offers dual 20-segment LED level meters and main L/R fader control. The mixer also makes monitoring the mix easy with its EFX to monitor control and high-volume headphone output. Additionally, the mixer includes a second stereo bus output (Group 1-2), which is available on each channel via push button. The Phonic AM12GE Gold Edition ships with a power cable. -
- Four mono mic/line Neutrik combo input channels with user-adjustable compressors
- Two stereo mic/line channels with Neutrik XLR inputs, plus two stereo line inputs
- Stereo USB audio interface for Windows and Mac computers (24-bit, 48 kHz)
- Playback of MP3, WAV and FLAC files from TransFlash (TF) media
- Internal TransFlash (TF) module for high-quality stereo recording in WAV or MP3 formats
- 2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
- 32/40-bit digital effect processor with 16 effect programs and one main parameter control
- 3-band EQ with swept-mid channels on each input channel, 4-band EQ on stereo
- Aux sends on each channel
- +48V phantom power on mic channels
- Phones source matrix for maximum monitor flexibility
- EFX/Aux send cue for monitoring individual channels
- Balanced main outputs with independent 60mm L/R faders
In the Box Phonic AM12GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM12GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM12GE Specs | Inputs | Total Channels: 12
Balanced Mono Mic/Line Channels: 4 x Combo XLR-1/4" / 6.35 mm
Balanced Stereo Mic/Line Channels: 2 x XLR
Balanced Stereo Line Channels: 4 x Stereo 1/4" / 6.35 mm
Aux Returns: 2 x Stereo 1/4" / 6.35 mm

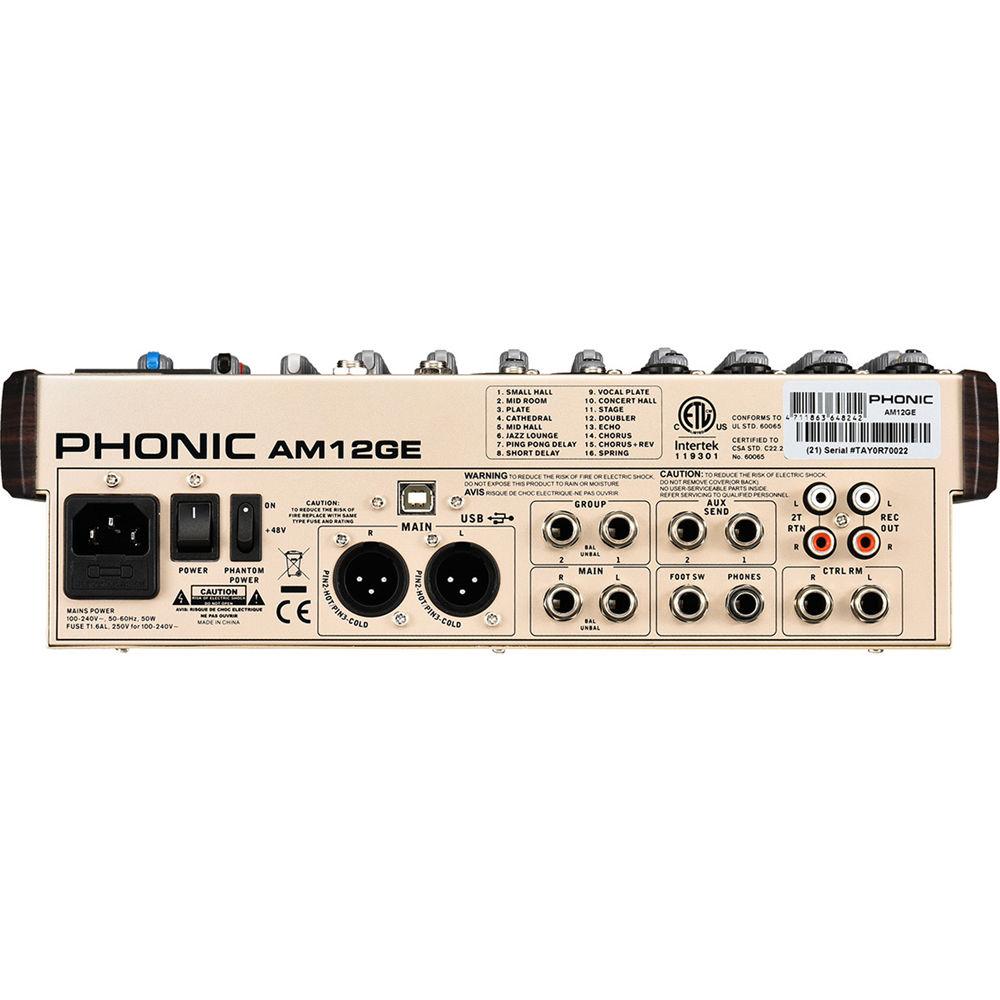

2T Return: Stereo RCAFoot Switch: 1 x 1/4" / 6.35 mm | | Output | Main L/R Stereo: 2 x XLR and 2 x 1/4" / 6.35 mm TRS
Group 1/2: 2 x 1/4" / 6.35 mm TRS
Aux Sends: 2 x 1/4" / 6.35 mm TS
Rec Out: Stereo RCA
Control Room (L/R): 2 x 1/4" / 6.35 TS mm
Phones: 1 x 1/4" / 6.35 mm | | Channel Strips | 8 | | AUX Sends | 2 | | Balance Control | Pan/Balance Control: Yes | | Level Controls | Channels: 8 x 2.4" / 60.0 mm Faders
Phones: 1 x Rotary
2T/USB: 1 x Rotary
Main L/R: 2 x 2.4" / 60.0 mm Faders
Group 1/2: 2 x 2.4" / 60.0 mm Faders | | Master Section | AUX Send Master: 2
Master AUX Send Solo: 2
Stereo AUX Returns: 2
Aux Return Assign to Subgroup: 1
Effects Return to Monitor: 1 | | Built-in USB Interface | Stereo In/Out | | Connector Type | USB Type-B | | Supported Bit/Sample Rates | 24-Bit / 48 kHz | | Return | USB Return Button: Control Room | | Recording | TF Card Recording: WAV / MP3 | | Recording Bit Rate | MP3: 32, 64, 128, 192 kb/s
WAV: 512, 768, 1024, 1536 kb/s | | Bluetooth | 2.4 GHz | | Metering | 2 x 20 LEDs | | Phantom Power | +48 VDC | | Frequency Response | 20 Hz to 60 kHz (+0/-1 dB)
20 Hz to 100 kHz (+0/-3 dB) | | Crosstalk | < -90 dB (Channel Fader Down, Other Channels at Unity)
(1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs) | | Noise | Master: -86.5 dBu (at Unity, Channel Fader Down)
Master: -84 dBu (at Unity, Channel Fader at Unity)
(20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu) | | Signal-to-Noise Ratio (SNR) | > 90 dB (Reference to +4) | | EIN | < -129.5 dBm (150 Ohms Terminated, Max Gain) | | THD | < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs) | | CMRR | 80 dB (1 kHz at -60 dBu, Gain at Max) | | Maximum Level (Input) | Mic Preamp: +10 dBu
All Other: +21 dBu | | Maximum Level (Output) | Balanced Output: +28 dBu | | Impedance | Mic Preamp: 2 kOhms
All Other Inputs: 10 kOhms
RCA 2T Output: 1.1 kOhms | | Equalization | 3-Band, ±15 dB (Mono)
Low: 80 Hz
Mid: 100 Hz to 8 kHz, Sweepable
Hi: 12 kHz
4-Band, ±15 dB (Stereo)
Low: 80 Hz
Lo-Mid: 800 Hz
Hi-Mid: 3 kHz
Hi: 12 kHz | | Internal Digital Effects | 32/40-Bit Digital Effect Processor: 16 EFX | | Compressor | Single Knob: Adjusts Ratio and Threshold (Mono Only) | | Power | Internal Power Supply: 100 to 240 VAC, 50/60 Hz, 50 W | | Dimensions (W × H × D) | 11.8 x 4.1 x 13.4" / 299.7 x 104.4 x 340.4 mm | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 11.125 lb | | Box Dimensions (LxWxH) | 18.1 x 17.0 x 6.7" |
