Phonic AM14GE - AM Gold Edition

Search your instruction manual in PDF to download

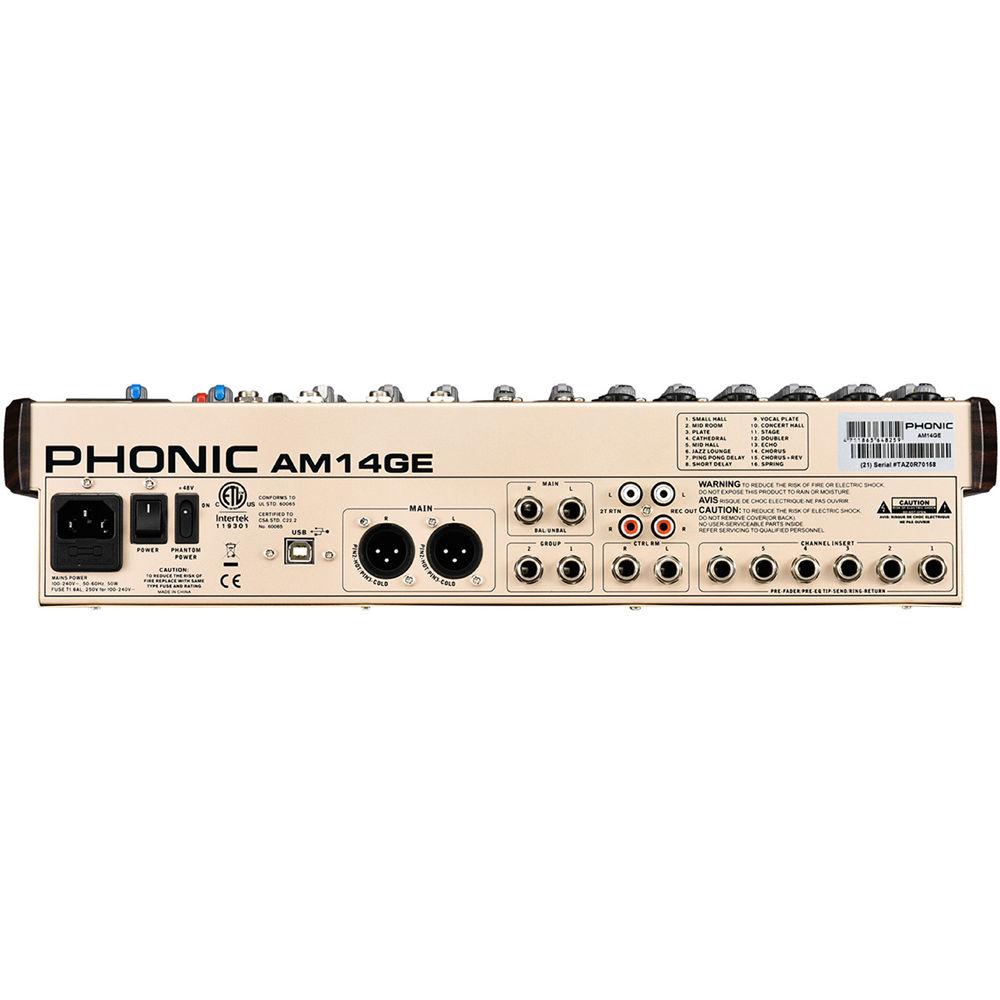

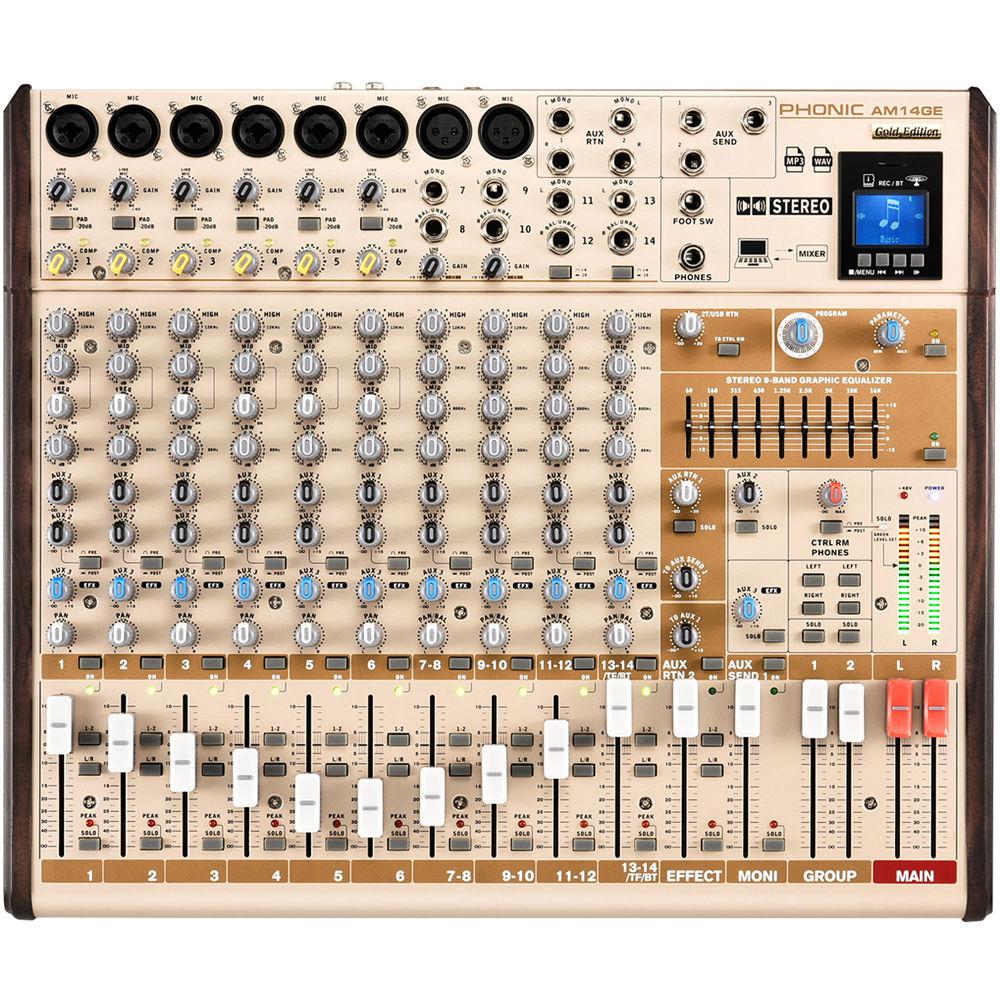

User Manual for Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface

Click to enlarge the picture
Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface Contents of the user manual for the Phonic AM14GE - AM Gold Edition
  • Product category: Analog Recording Mixers Phonic
  • Brand: Phonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Phonic Analog Recording Mixers

Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface
User manual for the Phonic AM14GE - AM Gold Edition contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Phonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!



Product description

Building upon the classic AM-Series mixers, the updated Phonic AM14GE Gold Edition is a 14-input, 10-channel mixer equipped with forward thinking features such as digital effects, wireless Bluetooth streaming, a stereo USB audio interface, and an integrated TF recorder. The mixer is well-suited for podcasters, web conferencing, project studios, and live sound reinforcement.

All channels feature a pan control, a fader level control, and three aux sends. Aux 1 sends on a dedicated monitor fader and Aux 2 is switchable between pre/post. Aux 3 sends via the Effect fader to the integrated digital effects and to a dedicated output. What's more, Aux 1/2 feature dedicated stereo returns. Channels 1-6 provide combo XLR-1/4" inputs, each with a -20 dB pad, a gain trim, a 3-band EQ, a single-knob compressor, and global +48V phantom power for utilizing condenser microphones, while channels 7/8 and 9/10 offer stereo mic/line inputs with a mono XLR input, stereo 1/4" inputs, a mic/line gain trim, and a 4-band EQ. Channels 11/12 and 13/14 provide stereo 1/4" inputs with a +4/-10 switch for interfacing with a variety of signals, as well as a 4-band EQ. Additionally, channels 13/14 double as the 2.4 GHz Bluetooth and TF recorder playback channel. The stereo USB audio interface can send 24-bit / 48 kHz audio to and from any Windows or Mac computer, allows for professional-quality recordings, plus a user-assignable "loopback" return signal for monitoring or music playback.

The ultra-low-noise microphone preamps ensures high-quality sound for project studios or in sound reinforcement applications. The master section offers dual 20-segment LED level meters and main L/R fader control. The mixer also makes monitoring the mix easy with its EFX to monitor control and high-volume headphone output. Additionally, the mixer includes a second stereo bus output (Group 1-2), which is available on each channel via push button. The Phonic AM14GE Gold Edition ships with a power cable.
    • Six Mic/Line Neutrik combo inputs with inserts, compressors, 3-band EQ, and phantom power
    • Two stereo channels with Neutrik XLR inputs, plus two stereo line inputs
    • Stereo USB audio interface for Windows and Mac computers (24-bit, 48 kHz)
    • Playback of MP3, WAV and FLAC files from TransFlash (TF) media
    • Internal TransFlash (TF) module for high-quality stereo recording in WAV or MP3 formats
    • 2.4GHz Bluetooth connectivity for streaming digital audio from smart devices
    • 3-band, swept-mid EQ on each mono channel, 4-band on stereo channels
    • 3 Aux sends, one with channel Pre/Post switches
    • Solo feature on each input and output
    • 32/40-bit digital effect processor with 16 effect programs and one main parameter control
    • 2 true subgroups with main L and R routing switches
    • 2 stereo Aux returns with effect to monitor level control
    • Solo feature on each input and output
    • XLR connectors available on main L / R output
    • Built-in switching power supply with universal connector, 100-240 VAC, 50/60 Hz
    • Optional rack mounting kit (sold separately)

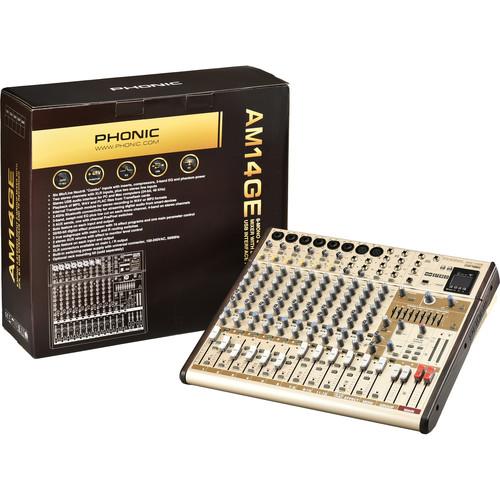

In the Box Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface
  • IEC Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Phonic AM14GE - AM Gold Edition Compact Mixer with Group Output, DFX, Bluetooth, TF Recorder, and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Phonic AM14GE Specs

    Inputs Total Channels: 14
    Balanced Mono Mic/Line Channels: 6 x Combo XLR-1/4" / 6.35 mm
    Balanced Stereo Mic/Line Channels: 2 x XLR
    Balanced Stereo Line Channels: 4 x Stereo 1/4" / 6.35 mm
    Aux Returns: 2 x Stereo 1/4" / 6.35 mm
    2T Return: Stereo RCA Foot Switch: 1 x 1/4" / 6.35 mm
    Output Main L/R Stereo: 2 x XLR and 2 x 1/4" / 6.35 mm TRS
    Group 1/2: 2 x 1/4" / 6.35 mm TRS
    Aux Send: 3 x 1/4" / 6.35 mm TS
    Rec Out: Stereo RCA
    Control Room (L/R): 2 x 1/4" / 6.35 TS mm
    Phones: 1 x 1/4" / 6.35 mm
    Channel Inserts 6 x 1/4" / 6.35 mm TRS (Tip = Send, Ring = Return, Sleeve = Ground)
    Channel Strips 10
    AUX Sends 3
    Balance Control Pan / Balance Control: Yes
    Level Controls Channels: 10 x 2.4" / 60.0 mm Faders
    Phones: 1 x Rotary
    2T/USB: 1 x Rotary
    Main L/R: 2 x 2.4" / 60.0 mm Faders
    Group 1/2: 2 x 2.4" / 60.0 mm Faders
    Monitor Send: 1 x 2.4" / 60.0 mm Fader
    Effect Send: 1 x 2.4" / 60.0 mm Fader
    Master Section AUX Send Master: 3
    Master AUX Send Solo: 3
    Stereo AUX Returns: 2
    Aux Return Assign to Subgroup: 1
    Effects Return to Monitor: 1
    Built-in USB Interface Stereo In/Out
    Connector Type USB Type-B
    Supported Bit/Sample Rates 24-Bit / 48 kHz
    Return USB Return Button: Main / Control Room
    Recording TF Card Recording: WAV / MP3
    Recording Bit Rate MP3: 32, 64, 128, 192 kb/s
    WAV: 512, 768, 1024, 1536 kb/s
    Bluetooth 2.4 GHz
    Metering 2 x 20 LED
    Phantom Power +48 VDC
    Frequency Response 20 Hz to 60 kHz (+0/-1 dB)
    20 Hz to 100 kHz (+0/-3 dB)
    Crosstalk < -90 dB (Channel Fader Down, Other Channels at Unity)
    (1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs)
    Noise Master: -86.5 dBu (at Unity, Channel Fader Down)
    Master: -84 dBu (at Unity, Channel Fader at Unity)
    (20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu)
    Signal-to-Noise Ratio (SNR) > 90 dB (Reference to +4)
    EIN < -129.5 dBm (150 Ohms Terminated, Max Gain)
    THD < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs)
    CMRR 80 dB (1 kHz at -60 dBu, Gain at Max)
    Maximum Level (Input) Mic Preamp: +10 dBu
    All Other: +21 dBu
    Maximum Level (Output) Balanced Output: +28 dBu
    Impedance Mic Preamp: 2 kOhms
    All Other Inputs: 10 kOhms
    RCA 2T Output: 1.1 kOhms
    Equalization 3-Band, ±15 dB (Mono)
    Low: 80 Hz
    Mid: 100 Hz to 8 kHz, Sweepable
    Hi: 12 kHz

    4-Band, ±15 dB (Stereo)
    Low: 80 Hz
    Lo-Mid: 800 Hz
    Hi-Mid: 3 kHz
    Hi: 12 kHz

    9-Band Graphic (Stereo) on Main
    Internal Digital Effects 32/40-Bit Digital Effect Processor: 16 EFX
    Compressor Single Knob: Adjusts Ratio and Threshold (Mono Only)
    Power Internal Power Supply: 100 to 240 VAC, 50/60 Hz, 50 W
    Dimensions (W × H × D) 16.0 x 4.1 x 14.0" / 406.4 x 103.4 x 355.6 mm
    Weight 10.6 lb / 4.8 kg
    Package Weight 14.14 lb
    Box Dimensions (LxWxH) 20.4 x 20.2 x 6.6"
