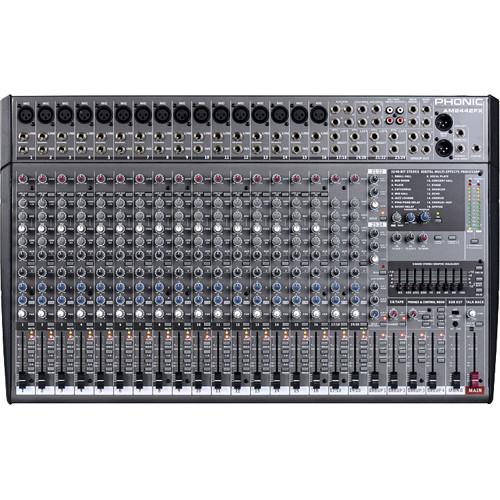

User Manual for Phonic AM2442FX 24-Channel Studio & Live Mixer with Built-In FX Click to enlarge the picture
Contents of the user manual for the Phonic AM2442FX 24-Channel Studio & Live
- Product category: Sound Reinforcement Mixers Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Sound Reinforcement Mixers
 |
User manual for the Phonic AM2442FX 24-Channel Studio & Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|

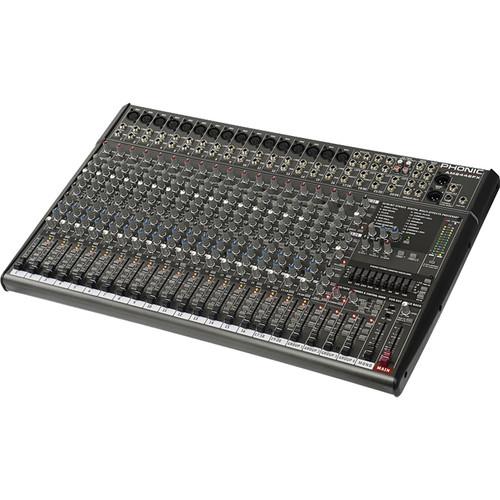

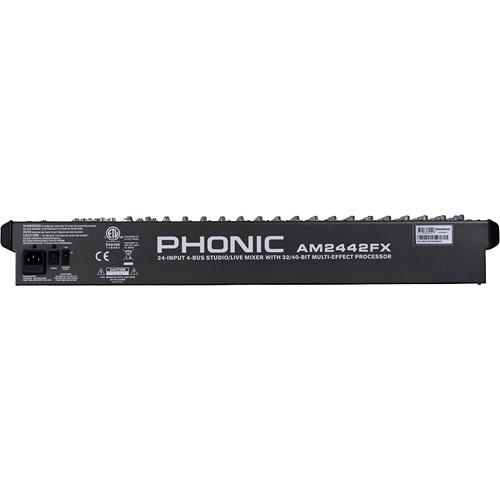

Product description The Phonic AM2442FX 24-channel mixing console features a built-in effect engine, a 9-band graphic EQ, and is ideal for use in home recording studios or for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With sixteen, low-noise mic preamps, per channel 3-band EQ, four aux sends, and four subgroup outputs, the mixer offers professional features to suit a wide variety of configurations. In addition to the mic inputs, the AM2442FX includes sixteen mono and four stereo line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players and recording devices. The mixer has rugged 60mm faders for all input channels, subgroups, as well as mono/subwoofer and main masters. The AM2442FX's 40-bit digital stereo multi-effect processor offers 16 different effects, including reverbs, delays, and choruses. The 9-band graphic EQ can be used for tuning mains or monitors. Other features include solo-in-place and pre-fader-listen functions, and a full-featured talkback section. - Key Features
-
- 24-channel mixer for live and studio applications
- High-quality preamp design
- 40-bit digital stereo multi-effect processor with 16 programs—reverbs, delays, modulation effects
- 16 mic/line channels with inserts
- 4 stereo line inputs
- 3-band EQ with sweepable midrange on all mono channels
- 75 Hz low-cut filter on each mono channel
- 4 aux sends for first 20 channels
- Aux 1 & 2 with pre/post switch
- 9-band stereo graphic EQ
- 2 stereo input channels with 4-band EQ
- Inserts on main mix
- 4 subgroups and additional mono output with sweepable low-pass filter for subwoofer application
- Clip indication and gain level set LEDs plus mute switches for each channel
- Balanced main mix outputs with XLR and 1/4" TRS connectors
- Headphone/control room output and stereo tape outputs
- Solo-in-place and pre-fader-listen functions
- Full-featured talkback section
- Standby switch mutes all channels during breaks while background music is provided via CD/tape inputs
- Internal switching power supply with universal connector
In the Box Phonic AM2442FX 24-Channel Studio & Live Mixer with Built-In FX Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM2442FX 24-Channel Studio & Live Mixer with Built-In FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM2442FX Specs | Inputs | Total Channels: 24
Balanced Mono Mic/Line Channels: 16
Balanced Stereo Line Channels: 4
Aux Returns: 4
Stereo 2T Inputs: 2 | | Outputs | Main L/R Stereo: 2, (2 x XLR, 2 x 1/4" TRS)
Rec Out: 2 (2 x RCA)
Control Room/Phones: 1 (1 x 1/4" TRS)
Mono (Sub) Out: 1 (1 x 1/4" TRS)
Group Outs: 4 (4 x 1/4" TRS) | | Channel Strips | EFX Send: 1
Pan/Balance Control: 1
Volume Control: 2.36" / 60 mm fader
Aux Sends: 4 (Pre/Post switch on Aux 1/2)
Inserts: 1 | | Master Section | Phones Level Control: 1 (rotary control with route switch)
Mono (Sub) Out: 2.36" / 60 mm fader with sweepable LP
Main L/R Level Control: 2.36" / 60 mm fader | | Metering | Number of Channels: 2
Segments: 12
Phantom Power Supply: 48 VDC | | Frequency Response | 20 Hz to 40 kHz: 0 /-1 dB
10 Hz to 200 kHz: 0 /-3 dB
(Mic input to any output) | | Crosstalk | <-90 dB, channel fader down, other channels at unity
(1 kHz at 0 dBu, 20 Hz to 20 kHz bandwidth, channel in to main L/R outputs) | | Noise | -96 dB, Master at unity, channel fader down
-84 dB, Master at unity, channel fader at unity
-105 dB, S/N ratio, ref to +4
(20 Hz to 20 kHz measured at main output, channels 1-4 unity gain, EQ flat, all channels on main mix, channels 1/3 as far left as possible, channels 2/4 as far right as possible) | | EIN | <-123 dBu (microphone preamp, 150 Ohms terminated, max gain) | | THD | <0.014%
(Any output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, channel inputs) | | Maximum Level | Mic Preamp Inputs: +12 dBu
All Other Inputs: +22 dBu
Control Room/Phones: +17 dBu / 150 Ohms
Balanced Outputs: +20 dBu | | Impedance | Mic Preamp Inputs: 2.5 kOhms
Mono Line Inputs: 21 kOhms
Stereo Line Inputs: >10 kOhms
Aux Return: >10 kOhms
RCA 2T Input: >10 kOhms
All Other Outputs (Except Rec Out, Phones Out): 120 Ohms
CD/Tape Out: 1.6 kOhms
Phones Out: 100 Ohms | | Equalization | Low EQ: 80 Hz
Mid EQ: 100 Hz to 8 kHz, sweepable
Hi EQ: 12 kHz
Low-Cut Filter: 75 Hz (-18 dB/oct) | | Effect Processor | 16 effects with parameter control
32-/40-bit engine | | Power | 100-240 VAC, 50/60 Hz, 50 W | | Dimensions (W x H x D) | 26.9 x 4.3 x 16.7" / 683 x 108 x 424 mm | | Weight | 20.1 lb / 9.11 kg |
