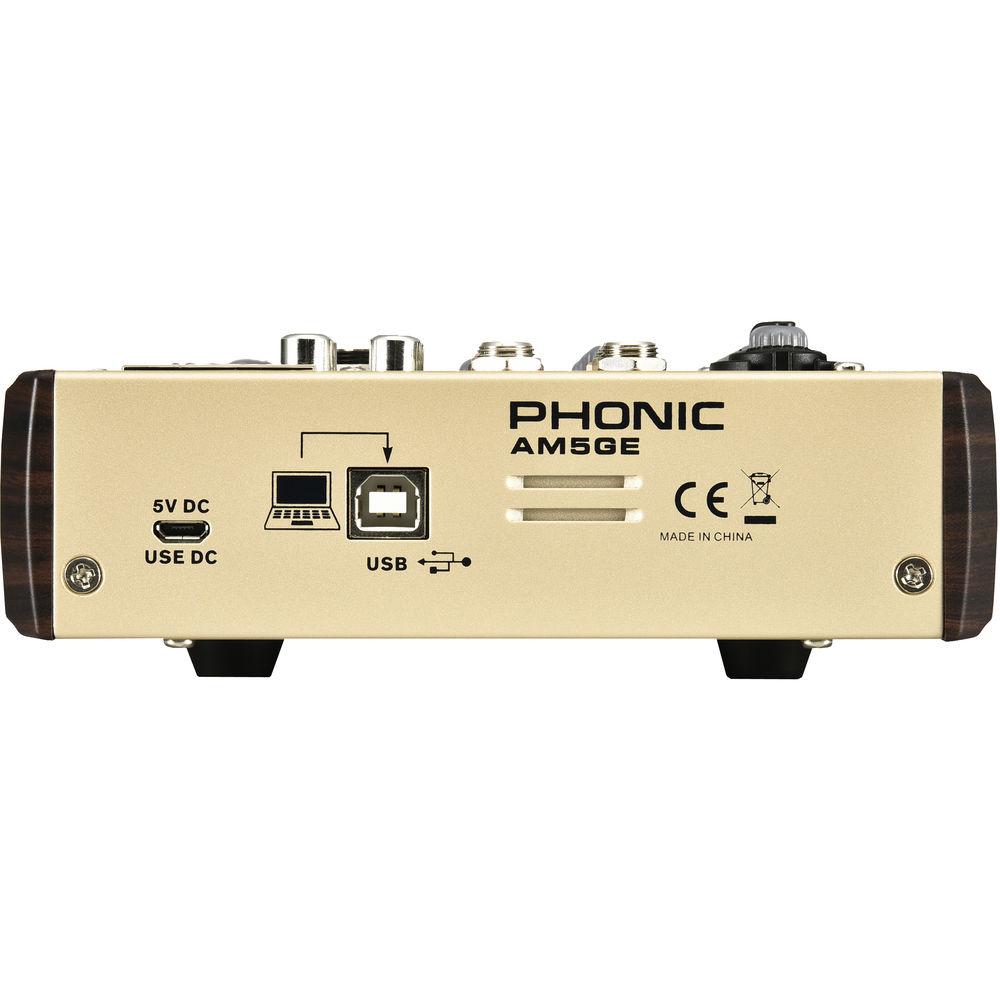

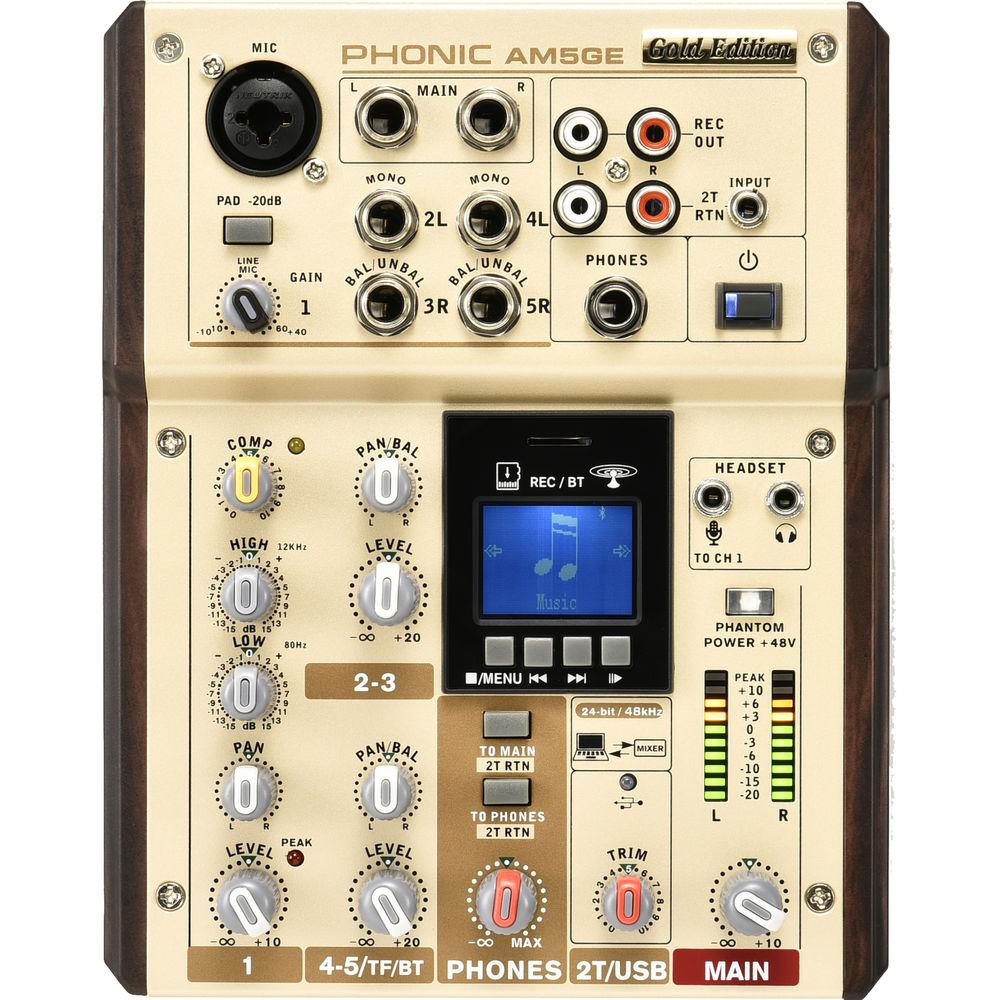

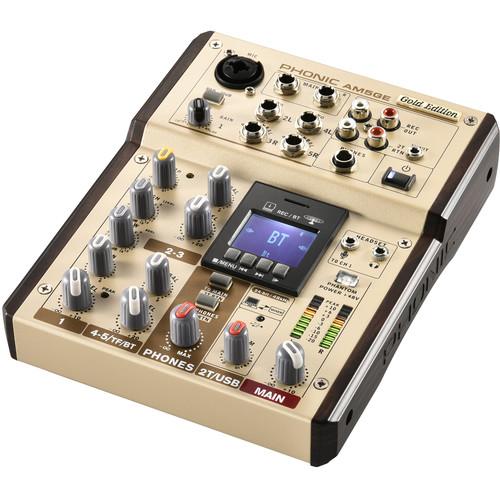

User Manual for Phonic AM5GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface Click to enlarge the picture
Contents of the user manual for the Phonic AM5GE - AM Gold Edition
- Product category: Analog Recording Mixers Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Analog Recording Mixers
|
User manual for the Phonic AM5GE - AM Gold Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|
Product description Building upon the classic AM-Series mixers, the updated Phonic AM5GE Gold Edition is a 5-input, 3-channel mixer equipped with forward thinking features such as Bluetooth wireless streaming, a stereo USB audio interface, and an integrated TF recorder. The mixer is well-suited for podcasters, live streaming, web conferencing, project studios, and live sound reinforcement. All channels feature a pan control and a rotary level control. Channel 1 provides a single combo XLR-1/4" input with a 2-band EQ, a single knob compressor, and +48V phantom power for utilizing a condenser microphone, while channels 2/3 and 4/5 offer stereo 1/4" inputs. Additionally, channels 4/5 double as the 2.4 GHz Bluetooth and TF recorder playback channel. The stereo USB audio interface can send 24-bit / 48 kHz audio to and from any Windows or Mac computer, allows for professional-quality recordings, plus a user-assignable "loopback" return signal for monitoring or music playback. The ultra-low-noise microphone preamp ensures high-quality sound in project studios or in sound reinforcement applications. The master section offers dual 10-segment LED level meters and main L/R rotary level control. The mixer also makes monitoring the mix easy with its EFX to monitor control and high-volume headphone output. The Phonic AM5GE Gold Edition ships with a power adapter and a USB-C power cable. -
- One balanced mic/line Neutrik combo input with compressor and 2-band EQ
- Two stereo input channels with balance and level controls
- Stereo USB audio interface for Windows and Mac computers (24-bit, 48 kHz)
- Playback of MP3, WAV, and FLAC files from TransFlash (TF) media
- Internal TransFlash module for high-quality stereo recording in WAV or MP3 formats
- 2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
- +48V phantom power for mic input
- Peak and VU metering (10 segments)
- Peak indicators on mono input channel
- 2T RTN assignable individually to Main or Headphones
- Stereo RCA 2T Return input connectors plus 3.5mm stereo connectors
- Balanced master output with main rotary control
In the Box Phonic AM5GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface Power Adapter USB-C Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM5GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic AM5GE Specs Inputs | Total Channels: 5 Balanced Mono Mic/Line Channel: 1 x Combo XLR-1/4" / 6.3 mm Balanced Stereo Line Channels: 2 x Stereo 1/4" / 6.3 mm 2-Track Return: Stereo RCA and 1/8" / 3.5 mm TRS Headset/Microphone: 1/8" / 3.5 mm TRS + 1/8" / 3.5 mm TS | Output | Main L/R Stereo: 2 x 1/4" / 6.3 mm TRS Rec Out: Stereo RCA Phones: 1/4" / 6.3 mm | Channel Strips | 3 | Balance Control | Pan / Balance Control: Yes | Level Controls | Channel: 3 x Rotary Phones: 1 x Rotary Main L/R: 1 x Rotary | Built-in USB Interface | Stereo In/Out | Connector Type | USB Type-B | Supported Bit/Sample Rates | 24-Bit / 48 kHz | Return | USB Return Button: Main / Phones | Recording | TF Card Recording: WAV / MP3 | Recording Bit Rate | MP3: 32, 64, 128, 192 kb/s WAV: 512, 768, 1024, 1536 kb/s | Bluetooth | 2.4 GHz | Metering | 2 x 10 LED | Phantom Power | +48 VDC | Frequency Response | 20 Hz to 60 kHz (+0/-1 dB) 20 Hz to 100 kHz (+0/-3 dB) | Crosstalk | < -90 dB (Channel Fader Down, Other Channels at Unity) (1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs) | Noise | Master: -86.5 dBu (at Unity, Channel Fader Down) Master: -84 dBu (at Unity, Channel Fader at Unity) (20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu) | Signal-to-Noise Ratio (SNR) | > 90 dB (Reference to +4) | EIN | < -129.5 dBm (150 Ohms Terminated, Max Gain) | THD | < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs) | CMRR | 80 dB (1 kHz at -60 dBu, Gain at Max) | Maximum Level (Input) | Mic Preamp: +10 dBu All Other: +22 dBu | Maximum Level (Output) | Balanced Output: +28 dBu | Impedance | Mic Preamp: 2 kOhms All Other Inputs: 10 kOhms RCA 2T Output: 1.1 kOhms | Equalization | 2-Band, ±15 dB (Mono Only) Low: 80 Hz Hi: 12 kHz | Compressor | Single Knob: Adjusts Ratio and Threshold (Mono Only) | Dimensions (W × H × D) | 6.1 x 2.0 x 8.8" / 155.4 x 50.5 x 224.0 mm | Weight | 2.4 lb / 1.1 kg | | Package Weight | 3.185 lb | Box Dimensions (LxWxH) | 17.7 x 9.4 x 3.2" |
