User Manual for Phonic AM6GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface Click to enlarge the picture
Contents of the user manual for the Phonic AM6GE - AM Gold Edition
- Product category: Analog Recording Mixers Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Analog Recording Mixers
|
User manual for the Phonic AM6GE - AM Gold Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|

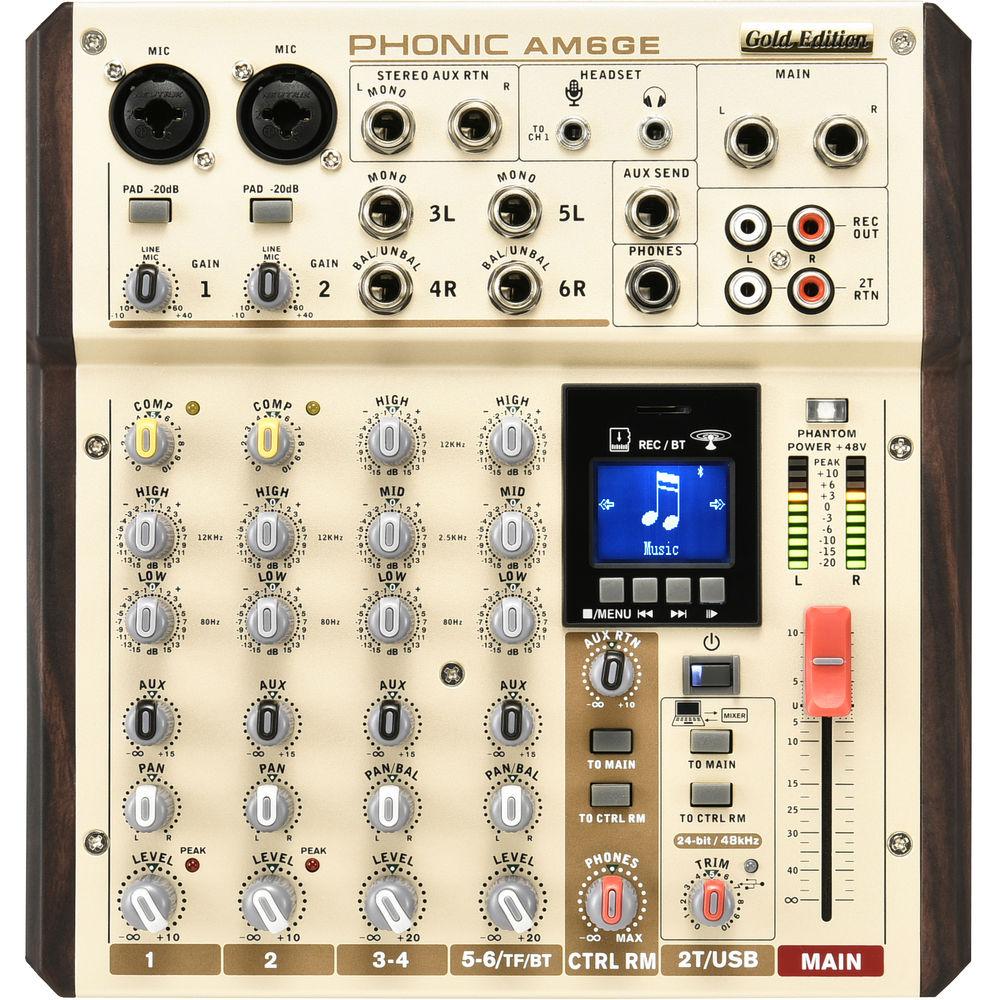

Product description Building upon the classic AM-Series mixers, the updated Phonic AM6GE Gold Edition is a 6-input, 4-channel mixer equipped with forward thinking features such as Bluetooth wireless streaming, a stereo USB audio interface, and an integrated TF recorder. The mixer is well-suited for podcasters, live streaming, web conferencing, project studios, and live sound reinforcement. All channels feature a pan control, a rotary level control, and an auxiliary send with a dedicated stereo return. Channels 1/2 provide combo XLR-1/4" inputs, each with a -20 dB pad, a gain trim, a 2-band EQ, a single knob compressor, and global +48V phantom power for utilizing condenser microphones, while channels 3/4 and 5/6 offer stereo 1/4" inputs, each with a 3-band EQ. Additionally, channels 5/6 double as the 2.4 GHz Bluetooth and TF recorder playback channel. The stereo USB audio interface can send 24-bit / 48 kHz audio to and from any Windows or Mac computer, allows for professional-quality recordings, plus a user-assignable "loopback" return signal for monitoring or music playback. The ultra-low-noise microphone preamps ensure high-quality sound for project studios or in sound reinforcement applications. The master section offers dual 10-segment LED level meters and main L/R fader control. The mixer also makes monitoring the mix easy with its EFX to monitor control and high-volume headphone output. The Phonic AM6GE Gold Edition ships with a power adapter and a USB-C power cable. -
- Two balanced mic/line Neutrik combo inputs with 2-band EQ and variable compressor
- Two stereo inputs with 3-band EQs
- Stereo USB audio interface for Windows and Mac computers (24-bit, 48 kHz)
- Playback of MP3, WAV, and FLAC files from TransFlash (TF) media
- Internal TransFlash module for high-quality stereo recording in WAV or MP3 formats
- 2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
- One stereo Aux return
- Post-fader Aux send on every input
- Global +48V phantom power for microphone inputs
- Peak and VU metering (10-segment)
- Peak indicators on both mono input channels
- 2T RTN assignable individually to Main or Control room
- Balanced master output with 60mm fader control
- Headset mic and headphone connectors for livestreaming and web conferencing

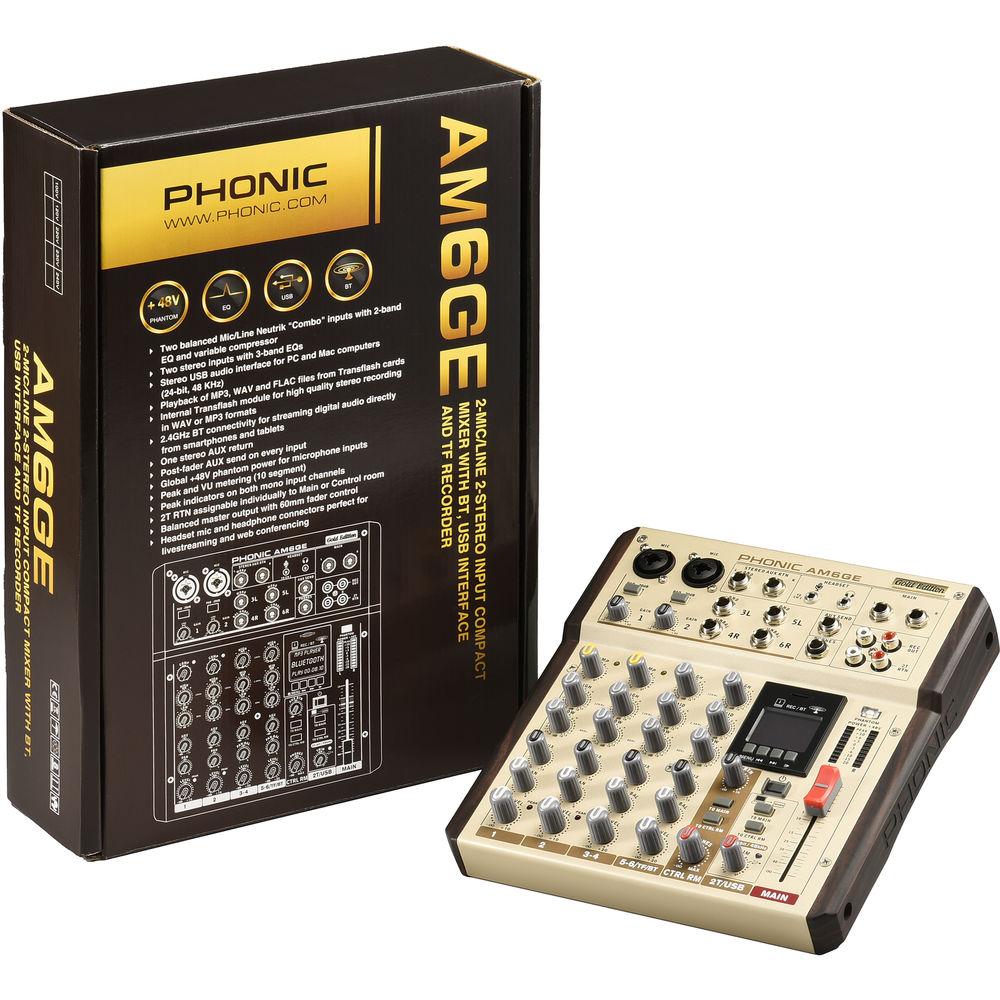

In the Box Phonic AM6GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface Power Adapter USB-C Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM6GE - AM Gold Edition Compact Mixer with Bluetooth, TF Recorder, and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

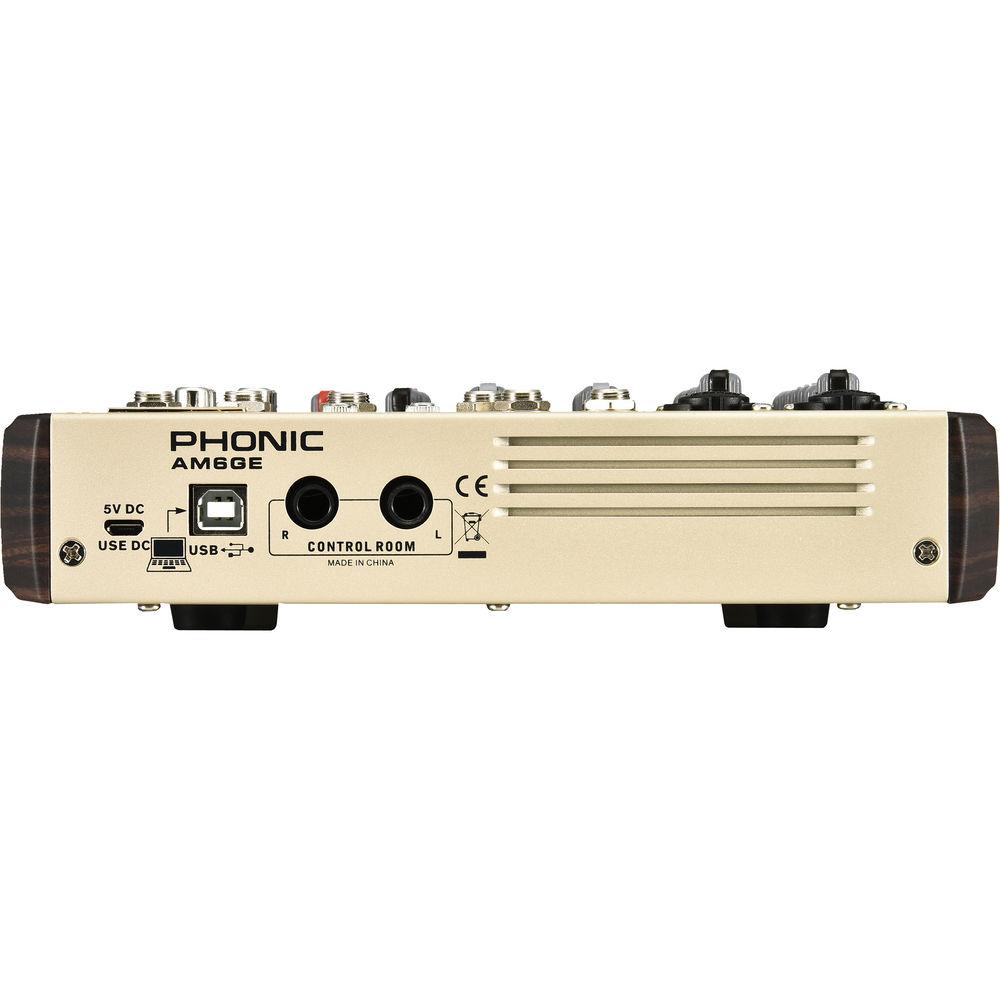

Technical parametersPhonic AM6GE Specs Inputs | Total Channels: 6 Balanced Mono Mic/Line Channels: 2 x Combo XLR-1/4" / 6.35 mm Balanced Stereo Line Channels: 2 x Stereo 1/4" / 6.35 mm 2-Track Return: Stereo RCA and 1/8" / 3.5 mm TRS Aux Return: 2 x 1/4" / 6.35 mm Headset/Microphone: 1/8" / 3.5 mm TRS + 1/8" / 3.5 mm TS | Output | Main L/R Stereo: 2 x 1/4" / 6.35 mm TRS Aux Send: 1 x 1/4" / 6.35 mm Rec Out: Stereo RCA Control Room (L/R): 2 x 1/4" / 6.35 mm Phones: 1/4" / 6.35 mm | Channel Strips | 4 | AUX Sends | 1 | Balance Control | Pan / Balance Control: Yes | Level Controls | Channel: 4 x Rotary Control Room / Phones: 1 x Rotary 2T/USB: 1 x Rotary Main L/R: 1 x 2.4" / 60.0 mm | Built-in USB Interface | Stereo In/Out | Connector Type | USB Type-B | Supported Bit/Sample Rates | 24-Bit / 48 kHz | Return | USB Return Button: Main / Control Room | Recording | TF Card Recording: WAV / MP3 | Recording Bit Rate | MP3: 32, 64, 128, 192 kb/s WAV: 512, 768, 1024, 1536 kb/s | Bluetooth | 2.4 GHz | Metering | 2 x 10 LED | Phantom Power | +48 VDC | Frequency Response | 20 Hz to 60 kHz (+0/-1 dB) 20 Hz to 100 kHz (+0/-3 dB) | Crosstalk | < -90 dB (Channel Fader Down, Other Channels at Unity) (1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs) | Noise | Master: -86.5 dBu (at Unity, Channel Fader Down) Master: -84 dBu (at Unity, Channel Fader at Unity) (20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu) | Signal-to-Noise Ratio (SNR) | > 90 dB (Reference to +4) | EIN | < -129.5 dBm (150 Ohms Terminated, Max Gain) | THD | < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs) | CMRR | 80 dB (1 kHz at -60 dBu, Gain at Max) | Maximum Level (Input) | Mic Preamp: +10 dBu All Other: +22 dBu | Maximum Level (Output) | Balanced Output: +28 dBu | Impedance | Mic Preamp: 2 kOhms All Other Inputs: 10 kOhms RCA 2T Output: 1.1 kOhms | Equalization | 2-Band, ±15 dB (Mono) Low: 80 Hz Hi: 12 kHz
3-Band, ±15 dB (Stereo) Low: 80 Hz Mid: 2.5 kHz Hi: 12 kHz | Compressor | Single Knob: Adjusts Ratio and Threshold (Mono Only) | Power | 5 to 20 VDC (USB) | Dimensions (W × H × D) | 7.5 x 2.2 x 9.2" / 190.0 x 55.9 x 232.9 mm | Weight | 3.3 lb / 1.5 kg | | Package Weight | 4.75 lb | Box Dimensions (LxWxH) | 15.1 x 10.55 x 3.65" |
