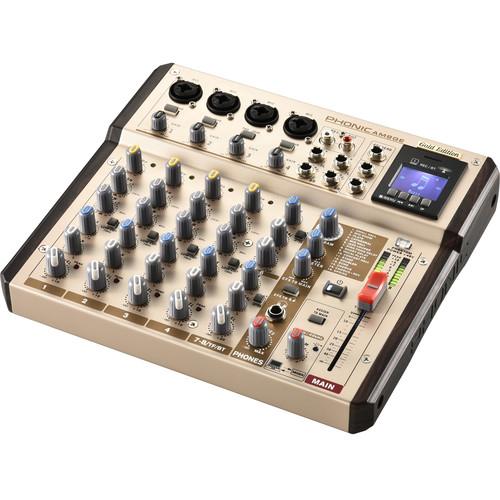

Product description Building upon the classic AM-Series mixers, the updated Phonic AM8GE Gold Edition is an 8-input, 6-channel mixer equipped with forward thinking features such as digital effects, Bluetooth wireless streaming, a stereo USB audio interface, and an integrated TF recorder. The mixer is well-suited for podcasters, web conferencing, project studios, and live sound reinforcement.

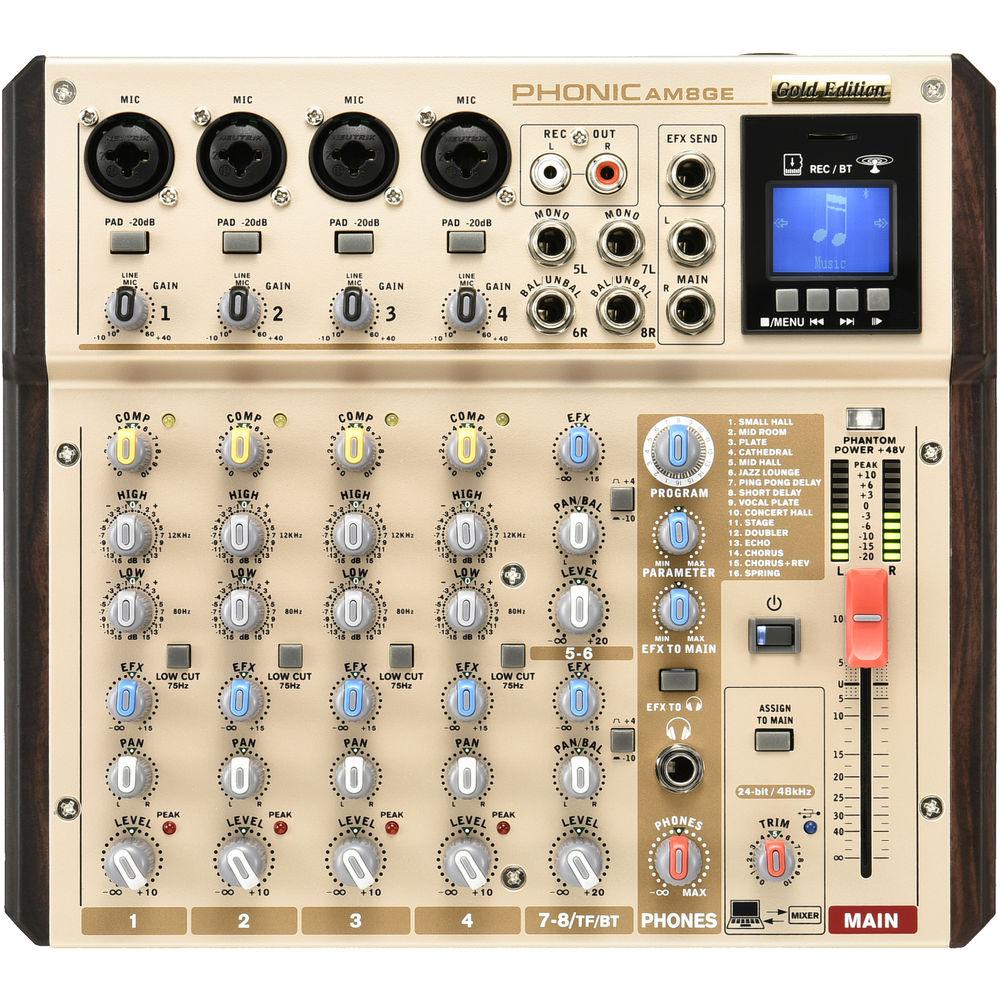

All channels feature a pan control, a rotary level control, and an EFX send to the on-board FX processor. Channels 1-4 provide combo XLR-1/4" inputs, each with a -20 dB pad, a gain trim, a 2-band EQ, a single knob compressor, and global +48V phantom power for utilizing condenser microphones, while channels 5/6 and 7/8 offer stereo 1/4" inputs with a +4/-10 switch for interfacing with a variety of signals. Additionally, channels 7/8 double as the 2.4 GHz Bluetooth and TF recorder playback channel. The stereo USB audio interface can send 24-bit / 48 kHz audio to and from any Windows or Mac computer, allows for professional-quality recordings, plus a user-assignable "loopback" return signal for monitoring or music playback.
The ultra-low-noise microphone preamps ensure high-quality sound for project studios or in sound reinforcement applications. The master section offers dual 10-segment LED level meters and main L/R fader control. The mixer also makes monitoring the mix easy with its EFX to monitor control and high-volume headphone output. The Phonic AM8GE Gold Edition ships with a power adapter.. -
- Four mono mic/line Neutrik combo channels with user-adjustable compressors
- Two stereo channels with EFX, balance, and level controls
- Stereo USB audio interface for Windows and Mac computers (24-bit, 48 kHz)
- Playback of MP3, WAV, and FLAC files from TransFlash (TF) media
- Internal TransFlash (TF) module for recording stereo audio in WAV or MP3 formats
- 2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
- 32/40-bit digital effect processor with 16 effect programs and one main parameter control
- EFX send control available on each channel
- 75 Hz low-cut filter and 2-band EQ on each mono channel
- Peak and VU metering (10-segment)
- +48V phantom power for microphone inputs
- Phones source matrix for maximum monitor flexibility
- EFX/Aux send cue for monitoring individual channel
- Balanced main outputs with 60mm fader

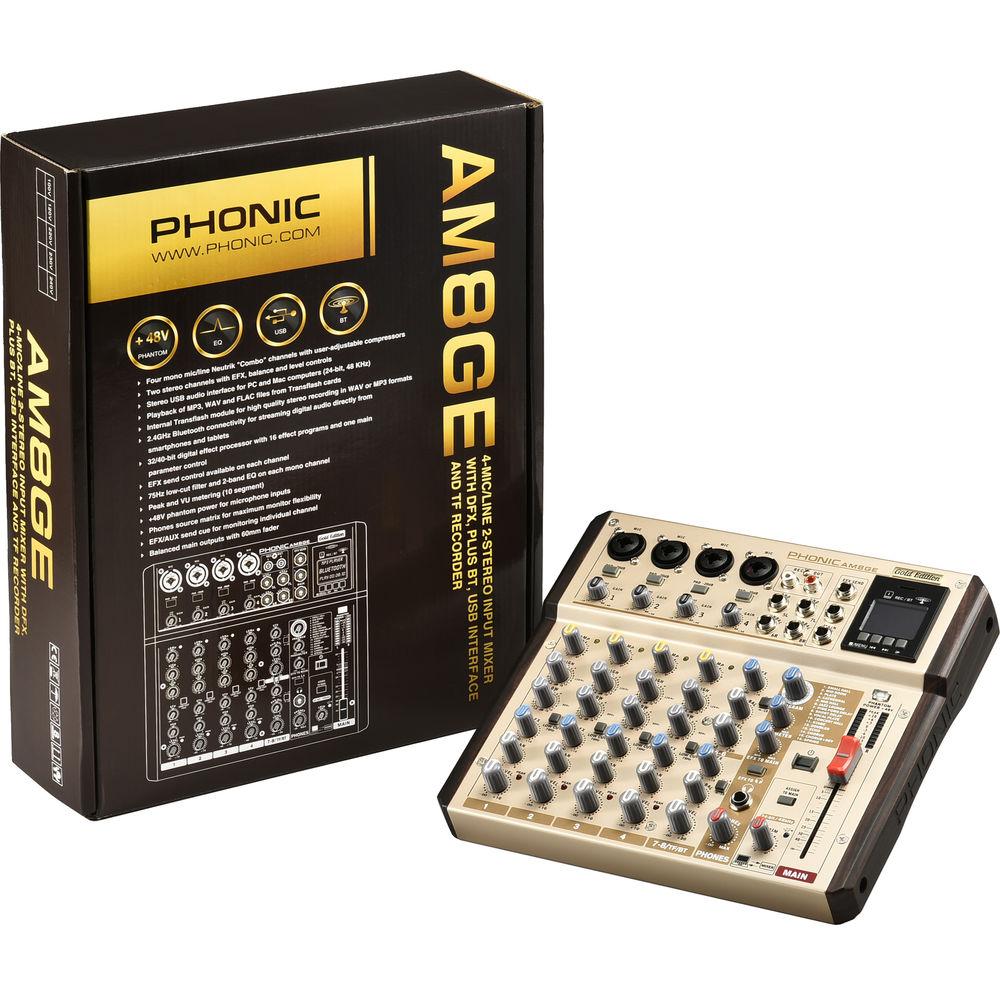

In the Box Phonic AM8GE - AM Gold Edition Compact Mixer with DFX, Bluetooth, TF Recorder, and USB Interface Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic AM8GE - AM Gold Edition Compact Mixer with DFX, Bluetooth, TF Recorder, and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

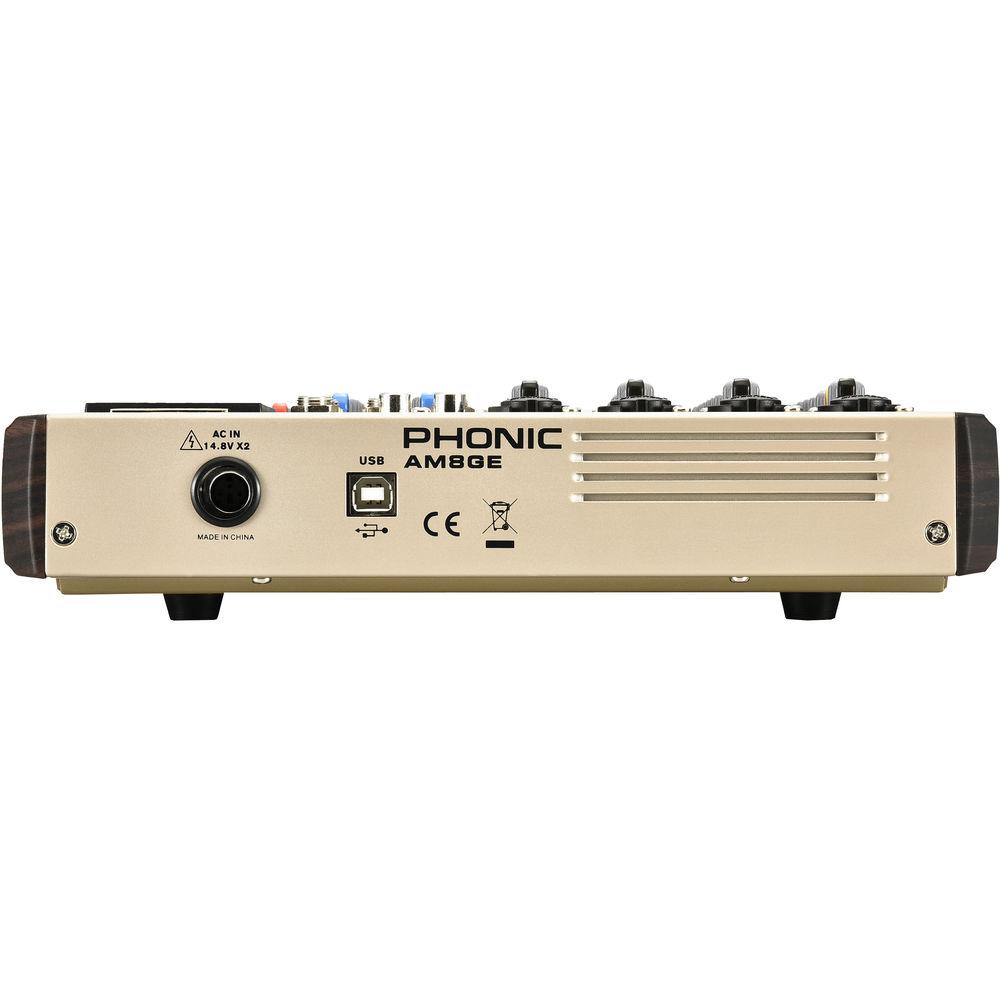

Technical parametersPhonic AM8GE Specs | Inputs | Total Channels: 8
Balanced Mono Mic/Line Channels: 4 x Combo XLR-1/4" / 6.35 mm
Balanced Stereo Line Channels: 2 x Stereo 1/4" / 6.35 mm | | Output | Main L/R Stereo: 2 x 1/4" / 6.35 mm TRS
Aux/EFX Send: 1 x 1/4" / 6.35 mm TS
Rec Out: Stereo RCA
Control Room (L/R): 2 x 1/4" / 6.35 TS mm
Phones: 1/4" / 6.35 mm | | Channel Strips | 6 | | AUX Sends | 1 | | Balance Control | Pan / Balance Control: Yes | | Level Controls | Channel: 6 x Rotary
Phones: 1 x Rotary
2T/USB: 1 x Rotary
Main L/R: 1 x 2.4" / 60.0 mm | | Built-in USB Interface | Stereo In/Out | | Connector Type | USB Type-B | | Supported Bit/Sample Rates | 24-Bit / 48 kHz | | Return | USB Return Button: Main | | Recording | TF Card Recording: WAV / MP3 | | Recording Bit Rate | MP3: 32, 64, 128, 192 kb/s
WAV: 512, 768, 1024, 1536 kb/s | | Bluetooth | 2.4 GHz | | Metering | 2 x 10 LED | | Phantom Power | +48 VDC | | Frequency Response | 20 Hz to 60 kHz (+0/-1 dB)
20 Hz to 100 kHz (+0/-3 dB) | | Crosstalk | < -90 dB (Channel Fader Down, Other Channels at Unity)
(1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs) | | Noise | Master: -86.5 dBu (at Unity, Channel Fader Down)
Master: -84 dBu (at Unity, Channel Fader at Unity)
(20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu) | | Signal-to-Noise Ratio (SNR) | > 90 dB (Reference to +4) | | EIN | < -129.5 dBm (150 Ohms Terminated, Max Gain) | | THD | < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs) | | CMRR | 80 dB (1 kHz at -60 dBu, Gain at Max) | | Maximum Level (Input) | Mic Preamp: +10 dBu
All Other: +21 dBu | | Maximum Level (Output) | Balanced Output: +28 dBu | | Impedance | Mic Preamp: 2 kOhms
All Other Inputs: 10 kOhms
RCA 2T Output: 1.1 kOhms | | Equalization | 2-Band, ±15 dB (Mono)
Low: 80 Hz
Hi: 12 kHz | | Low Cut Filters | 75 Hz (-18 dB/oct) | | Internal Digital Effects | 32/40-Bit Digital Effect Processor: 16 EFX | | Compressor | Single Knob: Adjusts Ratio and Threshold (Mono Only) | | Power | Power Supply: 100 to 120 VAC, 60 Hz
Input: 14.8 VAC | | Dimensions (W × H × D) | 9.5 x 2.2 x 9.0" / 241.3 x 55.9 x 228.3 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 6.585 lb | | Box Dimensions (LxWxH) | 15.15 x 11.85 x 3.7" |
