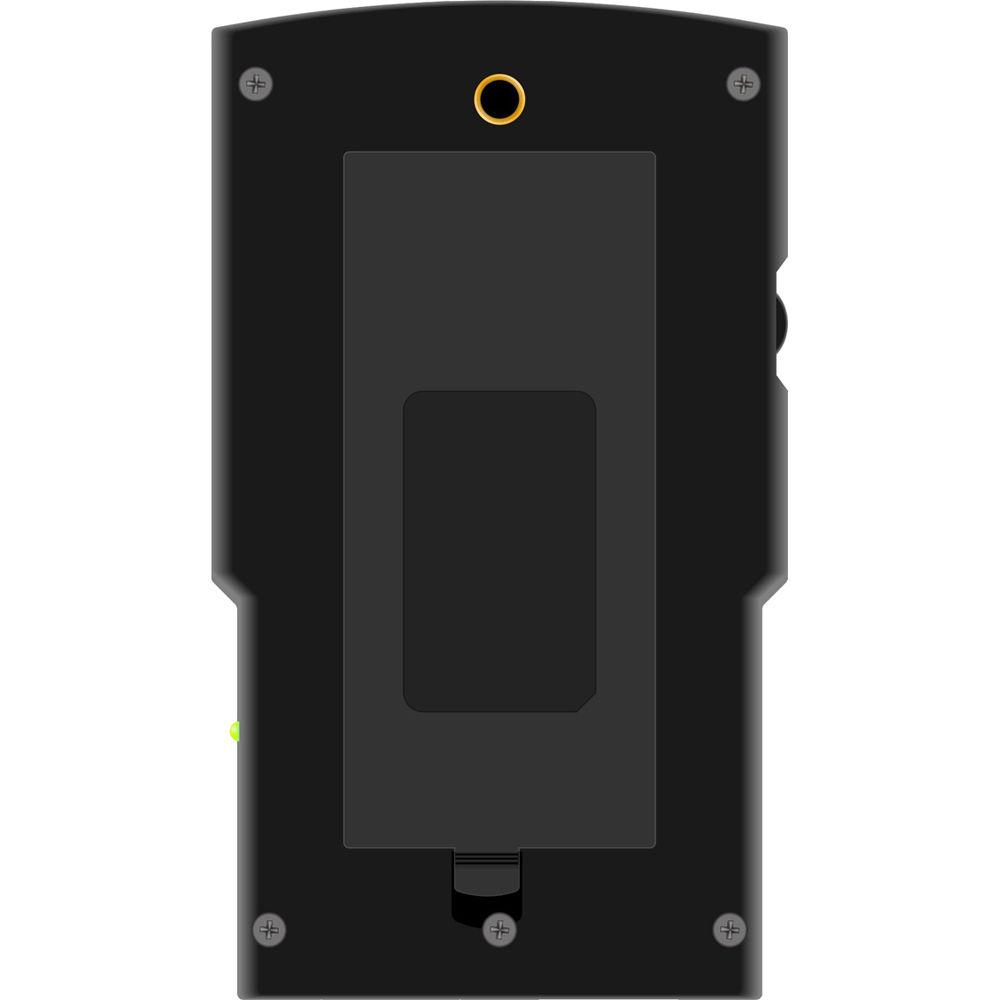

User Manual for Phonic PAA3X Handheld Professional Audio Analyzer with USB Click to enlarge the picture
Contents of the user manual for the Phonic PAA3X Handheld Professional Audio Analyzer
- Product category: Metering Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Metering
 |
User manual for the Phonic PAA3X Handheld Professional Audio Analyzer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|

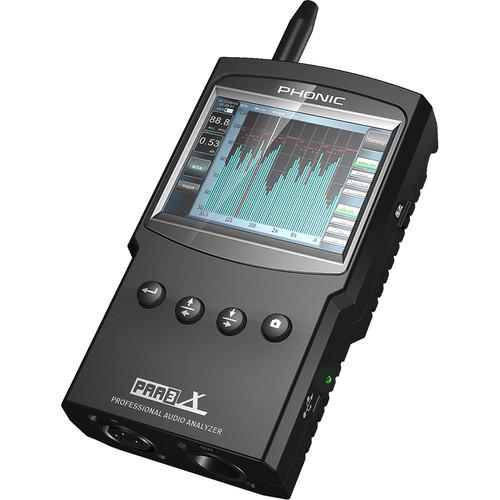

Product description 6 Irreplaceable Audio Tools Read More The PAA3X Handheld Audio Analyzer from Phonic provides an array of sound analysis tools and features a 31-band and 61-band real-time spectrum analysis, RT60, SPL & line meter, internal generator, EQ setting program, microphone calibration, and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. It allows you to upload information and settings to your computer via the built-in USB interface. -
- 31-band and 61-band real-time spectrum analyzer and EQ setting value display (Boost/Cut)
- Polarity checker
- Signal generator with pink noise, sin wave and polarity test signal, balanced output
- Memory and average calculation function
- SPL meter calibration through sound level calibrator
- Sound pressure level meter from -30 to 130 dB
- Line signal measurement display in dBu, dBV, or volts (AC)
- SPL meter and level meter have three level range selections
- Maximum level, peak hold displays
- XLR input and output sockets

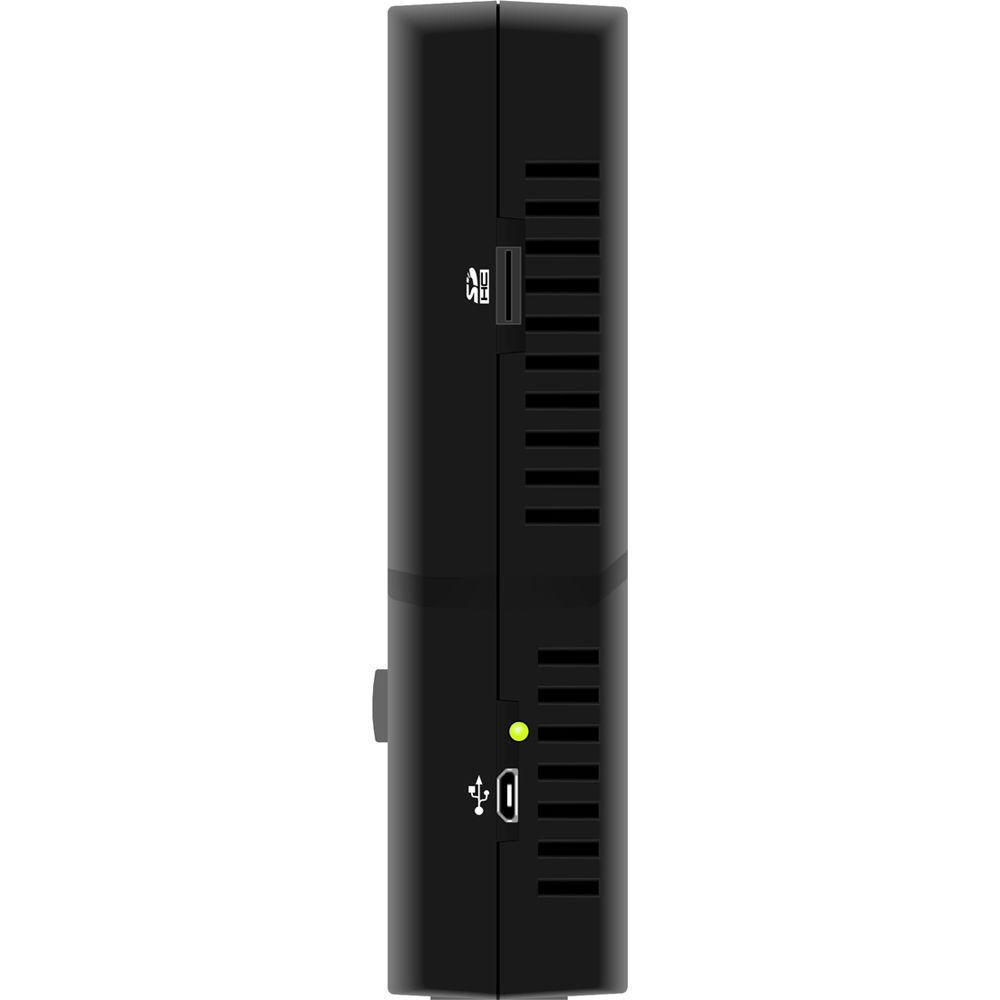

- Micro USB port
- Rechargeable lithium battery
- AC power adapter included
Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic PAA3X Handheld Professional Audio Analyzer with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic PAA3X Specs | Microphone | Detachable miniature omnidirectional condenser microphone | | Line | XLR jacks for line input and output | | Data Port | Micro USB | | Display | 320 x 240 RGB LCD | | Voltage | Bar graph and digit display | | RTA | 31 and 61 band, 0.5 dB resolution center frequencies ISO standard from 20 Hz to 20 KHz | | Measurement Range | SPL (Microphone Input): 30 to 130 dB SPL
dBu (Line Input): -50 to +40 dBu
dBV (Line Input): -52 to +38 dBV
Voltage (Line Input): 5 mV to 80 V | | Weighing units | A, C, or Flat | | Display | Maximum Level Display: RESET | | Response Time | 35, 125, 250 ms, 1 sec | | Functions | Reverberation time display, up to 30 seconds | | Memory | Internal memory/Micro SD storage device | | Equalizer | Display: 31-band/61-band | | Polarity | Checker: Through polarity signal | | Transmission | Simultaneous operation with PC or laptop through USB port | | Noise Generator | Based on 6 VDC Power Source:
Pink Noise: Balanced output
Sin Signal: Balanced output
Polarity Signal: Balanced output | | Power Source | Rechargeable lithium battery | | Dimensions (H x W x D) | 6.1 x 3.5 x 1.5" (16 x 9.0 x 3.8 cm) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.6 x 9.2 x 3.6" |
