User Manual for Phonic PAA6 - Digital 2-Channel Audio Analyzer with Color Touch LCD Click to enlarge the picture
Contents of the user manual for the Phonic PAA6 - Digital 2-Channel Audio
- Product category: Metering Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Metering
 |
User manual for the Phonic PAA6 - Digital 2-Channel Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|

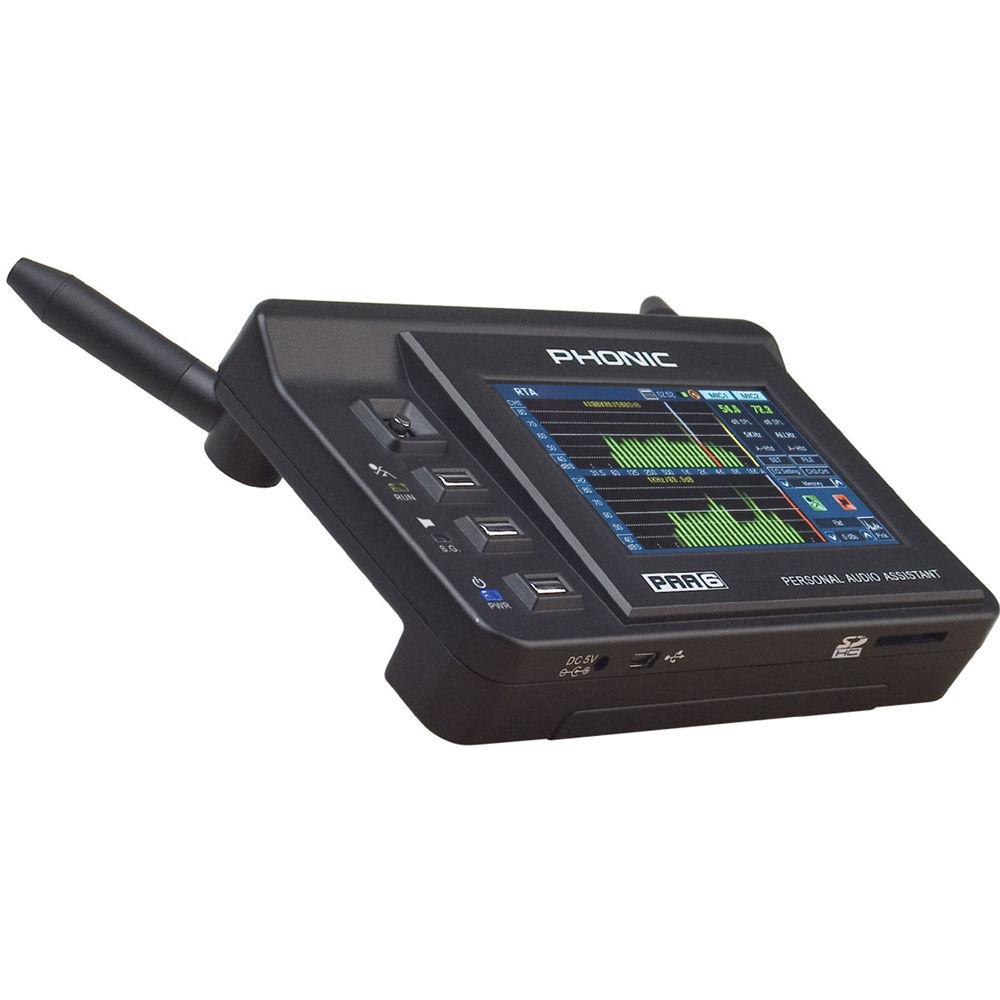

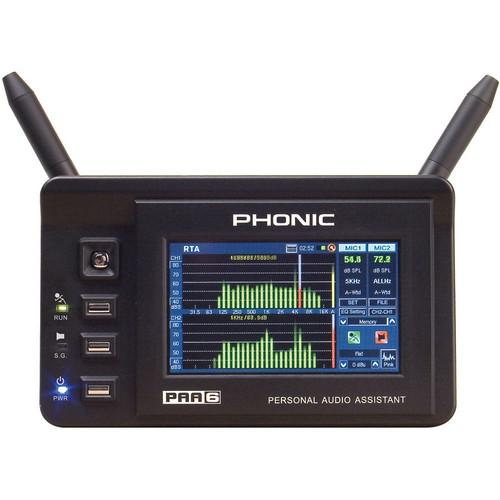

Product description 6 Irreplaceable Audio Tools Read More wtyzrusbxywbeuve The PAA6 from Phonic is a 2-channel digital handheld audio analyzer that features a 480 x 272 color touch-screen display. The elegant graphical user interface allows all functions and menus to be easily accessed. Functions include a real time spectrum analyzer, RT60 measurement, tone generator, LEQ, EQ setting and phase checking. Also available are SLM, FFT, THD+N measurement, and scope functions. The 2 built-in condenser microphones take highly accurate measurements in any given situation. A USB connector and SD card slot have been included to assist in transferring information to and from a computer. This feature-rich, portable audio tester will satisfy the needs of professional audio engineers, regulatory enforcement agencies, and product development teams. - Powerful dual-channel, palm-size audio analyzer
- 480 x 272 color LCD touch screen
- 2 built-in highly accurate, omni directional condenser microphones
- Functions include RTA, LEQ, RT-60, FFT, THD+N, Polarity, Phase, Scope and Meter (dB SPL, dBu, dBV and Volt)
- Tone generator includes pink noise, white noise, sine wave, sweep, polarity, triangle and square
- Elegant graphical user interface
- Long-lasting rechargeable lithium-ion battery system (up to 3 hours usage from full charge)
- USB port and SD card slot included for storing and retrieving data
In the Box Phonic PAA6 - Digital 2-Channel Audio Analyzer with Color Touch LCD External Power Supply Power Adapter/Charger USB Cable Leather Case 3/8" and 5/8" Microphone Stand Adaptors One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic PAA6 - Digital 2-Channel Audio Analyzer with Color Touch LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

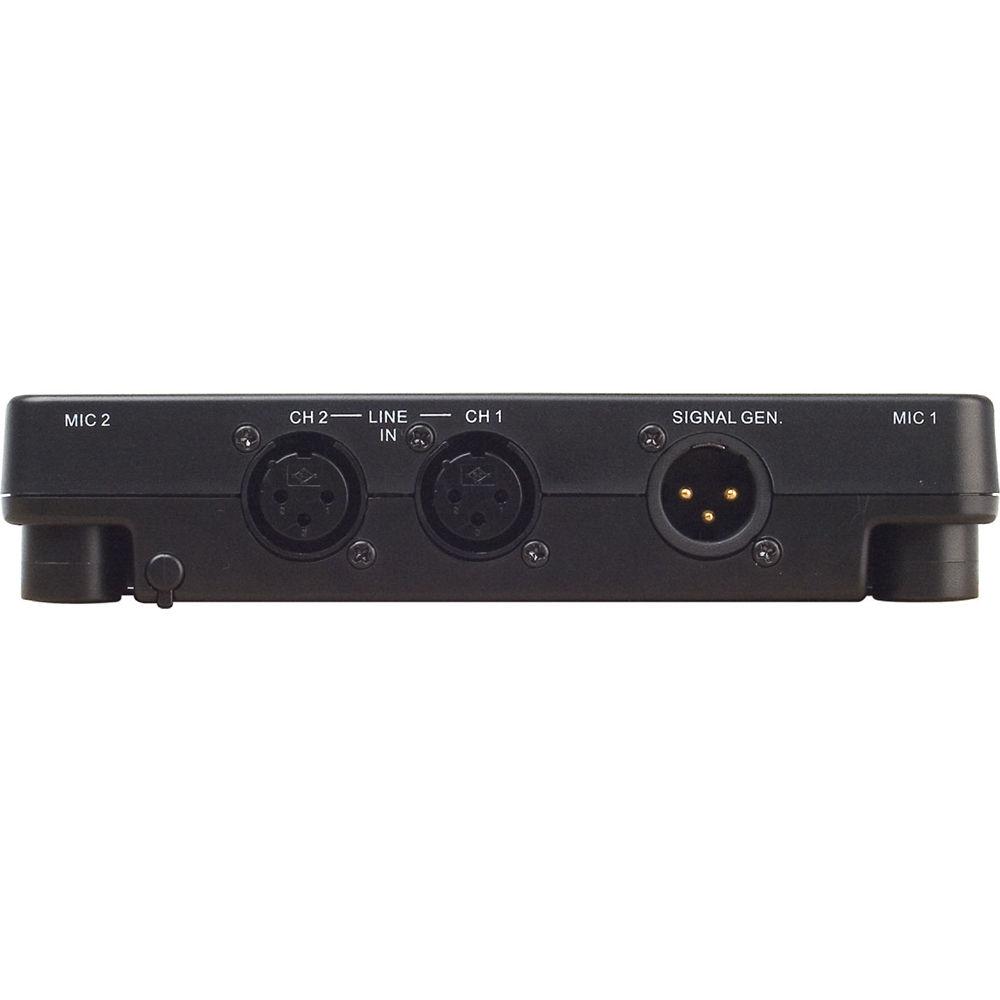

Technical parametersPhonic PAA6 Specs | Line In | 2 x XLR | | Line Output | 1 x XLR Signal Generator | | Storage | 1 x SD Card Slot
USB 2.0 Port (for connecting to a computer) | | Input Impedance | 100kΩ balanced, 50kΩ unbalanced | | THD + N | Less than 0.05%, 20Hz to 20kHz (+4dBu) | | Display | 480 x 272, 16-bit full color touch screen | | Power Requirements | 5VDC via external power supply, center post positive
Internal rechargeable battery (3 hour charging time) | | Dimensions (WxDxH) | 7 x 4.2 x 1.6" (175 x 106 x 40mm) | | Weight | 1 lb (0.5kg) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 3.5" |
