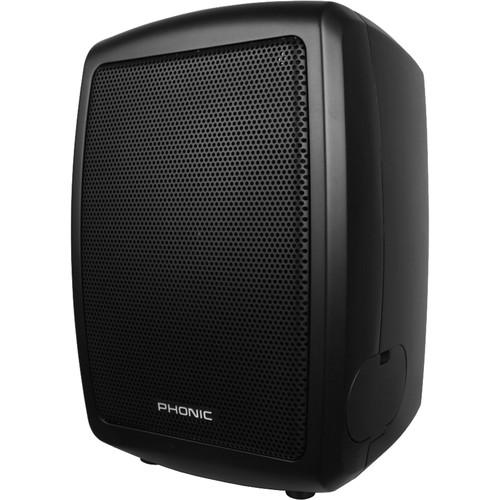

User Manual for Phonic Safari 2000 200W Mobile PA System with Bluetooth Click to enlarge the picture
Contents of the user manual for the Phonic Safari 2000 200W Mobile PA
- Product category: Portable PA Systems Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Portable PA Systems
|
User manual for the Phonic Safari 2000 200W Mobile PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More awsfsdqexycxrrwxrbtzsvaadwdbtu The Phonic Safari 2000 is an all-in-one, battery-powered PA system designed to provide reliable live sound reinforcement for musicians, teachers, and public speakers on the go. Its dual Class-D amplifiers are matched with an 8" woofer and a 1" tweeter to deliver up to 200W of peak power and reach crowds over 300 people. The Safari 2000 is equipped with a 2-channel mixer that has an XLR/TRS combo balanced mic/line input for microphones and instruments. Aux inputs include one RCA mono line input and one 1/4" TS line input to connect a portable CD player, iPod, or other MP3 players. The built-in Bluetooth receiver allows you to stream music from your smartphone, tablet, or any Bluetooth-enabled device. Other features include an EQ control and an echo/reverb effect. If extended sound coverage is needed, a powered 1/4" jack lets you connect up to two passive companion speakers. Lightweight (at 21 lb) the Safari 2000 is equipped with a thick, molded polymer enclosure, internal bracing, and rounded corners to help withstand the rigors of the road. The included universal DC adapter powers the unit and recharges the replaceable battery. A proprietary power supply and battery management system ensure up to 10 hours of operation on a full charge. Three expansion slots enable you to add functionality to your system with an optional CD/USB or USBR-1 player and recorder, and up to two wireless microphones. - Key Features
-
- Dual Class-D amplifiers offer 100W RMS/200W peak power to reach crowds of over 300 people
- 8'' woofer and 1'' tweeter
- Flat frequency response from 50 Hz to 18 kHz
- 2-channel onboard mixer with one XLR/TRS mic/line input, one RCA line input, and one 1/4" TS line input
- Bluetooth wireless audio streaming from smartphones and tablets
- Replaceable, rechargeable battery provides 8 to 10 hours of operation on a full charge
- Includes universal DC adapter
- LED battery status indicator
- Proprietary power supply and battery protection circuitry provides reliability, efficiency and protects batteries during storage
- EQ control and echo/reverb effects
- Voice-priority—music-ducking feature automatically detects signals from the microphone input and reduces volume from line inputs as necessary
- Powered 1/4" jack for adding up to two passive companion speakers
- Thick, molded polymer enclosure, internal bracing, and rounded corners help withstand the rigors of the road
- Integrated microphone storage compartment
- Three expansion slots for optional CD/USB and USBR-1 players and recorders, and WM-1S, WL-1S, and WH-1S wireless handheld, lavalier, and headset systems (all available separately)
In the Box Phonic Safari 2000 200W Mobile PA System with Bluetooth DC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic Safari 2000 200W Mobile PA System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic Safari 2000 Specs | Amplifiers | 2 x Class-D amplifiers 200 W, peak 100 W, RMS | Woofer | 8" / 25.4 cm | Tweeter | 1" / 2.54 cm | Frequency Response | 50 Hz to 18 kHz | Equalizer | Rotary EQ control | Effects | Echo / reverb | Inputs | 1 x combo XLR/TRS, balanced mic/line input 1 x RCA, line input 1 x 1/4" / 6.35 mm TS, unbalanced line input | Output Connector | 1 x RCA, line output 1 x 1/4" / 6.35 mm TS, powered output for expansion speakers up to 8 Ohms | Bluetooth | 2.4 GHz | Crossover | Precision-tuned crossover | Ducking | Ducking/voice priority, with on/off switch | Power Supply | 90-265 VAC, universal, switching | Rechargeable Battery | Lead-acid, 12 V, 7.2 Ah, replaceable Operation Time: 8 to 10 hours Battery protection switch Battery Indicator: Power / Charge / Battery Full LEDs | Storage Compartment | Internal mic storage compartment | Body Material | Polymer Internal bracing system | Grille | 0.05" / 1.3 mm, powder-coated steel | Dimensions (H x W x D) | 16.3 x 10 x 9.6" / 413 x 255 x 245 mm | Weight | 21 lb / 9.5 kg |
