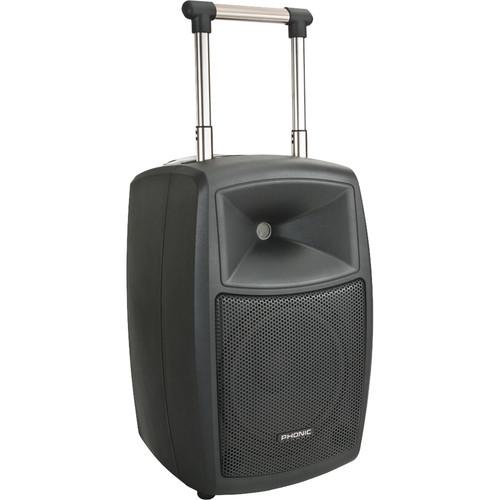

User Manual for Phonic Safari 3000 320W Portable PA System with Bluetooth Click to enlarge the picture
Contents of the user manual for the Phonic Safari 3000 320W Portable PA
- Product category: Portable PA Systems Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Portable PA Systems
|
User manual for the Phonic Safari 3000 320W Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More awsfsdqexycxrrwxrbtzsvaadwdbtu The Phonic Safari 3000 is an all-in-one, battery-powered PA system designed to provide reliable live sound reinforcement for musicians, teachers, and public speakers on the go. Its dual Class-D amplifiers are matched with a 10'' long-throw woofer and a 1'' pure titanium compression tweeter to deliver up to 320W of peak power and reach crowds over 1500 people.Lightweight (at 35 lb) and optimized for portability, the Safari 3000 features a retractable metal handle, metal hub wheels, and a microphone storage compartment. Its thick, molded polymer enclosure, internal bracings, and rounded corners help withstand the rigors of the road.The Safari 3000 is equipped with a 3-channel mixer that has two XLR/TRS combo balanced mic/line inputs for microphones and instruments. Aux inputs include one RCA mono line input and one 1/8" stereo line input. The built-in Bluetooth receiver allows you to stream music from your smartphone, tablet, or any Bluetooth-enabled device. Other features include a tone control and an echo/reverb effect. If extended sound coverage is needed, a powered speakON jack lets you connect up to two passive companion speakers.Two installed, rechargeable batteries provide up to 10 hours of operation on a full charge and the quick-recharge circuitry lets you recharge in less than 8 hours. Three expansion slots enable you to add functionality to your system with an optional CD/USB or USBR-1 player and recorder, and up to two wireless microphones. - Key Features
-
- Dual Class-D amplifiers offer 160W RMS/320W peak power
- Maximum SPL of 115 dB to reach crowds of over 1500 people
- 10'' long-throw woofer and 1'' pure titanium compression tweeter
- Flat frequency response from 50 Hz to 18 kHz
- 3-channel onboard mixer with two XLR/TRS mic/line inputs, one RCA line input, and one 1/8" stereo line input
- Bluetooth wireless audio streaming from smartphones and tablets
- Two replaceable, rechargeable batteries installed
- 7 to 10 hours of operation on a full charge
- 4-segment battery status indicator
- Proprietary power supply and battery protection circuitry provides reliability, efficiency and protects batteries during storage
- Tone control and echo/reverb effects
- Voice-priority, music-ducking feature
- Powered speakON jack for adding up to two passive companion speakers
- Retractable metal handle and wheels for improved portability
- Thick, molded polymer enclosure, internal bracing, and rounded corners help withstand the rigors of the road
- Integrated microphone storage compartment
- Three expansion slots for optional CD/USB and USBR-1 players and recorders, and WM-1S, WL-1S, and WH-1S wireless handheld, lavalier, and headset systems (all available separately)
In the Box Phonic Safari 3000 320W Portable PA System with Bluetooth AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic Safari 3000 320W Portable PA System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic Safari 3000 Specs | | | Amplifiers | 2 x Class-D amplifiers
320 W, peak
160 W, RMS
<0.1% THD | | Woofer | 10" / 25.4 cm, paper/fiber composite | | Tweeter | 1" / 2.54 cm, pure titanium compression horn | | Frequency Response | 50 Hz to 18 kHz | | SPL | 115 dB, maximum | | Equalizer | Tone | | Effects | Echo / reverb | | Inputs | 2 x combo XLR/TRS, mic/line inputs
1 x RCA, line input
1 x 1/8" / 3.5 mm, stereo line input | | Output Connector | 1 x RCA, line output
1 x speakON powered output for expansion speakers up to 8 Ohms | | Bluetooth | 2.4 GHz | | Crossover | Precision-tuned crossover | | Ducking | Ducking/voice priority, with on/off switch | | Power Supply | 90-265 VAC, universal, switching | | Rechargeable Battery | 2 x lead-acid, 12 V, 5 Ah, replaceable
Operation Time: 7 to 10 hours
Charge Time: Less than 8 hours
Battery protection switch
Indicator: 4-segment LED | | Storage Compartment | Internal mic storage compartment | | Wheels | Metal hub wheels | | Body Material | Impact-resistant polymer
Internal bracing system | | Grille | 0.05" / 1.3 mm, powder-coated steel | | Dimensions (H x W x D) | 21.8 x 13.8 x 13.1" / 553 x 350 x 333 mm | | Weight | 35 lb / 16 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
