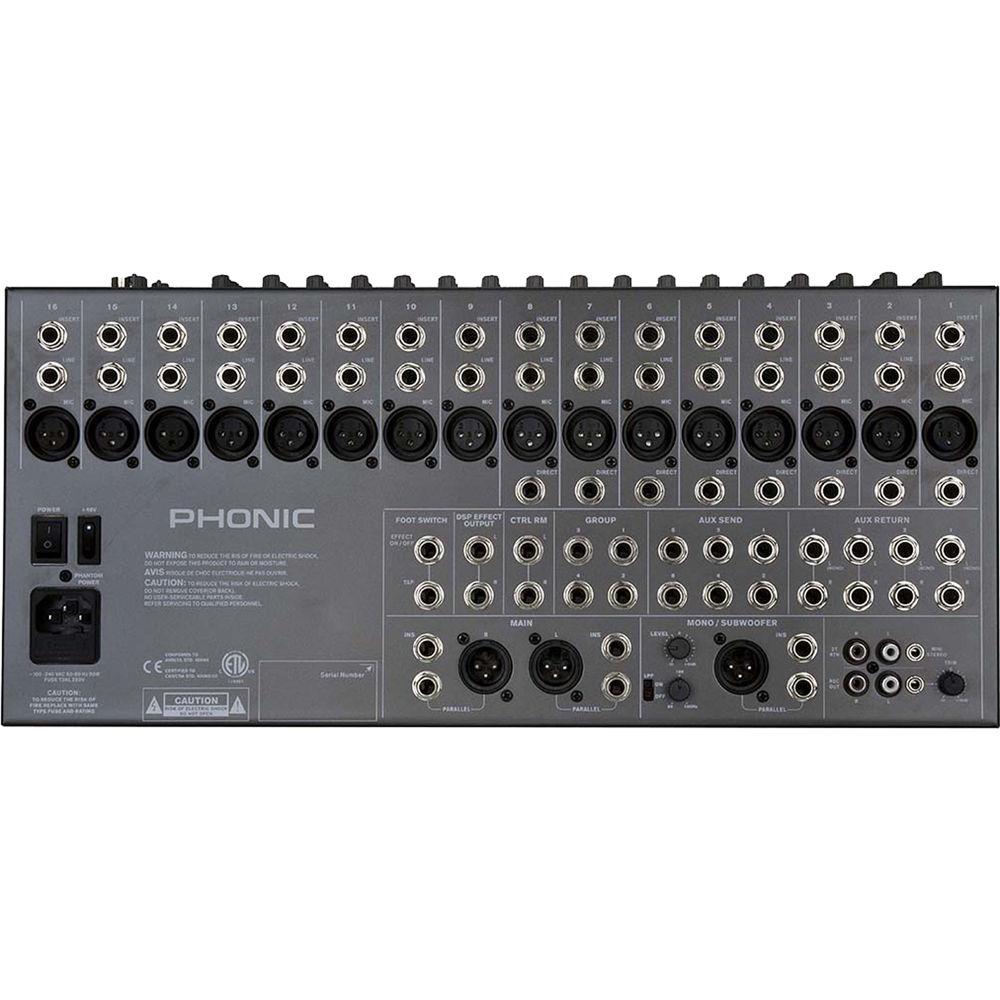

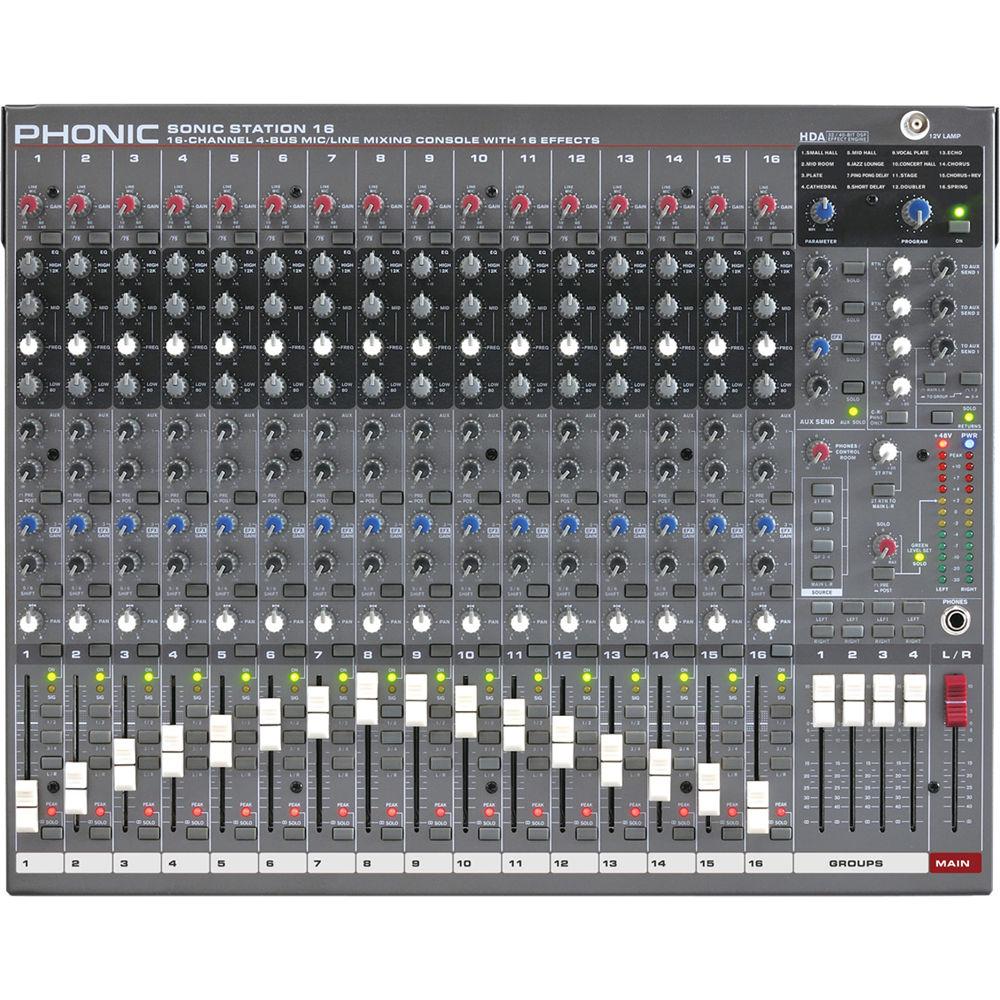

User Manual for Phonic Sonic Station 16 Recording Mixer with Dual-Position I O Pod & DFX Click to enlarge the picture
Contents of the user manual for the Phonic Sonic Station 16 Recording Mixer
- Product category: Analog Recording Mixers Phonic
- Brand: Phonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phonic Analog Recording Mixers
 |
User manual for the Phonic Sonic Station 16 Recording Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phonic product will considerably shorten its lifespan!
|
Product description The Sonic Station 16 Recording Mixer with Dual-Position I/O Pod & DFX from Phonic features 16 channels, each with a microphone preamp and balanced line input. The 3-band EQ with swept mid, insert points for connection to external processors, six aux send mixing bus (two aux sends with pre/post buttons), and eight direct outputs for multitrack recording, allow users flexibility with mix control and signal routing. Each channel has an aux 5/6 shift button, expanding the number of outputs available.
The mixer features a dual-position input/output pod that lets you use it as a desktop mixer or reconfigure it for rack mounting. The I/O pod rotates out of the way to save space in your rack. The built-in 32/40-bit digital effect processor has 16 programs, a single main parameter control, foot switch on/off control, and tap tempo delay. In order to avoid "sub" sonic noise in your microphones, hit the low cut filter to get rid of the P-pops, stage rumble, and wind noise. With a subwoofer output, four true subgroups, and global phantom power, this mixer is suitable for live events and studio mixing. - Audiophile-quality & ultra-low noise
- 16 mic/line channels with inserts and phantom power
- Four true subgroups with main L and R routing switches
- Direct outputs for multitrack recording
- 3-band EQ with swept mid-range plus low cut on each mono channel
- 18 dB/oct, 75 Hz low cut filter on each channel
- Four aux send mixing bus, aux 1 & 2 with Pre/Post switch
- 32/40-bit digital stereo multi-effect processor with 16 programs plus one main parameter control and foot switch input for on/off
- Four stereo aux returns, three with effect to monitor
- Control room and phones outputs with multi-input source matrix
- Mono output with variable LPF from 60 to 160 Hz for subwoofer
- Record output with trim control for recording level matching
- Handy mini-stereo I/O for MD, MP3 player/recorder
- Built-in switching power supply with universal connector
- Rotatable connecting panel for saving rack space
In the Box Phonic Sonic Station 16 Recording Mixer with Dual-Position I/O Pod & DFX Rack-Mounting Kit AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phonic Sonic Station 16 Recording Mixer with Dual-Position I O Pod & DFX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhonic Sonic Station 16 Specs | Inputs | 16 x XLR balanced microphone inputs
16 x 1/4" TRS/TS line inputs
16 x microphone preamps
4 x 1/4" TRS stereo aux returns
1 x stereo mini 2T input
1 x stereo RCA 2T input Footswitch input: Turns effects on/off | | Outputs | 2 x 1/4" TRS balanced main L/R stereo
2 x XLR main L/R stereo
2 x 1/4" TRS main output inserts
1 x 1/4" TRS balanced main mono
1 x XLR main mono
1 x main mono output insert
8 x direct outputs
1 x mini-stereo rec output with trim control
1 x stereo RCA with trim control 2 x 1/4" TS control room L/R
1 x Phones | | Channel | 16 x channel strips
6 x Aux sends (four with volume controls)
16 x channel pan/balance control
Channel Routing Switches: Group 1/2, 3/4, Main L/R
Indicators: On, signal, peak/solo
Volume Controls: 2.4" / 60 mm fader | | Master Section | 4 x aux send masters
4 x master aux send solo
4 x stereo aux returns
1 x aux return assign to subgroup
3 x effects return to monitor
Global PRE/POST solo mode
4 x subgroup faders
1 x main L/R fader | | Metering | 2 x channel
12 x meter segments | | Phantom Power | 48 VDC | | Switches | Master | | Processor | Effect Processor (32/40-bit DSP engine): 16 effects with one main parameter control and foot switch (effect on/off) | | Frequency Response | 20 Hz to 60 kHz: +0/-1 dB
20 Hz to 100 kHz: +0/-3 dB | | Crosstalk | Channel fader down, other channels at unity: <-90 dB | | Signal-to-Noise Ratio | Master at unity, channel fader down: -86.5 dBu
Master at unity, channel fader at unity: -84 dBu S/N Ratio, ref to 4: >90 dB | | E.I.N. Microphone Preamplifier | <-129.5 dBm (150 Ohms terminated, max gain) | | Total Harmonic Distortion (THD) | <0.005% (Any output, 1 kHz @ 14 dBu, 20 Hz to 20 kHz, channel inputs) | | CMMR | 80 dB (1 kHz @ -60 dBu, gain at maximum) | | Maximum Level | Microphone Preamp Input: 10 dBu
All Other Inputs: 22 dBu
Unbalanced Output: 22 dBu
Balanced Output: 28 dBu | | Impedance | Mic Preamp Input: 2 kOhms
All Other Inputs (except insert): 10 kOhms
RCA 2T Output: 1.1 kOhms
Outputs: 200 Ohms | | Equalization | 3-band, ±15 dB
Low EQ: 80 Hz
Mid EQ: 100 Hz to 8 kHz, sweepable
Hi EQ: 12 kHz
Low Cut Filter: 75 Hz (-18 dB/oct) | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions | 17.5 x 8.3 x 17.0" / 44.5 x 21.2 x 43.2 cm | | Weight | 20.9 lb / 9.5 kg |
