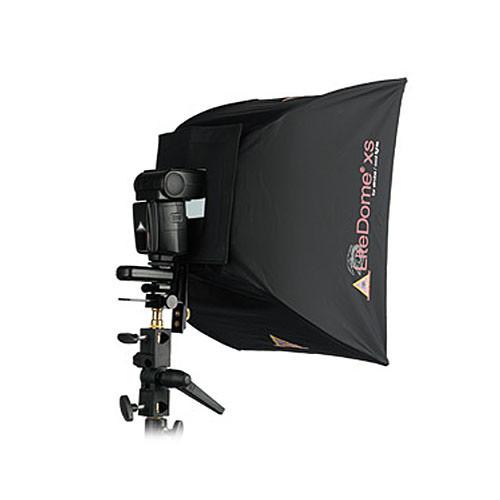

Photoflex Extra Small LiteDome with StarFire

User Manual for Photoflex Extra Small LiteDome with StarFire Kit

• Product category: Softboxes Photoflex
• Brand: Photoflex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photoflex Softboxes

Product description

• Extra Small LiteDome (12 x 16 x 9") The Extra Small LiteDome from Photoflex gives you big results in a very small package. Although the size of the face is only 12 x 16", its surface is 32 times greater than the face of a typical shoe mount flash, and that results in a dramatic improvement in skin texture softening. The Extra Small LiteDome is lightweight and portable, giving you studio-quality lighting wherever you need it. it comes with a basic connector that is ready to accept optional accessories to support a speedlight, however studio strobes require separate purchase of a speedring for use.
  • Lightweight, versatile and portable
  • Creates soft, diffused light on your subject
  • Mounts to camera bracket or light stand. Comes with a basic connector
  • Carry Bag included for easy storage and transport
• Multiclamp with Shoe Mount This is a Photoflex Multiclamp with Shoe Mount is a versatile bracket that will fit on almost any light stand. It includes two removable, reversible studs to adapt to light stands with top studs smaller than the standard 5/8 inch. It also includes a shoe mount, which will accept virtually any shoe-mount flash unit.NOTE: The flash shoe included with this product is only intended for use with flashes that have a knurled locking ring. For flashes that use a lever or other method of locking, it is necessary to buy an accessory flash shoe to replace the unit included with the clamp. The Stroboframe accessory shoe, catalog #300405, is recommended. Note: This item only works with flashes that have a knurled locking ring. For other flashes, replace the standard shoe with Stroboframe's accessory shoe - code VECS
  • Bracket tilts and swivels to make aiming the light or flash easy.
  • Has locking umbrella socket.
  UPC: 799245000868
• Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes The Photoflex Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes accepts most shoe-mount flashes. It connects to a Photoflex, or Chimera Speed Ring, and allows use of that flash with a 12x16" softbox.
  • The Photoflex Extra Small LiteDome comes with a universal speed ring. This adapter connects to that, or any other Speed Ring.
  • Height of your flash is easily adjusted, and locked into place in the optimum position.
  UPC: 799245000059
• StarFire Digital Flash The StarFire Digital Flash from Photoflex is a portable, affordable shoe mount flash with a guide number of 114', 3 different flash modes, and the ability to vary power in 1/7-stop increments. At full power, the StarFire recycles in approximately 4 seconds and it runs on 4 easily-available AA batteries. The head has a vertical rotation of -7° to +90° and a horizontal rotation of 0° to 270°. The flash duration varies from 1/800 to 1/20000 second. A built-in slave makes it ideal for off-camera use as well as on-camera purposes.
  • Guide number 114' (at 35mm focal length, ISO 100)
  • 3 Flash modes: M, S1 (Slave 1), S2 (Slave 2)
  • Flash power control: Light level output control with 1/7-stop increments
  • Circuit design: Insulated Gate Bipolar Transistor (IGBT)
  • Vertical rotation angle: -7 to 90 degrees
  • Horizontal rotation angle : 0 to 270 degrees
  • Power: 4 x AA size batteries (Alkaline or Ni-MH not included)
  • Battery life: up to 1500 flashes (AA alkaline cell used not included)
  • Recycle time: approximately 4 seconds (AA alkaline cell used; Note: recycle times will vary based on battery used)
  • Color temperature: 5600 Kelvin
  • Flash duration: 1/800 - 1/20000 second

• Speed Ring for X-Small LiteDome

• Limited 6-Year Warranty

• Reversible male stud with 1/4-20 and 3/8 in screw thread

• Reversible female stud with 1/4-20 and 3/8 in female thread

• Shoe mount

• 5 Year Manufacturer's Warranty

• Connector with 2 Shoe Mounts

• 5 Year Manufacturer's Warranty

• Flash Stand

• Velvet Storage Bag

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Extra Small LiteDome (12 x 16 x 9")

  Shape	Rectangular
  Interior	White
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	No
  Removable Front Face	No
  Removable Interior Baffle	No
  Rectangular Dimensions	W: 12.0 x H: 16.0 x D: 9.0" / W: 30.0 x H: 41.0 x D: 23.0 cm
  Weight	1.0 lb / 0.45 kg

  Box Dimensions (LxWxH)	15.55 x 6.6 x 2.6"

• Multiclamp with Shoe Mount

  Weight

  0.7 lb (317g)

  Box Dimensions (LxWxH)	8.4 x 5.75 x 2.95"

• Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes

  Box Dimensions (LxWxH)	8.65 x 7.5 x 1.1"

• StarFire Digital Flash

  Mount	Shoe
  Guide No.	124.67' / 38 m ISO 100 at 35 mm Position
  Exposure Control	Manual
  Bounce Head	-7 to +90°
  Swivel Head	270°
  Coverage	18 - 35 mm (Full Frame)
  Zoom Head	None
  Recycle Time	Approximately 4 to 5 Seconds
  Flash Duration	1/800 to 1/20000 sec
  Flash-Ready Indicator	Yes
  Slave Timing Modes	Instant Sync Skip Preflash
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.8 x 5.3 x 3.3" / 72.0 x 135.0 x 85.0 mm
  Weight	8.81 oz / 249.76 g

  Box Dimensions (LxWxH)	7.6 x 3.9 x 3.2"
