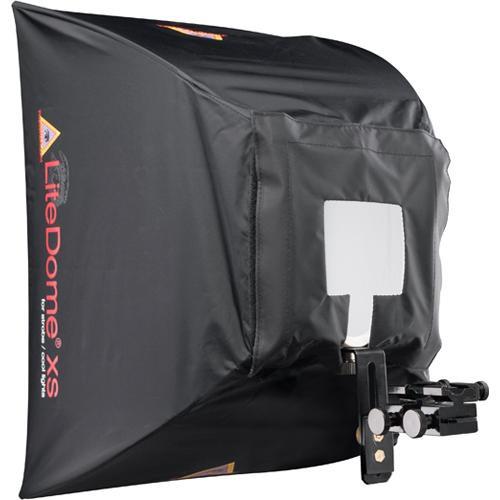

User Manual for Photoflex LiteDome Kit 1 For Shoe Mount Flashes Click to enlarge the picture
Contents of the user manual for the Photoflex LiteDome Kit 1 For Shoe
- Product category: Softboxes Photoflex
- Brand: Photoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photoflex Softboxes
|
User manual for the Photoflex LiteDome Kit 1 For Shoe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photoflex product will considerably shorten its lifespan!
|
Product description This is a Photoflex X-Small LiteDome Kit 1. It is lightweight and portable. The included mounting hardware enables use of the 12 x 16" softbox with most shoe-mount flashes (except Sony-Minolta flashes). Add the optional Shoe Mount Multiclamp (AC-BSWCP) to provide tilt capability when using this kit with your light stand. - Extra Small LiteDome (12 x 16 x 9") The Extra Small LiteDome from Photoflex gives you big results in a very small package. Although the size of the face is only 12 x 16", its surface is 32 times greater than the face of a typical shoe mount flash, and that results in a dramatic improvement in skin texture softening. The Extra Small LiteDome is lightweight and portable, giving you studio-quality lighting wherever you need it. it comes with a basic connector that is ready to accept optional accessories to support a speedlight, however studio strobes require separate purchase of a speedring for use.
-
- Lightweight, versatile and portable
- Creates soft, diffused light on your subject
- Mounts to camera bracket or light stand. Comes with a basic connector
- Carry Bag included for easy storage and transport
- Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes The Photoflex Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes accepts most shoe-mount flashes. It connects to a Photoflex, or Chimera Speed Ring, and allows use of that flash with a 12x16" softbox.
- The Photoflex Extra Small LiteDome comes with a universal speed ring. This adapter connects to that, or any other Speed Ring.
- Height of your flash is easily adjusted, and locked into place in the optimum position.
UPC: 799245000059 - Multiclamp with Shoe Mount This is a Photoflex Multiclamp with Shoe Mount is a versatile bracket that will fit on almost any light stand. It includes two removable, reversible studs to adapt to light stands with top studs smaller than the standard 5/8 inch. It also includes a shoe mount, which will accept virtually any shoe-mount flash unit.NOTE: The flash shoe included with this product is only intended for use with flashes that have a knurled locking ring. For flashes that use a lever or other method of locking, it is necessary to buy an accessory flash shoe to replace the unit included with the clamp. The Stroboframe accessory shoe, catalog #300405, is recommended. Note: This item only works with flashes that have a knurled locking ring. For other flashes, replace the standard shoe with Stroboframe's accessory shoe - code VECS
- Bracket tilts and swivels to make aiming the light or flash easy.
- Has locking umbrella socket.
UPC: 799245000868 - Speed Ring for X-Small LiteDome The basic Photoflex Speed Ring comes included with every Extra-Small LiteDome. It gives a rectangular softbox is basic structure. Your softbox still requires a shoe-mount, handle-mount flash bracket, or dedicated insert to mount to a specific light.
- Standard 1/4"-20 threads in the frame allow mounting to your similarly equipped light stand top or grip equipment.
UPC: 799245000011 In the Box Bundle Items Extra Small LiteDome (12 x 16 x 9") vcbwxeufyrcwdcctatfbeczwyeycwseysq - Speed Ring for X-Small LiteDome
Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes vcbwxeufyrcwdcctatfbeczwyeycwseysq - Connector with 2 Shoe Mounts
- 5 Year Manufacturer's Warranty
Multiclamp with Shoe Mount - Reversible male stud with 1/4-20 and 3/8 in screw thread
- Reversible female stud with 1/4-20 and 3/8 in female thread
- 5 Year Manufacturer's Warranty
Speed Ring for X-Small LiteDome vcbwxeufyrcwdcctatfbeczwyeycwseysq - 5 Year Manufacturer's Warranty
User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photoflex LiteDome Kit 1 For Shoe Mount Flashes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Extra Small LiteDome (12 x 16 x 9")
| Shape | Rectangular | | Interior | White | | Requires Speed Ring | Yes, Not Included | | Accepts Grids | No | | Removable Front Face | No | | Removable Interior Baffle | No | | Rectangular Dimensions | W: 12.0 x H: 16.0 x D: 9.0" / W: 30.0 x H: 41.0 x D: 23.0 cm | | Weight | 1.0 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 15.55 x 6.6 x 2.6" | - Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes
| | | Box Dimensions (LxWxH) | 8.65 x 7.5 x 1.1" | - Multiclamp with Shoe Mount
| | | Box Dimensions (LxWxH) | 8.4 x 5.75 x 2.95" | - Speed Ring for X-Small LiteDome
| | | Box Dimensions (LxWxH) | 8.3 x 7.1 x 1.7" |
