User Manual for Photoflex LiteReach Plus Click to enlarge the picture
Contents of the user manual for the Photoflex LiteReach Plus
- Product category: Boom Equipment Photoflex
- Brand: Photoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photoflex Boom Equipment
 |
User manual for the Photoflex LiteReach Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photoflex product will considerably shorten its lifespan!
|

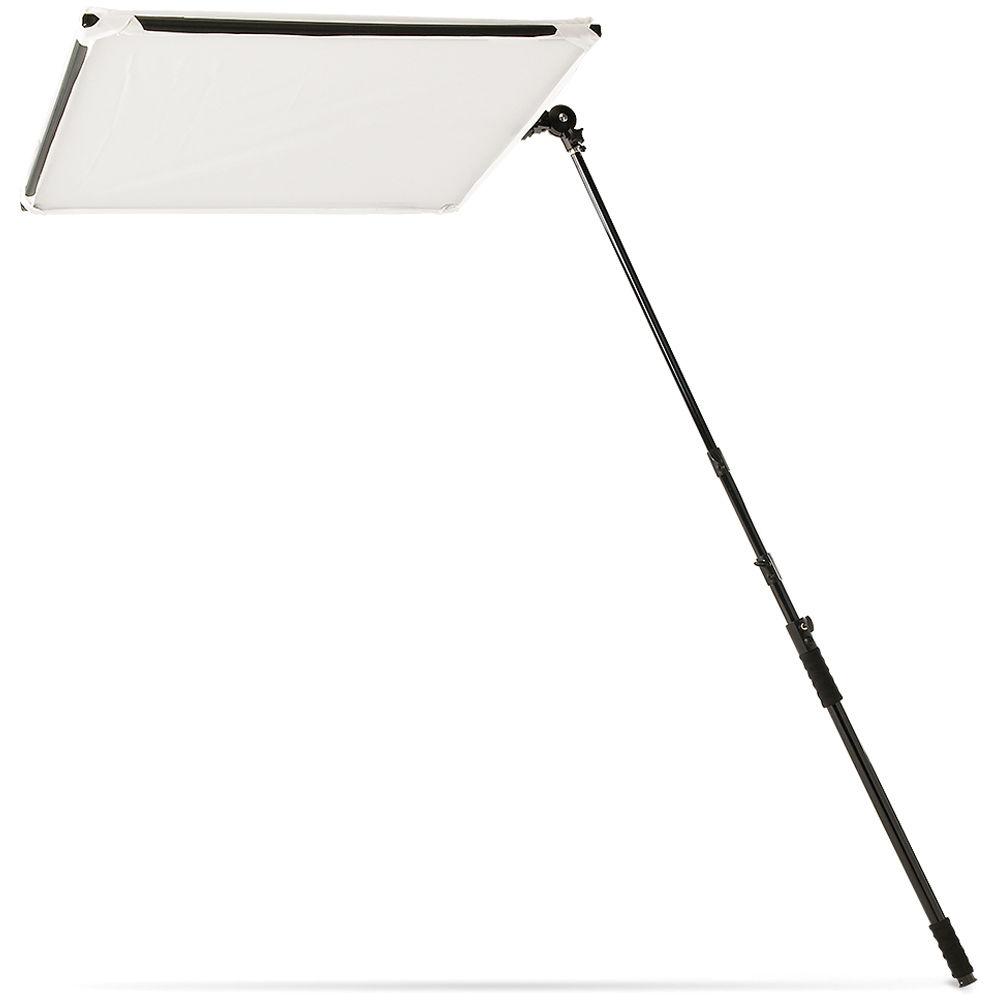

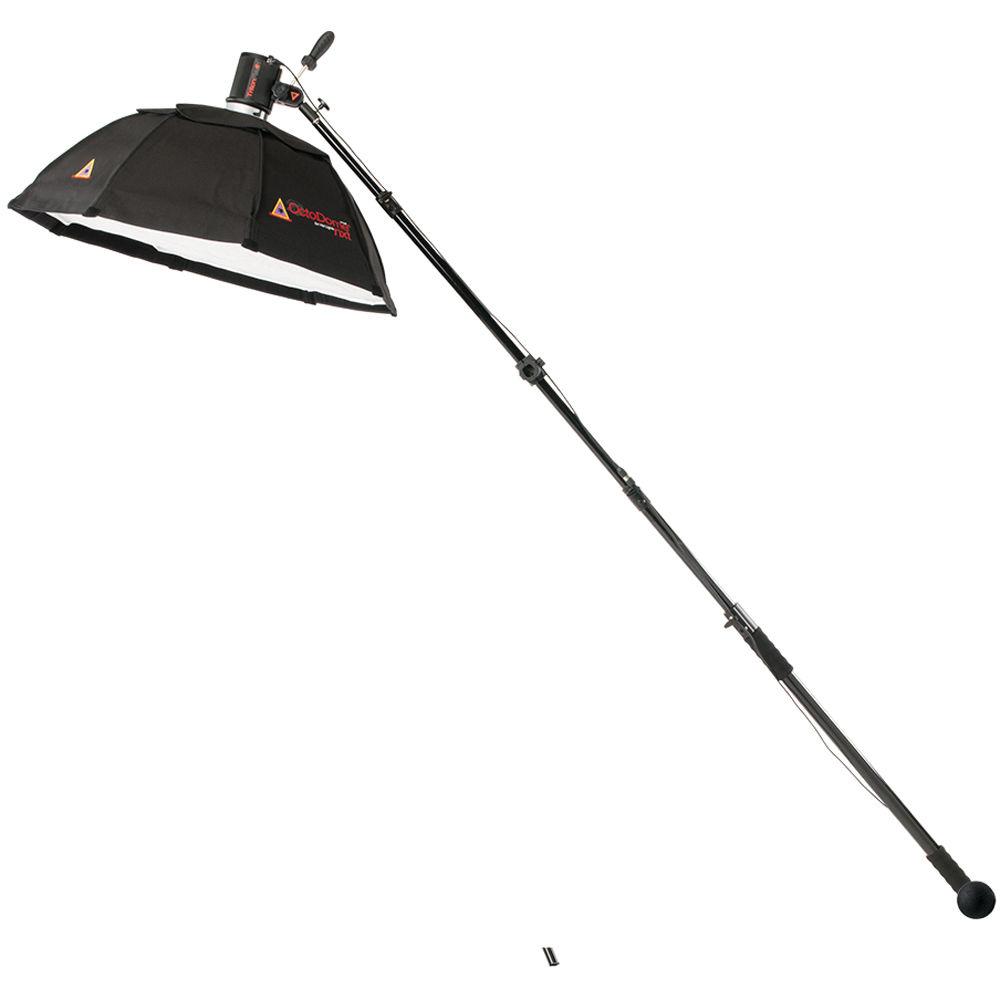

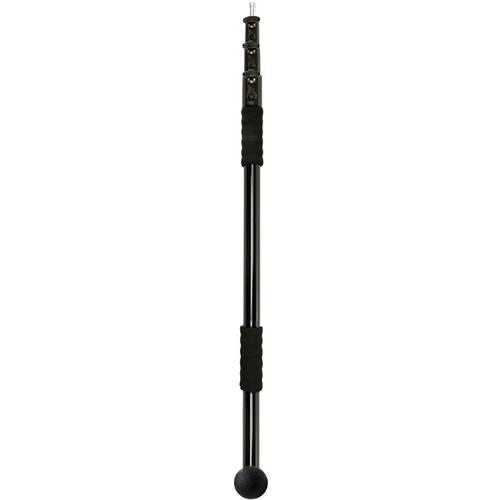

Product description The Photoflex LiteReach Plus is a heavy duty three-section support that allows you to hold a Photoflex LitePanel, umbrella or softbox up to 9.6' above your subject. Shooting outdoors, especially in mid-day sun is a tough contrast situation for the photographer and a hot, physically uncomfortable one for the subject. With separate purchase of the LitePanel Mounting Hardware Kit (PHLPFHK) you'll be able to hold LitePanel frames with diffusion material up to 39 x 72" over your subject to obtain soft, manageable contrast.You can get a similar effect using a large white umbrella in place of the LitePanel. You'll need an optional Multiclamp with Shoe Mount (B&H# PHMCUSM)or a Heavy Duty Swivel (B&H# PHSM) mounted to the LiteReach Plus' 5/8" top stud to hold the umbrella. You can also use these products to support a softbox. With a maximum tubing diameter of 1.37", the LiteReach Plus has enough heft to handle a 15 lb vertical load at its full extension Comfort and ergonomics are key to the LiteReach's design. The large rubberized balance ball allows you to shift the weight of your gear to your hip or to the ground, while two hand grips are located at ideal spots on the shaft to facilitate single-handed or two-handed direction of the LitePanel, umbrella or softbox. - Extra long four section boom pole to facilitate resting the base on the ground using the proprietary Balance Ball technology.
- All aluminum alloy heavy duty construction.
- Oversized tubing for maximum strength when extended.
UPC: 799245015862 In the Box Photoflex LiteReach Plus Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Photoflex LiteReach Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotoflex 870058 Specs | Load Capacity | Maximum vertical load: 15 lb (6.8 kg) | | Dimensions | Collapsed length: 35.5" (90.17 cm)
Extended length: 9.6' (291 cm)
Maximum tubing size: 1.37" (35 mm)
Top stud diameter: 5/8" (16 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 36.0 x 3.8 x 3.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
