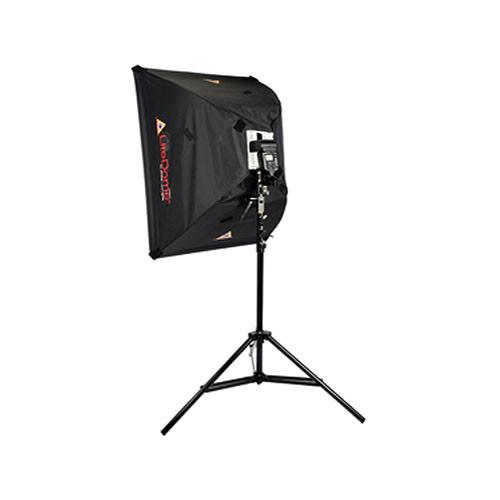

User Manual for Photoflex Medium LiteDome Deluxe Kit Click to enlarge the picture
Contents of the user manual for the Photoflex Medium LiteDome Deluxe Kit
- Product category: Softboxes Photoflex
- Brand: Photoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photoflex Softboxes
|
User manual for the Photoflex Medium LiteDome Deluxe Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photoflex product will considerably shorten its lifespan!
|
Product description This Photoflex Medium LiteDome Deluxe Kit contains everything you'll need to turn your shoe mount flash into a main or fill light. Connect the included shoe mount hardware, basic speed ring, and swivel together, mount on the provided 8' light stand and start shooting. Attach an optional wireless or optical slave to the flash and use a second flash on-camera and you've got a super lightweight 2-light system. - Medium Weight LiteStand (Black, 8' ) The 8' Photoflex Lightweight Black Light Stand is designed to support small to medium size light fixtures, with umbrellas or softboxes up to 24 x 36 inches. It has three sections, two risers.
-
- Bolt through joints, widened footprint
- Wide brace supports
- Large diameter tubing offers strong support
- Rubber-tipped feet offer no-slip and quiet movement when changing light arrangement
- The option to add 22mm casters is available for maximum mobility and convenience
- With black anodized paint to eliminate unwanted reflections in the subject
UPC: 799245003821 - Heavy Duty Swivel Mount with Reversible Stud This is a Photoflex Heavy Duty Swivel Mount bracket. It is a versatile aluminum bracket that will fit on almost any light stand. The reversible threaded stud (3/8" and 1/4") enables attachment of various lighting and grip items.
- Transfers the weight of your softbox to its speed ring, relieving your light head, and providing better balance atop a light stand
- Bracket tilts and swivels to make aiming the light or flash easy
- Has a locking umbrella socket that will accept umbrella shafts up to 3/8" diameter
UPC: 799245000127 - Speed Ring for X-Small LiteDome The basic Photoflex Speed Ring comes included with every Extra-Small LiteDome. It gives a rectangular softbox is basic structure. Your softbox still requires a shoe-mount, handle-mount flash bracket, or dedicated insert to mount to a specific light.
- Standard 1/4"-20 threads in the frame allow mounting to your similarly equipped light stand top or grip equipment.
UPC: 799245000011 - Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes The Photoflex Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes accepts most shoe-mount flashes. It connects to a Photoflex, or Chimera Speed Ring, and allows use of that flash with a 12x16" softbox.
- The Photoflex Extra Small LiteDome comes with a universal speed ring. This adapter connects to that, or any other Speed Ring.
- Height of your flash is easily adjusted, and locked into place in the optimum position.
UPC: 799245000059 - Medium LiteDome (24 x 32 x 17") The Medium LiteDome (24 x 32 x 17") consistently delivers even, natural light from your strobe unit. Its internal diffusion baffle eliminates extreme highlights and hotspots. The internal baffle and diffusion face are each easily removed, allowing you to go from soft, diffused lighting to high-contrast without changing your setup.The patented Quick Release Corners (QRC) make setup and teardown a snap. LiteDome softboxes are compatible with optional grids, giving you great control over light direction. Loop hooks are sewn into the outside of the dome to allow for hanging the softbox from above using a block and tackle.
-
- Removable face allows you to adjust the natural, soft light to create just the right diffusion and contrast
- Softens the light source and eliminates the hot spot
- Suspension loops hang the softbox without a boom
- Optional grids attach to the face to create different effects
- Carry bag included for easy storage and transport
- Quick Release Corners (QRC) for easy removal of rods
UPC: 799245006310 In the Box Bundle Items Medium Weight LiteStand (Black, 8' ) ycyutzqxeawf Heavy Duty Swivel Mount with Reversible Stud - 5 Year Manufacturer's Warranty
Speed Ring for X-Small LiteDome - 5 Year Manufacturer's Warranty
Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes - Connector with 2 Shoe Mounts
- 5 Year Manufacturer's Warranty
Medium LiteDome (24 x 32 x 17") User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photoflex Medium LiteDome Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Medium Weight LiteStand (Black, 8' )
| Load Capacity | 12 lb / 5.44 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 96" / 2.4 m | | Minimum Working Height | 36.4" / 92.5 cm | | Collapsed Height | 34.2" / 86.9 cm | | Footprint Diameter | 36.75" / 93.34 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 4.4 lb / 2.0 kg | | | | Box Dimensions (LxWxH) | 36.7 x 4.5 x 3.5" | - Heavy Duty Swivel Mount with Reversible Stud
| | | Box Dimensions (LxWxH) | 8.4 x 5.75 x 2.3" | - Speed Ring for X-Small LiteDome
| | | Box Dimensions (LxWxH) | 8.3 x 7.1 x 1.7" | - Adjustable Shoe Mount Connector for Small to Medium Litedome Softboxes
| | | Box Dimensions (LxWxH) | 8.65 x 7.5 x 1.1" | - Medium LiteDome (24 x 32 x 17")
| Shape | Rectangular | | Interior | White | | Requires Speed Ring | Yes, Not Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0 x D: 17.0" / W: 61.0 x H: 81.0 x D: 43.0 cm | | Weight | 1.8 lb / 0.81 kg | | | | Box Dimensions (LxWxH) | 26.5 x 5.3 x 5.0" |
