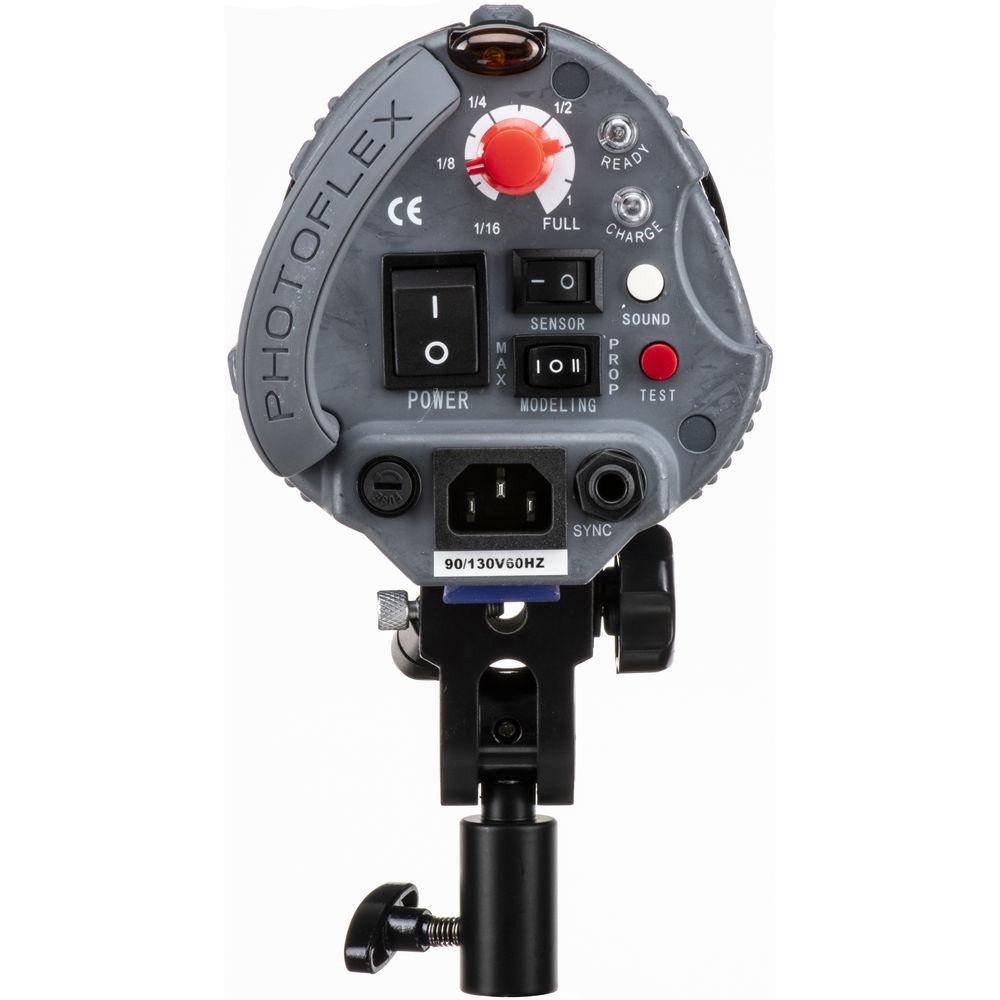

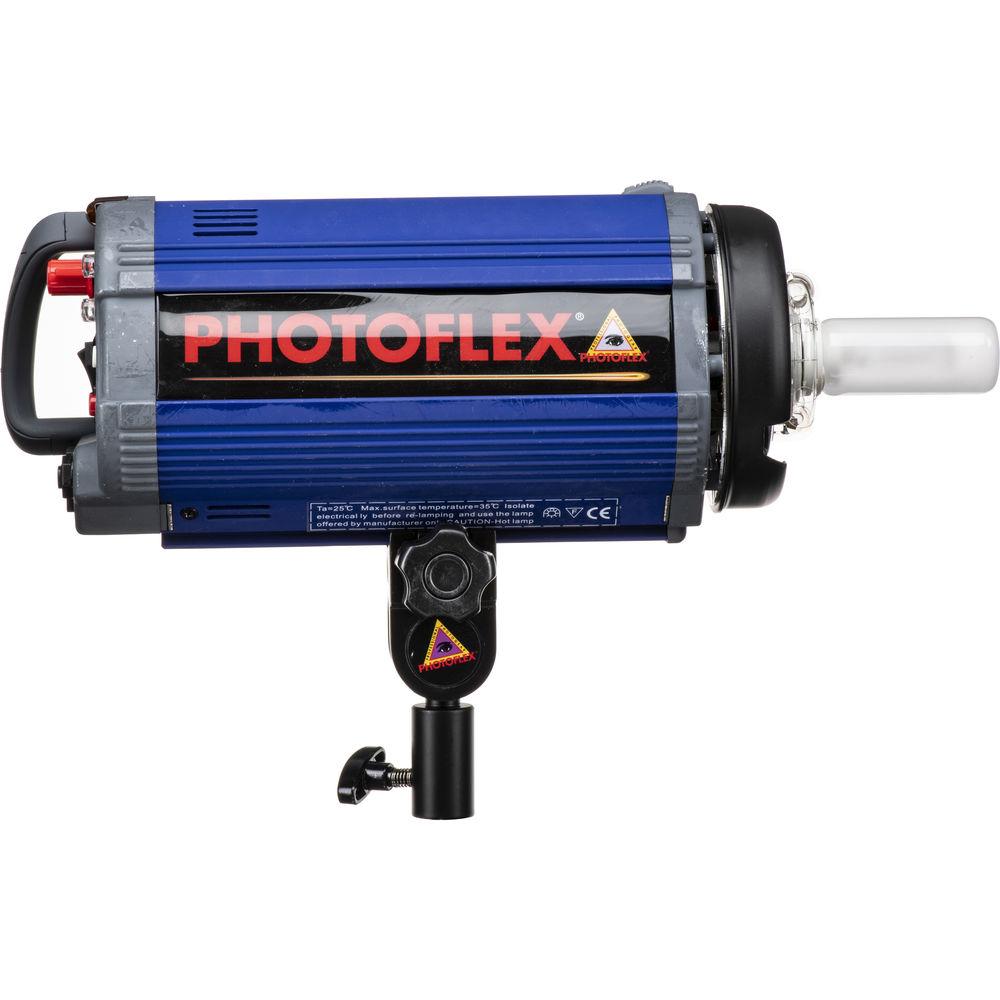

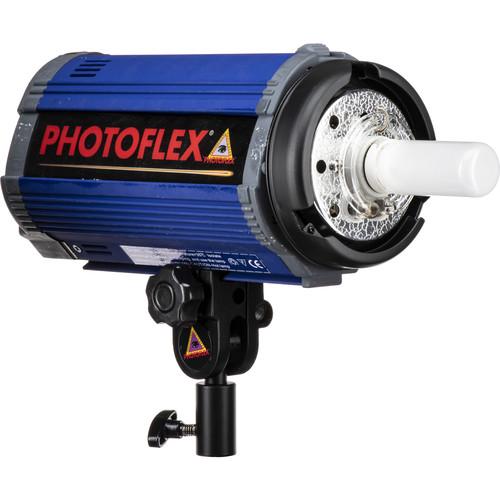

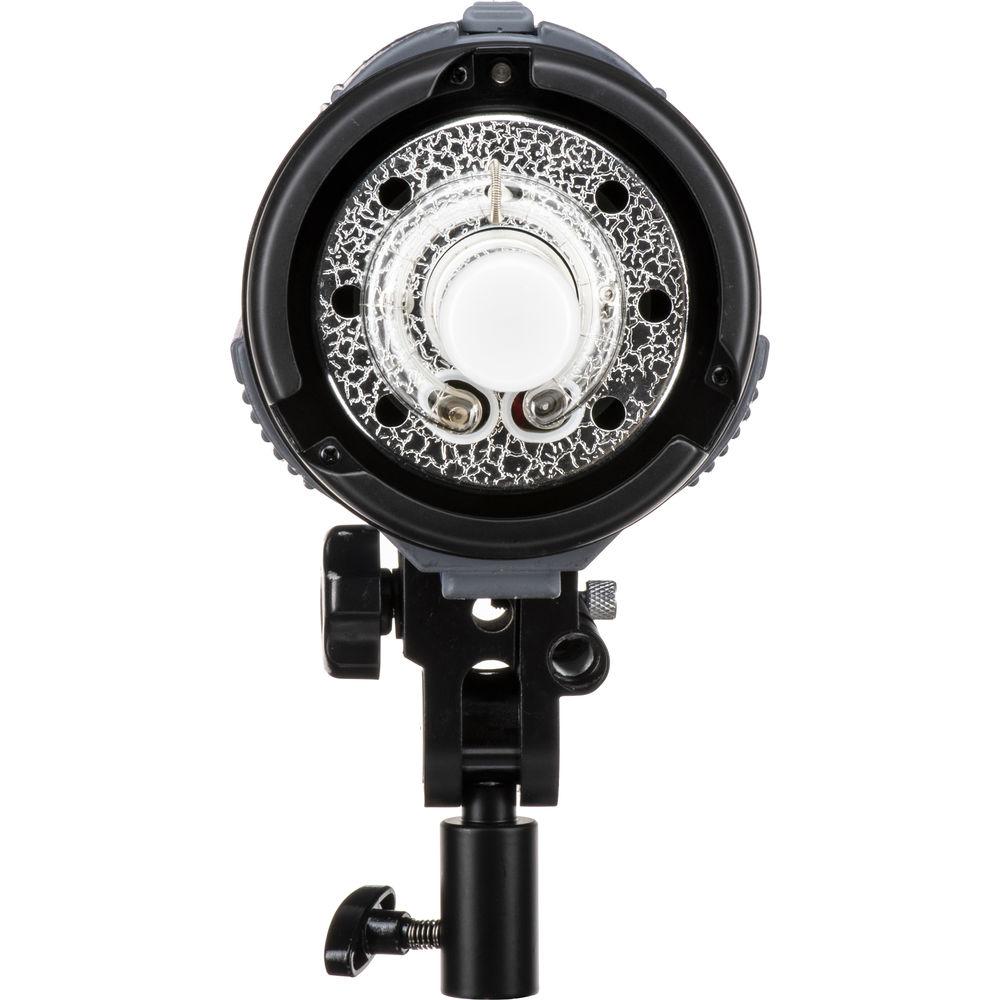

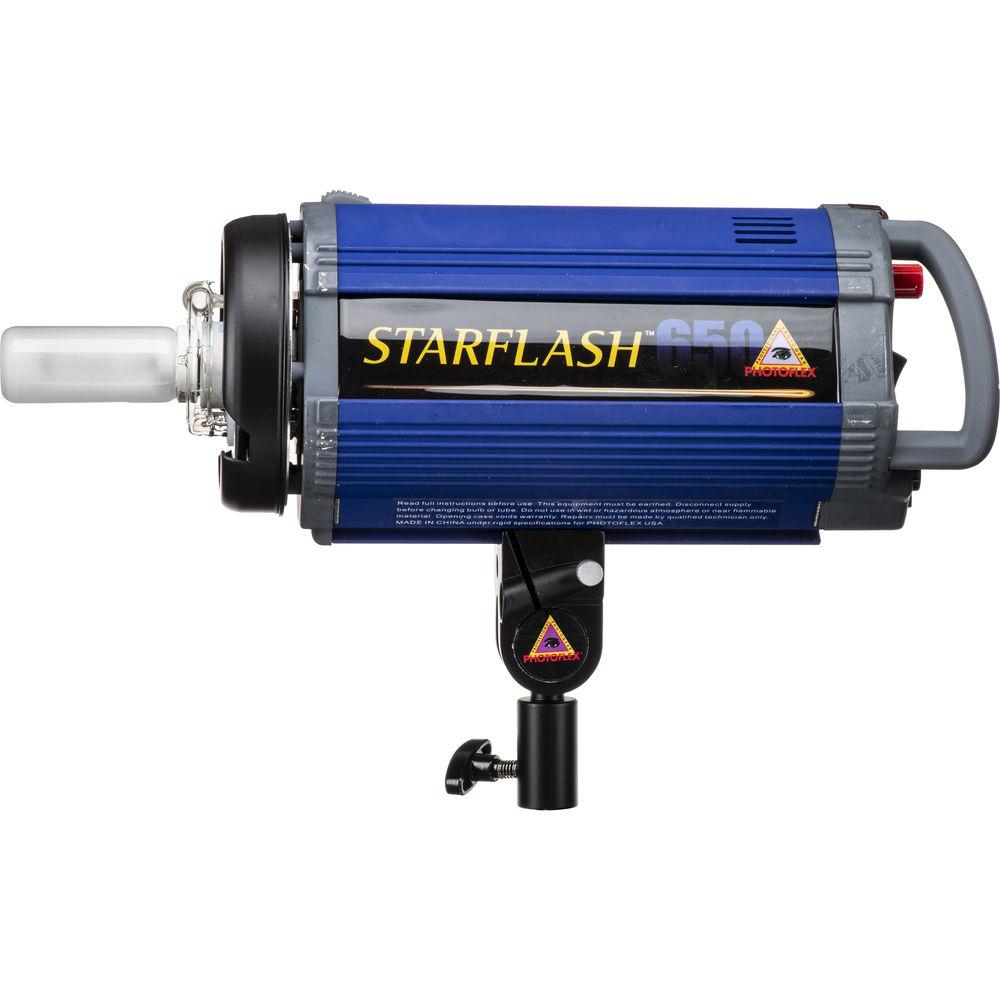

Product description The SB-SF650 Photoflex StarFlash 650 Watt/Second Monolight is suitable for the professional, as well as the aspiring photographer. The StarFlash uses a high-quality German flash tube. The modeling light can be set at full brightness or proportional to the flash tube light output. This strobe can be used with a reflector, umbrella, or softbox. The included Tilt Swivel Mount is secure and allows for tilt range of 170°. The Tilt Swivel can be repositioned on the StarFlash to compensate for weight imbalance when using larger soft boxes. This monolight can be fired with the included mono to PC sync cord, or via its optical slave, from another flash. - Recycles Quickly
- This monolight recharges in 4 - 5 seconds. Audible and visible light full-charge indicators inform you of when it is ready to fire again.
- Five Stop Power Range
- Variable power from full to 1/8
- Built-In Slave
- Built-in optical slave "sees" the light from other flashes, and fires automatically.
- Durable
- Extruded aluminum housing with durable rubber paint finish
UPC: 799245013271 In the Box Photoflex StarFlash 650Ws Monolight (120V) Flashtube 250W Modeling Light Tilt-Swivel Bracket Protective Lamp Cover Mono to PC Sync Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Photoflex StarFlash 650Ws Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotoflex StarFlash 650 Specs | | | Maximum Power | 650 Ws | | Power Control | 5 Stops | | Flash Duration | 1/1700 Sec (Full Power) | | Recycle Time | 5 Sec (Full Power) | | Flash Ready Indicator | Audio, Visual | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Infrared, Optical | | Sync Voltage | 3.8 V | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Current | 6.3 A (Operating) | | Circuit Protection | Fuse | | Fuse | 6.3 A | | | | Display | None | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 5.0 x L: 15.5" / H: 14.0 x W: 12.7 x L: 39.4 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 17.5 x 9.25 x 6.5" |
