User Manual for Photogenic 1,500W s PowerLight 4 Light Studio Kit Click to enlarge the picture
Contents of the user manual for the Photogenic 1,500W s PowerLight 4 Light
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic 1,500W s PowerLight 4 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|

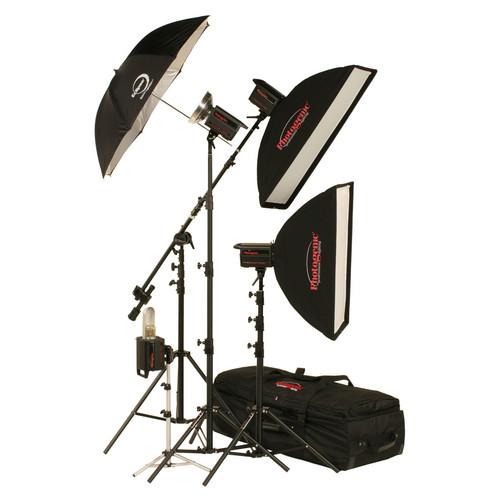

Product description The Photogenic 1,500W/s PowerLight 4 Light Studio Kit (120V) is a great way to achieve studio-quality lighting in-house or on location. The kit is built around the powerful, dependable PowerLight. Four heads are provided: two 500W/s heads and two 250W/s PowerLights. They're capable of fast recycling (1.5 and 1.25 sec. respectively) at full power as well as fast flash duration which is ideal for capturing every fleeting gesture with subjects in motion like athletes or dancers. Of course they're great for product work or portraiture as well and Photogenic has you covered on both counts. Included in the kit are 2 softboxes; 24 x 32" and 12 x 36". The first is an ideal source for head and shoulders portraits and the 12 x 36" box is an excellent sidelight or product light which yields long elegant highlights on reflective objects. There's also a 45" umbrella to use as a fill light for 3-point lighting. Two 8.0' light stands are provided as well as 1 heavy duty 13' stand which is perfect for the included boom arm with counterweight. Use the scoop-type backlight reflector on one of your PowerLights to create sophisticated effects behind your subject. It all fits in a soft-sided wheeled carrying case. - PL1250DRC 500W/s PowerLight Monolight (UV) The Photogenic 1250DRC 500W/s PowerLight Monolight (UV) offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. What good is a light if it keeps you in the dark? The 1250DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across 6 stops. The bright 250W modeling light can be set to Proportional to let you previsualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PL1250DRC recycles to full power in a lightning-fast 1.5 seconds with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. The color corrected flash tube prevents blue hues from creeping into the color balance on subjects like a bride in her wedding dress. The tube also insures a flattering skin tone rendition. Convenience features include a test button, optical slave and integral handle. The PL1250DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes and umbrellas.
- Six Stop Power Range
- Power settings Power levels are displayed in easy-to-read LED digits allowing settings from 16W/s to 500W/s in 1/10 or 1/2 stop increments
- Fast Recycling
- The PL1250DRC recycles to full power in only 1.5 seconds to catch even the most fleeting gesturers
- Modeling Light
- The PL1250DRC's bright 250W quartz modeling lamp offers independent power control that is adjustable from full to 1/32 power in 1/10 or 1/2 stop increments. Settings include Proportional, to previsualize lighting effects, Manual adjustment or Full On or Off
- Low Trigger Voltage
- Digital cameras can be used with Photogenic PowerLights without fear of damage to the camera's electronics
- Built-In Slave
- This version of the PL1250DR has a built-in, highly sensitive, switchable optical slave for synchronization with other flashes
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Ready Indication
- Dims the modeling light while charging the capacitors. When the capacitors are at 100%, the modeling lamp re-lights
- Color Corrected Flash Tube
- The color corrected flash tube filters out blue hues that result from UV emission for a cleaner look with flattering flesh tones.
- Auto Dump Function
- When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
- Fan Cooled
- A low noise, high performance fan keeps the flash head's electronics cool while lengthening the flash tube's and the modeling light's lives
- Safety Features
- The PL1250DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
- System Compatibility
- The PL1250DRC is compatible with all Photogenic Quick-Change light shaping accessories
UPC: 689670110167 - PL625DRC 250W/s PowerLight Monolight (UV) The Photogenic PL625DRC 250W/s PowerLight Monolight (UV) offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. What good is a light if it keeps you in the dark? The PL625DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across 6 stops. The modeling light can be set to Proportional to let you pre-visualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PL625DRC recycles to full power in a lightning-fast 1.2 seconds with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. The included UV color-corrected flash tube renders accurate skin tones and prevents blue from creeping in to the color balance. Convenience features include a test button, optical slave and integral handle. The PL625DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, wireless IR triggering and control units.
- Six Stop Power Range
- Power settings Power levels are diplayed in easy-to-read LED digits allowing settings from 7.8W/s to 250W/s in 1/10 or 1/2 stop increments
- Fast Recycling
- The PL625DRC recycles to full power in only 1.25 seconds to catch even the most fleeting gestures
- Modeling Light
- The PL625DRC can take up to 250W quartz modeling lamps with independent power control that are adjustable from full to 1/32 power in 1/10 or 1/2 stop increments. It can be set to Proportional, to pre-visualize the lighting effects, to Manual adjustment or Full On or Off.
- Low Trigger Voltage
- Digital cameras can be used with Photogenic PowerLights without fear of damage to the electronics
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Ready Indication
- Dims the modeling light while charging the capacitors. When the capacitors are at 100%, the modeling lamp re-lights
- Auto Dump Function
- When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
- Fan Cooled
- A low noise, high performance fan keeps the flash head's electronics cool while lengthening the fash tube's and the modeling light's lives
- Safety Features
- The PL625DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
- System Compatibility
- The PL625DRC is compatible with all Photogenic Quick-Change light shaping accessories
- Color Corrected Flash Tube
- The PL625DRC's UV-coated, color-corrected flash tube renders accurate flesh tones and removes blue from the color balance. Wedding shooters will appreciate the resulting neutral rendition in the bride's gown
UPC: 689670160841 - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) The 24 x 32" Rectangular Softbox with Back Plate and Mounting Ring for Photogenic Flash Heads provides soft, yet intense light for your subjects. The interior is silver, for a little extra snap to the light. The spring tension rods fit easily into the softbox and into the included Photogenic speed ring. The front panel is touch-fastener fitted, allowing you to place the panel at the edge or 1.5" into the box for improved light direction.
- Suggested use: 1 or 2 person half-length portrait.
UPC: 689670060448 - EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
This size is perfect for portraits of 1 or 2 people, and small product set ups.
This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching. - Softens and broadens the light output of any strobe or lower wattage constant light.
- Removable black cover allows the light source to "shoot-through", as a more direct light.
Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110 - 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775
- Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
- Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 - C4-15C Flashtube The standard, clear, UV Coated flashtube for the Photogenic PL2 Series monolights.Most current, professional flash heads and monolights are equipped with user replaceable flashtubes that may simply be plugged into, and unplugged from their sockets. With proper handling, these flashtubes may last for tens of thousands of flashes under normal use.This flashtube is UV-Coated, or UV-Corrected. UV flashtubes have a yellow appearance, and they counteract the excess blue 5700° or higher output of non-UV coated flashtubes. UV Coating lowers the color temperature to 5500°, which is the color of noon daylight on a clear day. UPC: 689670080163
- ESS 250W Modeling Lamp The Photogenic ESS 250W Modeling Lamp is a replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875.
- Replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875
UPC: 689670090131 - Sync Cord - Monoplug to PC This is a straight, 15' sync cable, designed to allow firing of any strobe unit equipped with a 1/4" thick monoplug (old style phono) receptor. The other end plugs into any camera or firing device that has a standrad PC (post connection) terminal.Compatible with: Photogenic, Profoto, Speedotron, Hensel, SP Excalbur, and others. UPC: 689670071529
- AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
- Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737
- Softbox with Quick Change Adapter for Flash (12 x 36") This is the medium strip, 12 x 36" size Softbox with Quick Change Adapter for Flash from Photogenic, which is suitable for a side-accent light or hairlight for group of 2 people when mounted on a Photogenic flash head. Photogenic softboxes are designed to enable photographers to illuminate a subject evenly over a specified area. Different geometry softboxes are available to meet specific needs of photographers. Photogenic offers two square and two rectangular softboxes to choose from.
- The recessed front helps prevent lens flare from excess light spill.
- For added stability when using a PL2500DR, you can remove the stand adapter bracket on the bottom of the PowerLight and move the stand adapter to the holes at the rear of the stand adapter bracket.
UPC: 608967006044 - Shallow Satin Reflector The ability to shape and control the light from a flash source is essential. This is one of many different reflectors available for the Photogenic line of flash heads and monolights. It is used for lighting a background evenly, and softly. UPC: 689670070188
- 3-Wheel Caster Set The Photogenic 3-Wheel Caster Set is a set of three 2" casters that will clamp onto light stands with 3/4" round legs. These casters are compatible with TALS3, TALS6, TALS8 and TALS10 Photogenic light stands.
- 3-wheel set of casters for For TALS3, TALS6, TALS8 & TALS10 stands
- Talon Air-Cushioned Stand (Black, 13') This is a black-finished, 13' Talon Air-Cushioned Stand from Photogenic. The Talon line of light stands from Photogenic are a combination of design quality and practicality, achieving superior stability and longer service life even under constant, rigorous use.
- Optional casters are available for added convenience.
UPC: 689670130172 - Boom Arm with Counterweight - 5 - 6.5' Photogenic Telescopic Boom Arm with counterweight and swivel bracket for 1/2" stand top. Two sections. Expands from 5' to 6.5'. UPC: 689670130769
- Talon TALS3 Heavy-Duty Backlight Stand (3') This Photogenic Talon TALS3 Heavy-Duty Backlight Stand is a 3' support with air cushioning and a black finish. It allows positioning of a flash head near to the floor for lighting a background or low-lying subject. UPC: 689670130134
In the Box Bundle Items 2 x PL1250DRC 500W/s PowerLight Monolight (UV) rwrbucxuvvsxtyd - 7-1/2" High Gain Reflector
- AC Line Cord - 110V, for PL and PM
- Protective Cap for Powerlight
- Sync Cord - Monoplug to PC
2 x PL625DRC 250W/s PowerLight Monolight (UV) - 7-1/2" High Gain Reflector
- Protective Cap for Powerlight
- AC Line Cord - 110V, for PL and PM
- Sync Cord - Monoplug to PC
24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) rwrbucxuvvsxtyd - Mounting Plate and Speed Ring for Photogenic Heads
EC45BC Eclipse 45" White Flat-Panel Umbrella 7-1/2" High Gain Reflector 2 x Air Cushioned Light Stand (8') 4 x C4-15C Flashtube 4 x ESS 250W Modeling Lamp 4 x Sync Cord - Monoplug to PC 4 x AC Line Cord - 110V, for PL and PM 4 x Protective Cap for Powerlight Softbox with Quick Change Adapter for Flash (12 x 36") - Adapter Ring for Photogenic Heads
Shallow Satin Reflector 3-Wheel Caster Set Talon Air-Cushioned Stand (Black, 13') Boom Arm with Counterweight - 5 - 6.5' - 1 Year Manufacturer's Warranty
Talon TALS3 Heavy-Duty Backlight Stand (3')
Also Includes - User Manual
- PL03CS Extra Large Cordura Soft Case with Wheels
- 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic 1,500W s PowerLight 4 Light Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PL1250DRC 500W/s PowerLight Monolight (UV)
| | | Maximum Power | 16 to 500 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 110' / 33.5 m at 10' / 3 m, ISO100
365' / 111.3 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/1300 to 1/640 Sec | | Recycle Time | 0.5 to 1.5 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical | | Interface | 1/4" Sync | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 10 A (Operating)
15 A (Charging)
0.2 A (Idle) | | Circuit Protection | Fuse | | Fuse | 16 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 15.354 x 11.653 x 10.551" | - PL625DRC 250W/s PowerLight Monolight (UV)
| | | Maximum Power | 7.8 to 250 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 130' / 39.6 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/2000 to 1/640 Sec | | Recycle Time | 0.5 to 1.25 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Optical | | Interface | 1/4" Sync | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 10 A (Operating)
15 A (Charging)
0.2 A (Idle) | | Circuit Protection | Fuse | | Fuse | 16 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 4.9 lb / 2.25 kg | | | | Box Dimensions (LxWxH) | 15.1 x 11.8 x 10.3" | - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior)
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.8 x 4.8" | - EC45BC Eclipse 45" White Flat-Panel Umbrella
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 29.5 x 2.4 x 0.6" | - 7-1/2" High Gain Reflector
| | | Box Dimensions (LxWxH) | 8.5 x 8.5 x 8.4" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - C4-15C Flashtube
| | | Box Dimensions (LxWxH) | 5.55 x 3.1 x 3.05" | - ESS 250W Modeling Lamp
| Base Type | BA15d | | Wattage | 250 W | | Voltage | 120 V | | | | Box Dimensions (LxWxH) | 3.45 x 1.15 x 1.15" | - Sync Cord - Monoplug to PC
| | | Box Dimensions (LxWxH) | 5.5 x 2.5 x 1.5" | - AC Line Cord - 110V, for PL and PM
| | | Box Dimensions (LxWxH) | 9.75 x 9.75 x 2.65" | - Protective Cap for Powerlight
| | | Box Dimensions (LxWxH) | 5.433 x 5.354 x 5.276" | - Softbox with Quick Change Adapter for Flash (12 x 36")
| Shape | Strip | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Rectangular Dimensions | W: 12.0 x H: 36.0" / W: 30.5 x H: 91.4 cm | | | | Box Dimensions (LxWxH) | 29.0 x 7.0 x 4.5" | - Shallow Satin Reflector
| | | Box Dimensions (LxWxH) | 8.4 x 6.6 x 4.75" | - 3-Wheel Caster Set
| | | Box Dimensions (LxWxH) | 8.5 x 8.3 x 2.3" | - Talon Air-Cushioned Stand (Black, 13')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 13' / 4 m | | Collapsed Height | 43" / 1.1 cm | | Footprint Diameter | 3' / 0.9 m | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 45.5 x 5.5 x 4.4" | - Boom Arm with Counterweight - 5 - 6.5'
| | | Box Dimensions (LxWxH) | 36.3 x 6.7 x 6.4" | - Talon TALS3 Heavy-Duty Backlight Stand (3')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 3 | | Maximum Working Height | 3' / 0.9 m | | Collapsed Height | 15" / 38 cm | | Footprint Diameter | 16.5" / 42 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Chrome | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 27.2 x 7.05 x 3.45" |
