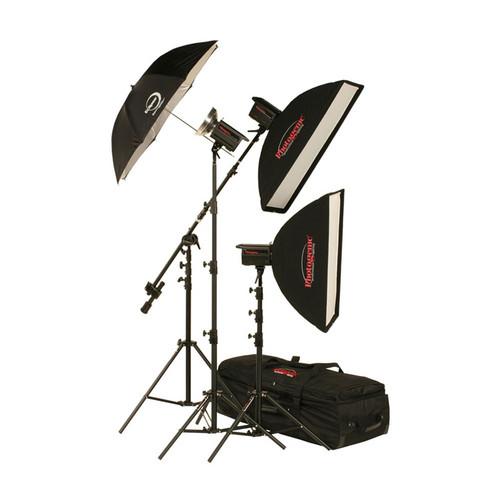

User Manual for Photogenic 1,500W s Solair 3 Light Kit Click to enlarge the picture
Contents of the user manual for the Photogenic 1,500W s Solair 3 Light
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic 1,500W s Solair 3 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The Photogenic 1,500W/s Solair 3 Light Kit (120V) is a great way to achieve studio-quality lighting in-house or on location. The heart of the kit is the Solair Monolight. Building on the foundation of the popular PowerLight series, the enhanced Solair has an 8 stop extended power range selectable in 1/2 or 1/10 stop increments with repeat flash accuracy within 1/20 of a stop. All of the power settings are displayed on the large, digital LED screen. The bright 250W modeling lamp can be set to full, on/off, user preference or proportionate to the flash power. What distinguishes the Solair however, is Constant Color Technology. It's quite common for other brands' color temperature to vary wildly when dropping from full to minimum power. The Solair varies a mere 100K from full to 1/128 power; indiscernible to most people. Another unique feature is the Flash Auto Bracketing function. Under and over power settings can be programmed into the flash head in 1/10 - 1 ½ f/stop increments around the prime or normal exposure.Three 500w/s heads are provided in this comprehensive kit. The Solairs are capable of rapid recycling (1.5 sec.) coupled with fast flash durations that make them ideal for capturing every fleeting gesture with active subjects like athletes or dancers. Of course, they're great for product work or portraiture as well and Photogenic has you covered on both counts. Both 24 x 32" and 12 x 36" softboxes are included in the kit. The first is an ideal source for head and shoulders portraits and the 12 x 36" box is an excellent sidelight or product light which yields long elegant highlights on reflective objects. There's also a 45" umbrella to use as a fill light for 3-point lighting. Two 8.0' light stands are provided, as well as 1 heavy duty 13' stand which is perfect for the included boom arm with counterweight. Use the scoop-type backlight reflector on one of your lights to create sophisticated effects behind your subject. It all fits in a soft-sided wheeled carrying case. - PL500DRC Solair 500W/s Monolight The Photogenic Solair PL500DRC 500W/s Monolight offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. The PL500DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across an impressive 8 full stops. The bright 250W modeling light can be set to Proportional to let you previsualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PL500DRC Radio Solair even allows 2 or 3 shot bracketing around your prime exposure. The PL500DRC recycles to full power in a lightning-fast 1.5 seconds at full power and 0.5 seconds at minimum power with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. Convenience features include a test button, optical slave and integral handle.The UV color corrected flash tube ensures that blue doesn't creep into your color balance on subjects like a bride in her gown. It also ensures natural, flattering skin tones. The PL500DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes and umbrellas.
- Eight Stop Power Range
- Power levels are displayed in easy-to-read LED digits allowing settings from 3.9W/s to 500W/s in 1/10 or 1/2 stop increments
- Fast Recycling
- The PL500DRC recycles to full power (1,000W/s) in only 1.5 seconds and 0.5 sec. at minimum power to catch even the most fleeting gestures
- Modeling Light
- The PL500DRC's bright 250W quartz modeling lamp offers independent power control that is adjustable from full to 1/128 power in 1/10 or 1/2 stop increments. Settings include Proportional, to previsualize lighting effects, Manual adjustment or Full On or Off
- Flash Bracketing
- Flash bracketing is a great time-saving feature especially when you'd like to shoot at a specific f/stop. You can set up your Solair for 2 or 3 shot bracketing over or under the prime exposure
- Low Trigger Voltage
- Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
- User Replaceable UV Flashtube
- No tools are required to replace this "plug & play" flashtube. The UV coating ensures clean whites and flattering flesh tones
- Ready Indication
- A ready light and audible alert let you know when the flash is fully charged
- Auto Dump Function
- When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
- Fan Cooled
- A low noise, high performance fan keeps the flash head's electronics cool while lengthening the flash tube's and the modeling light's lives
- Safety Features
- The PL500DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
- System Compatibility
- The PL500DRC Radio Solair is compatible with all Photogenic Quick-Change light shaping accessories
UPC: 689670110471 - 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775
- C4-15C Flashtube The standard, clear, UV Coated flashtube for the Photogenic PL2 Series monolights.Most current, professional flash heads and monolights are equipped with user replaceable flashtubes that may simply be plugged into, and unplugged from their sockets. With proper handling, these flashtubes may last for tens of thousands of flashes under normal use.This flashtube is UV-Coated, or UV-Corrected. UV flashtubes have a yellow appearance, and they counteract the excess blue 5700° or higher output of non-UV coated flashtubes. UV Coating lowers the color temperature to 5500°, which is the color of noon daylight on a clear day. UPC: 689670080163
- ESS 250W Modeling Lamp The Photogenic ESS 250W Modeling Lamp is a replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875.
- Replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875
UPC: 689670090131 - Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737
- AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
- Sync Cord - Monoplug to PC This is a straight, 15' sync cable, designed to allow firing of any strobe unit equipped with a 1/4" thick monoplug (old style phono) receptor. The other end plugs into any camera or firing device that has a standrad PC (post connection) terminal.Compatible with: Photogenic, Profoto, Speedotron, Hensel, SP Excalbur, and others. UPC: 689670071529
- 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) The 24 x 32" Rectangular Softbox with Back Plate and Mounting Ring for Photogenic Flash Heads provides soft, yet intense light for your subjects. The interior is silver, for a little extra snap to the light. The spring tension rods fit easily into the softbox and into the included Photogenic speed ring. The front panel is touch-fastener fitted, allowing you to place the panel at the edge or 1.5" into the box for improved light direction.
- Suggested use: 1 or 2 person half-length portrait.
UPC: 689670060448 - Softbox with Quick Change Adapter for Flash (12 x 36") This is the medium strip, 12 x 36" size Softbox with Quick Change Adapter for Flash from Photogenic, which is suitable for a side-accent light or hairlight for group of 2 people when mounted on a Photogenic flash head. Photogenic softboxes are designed to enable photographers to illuminate a subject evenly over a specified area. Different geometry softboxes are available to meet specific needs of photographers. Photogenic offers two square and two rectangular softboxes to choose from.
- The recessed front helps prevent lens flare from excess light spill.
- For added stability when using a PL2500DR, you can remove the stand adapter bracket on the bottom of the PowerLight and move the stand adapter to the holes at the rear of the stand adapter bracket.
UPC: 608967006044 - EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
This size is perfect for portraits of 1 or 2 people, and small product set ups.
This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching. - Softens and broadens the light output of any strobe or lower wattage constant light.
- Removable black cover allows the light source to "shoot-through", as a more direct light.
Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110 - Shallow Satin Reflector The ability to shape and control the light from a flash source is essential. This is one of many different reflectors available for the Photogenic line of flash heads and monolights. It is used for lighting a background evenly, and softly. UPC: 689670070188
- Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
- Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 - Talon Air-Cushioned Stand (Black, 13') This is a black-finished, 13' Talon Air-Cushioned Stand from Photogenic. The Talon line of light stands from Photogenic are a combination of design quality and practicality, achieving superior stability and longer service life even under constant, rigorous use.
- Optional casters are available for added convenience.
UPC: 689670130172 - Boom Arm with Counterweight - 5 - 6.5' Photogenic Telescopic Boom Arm with counterweight and swivel bracket for 1/2" stand top. Two sections. Expands from 5' to 6.5'. UPC: 689670130769
In the Box Bundle Items 3 x PL500DRC Solair 500W/s Monolight eszwewqs - 7-1/2" High Gain Reflector
- AC Line Cord - 110V, for PL and PM
- Protective Cap for Powerlight
- Sync Cord - Monoplug to PC
7-1/2" High Gain Reflector 3 x C4-15C Flashtube 3 x ESS 250W Modeling Lamp eszwewqs 3 x Protective Cap for Powerlight 3 x AC Line Cord - 110V, for PL and PM 3 x Sync Cord - Monoplug to PC 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) - Mounting Plate and Speed Ring for Photogenic Heads
Softbox with Quick Change Adapter for Flash (12 x 36") - Adapter Ring for Photogenic Heads
EC45BC Eclipse 45" White Flat-Panel Umbrella Shallow Satin Reflector 2 x Air Cushioned Light Stand (8') Talon Air-Cushioned Stand (Black, 13') Boom Arm with Counterweight - 5 - 6.5' - 1 Year Manufacturer's Warranty
Also Includes - PL03CS Extra Large Cordura Soft Case with Wheels
- User Manual
- 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic 1,500W s Solair 3 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PL500DRC Solair 500W/s Monolight
| | | Maximum Power | 3.9 to 500 Ws | | Power Control | 8 Stops in 1/10-Stop Increments | | Guide Number | 110' / 33.5 m at 10' / 3 m, ISO100
365' / 111.3 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/5800 to 1/280 Sec | | Recycle Time | 0.5 to 1.5 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical, Radio | | Interface | 1/4" Sync | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 10 A (Operating)
15 A (Charging)
0.2 A (Idle) | | Circuit Protection | Fuse | | Fuse | 16 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 15.0 x 12.0 x 10.0" | - 7-1/2" High Gain Reflector
| | | Box Dimensions (LxWxH) | 8.5 x 8.5 x 8.4" | - C4-15C Flashtube
| | | Box Dimensions (LxWxH) | 5.55 x 3.1 x 3.05" | - ESS 250W Modeling Lamp
| Base Type | BA15d | | Wattage | 250 W | | Voltage | 120 V | | | | Box Dimensions (LxWxH) | 3.45 x 1.15 x 1.15" | - Protective Cap for Powerlight
| | | Box Dimensions (LxWxH) | 5.433 x 5.354 x 5.276" | - AC Line Cord - 110V, for PL and PM
| | | Box Dimensions (LxWxH) | 9.75 x 9.75 x 2.65" | - Sync Cord - Monoplug to PC
| | | Box Dimensions (LxWxH) | 5.5 x 2.5 x 1.5" | - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior)
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.8 x 4.8" | - Softbox with Quick Change Adapter for Flash (12 x 36")
| Shape | Strip | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Rectangular Dimensions | W: 12.0 x H: 36.0" / W: 30.5 x H: 91.4 cm | | | | Box Dimensions (LxWxH) | 29.0 x 7.0 x 4.5" | - EC45BC Eclipse 45" White Flat-Panel Umbrella
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 29.5 x 2.4 x 0.6" | - Shallow Satin Reflector
| | | Box Dimensions (LxWxH) | 8.4 x 6.6 x 4.75" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - Talon Air-Cushioned Stand (Black, 13')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 13' / 4 m | | Collapsed Height | 43" / 1.1 cm | | Footprint Diameter | 3' / 0.9 m | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 45.5 x 5.5 x 4.4" | - Boom Arm with Counterweight - 5 - 6.5'
| | | Box Dimensions (LxWxH) | 36.3 x 6.7 x 6.4" |
