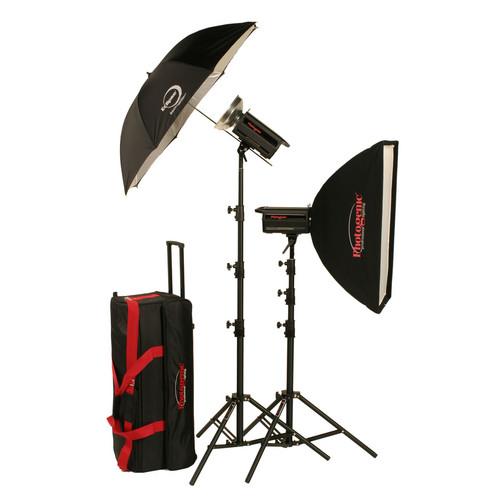

User Manual for Photogenic 2,000W s Solair Studio Power Kit Click to enlarge the picture
Contents of the user manual for the Photogenic 2,000W s Solair Studio Power
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic 2,000W s Solair Studio Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The heart of the Photogenic 2,000W/s Solair Studio Power Kit (120V) is the Solair 1,000W/s Monolight. Building on the foundation of the popular PowerLight PL2500DR, the Solair has an 8 stop extended power range selectable in 1/2 or 1/10 stop increments with repeat flash accuracy within 1/20 of a stop and all of the information displayed on the large LED screen. The bright 250W modeling lamp can be set to full on/off, user preference or proportionate to the flash power. What distinguishes the Solair however, is Constant Color Technology. It's quite common for other brands' color temperature to vary wildly when dropping from full to minimum power. The Solair varies a mere 100K from full to 1/128 power; indiscernible to most people.Another unique feature is the Flash Auto Bracketing function. Under and over power settings can be programmed into the flash head in 1/10 - 1 ½ f/stop increments around the prime or normal exposure. This kit has everything you need to get started in the studio or on location. It includes two 1,000W/s Solairs, 8.0' light stands, a 24 x 32" softbox, 45" umbrella and umbrella reflector, cables, flashtubes and a rolling case to transport it all. For complete specs on the items included in this kit please click on the links below: Solair PL1000DRC Flash Head
24 x 32" Rectangular Softbox
Eclipse 45" Umbrellazytfeysryybcyyvuxsuscvqdx
7.5" Reflector
8.0' AC Light Stand
C4-19C Flashtube
250W Modeling Lamp
15' Sync Cord
Flash Tube Protector
AC Line Cord
AK3419W Wheeled Case - Solair 1000W/s Monolight (120VAC) The Photogenic Solair 1000W/s Monolight (120VAC) provides constant color at all power levels. There is no color shift when powering the Solair up or down. A microprocessor provides consistent power output, preventing Kelvin degree shifts and variances in power output that may have happened on previous Powerlights.All the conveniences and features found on the previous Powerlight DR series are still here, plus the addition of two more stops of variable power, making it an 8 stop range. The UV-Coated flashtube included with this monolight lowers the color temperature to 5500°, which is the color of noon daylight on a clear day.
- Eight F/Stop Power Range
-
- Push-button controls provide flash power settings from 8 to 1000 w/s
- Power levels are visible in easy-to-read LED digits
- Remote Operation
- Optional Remote Digital Display and Flash Adjustment (PLDRC-1), Remote Digital Display and Infrared Receiver (PLDIR-1) and the Wireless Studio System Controller Software.
- Low Trigger Voltage
- Today's sensitive digital cameras can be used with the Photogenic Powerlights
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- Auto Dump Function
- Gives access to lower power selections without the need to manually dump a higher power first
- Modeling Light
- Features a 250W adjustable quartz modeling light with independent power control, and is infinitely adjustable from full to 1/32 power
- Ready Indication
-
- Dims the modeling light while charging the capacitors
- When the capacitors are at 100%, the modeling lamp relights
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Fan Cooled
- Low noise, high performance fan offers increased protection during the most demanding applications
UPC: 689670110518 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) The 24 x 32" Rectangular Softbox with Back Plate and Mounting Ring for Photogenic Flash Heads provides soft, yet intense light for your subjects. The interior is silver, for a little extra snap to the light. The spring tension rods fit easily into the softbox and into the included Photogenic speed ring. The front panel is touch-fastener fitted, allowing you to place the panel at the edge or 1.5" into the box for improved light direction. - Suggested use: 1 or 2 person half-length portrait.
UPC: 689670060448 EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
This size is perfect for portraits of 1 or 2 people, and small product set ups.
This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching. - Softens and broadens the light output of any strobe or lower wattage constant light.
- Removable black cover allows the light source to "shoot-through", as a more direct light.
Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775 Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26". - Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.
Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168 C4-19C UV Flashtube This is a clear, UV coated plug in replacement flashtube for the Photogenic PL2500DR monolight. UV flashtubes have a yellow appearance, and they counteract the excess blue 5700° or higher output of non-UV coated flashtubes. UV Coating lowers the color temperature to 5500°, which is the color of noon daylight on a clear day. UPC: 689670080231 ESS 250W Modeling Lamp The Photogenic ESS 250W Modeling Lamp is a replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875. - Replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875
UPC: 689670090131 Sync Cord - Monoplug to PC This is a straight, 15' sync cable, designed to allow firing of any strobe unit equipped with a 1/4" thick monoplug (old style phono) receptor. The other end plugs into any camera or firing device that has a standrad PC (post connection) terminal.Compatible with: Photogenic, Profoto, Speedotron, Hensel, SP Excalbur, and others. UPC: 689670071529 AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751 Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737 In the Box Bundle Items 2 x Solair 1000W/s Monolight (120VAC) zytfeysryybcyyvuxsuscvqdx - UV Coated Flashtube (C419C)
- 15' Mono to PC Sync cord (PLTC)
- Two Year Warranty on Monolight
- One Year Manufacturer's Warranty on Flashtube
24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) zytfeysryybcyyvuxsuscvqdx - Mounting Plate and Speed Ring for Photogenic Heads
EC45BC Eclipse 45" White Flat-Panel Umbrella 7-1/2" High Gain Reflector 2 x Air Cushioned Light Stand (8') AK3419W Wheeled Soft Case with Pull Handle (Black) 2 x C4-19C UV Flashtube ESS 250W Modeling Lamp 2 x Sync Cord - Monoplug to PC 2 x AC Line Cord - 110V, for PL and PM 2 x Protective Cap for Powerlight
Also Includes - User Manual
- 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic 2,000W s Solair Studio Power Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Solair 1000W/s Monolight (120VAC)
| | | Maximum Power | 8 to 1000 Ws | | Power Control | 8 Stops in 1/10-Stop Increments | | Guide Number | 515' / 157 m at ISO100 | | Flash Duration | t.1: 1/250 Sec (Full Power) | | Recycle Time | 0.8 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Infrared, Optical | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 15 A (Operating) | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 7 lb / 3.2 kg | | | | Box Dimensions (LxWxH) | 15.5 x 11.5 x 10.4" | - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior)
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.8 x 4.8" | - EC45BC Eclipse 45" White Flat-Panel Umbrella
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 29.5 x 2.4 x 0.6" | - 7-1/2" High Gain Reflector
| | | Box Dimensions (LxWxH) | 8.5 x 8.5 x 8.4" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - AK3419W Wheeled Soft Case with Pull Handle (Black)
| | | Compartment Dimensions (W x H x D) | 32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm
35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm
33 x 5.5" / 83.8 x 13.9 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
Shoulder Strap
Telescoping Handle | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm | | Weight | 13 lb / 5.9 kg | | | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 15.0" | - C4-19C UV Flashtube
| | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 3.0" | - ESS 250W Modeling Lamp
| Base Type | BA15d | | Wattage | 250 W | | Voltage | 120 V | | | | Box Dimensions (LxWxH) | 3.45 x 1.15 x 1.15" | - Sync Cord - Monoplug to PC
| | | Box Dimensions (LxWxH) | 5.5 x 2.5 x 1.5" | - AC Line Cord - 110V, for PL and PM
| | | Box Dimensions (LxWxH) | 9.75 x 9.75 x 2.65" | - Protective Cap for Powerlight
| | | Box Dimensions (LxWxH) | 5.433 x 5.354 x 5.276" |
