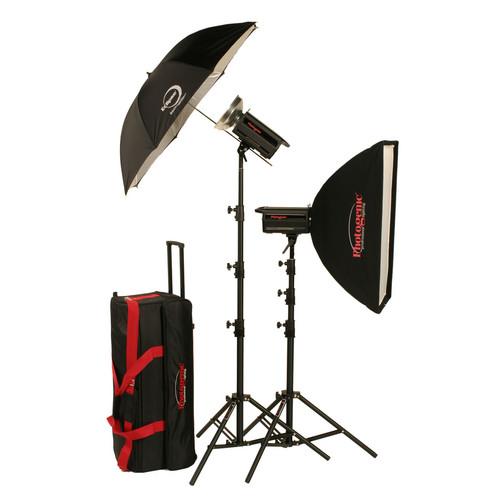

User Manual for Photogenic 2,000W s Solair Studio Power Kit with PocketWizard Click to enlarge the picture
Contents of the user manual for the Photogenic 2,000W s Solair Studio Power
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic 2,000W s Solair Studio Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The heart of the Photogenic 2,000W/s Solair Studio Power Kit with PowerWizard (120V) is the Solair 1,000W/s Monolight. Building on the foundation of the popular PowerLight PL2500DR, the Solair has an 8 stop extended power range selectable in 1/2 or 1/10 stop increments with repeat flash accuracy within 1/20 of a stop and all of the information displayed on the large LED screen. The bright 250W modeling lamp can be set to full on/off, user preference or proportionate to the flash power. What distinguishes the Solair however, is Constant Color Technology. It's quite common for other brands' color temperature to vary wildly when dropping from full to minimum power. The Solair varies a mere 100K from full to 1/128 power; indiscernible to most people.Another unique feature is the Flash Auto Bracketing function. Under and over power settings can be programmed into the flash head in 1/10 - 1 ½ f/stop increments around the prime or normal exposure. As an alternative to hard-wired sync, trigger your PowerLights wirelessly at distances up to 1,600' via the built-in 32 channel PocketWizard receiver. (Requires purchase of PocketWizard Transceiver) This kit has everything you need to get started in the studio or on location. It includes two 1,000W/s Solairs, 8.0' light stands, a 24 x 32" softbox, 45" umbrella and umbrella reflector, cables, flashtubes and a rolling case to transport it all. - PLR1000DRC Radio Solair 1,000W/s Monolight with PocketWizard Receiver The Photogenic PLR1000DRC Radio Solair 1,000W/s Monolight with PocketWizard Receiver offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. The PLR1000DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across an impressive 8 full stops. The bright 250W modeling light can be set to Proportional to let you previsualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PLR1000DRC Radio Solair even allows 2 or 3 shot bracketing around your prime exposure. The PLR1000DRC recycles to full power in a lightning-fast 3.0 seconds at full power and 0.8 seconds at minimum power with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. Convenience features include a test button, optical slave and integral handle. A PocketWizard radio remote is built into that handle so that you can say goodbye to tripping over PC cords in favor of wireless triggering of your PowerLight from distances up to 1,600'. The UV color corrected flash tube ensures that blue doesn't creep into your color balance on subjects like a bride in her gown. It also ensures natural, flattering skin tones. The PLR1000DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes and umbrellas.
- Eight Stop Power Range
- Power levels are displayed in easy-to-read LED digits allowing settings from 7.8W/s to 1,000W/s in 1/10 or 1/2 stop increments
- Fast Recycling
- The PLR1000DRC recycles to full power (1,000W/s) in only 3.0 seconds and 0.8 sec. at minimum power to catch even the most fleeting gestures
- Modeling Light
- The PLR1000DRC's bright 250W quartz modeling lamp offers independent power control that is adjustable from full to 1/128 power in 1/10 or 1/2 stop increments. Settings include Proportional, to previsualize lighting effects, Manual adjustment or Full On or Off
- Flash Bracketing
- Flash bracketing is a great time-saving feature especially when you'd like to shoot at a specific f/stop. You can set up your Solair for 2 or 3 shot bracketing over or under the prime exposure
- Remote Triggering
- The PLR1000DRC has a built-in PocketWizard receiver that will allow you to trigger your flash from up to 1,600' away. If it can perform like that in the field, just think of how it will handle the confines of your studio. It also has a built-in, highly sensitive, switchable optical slave for synchronization with other flashes
- Low Trigger Voltage
- Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
- User Replaceable UV Flashtube
- No tools are required to replace this "plug & play" flashtube. The UV coating ensures clean whites and flattering flesh tones
- Ready Indication
- Audio and ready light indicators let you know when the flash is fully charged
- Auto Dump Function
- When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
- Fan Cooled
- A low noise, high performance fan keeps the flash head's electronics cool while lengthening the flash tube's and the modeling light's lives
- Safety Features
- The PLR1000DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
- System Compatibility
- The PLR1000DRC Radio Solair is compatible with all Photogenic Quick-Change light shaping accessories
UPC: 689670184007 - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) The 24 x 32" Rectangular Softbox with Back Plate and Mounting Ring for Photogenic Flash Heads provides soft, yet intense light for your subjects. The interior is silver, for a little extra snap to the light. The spring tension rods fit easily into the softbox and into the included Photogenic speed ring. The front panel is touch-fastener fitted, allowing you to place the panel at the edge or 1.5" into the box for improved light direction.
- Suggested use: 1 or 2 person half-length portrait.
UPC: 689670060448 - EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
This size is perfect for portraits of 1 or 2 people, and small product set ups.
This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching. - Softens and broadens the light output of any strobe or lower wattage constant light.
- Removable black cover allows the light source to "shoot-through", as a more direct light.
Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110 - 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775
- Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
- Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 - AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.
Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168 - C4-19C UV Flashtube This is a clear, UV coated plug in replacement flashtube for the Photogenic PL2500DR monolight. UV flashtubes have a yellow appearance, and they counteract the excess blue 5700° or higher output of non-UV coated flashtubes. UV Coating lowers the color temperature to 5500°, which is the color of noon daylight on a clear day. UPC: 689670080231
- ESS 250W Modeling Lamp The Photogenic ESS 250W Modeling Lamp is a replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875.
- Replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875
UPC: 689670090131 - Sync Cord - Monoplug to PC This is a straight, 15' sync cable, designed to allow firing of any strobe unit equipped with a 1/4" thick monoplug (old style phono) receptor. The other end plugs into any camera or firing device that has a standrad PC (post connection) terminal.Compatible with: Photogenic, Profoto, Speedotron, Hensel, SP Excalbur, and others. UPC: 689670071529
- AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
- Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737
In the Box Bundle Items 2 x PLR1000DRC Radio Solair 1,000W/s Monolight with PocketWizard Receiver zytfeysryybcyyvuxsuscvqdx - 7-1/2" High Gain Reflector
- AC Line Cord - 110V, for PL and PM
- Protective Cap for Powerlight
- Sync Cord - Monoplug to PC
24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) - Mounting Plate and Speed Ring for Photogenic Heads
EC45BC Eclipse 45" White Flat-Panel Umbrella 7-1/2" High Gain Reflector 2 x Air Cushioned Light Stand (8') AK3419W Wheeled Soft Case with Pull Handle (Black) 2 x C4-19C UV Flashtube ESS 250W Modeling Lamp 2 x Sync Cord - Monoplug to PC 2 x AC Line Cord - 110V, for PL and PM 2 x Protective Cap for Powerlight
Also Includes - User Manual
- 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic 2,000W s Solair Studio Power Kit with PocketWizard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PLR1000DRC Radio Solair 1,000W/s Monolight with PocketWizard Receiver
| | | Maximum Power | 7.8 to 1000 Ws | | Power Control | 8 Stops in 1/10-Stop Increments | | Guide Number | 160' / 48.8 m at 10' / 3 m, ISO100
515' / 157 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/4000 to 1/250 Sec | | Recycle Time | 0.8 to 3.0 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical, Radio | | Interface | 1/4" Sync | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 10 A (Operating)
15 A (Charging)
0.2 A (Idle) | | Circuit Protection | Fuse | | Fuse | 16 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 7.0 lb / 3.17 kg | | | | Box Dimensions (LxWxH) | 34.0 x 20.0 x 15.0" | - 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior)
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.8 x 4.8" | - EC45BC Eclipse 45" White Flat-Panel Umbrella
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 29.5 x 2.4 x 0.6" | - 7-1/2" High Gain Reflector
| | | Box Dimensions (LxWxH) | 8.5 x 8.5 x 8.4" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - AK3419W Wheeled Soft Case with Pull Handle (Black)
| | | Compartment Dimensions (W x H x D) | 32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm
35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm
33 x 5.5" / 83.8 x 13.9 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
Shoulder Strap
Telescoping Handle | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm | | Weight | 13 lb / 5.9 kg | | | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 15.0" | - C4-19C UV Flashtube
| | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 3.0" | - ESS 250W Modeling Lamp
| Base Type | BA15d | | Wattage | 250 W | | Voltage | 120 V | | | | Box Dimensions (LxWxH) | 3.45 x 1.15 x 1.15" | - Sync Cord - Monoplug to PC
| | | Box Dimensions (LxWxH) | 5.5 x 2.5 x 1.5" | - AC Line Cord - 110V, for PL and PM
| | | Box Dimensions (LxWxH) | 9.75 x 9.75 x 2.65" | - Protective Cap for Powerlight
| | | Box Dimensions (LxWxH) | 5.433 x 5.354 x 5.276" |
