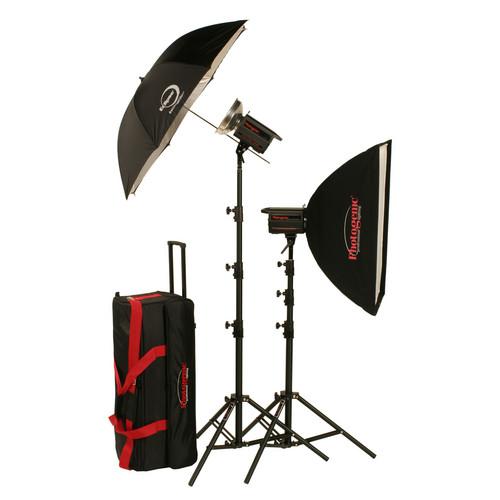

Photogenic 500W s PowerLight Digital Travel

User Manual for Photogenic 500W s PowerLight Digital Travel Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• PLR625DRC 250W/s PowerLight Monolight with PocketWizard Receiver (UV) The Photogenic PLR625DRC 250W/s PowerLight Monolight with PocketWizard Receiver (UV) offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. What good is a light if it keeps you in the dark? The PLR625DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across 6 stops. The modeling light can be set to Proportional to let you pre-visualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PLR625DRC recycles to full power in a lightning-fast 1.2 seconds with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. The included UV color-corrected flash tube renders accurate skin tones and prevents blue from creeping in to the color balance. The built-in PocketWizard radio receiver allows you to avoid a tangle of PC cords by wirelessly triggering your flash from up to 1,600' feet away if necessary. Using the built-in receiver requires purchase of a PocketWizard transmitter. Other convenience features include a test button, optical slave and integral handle. The PLR625DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes and umbrellas. Note: Requires separate purchase of PocketWizard transmitter or transceiver for wireless use
  Six Stop Power Range
  • Power settings Power levels are displayed in easy-to-read LED digits allowing settings from 7.8W/s to 250W/s in 1/10 or 1/2 stop increments
  Fast Recycling
  • The PLR625DRC recycles to full power in only 1.25 seconds to catch even the most fleeting gestures
  Modeling Light
  • The PLR625DRC can use up to 250W quartz modeling lamps with independent power control that are adjustable from full to 1/32 power in 1/10 or 1/2 stop increments. Settings include Proportional, to previsualize the lighting effects, Manual adjustment or Full On or Off
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic PowerLights without fear of damage to the camera's electronics
  Built-In Slave
  • This version of the PLR625DRC has a built-in PocketWizard wireless radio receiver that allows you to do away with sync cords. Just slip the PocketWizard transmitter (purchased separately) into your camera's hot shoe and trigger your flash from up to 1,600' feet away. A highly sensitive, switchable optical slave for synchronization with other flashes is also built in
  User Replaceable Flashtube
  • No tools are required to replace this "plug & play" flashtube
  Ready Indication
  • Dims the modeling light while charging the capacitors. When the capacitors are at 100%, the modeling lamp re-lights
  Auto Dump Function
  • When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
  Fan Cooled
  • A low noise, high performance fan keeps the flash head's electronics cool while lengthening the flash tube's and the modeling light's lives
  Safety Features
  • The PLR625DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
  System Compatibility
  • The PLR625DRC is compatible with all Photogenic Quick-Change light shaping accessories
  Color Corrected Flash Tube
  • The PLR625DRC's UV-coated, color-corrected flash tube renders accurate flesh tones and removes blue from the color balance. Wedding shooters will appreciate the resulting neutral rendition of the bride's gown
  UPC: 689670160865
• 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior) The 24 x 32" Rectangular Softbox with Back Plate and Mounting Ring for Photogenic Flash Heads provides soft, yet intense light for your subjects. The interior is silver, for a little extra snap to the light. The spring tension rods fit easily into the softbox and into the included Photogenic speed ring. The front panel is touch-fastener fitted, allowing you to place the panel at the edge or 1.5" into the box for improved light direction.
  • Suggested use: 1 or 2 person half-length portrait.
  UPC: 689670060448
• EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
  This size is perfect for portraits of 1 or 2 people, and small product set ups.
  This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching.
  • Softens and broadens the light output of any strobe or lower wattage constant light.
  • Removable black cover allows the light source to "shoot-through", as a more direct light.
  Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110
• 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775
• Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
  • Brushed anodized finish, rubber grip feet
  • Top Baby (5/8") stud has a 1/4"-20 thread
  UPC: 689670177733
• AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.

  Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168
• C4-15C Flashtube The standard, clear, UV Coated flashtube for the Photogenic PL2 Series monolights.Most current, professional flash heads and monolights are equipped with user replaceable flashtubes that may simply be plugged into, and unplugged from their sockets. With proper handling, these flashtubes may last for tens of thousands of flashes under normal use.This flashtube is UV-Coated, or UV-Corrected. UV flashtubes have a yellow appearance, and they counteract the excess blue 5700° or higher output of non-UV coated flashtubes. UV Coating lowers the color temperature to 5500°, which is the color of noon daylight on a clear day. UPC: 689670080163
• ESS 250W Modeling Lamp The Photogenic ESS 250W Modeling Lamp is a replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875.
  • Replacement modeling lamp for Powerlights PL1000, PL500, PL2500, PL1250, PL300, PL1500, PL1875
  UPC: 689670090131
• Sync Cord - Monoplug to PC This is a straight, 15' sync cable, designed to allow firing of any strobe unit equipped with a 1/4" thick monoplug (old style phono) receptor. The other end plugs into any camera or firing device that has a standrad PC (post connection) terminal.Compatible with: Photogenic, Profoto, Speedotron, Hensel, SP Excalbur, and others. UPC: 689670071529
• AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
• Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737

• ESR (100W/120V) Lamp

• 7-1/2" High Gain Reflector

• C4-15C Flashtube

• Protective Cap for Powerlight

• AC Line Cord - 110V, for PL and PM

• Sync Cord - Monoplug to PC

• Limited 2-Year Warranty

• Mounting Plate and Speed Ring for Photogenic Heads

• Storage Bag

• Limited 30-Day Warranty

• Black, Removable Cover

• Limited 30-Day Warranty

• 2 x Padded Dividers

• Upper Deck Divider

• Padded Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• User Manual
• 2 Year Manufacturer's Warranty on Flash
• 1 Year Manufacturer's Warranty on Flash Tube

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PLR625DRC 250W/s PowerLight Monolight with PocketWizard Receiver (UV)

  Maximum Power	7.8 to 250 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	130' / 39.6 m at 10' / 3 m, ISO100 with Reflector
  Flash Duration	1/2000 to 1/640 Sec
  Recycle Time	0.5 to 1.25 Sec ()
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	100 W

  Sync Type	Optical, Radio
  Wireless Range	1600' / 500 m (Radio)
  Interface	1/4" Sync
  Sync Voltage	5 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	10 A (Operating) 15 A (Charging) 0.2 A (Idle)
  Circuit Protection	Fuse
  Fuse	16 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm
  Weight	4.9 lb / 2.2 kg

• 24 x 32" Rectangular Softbox with Mount Ring (Silver Interior)

  Shape	Rectangular
  Interior	Silver
  Requires Speed Ring	Yes, Included
  Accepts Grids	Yes
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm

  Box Dimensions (LxWxH)	30.0 x 7.8 x 4.8"

• EC45BC Eclipse 45" White Flat-Panel Umbrella

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	29.5 x 2.4 x 0.6"

• 7-1/2" High Gain Reflector

  Box Dimensions (LxWxH)	8.5 x 8.5 x 8.4"

• Air Cushioned Light Stand (8')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	8' / 2.4 m
  Minimum Working Height	26" / 66 cm
  Collapsed Height	26" / 66 cm
  Footprint Diameter	31.5" / 80 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	2.3 lb / 1.0 kg

  Box Dimensions (LxWxH)	24.0 x 5.0 x 4.5"

• AK3419W Wheeled Soft Case with Pull Handle (Black)

  Compartment Dimensions (W x H x D)	32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm 35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm 33 x 5.5" / 83.8 x 13.9 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Shoulder Strap Telescoping Handle
  Casters	2
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm
  Weight	13 lb / 5.9 kg

  Box Dimensions (LxWxH)	34.0 x 18.0 x 15.0"

• C4-15C Flashtube

  Box Dimensions (LxWxH)	5.55 x 3.1 x 3.05"

• ESS 250W Modeling Lamp

  Base Type	BA15d
  Wattage	250 W
  Voltage	120 V

  Box Dimensions (LxWxH)	3.45 x 1.15 x 1.15"

• Sync Cord - Monoplug to PC

  Box Dimensions (LxWxH)	5.5 x 2.5 x 1.5"

• AC Line Cord - 110V, for PL and PM

  Box Dimensions (LxWxH)	9.75 x 9.75 x 2.65"

• Protective Cap for Powerlight

  Box Dimensions (LxWxH)	5.433 x 5.354 x 5.276"
