User Manual for Photogenic AKC160 Studiomax III 160W s Monolight Click to enlarge the picture
Contents of the user manual for the Photogenic AKC160 Studiomax III 160W s
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
 |
User manual for the Photogenic AKC160 Studiomax III 160W s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|

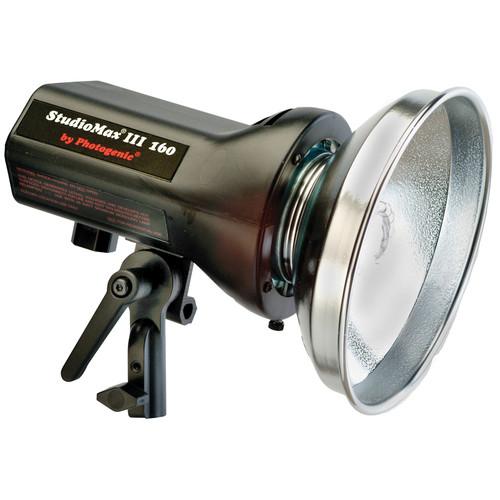

Product description The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work. The AKC160 comes with a UV color corrected, user-replaceable flash tube that renders fabrics and flesh tones accurately. The monolight comes with a 7.5" high-gain reflector but accepts the entire line of Photogenic Quick-Change reflectors, grids, snoots, and diffusers. An AC cord, sync cord, 100W quartz modeling lamp and a protective cap are also included. - Six Stop Power Range
- Power levels, accessed on the rear panel, are adjustable from 5.0 to 160W/s with a simple twist of a knob
- Fast Recycling
- The AKC160 recycles to full power (160W/s) in only 1.5 seconds, and 0.5 sec. at minimum power to catch even the most fleeting gestures

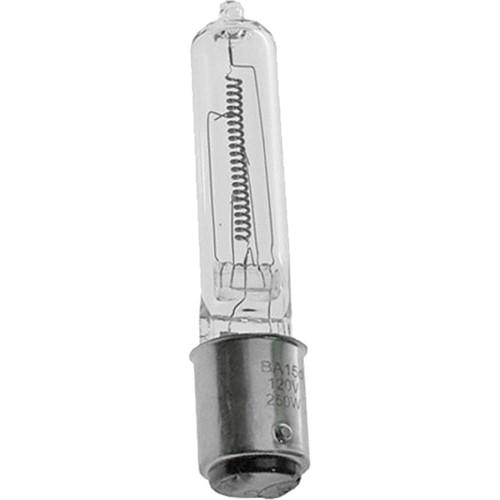

- Modeling Light
- The AKC160's 100W quartz modeling light allows you to preview the effect of your lights before tripping the shutter
- Low Trigger Voltage
- Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics

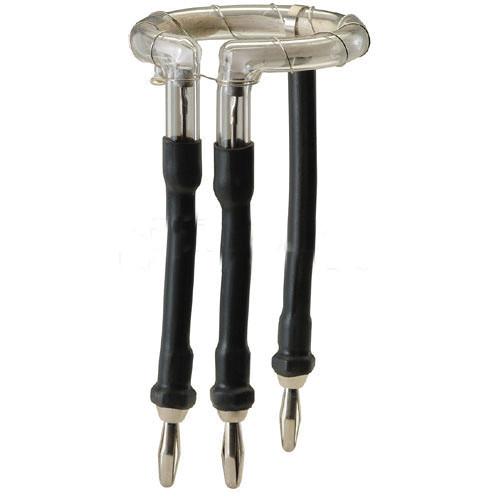

- User Replaceable UV Flashtube
- Replacing this "plug & play" flashtube is a snap. The UV coating ensures clean whites and flattering flesh tones
- Ready Indication
- A ready light lets you know when the flash is fully charged
- Power off Auto-discharge
- As a safety precaution, the AKC160 drains the capacitors when you turn it off
- Surge Protection
- The AKC160 incorporates surge protection to handle power spikes
- System Compatibility
- The AKC160 is compatible with all Photogenic Quick-Change light shaping accessories

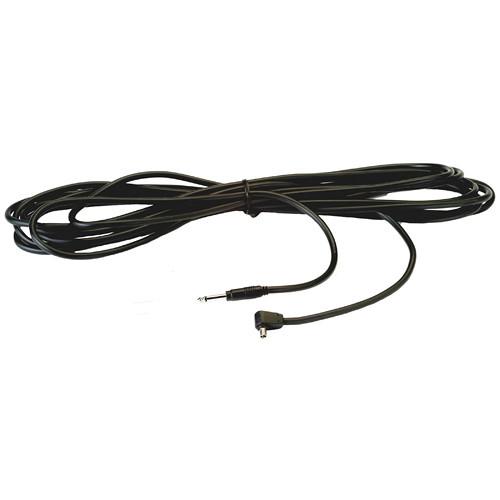

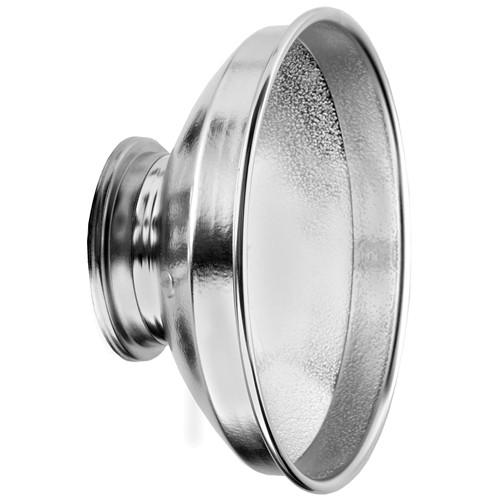

UPC: 689670111195 In the Box Photogenic AKC160 Studiomax III 160W/s Monolight ESR (100W/120V) Lamp zdcuazdfuu 7-1/2" High Gain Reflector C4-12C Color Corrected Flash Tube AC Line Cord - 110V, for PL and PM Protective Cap for Powerlight PC to Mini Sync Cord - 10' (3m) Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic AKC160 Studiomax III 160W s Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic AKC160 Specs | | | Maximum Power | 5 to 160 Ws | | Power Control | 6 Stops | | Guide Number | 25' / 7.6 m at 10' / 3 m, ISO100
81' / 24.7 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/7400 to 1/175 Sec | | Recycle Time | 0.1 to 1.5 Sec () | | Color Temperature | 5400K ± 200K | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Optical | | Interface | PC Sync (3.5 mm) | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 3 A (Operating)
5 A (Charging)
1 A (Idle) | | Circuit Protection | Fuse | | Fuse | 8 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 5.2 x W: 5.2 x L: 7.0" / H: 13.3 x W: 13.3 x L: 17.8 cm | | Weight | 2.6 lb / 1.17 kg | | | | Package Weight | 5.305 lb | | Box Dimensions (LxWxH) | 12.8 x 10.35 x 10.2" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
