Photogenic AKC325K 320W s Basic Studio

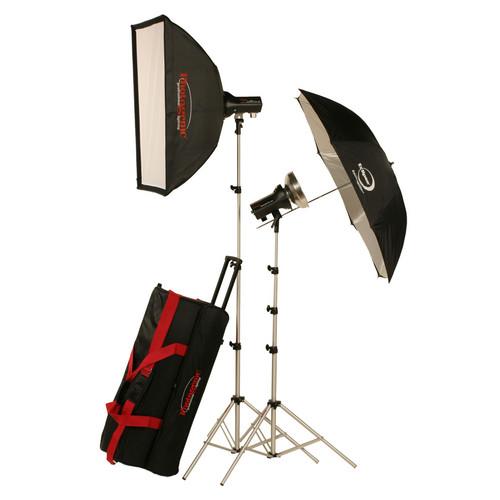

User Manual for Photogenic AKC325K 320W s Basic Studio 2 Light Soft Box Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• AKC160 Studiomax III 160W/s Monolight The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work. The AKC160 comes with a UV color corrected, user-replaceable flash tube that renders fabrics and flesh tones accurately. The monolight comes with a 7.5" high-gain reflector but accepts the entire line of Photogenic Quick-Change reflectors, grids, snoots, and diffusers. An AC cord, sync cord, 100W quartz modeling lamp and a protective cap are also included.
  Six Stop Power Range
  • Power levels, accessed on the rear panel, are adjustable from 5.0 to 160W/s with a simple twist of a knob
  Fast Recycling
  • The AKC160 recycles to full power (160W/s) in only 1.5 seconds, and 0.5 sec. at minimum power to catch even the most fleeting gestures
  Modeling Light
  • The AKC160's 100W quartz modeling light allows you to preview the effect of your lights before tripping the shutter
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
  User Replaceable UV Flashtube
  • Replacing this "plug & play" flashtube is a snap. The UV coating ensures clean whites and flattering flesh tones
  Ready Indication
  • A ready light lets you know when the flash is fully charged
  Power off Auto-discharge
  • As a safety precaution, the AKC160 drains the capacitors when you turn it off
  Surge Protection
  • The AKC160 incorporates surge protection to handle power spikes
  System Compatibility
  • The AKC160 is compatible with all Photogenic Quick-Change light shaping accessories
  UPC: 689670111195
• 7-1/2" High Gain Reflector This 7.5" high gain reflector fits all Photogenic Powerlight and StudioMax II monolights.It gathers and intensifies the light output of the flash head. It can be used with any umbrella, and all Photogenic Powerlight accessories, such as barndoors, grid holders and filter holders. UPC: 689670070775
• C4-12C Color Corrected Flash Tube The Photogenic C4-12C Color Corrected Flash Tube is a replacement flash tube for select StudioMax II and StudioMax III flash heads.
  For StudioMax II models
  • AK160
    AK160B
    AK320
    AK320B
  For StudioMax III models
  • AKC160
    AKC160B
    AKC160R
    AKC160BR
    AKC320
    AKC320B
    AKC320R
    AKC320BR
  UPC: 689670177771
• ESR Lamp - 100 Watts/120 Volts General Brand ESR 100 Watt/120 Volt clear tungsten halogen bulb for Arri 150 Fresnel, LTM Pepper 100, and other lighting fixtures. Brand may vary due to availability. For a frosted version, Click Here.rwrbucxuvvsxtyd For 200 Watt Alternative, Click Here.
• AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
• PC to Mini Sync Cord - 10' (3m) This is a Photogenic 10' PC to Mini Sync Cord for Photogenic StudioMax II, and III Monolights. It permits triggering of any strobe unit that has a mini plug terminal from your camera's sync terminal. UPC: 689670050319
• 24 x 32" Rectangular Softbox with Mounting Ring The Photogenic 24 x 32" Rectangular Softbox with Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
  • Suitable for 2 or 3 person head shot.
  UPC: 689670111157
• EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
  This size is perfect for portraits of 1 or 2 people, and small product set ups.
  This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching.
  • Softens and broadens the light output of any strobe or lower wattage constant light.
  • Removable black cover allows the light source to "shoot-through", as a more direct light.
  Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110
• Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
  • Brushed anodized finish, rubber grip feet
  • Top Baby (5/8") stud has a 1/4"-20 thread
  UPC: 689670177733
• Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737
• AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.

  Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168

• ESR (100W/120V) Lamp

• 7-1/2" High Gain Reflector

• C4-12C Color Corrected Flash Tube

• AC Line Cord - 110V, for PL and PM

• Protective Cap for Powerlight

• PC to Mini Sync Cord - 10' (3m)

• Limited 1-Year Warranty

• One Year Manufacturer's Warranty

• Internal Diffuser

• Rods

• Carry Case

• Limited 30-Day Warranty

• Black, Removable Cover

• Limited 30-Day Warranty

• 2 x Padded Dividers

• Upper Deck Divider

• Padded Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• StudioMax III 160W/s Flash Head without Reflector
• Operator's Manual
• 2 Year Manufacturer's Warranty on Flash
• 1 Year Manufacturer's Warranty on Flash Tube

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AKC160 Studiomax III 160W/s Monolight

  Maximum Power	5 to 160 Ws
  Power Control	6 Stops
  Guide Number	25' / 7.6 m at 10' / 3 m, ISO100 81' / 24.7 m at 10' / 3 m, ISO100 with Reflector
  Flash Duration	1/7400 to 1/175 Sec
  Recycle Time	0.1 to 1.5 Sec ()
  Color Temperature	5400K ± 200K
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	100 W

  Sync Type	Optical
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	3 A (Operating) 5 A (Charging) 1 A (Idle)
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 5.2 x W: 5.2 x L: 7.0" / H: 13.3 x W: 13.3 x L: 17.8 cm
  Weight	2.6 lb / 1.17 kg

  Box Dimensions (LxWxH)	12.8 x 10.35 x 10.2"

• 7-1/2" High Gain Reflector

  Box Dimensions (LxWxH)	8.5 x 8.5 x 8.4"

• C4-12C Color Corrected Flash Tube

  Maximum Watt/Seconds

  320

  Box Dimensions (LxWxH)	5.5 x 3.05 x 3.05"

• ESR Lamp - 100 Watts/120 Volts

  Code	ESR
  Application	Stage and studio, enlargers
  Watts	100
  Volts	120
  Color Temperature	3000°K
  Average Life Hours	1000
  Approx. Lumens	1900
  Base Type	BA15d
  Filament Type	CC2V
  Length	2.44" (61.9mm)

• AC Line Cord - 110V, for PL and PM

  Box Dimensions (LxWxH)	9.75 x 9.75 x 2.65"

• PC to Mini Sync Cord - 10' (3m)

  Box Dimensions (LxWxH)	5.9 x 1.6 x 0.9"

• 24 x 32" Rectangular Softbox with Mounting Ring

  Shape	Rectangular
  Interior	Silver
  Requires Speed Ring	Yes, Included
  Accepts Grids	Yes
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm

  Box Dimensions (LxWxH)	30.0 x 7.6 x 5.0"

• EC45BC Eclipse 45" White Flat-Panel Umbrella

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	29.5 x 2.4 x 0.6"

• Air Cushioned Light Stand (8')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	8' / 2.4 m
  Minimum Working Height	26" / 66 cm
  Collapsed Height	26" / 66 cm
  Footprint Diameter	31.5" / 80 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	2.3 lb / 1.0 kg

  Box Dimensions (LxWxH)	24.0 x 5.0 x 4.5"

• Protective Cap for Powerlight

  Box Dimensions (LxWxH)	5.433 x 5.354 x 5.276"

• AK3419W Wheeled Soft Case with Pull Handle (Black)

  Compartment Dimensions (W x H x D)	32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm 35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm 33 x 5.5" / 83.8 x 13.9 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Shoulder Strap Telescoping Handle
  Casters	2
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm
  Weight	13 lb / 5.9 kg

  Box Dimensions (LxWxH)	34.0 x 18.0 x 15.0"
