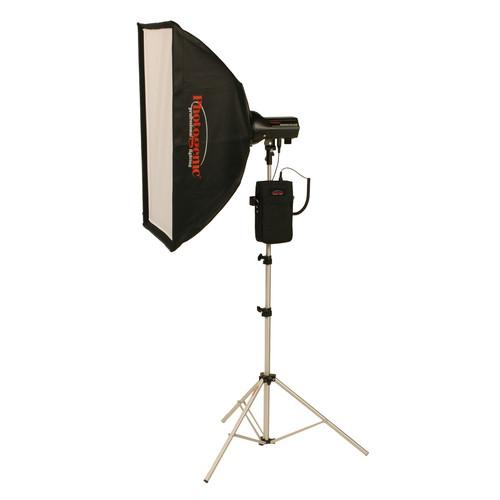

User Manual for Photogenic AKC50BK 320W s Travel Soft Box Kit with Battery Click to enlarge the picture
Contents of the user manual for the Photogenic AKC50BK 320W s Travel Soft
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic AKC50BK 320W s Travel Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The Photogenic AKC50BK 320W/s Travel Soft Box Kit with Battery (AC/DC) is a great way to achieve studio-quality lighting in-house or on location, even when there's no electricity available, at a price point that won't strain your budget. The kit is built around the lightweight, dependable StudioMax III AC/DC flash head. Like its big brother the Solair flash head, the StudioMax III employs Constant Color Technology. While it's quite common for other brands' color temperature to vary wildly when dropping from full to minimum power, the StudioMax III varies a virtually indiscernible 200K from full to 1/128 power. The 320W/s head is capable of fast recycling (3.0 sec.) at full power as well as fast flash durations at minimum power which is ideal for capturing every fleeting gesture with subjects in motion like athletes or dancers. Of course they're great for product work or portraiture as well and Photogenic has you covered on both counts. The kit includes a 24 x 32" soft box- an ideal sized light source for head and shoulders portraits or small to medium sized products. No electricity? Shooting at the beach? No problem. The AKC320BR runs on household AC power or DC power and that means battery. The included AKB-1 12V lead-acid battery with case and shoulder strap provides up to 100 full power flashes and thousands of minimum power flashes. An air-cushioned 8.0' light stand is provided to support the head and protect it from shock when adjusting its height while the battery pack mounts to it via a special bracket that facilitates quick setup and portability. The kit comes with power and sync cords, flash tube, modeling lamp and a 7.5" reflector. - StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power.
- Six F/Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- Modeling Light
- Independently Switched, to aid in positioning and focus
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Compact Design
- Easy to transport; umbrella socket and stand mount built on
UPC: 689670111188 - 24 x 32" Rectangular Softbox with Mounting Ring The Photogenic 24 x 32" Rectangular Softbox with Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
- Suitable for 2 or 3 person head shot.
UPC: 689670111157 - Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
- Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 - Battery for Studiomax AC/DC Monolights The Photogenic 12VDC Power Battery Pack works with the Studiomax 160 and 320 ACDC monolights, SP Excalibur C1600ACDC monolight, SPC920ACDC, 147ACDC and 100ACDC units. This pack also works with most flashes that can use the Quantum Turbo, and Lumedyne Mini Cycler battery packs. Power cords for these strobes made by Quantum and Paramount may be ordered from separately.
- A more economical alternative to the Quantum Turbo battery.
- Recycle time is about 4 seconds when used @ full power with the Studiomax 160AC/DC.
UPC: 689670050289 - 812458 Stand Adapter Mount for BP320 Battery This 812458 adapter allows mounting of a Norman BP320 Battery Pack to the riser of a light stand. It allows DC powered use of the Norman monolight at a greater light stand height. UPC: 689670174176
In the Box Bundle Items StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) zytfeysryybcyyvuxsuscvqdx - C4-12C Color Corrected Flash Tube
- ESR Lamp - 100 Watts/120 Volts
- 7-1/2" High Gain Reflector
- PC to Mini Sync Cord - 10' (3m)
- Battery Cable for StudioMax AC/DC Monolight
24 x 32" Rectangular Softbox with Mounting Ring Air Cushioned Light Stand (8') Battery for Studiomax AC/DC Monolights - 18V 600mA Charger/AC Adapter
- Fitted Cordura Case with Strap and Zipper
812458 Stand Adapter Mount for BP320 Battery
Also Includes - 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic AKC50BK 320W s Travel Soft Box Kit with Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)
| | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Maximum Output Voltage | 12.0 VDC | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3.0 lb / 1.36 kg | | | | Box Dimensions (LxWxH) | 12.7 x 10.3 x 10.3" | - 24 x 32" Rectangular Softbox with Mounting Ring
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.6 x 5.0" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - Battery for Studiomax AC/DC Monolights
| Number of Flashes per Charge | 110 @ 270 w/s, 190 @ 160 w/s
320 @ 100 w/s, 380 @ 70 w/s | | Charge Rate | 6 hours | | Connectors | 1- multi-pin to battery, 1- DC charging input | | Memory | None, battery is lead-acid | | Dimensions | 5 x 3 x 7" (12.7 x 7.6 x 17.8cm) | | Weight | 3 lbs (1.4kg) | | | | Box Dimensions (LxWxH) | 13.9 x 8.6 x 3.3" | - 812458 Stand Adapter Mount for BP320 Battery
| | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 3.0" |
