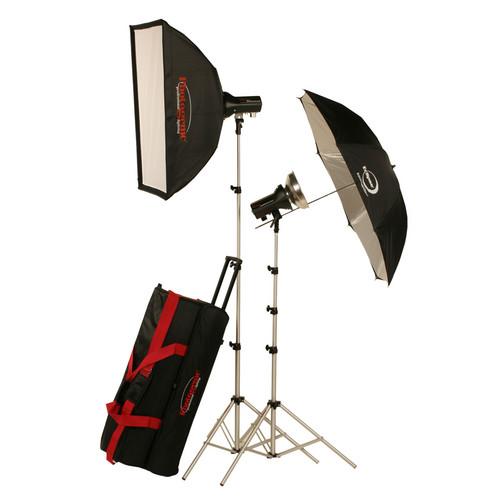

User Manual for Photogenic AKC645BK 640W s Studio 2 Light Kit Click to enlarge the picture
Contents of the user manual for the Photogenic AKC645BK 640W s Studio 2
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic AKC645BK 640W s Studio 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The Photogenic AKC645BK 640W/s Studio 2 Light Kit (AC/DC) is a great way to achieve studio-quality lighting in-house or on location, even when there's no electricity available, at a price point that won't strain your budget. The kit is built around the lightweight, dependable StudioMax III AC/DC flash head. Like its big brother the Solair flash head, the StudioMax III employs Constant Color Technology. While it's quite common for other brands' color temperature to vary wildly when dropping from full to minimum power, the StudioMax III varies a virtually indiscernible 200K from full to 1/128 power. The 320W/s head is capable of fast recycling (3.0 sec.) at full power as well as fast flash durations at minimum power which is ideal for capturing every fleeting gesture with subjects in motion like athletes or dancers. Of course they're great for product work or portraiture as well and Photogenic has you covered on both counts. The kit includes a 24 x 32" soft box- an ideal sized light source for head and shoulders portraits or small to medium sized products. The 45" umbrella is perfect for fill light. No electricity? Shooting at the beach? No problem. The AKC320BR runs on household AC power or DC power. (Requires purchase of optional AKB-1 Battery.) An air-cushioned 8.0' light stand is provided to support each head and protect it from shock when adjusting its height. The kit comes with power and sync cords, flash tubes, modeling lamps and a 7.5" reflector. It all fits in a rolling kit case. - StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power.
- Six F/Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- Modeling Light
- Independently Switched, to aid in positioning and focus
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Compact Design
- Easy to transport; umbrella socket and stand mount built on
UPC: 689670111188 - C4-12C Color Corrected Flash Tube The Photogenic C4-12C Color Corrected Flash Tube is a replacement flash tube for select StudioMax II and StudioMax III flash heads.
- For StudioMax II models
- AK160
AK160B
AK320
AK320B - For StudioMax III models
- AKC160
AKC160B
AKC160R
AKC160BR
AKC320
AKC320B
AKC320R
AKC320BR UPC: 689670177771 - ESR Lamp - 100 Watts/120 Volts General Brand ESR 100 Watt/120 Volt clear tungsten halogen bulb for Arri 150 Fresnel, LTM Pepper 100, and other lighting fixtures. Brand may vary due to availability. For a frosted version, Click Here.wsazxvefeqtbdtqcuwrvxzvzcdbsuyu For 200 Watt Alternative, Click Here.
- Protective Cap for Powerlight This is a plastic protective cap for storage and transport of the Photogenic Powerlight monolights. UPC: 689670070737
- AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
- PC to Mini Sync Cord - 10' (3m) This is a Photogenic 10' PC to Mini Sync Cord for Photogenic StudioMax II, and III Monolights. It permits triggering of any strobe unit that has a mini plug terminal from your camera's sync terminal. UPC: 689670050319
- AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.
Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168 - 24 x 32" Rectangular Softbox with Mounting Ring The Photogenic 24 x 32" Rectangular Softbox with Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
- Suitable for 2 or 3 person head shot.
UPC: 689670111157 - Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
- Brushed anodized finish, rubber grip feet
- Top Baby (5/8") stud has a 1/4"-20 thread
UPC: 689670177733 - AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.
Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168 In the Box Bundle Items StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) wsazxvefeqtbdtqcuwrvxzvzcdbsuyu - C4-12C Color Corrected Flash Tube
- ESR Lamp - 100 Watts/120 Volts
- 7-1/2" High Gain Reflector
- PC to Mini Sync Cord - 10' (3m)
- Battery Cable for StudioMax AC/DC Monolight
C4-12C Color Corrected Flash Tube ESR Lamp - 100 Watts/120 Volts Protective Cap for Powerlight AC Line Cord - 110V, for PL and PM PC to Mini Sync Cord - 10' (3m) - One Year Manufacturer's Warranty
AK3419W Wheeled Soft Case with Pull Handle (Black) 24 x 32" Rectangular Softbox with Mounting Ring wsazxvefeqtbdtqcuwrvxzvzcdbsuyu 2 x Air Cushioned Light Stand (8') AK3419W Wheeled Soft Case with Pull Handle (Black)
Also Includes - AKC320BR Flash without Reflector
- 2 Year Manufacturer's Warranty on Flash
- 1 Year Manufacturer's Warranty on Flash Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic AKC645BK 640W s Studio 2 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)
| | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Maximum Output Voltage | 12.0 VDC | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3.0 lb / 1.36 kg | | | | Box Dimensions (LxWxH) | 12.7 x 10.3 x 10.3" | - C4-12C Color Corrected Flash Tube
| | | Box Dimensions (LxWxH) | 5.5 x 3.05 x 3.05" | - ESR Lamp - 100 Watts/120 Volts
| Code | ESR | | Application | Stage and studio, enlargers | | Watts | 100 | | Volts | 120 | | Color Temperature | 3000°K | | Average Life Hours | 1000 | | Approx. Lumens | 1900 | | Base Type | BA15d | | Filament Type | CC2V | | Length | 2.44" (61.9mm) | - Protective Cap for Powerlight
| | | Box Dimensions (LxWxH) | 5.433 x 5.354 x 5.276" | - AC Line Cord - 110V, for PL and PM
| | | Box Dimensions (LxWxH) | 9.75 x 9.75 x 2.65" | - PC to Mini Sync Cord - 10' (3m)
| | | Box Dimensions (LxWxH) | 5.9 x 1.6 x 0.9" | - AK3419W Wheeled Soft Case with Pull Handle (Black)
| | | Compartment Dimensions (W x H x D) | 32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm
35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm
33 x 5.5" / 83.8 x 13.9 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
Shoulder Strap
Telescoping Handle | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm | | Weight | 13 lb / 5.9 kg | | | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 15.0" | - 24 x 32" Rectangular Softbox with Mounting Ring
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 7.6 x 5.0" | - Air Cushioned Light Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Maximum Working Height | 8' / 2.4 m | | Minimum Working Height | 26" / 66 cm | | Collapsed Height | 26" / 66 cm | | Footprint Diameter | 31.5" / 80 cm | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 4.5" | - AK3419W Wheeled Soft Case with Pull Handle (Black)
| | | Compartment Dimensions (W x H x D) | 32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm
35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm
33 x 5.5" / 83.8 x 13.9 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
Shoulder Strap
Telescoping Handle | | Casters | 2 | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm | | Weight | 13 lb / 5.9 kg | | | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 15.0" |
