Photogenic AKC850K StudioMax 800Ws Portrait Studio

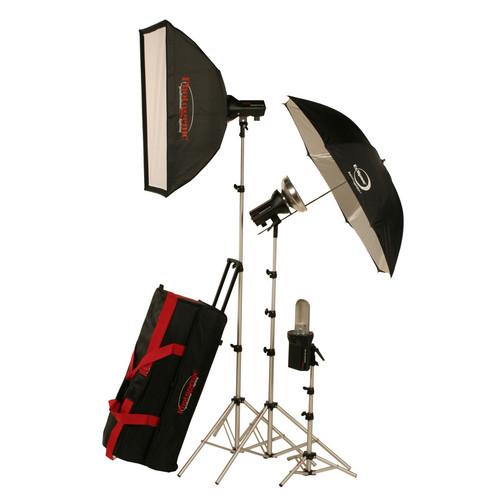

User Manual for Photogenic AKC850K StudioMax 800Ws Portrait Studio 3 Light Soft Box Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• AKC320 StudioMax III 320 Watt/Second Constant Color Monolight (120VAC) The Photogenic StudioMax III AKC320 constant color monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight also comes in an AC/DC model, which allows use of the light away from sources of AC power, when a high voltage battery is added.
  6 F-Stop Power Range
  • Dial provides infinite flash power settings from full to 1/32 power.
  Built In Slave
  • Highly sensitive, switchable optical slave for synchronization with other flashes.
  Modeling Light
  • Independently Switched, to aid in positioning and focus.
  User Replaceable Flashtube
  • No tools are required to replace this "plug & play" flashtube.
  Compact Design
  • Easy to transport. Umbrella socket and stand mount built on.
  UPC: 689670111171
• AKC160 Studiomax III 160W/s Monolight The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work. The AKC160 comes with a UV color corrected, user-replaceable flash tube that renders fabrics and flesh tones accurately. The monolight comes with a 7.5" high-gain reflector but accepts the entire line of Photogenic Quick-Change reflectors, grids, snoots, and diffusers. An AC cord, sync cord, 100W quartz modeling lamp and a protective cap are also included.
  Six Stop Power Range
  • Power levels, accessed on the rear panel, are adjustable from 5.0 to 160W/s with a simple twist of a knob
  Fast Recycling
  • The AKC160 recycles to full power (160W/s) in only 1.5 seconds, and 0.5 sec. at minimum power to catch even the most fleeting gestures
  Modeling Light
  • The AKC160's 100W quartz modeling light allows you to preview the effect of your lights before tripping the shutter
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
  User Replaceable UV Flashtube
  • Replacing this "plug & play" flashtube is a snap. The UV coating ensures clean whites and flattering flesh tones
  Ready Indication
  • A ready light lets you know when the flash is fully charged
  Power off Auto-discharge
  • As a safety precaution, the AKC160 drains the capacitors when you turn it off
  Surge Protection
  • The AKC160 incorporates surge protection to handle power spikes
  System Compatibility
  • The AKC160 is compatible with all Photogenic Quick-Change light shaping accessories
  UPC: 689670111195
• C4-12C Color Corrected Flash Tube The Photogenic C4-12C Color Corrected Flash Tube is a replacement flash tube for select StudioMax II and StudioMax III flash heads.
  For StudioMax II models
  • AK160
    AK160B
    AK320
    AK320B
  For StudioMax III models
  • AKC160
    AKC160B
    AKC160R
    AKC160BR
    AKC320
    AKC320B
    AKC320R
    AKC320BR
  UPC: 689670177771
• AC Line Cord - 110V, for PL and PM This is a replacement 110V grounded AC power cord for all current Photogenic PL Series monolights and Photomaster power packs. UPC: 689670070751
• PC to Mini Sync Cord - 10' (3m) This is a Photogenic 10' PC to Mini Sync Cord for Photogenic StudioMax II, and III Monolights. It permits triggering of any strobe unit that has a mini plug terminal from your camera's sync terminal. UPC: 689670050319
• 24 x 32" Rectangular Softbox with Mounting Ring The Photogenic 24 x 32" Rectangular Softbox with Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
  • Suitable for 2 or 3 person head shot.
  UPC: 689670111157
• EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
  This size is perfect for portraits of 1 or 2 people, and small product set ups.
  This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching.
  • Softens and broadens the light output of any strobe or lower wattage constant light.
  • Removable black cover allows the light source to "shoot-through", as a more direct light.
  Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110
• Air Cushioned Light Stand (8') The Photogenic Air Cushioned Light Stand rises to a maximum height of 8'. It has four sections, which enables it to fold down shorter than a three section stand. It folds to 26".
  • Brushed anodized finish, rubber grip feet
  • Top Baby (5/8") stud has a 1/4"-20 thread
  UPC: 689670177733
• Talon TALS3 Heavy-Duty Backlight Stand (3') This Photogenic Talon TALS3 Heavy-Duty Backlight Stand is a 3' support with air cushioning and a black finish. It allows positioning of a flash head near to the floor for lighting a background or low-lying subject. UPC: 689670130134
• AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.

  Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168

• C4-12C Flashtube for FLC200 & FLC300 Strobe Lights

• ESR Lamp - 100 Watts/120 Volts

• 7-1/2" High Gain Reflector

• PC to Mini Sync Cord - 10' (3m)

• AC Power Cord

• Limited 1-Year Warranty

• ESR (100W/120V) Lamp

• 7-1/2" High Gain Reflector

• C4-12C Color Corrected Flash Tube

• AC Line Cord - 110V, for PL and PM

• Protective Cap for Powerlight

• PC to Mini Sync Cord - 10' (3m)

• Limited 1-Year Warranty

• One Year Manufacturer's Warranty

• Internal Diffuser

• Rods

• Carry Case

• Limited 30-Day Warranty

• Black, Removable Cover

• Limited 30-Day Warranty

• Limited 1-Year Warranty

• 2 x Padded Dividers

• Upper Deck Divider

• Padded Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty
