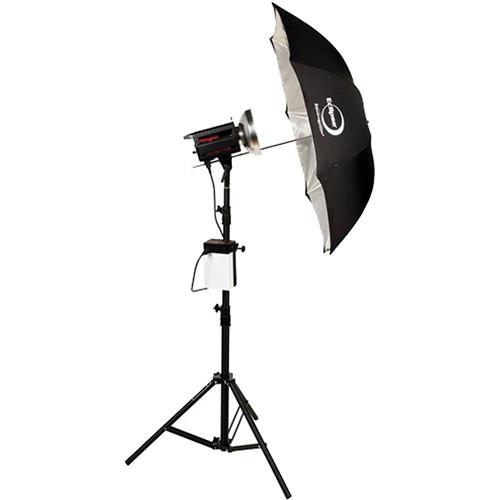

User Manual for Photogenic ION Inverter with PL1250DRC 500W s Flash Head Umbrella Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• Ion Lithium-ion Pure Sine Wave Inverter System The Photogenic Ion Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. For example, Photogenic's 1,000W/s PL1000DR gets 300 full power flashes on a fully charged battery while their AKC160 will get a whopping 2,050 flashes from the same battery. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. Convenience features include a USB port to power computers and other electronic devices and an LED "fuel gauge" that allows you to check on remaining power at a glance. The system includes the ION Inverter, battery, charger, light stand clamp and strap. Note: flash capacity specs are based on Photogenic flash heads but other brands of flash heads may be used with the inverter. Power input is 100 to 265VAC, 50/60Hz but output is 120V only.For complete specs on the items included in this system please click on the links below: ION Inverter Moduleytuseuutbtwrybcxztruxsuzsfvyxv
  ION Battery
  ION Charger
  ION Multi-Clamp
  ION Strap UPC: 689670192538
• PL1250DRC 500W/s PowerLight Monolight (UV) The Photogenic 1250DRC 500W/s PowerLight Monolight (UV) offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. What good is a light if it keeps you in the dark? The 1250DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across 6 stops. The bright 250W modeling light can be set to Proportional to let you previsualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PL1250DRC recycles to full power in a lightning-fast 1.5 seconds with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. The color corrected flash tube prevents blue hues from creeping into the color balance on subjects like a bride in her wedding dress. The tube also insures a flattering skin tone rendition. Convenience features include a test button, optical slave and integral handle. The PL1250DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes and umbrellas.
  Six Stop Power Range
  • Power settings Power levels are displayed in easy-to-read LED digits allowing settings from 16W/s to 500W/s in 1/10 or 1/2 stop increments
  Fast Recycling
  • The PL1250DRC recycles to full power in only 1.5 seconds to catch even the most fleeting gesturers
  Modeling Light
  • The PL1250DRC's bright 250W quartz modeling lamp offers independent power control that is adjustable from full to 1/32 power in 1/10 or 1/2 stop increments. Settings include Proportional, to previsualize lighting effects, Manual adjustment or Full On or Off
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic PowerLights without fear of damage to the camera's electronics
  Built-In Slave
  • This version of the PL1250DR has a built-in, highly sensitive, switchable optical slave for synchronization with other flashes
  User Replaceable Flashtube
  • No tools are required to replace this "plug & play" flashtube
  Ready Indication
  • Dims the modeling light while charging the capacitors. When the capacitors are at 100%, the modeling lamp re-lights
  Color Corrected Flash Tube
  • The color corrected flash tube filters out blue hues that result from UV emission for a cleaner look with flattering flesh tones.
  Auto Dump Function
  • When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
  Fan Cooled
  • A low noise, high performance fan keeps the flash head's electronics cool while lengthening the flash tube's and the modeling light's lives
  Safety Features
  • The PL1250DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
  System Compatibility
  • The PL1250DRC is compatible with all Photogenic Quick-Change light shaping accessories
  UPC: 689670110167
• EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
  This size is perfect for portraits of 1 or 2 people, and small product set ups.
  This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching.
  • Softens and broadens the light output of any strobe or lower wattage constant light.
  • Removable black cover allows the light source to "shoot-through", as a more direct light.
  Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110
• Talon TALS8 Heavy-Duty Air-Cushioned Stand (8') The Photogenic Talon TALS8 Heavy-Duty Air-Cushioned Stand is a combination of design quality and practicality, achieving superior stability and longer service life even under constant, rigorous use.This is an air-cushioned aluminum stand that rises to a maximum height of 8'. Air cushioning gently lowers the light, preventing damage to both the fixture and fingers when section locks have not been properly tightened.
  • Optional casters are available for added convenience.
  • Folds down to a size that is easy to pack into a location case.
  UPC: 689670130158

• Ion Lithium-ion Pure Sine Wave Inverter Module without Battery

• Lithium-ion Battery for ION Inverter

• Battery Charger for ION Inverter

• Multi-Clamp for ION Inverter

• Strap for ION Inverter

• ESS 250W Modeling Lamp

• 7-1/2" High Gain Reflector

• C4-15C Flashtube

• AC Line Cord - 110V, for PL and PM

• Protective Cap for Powerlight

• Sync Cord - Monoplug to PC

• Limited 2-Year Warranty

• Black, Removable Cover

• Limited 30-Day Warranty

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ion Lithium-ion Pure Sine Wave Inverter System

  Construction	High-impact ABS-PC
  Waveform Type	Pure sine wave
  Power Output	120W Maximum continuous power USB: 5VDC, 500mA
  Output Voltage	120VAC +/-3%, 60Hz
  Outlets	2x 3-Prong 120V female sockets 1x 0.5A USB port
  Dimensions	7.5 x 4.4 x 3.3" (19 x 11.2 x 8.4 cm)
  Weight	3.5 lb (1.58 kg) including battery

  Type	LiCox NiyMnzO2 Lithium-ion
  Power	Volt/Amp-hour: 14.8V / 8.8Ah Watt-hours (energy): 130 Current: 30ADC Peak / 15ADC average Cutoff Voltage: 12VDC
  Protection Circuits	Overload, over temperature, overcharge/discharge, over current, short circuit
  Flashes per Charge	Photogenic monolights @ full power AKC160 160W/s: 2,050 with 1.3 sec. recycling AKC320 320W/s: 1,200 with 2.8 sec. recycling PL625DR 250W/s 900 with 1.8 with sec. recycling PL1250 500W/s 430 with 4.5 sec. recycling PL1250DR 500W/s 500 with 3.8 sec. recycling PL2500DR 1000W/s 360 with 7.5 sec. recycling PL500DR 500W/s 570 with 3.8 sec. recycling PL1000DR 1000W/s 300 with 5.5 sec. recycling
  Cooling Fan	Yes
  Dimensions	6.0 x 4.4 x 1.8" (15.2 x 1.2 x 4.6 cm)
  Weight	Battery only: 2.0 lb (0.9 kg)

  Power	Input range: 100 to 265VAC, 50/60Hz Max. output: 16.8VDC / 3A Charging time: 3.0 to 4.0 hours Full charge voltage from charger: 16.8VDC

  Box Dimensions (LxWxH)	11.55 x 9.5 x 6.05"

• PL1250DRC 500W/s PowerLight Monolight (UV)

  Maximum Power	16 to 500 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	110' / 33.5 m at 10' / 3 m, ISO100 365' / 111.3 m at 10' / 3 m, ISO100 with Reflector
  Flash Duration	1/1300 to 1/640 Sec
  Recycle Time	0.5 to 1.5 Sec ()
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	250 W

  Sync Type	Optical
  Interface	1/4" Sync
  Sync Voltage	5 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	10 A (Operating) 15 A (Charging) 0.2 A (Idle)
  Circuit Protection	Fuse
  Fuse	16 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm
  Weight	5.5 lb / 2.5 kg

  Box Dimensions (LxWxH)	15.354 x 11.653 x 10.551"

• EC45BC Eclipse 45" White Flat-Panel Umbrella

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	29.5 x 2.4 x 0.6"

• Talon TALS8 Heavy-Duty Air-Cushioned Stand (8')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	8' / 2.4 m
  Collapsed Height	29" / 73.7 cm
  Footprint Diameter	31.5" / 80 cm
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Silver
  Weight	2.3 lb / 1.0 kg

  Box Dimensions (LxWxH)	26.9 x 3.8 x 3.7"
