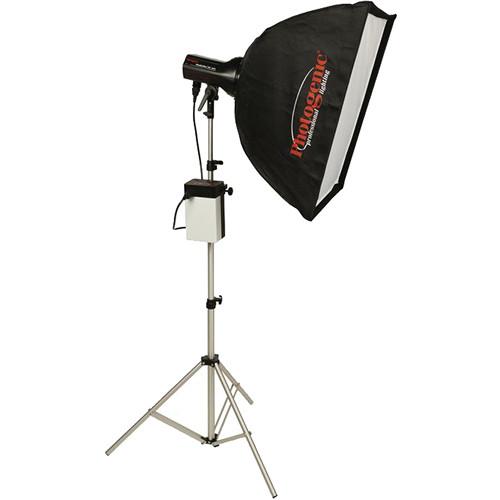

Product description The Photogenic ION Inverter with StudioMax 320W/s Flash Head and Softbox Kit is an ideal way to bring the benefits of studio lighting into the field independent of AC power. The kit includes an ION Inverter System with battery, an AKC320 320W/s AC monolight with reflector, an 8.0' light stand and a 24 x 24" Softbox. The ION Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. With a fully charged battery the included AKC320 will get an impressive 1,200 full power flashes with a recycling time of 2.8 seconds. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. The StudioMax III AKC320 constant color monolight offers a 320W/s output variable over 6.0 stops and a 100W modeling lamp. The AKC320 comes with PL7R High-Gain Reflector and is compatible with the full line of Photogenic flash head accessories. The AK24 24 x 24" Softbox features a removable front face and internal baffle and comes with a Photogenic speed ring and a carrying case. It accepts optional fabric grids. The kit is rounded out by a sturdy 8.0' light stand. The included Multi-Clamp allows you to hang the inverter on it. - Ion Lithium-ion Pure Sine Wave Inverter System The Photogenic Ion Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. For example, Photogenic's 1,000W/s PL1000DR gets 300 full power flashes on a fully charged battery while their AKC160 will get a whopping 2,050 flashes from the same battery. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. Convenience features include a USB port to power computers and other electronic devices and an LED "fuel gauge" that allows you to check on remaining power at a glance. The system includes the ION Inverter, battery, charger, light stand clamp and strap. Note: flash capacity specs are based on Photogenic flash heads but other brands of flash heads may be used with the inverter. Power input is 100 to 265VAC, 50/60Hz but output is 120V only.For complete specs on the items included in this system please click on the links below: ION Inverter Modulexdwvbfeqfscuazcwzqcffcvxdxbcabuu
ION Battery
ION Charger
ION Multi-Clamp
ION Strap UPC: 689670192538 - AKC320 StudioMax III 320 Watt/Second Constant Color Monolight (120VAC) The Photogenic StudioMax III AKC320 constant color monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight also comes in an AC/DC model, which allows use of the light away from sources of AC power, when a high voltage battery is added.
- 6 F-Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power.
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes.
- Modeling Light
- Independently Switched, to aid in positioning and focus.
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Compact Design
- Easy to transport. Umbrella socket and stand mount built on.
UPC: 689670111171 - 24" Square Softbox and Mounting Ring for Photogenic Studiomax The 24" Square Softbox and Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
- Suitable for 1 person head shot.
- Talon TALS8 Heavy-Duty Air-Cushioned Stand (8') The Photogenic Talon TALS8 Heavy-Duty Air-Cushioned Stand is a combination of design quality and practicality, achieving superior stability and longer service life even under constant, rigorous use.This is an air-cushioned aluminum stand that rises to a maximum height of 8'. Air cushioning gently lowers the light, preventing damage to both the fixture and fingers when section locks have not been properly tightened.
- Optional casters are available for added convenience.
- Folds down to a size that is easy to pack into a location case.
UPC: 689670130158 In the Box Bundle Items Ion Lithium-ion Pure Sine Wave Inverter System xdwvbfeqfscuazcwzqcffcvxdxbcabuu - Ion Lithium-ion Pure Sine Wave Inverter Module without Battery
- Lithium-ion Battery for ION Inverter
- Battery Charger for ION Inverter
- Multi-Clamp for ION Inverter
AKC320 StudioMax III 320 Watt/Second Constant Color Monolight (120VAC) - C4-12C Flashtube for FLC200 & FLC300 Strobe Lights
- ESR Lamp - 100 Watts/120 Volts
- 7-1/2" High Gain Reflector
- PC to Mini Sync Cord - 10' (3m)
24" Square Softbox and Mounting Ring for Photogenic Studiomax Talon TALS8 Heavy-Duty Air-Cushioned Stand (8')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic ION Inverter with StudioMax 320W s Flash Head and Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ion Lithium-ion Pure Sine Wave Inverter System
| | | Construction | High-impact ABS-PC | | Waveform Type | Pure sine wave | | Power Output | 120W Maximum continuous power
USB: 5VDC, 500mA | | Output Voltage | 120VAC +/-3%, 60Hz | | Outlets | 2x 3-Prong 120V female sockets
1x 0.5A USB port | | Dimensions | 7.5 x 4.4 x 3.3" (19 x 11.2 x 8.4 cm) | | Weight | 3.5 lb (1.58 kg) including battery | | | | Type | LiCox NiyMnzO2 Lithium-ion | | Power | Volt/Amp-hour: 14.8V / 8.8Ah
Watt-hours (energy): 130
Current: 30ADC Peak / 15ADC average
Cutoff Voltage: 12VDC | | Protection Circuits | Overload, over temperature, overcharge/discharge, over current, short circuit | | Flashes per Charge | Photogenic monolights @ full power
AKC160 160W/s: 2,050 with 1.3 sec. recycling
AKC320 320W/s: 1,200 with 2.8 sec. recycling
PL625DR 250W/s 900 with 1.8 with sec. recycling
PL1250 500W/s 430 with 4.5 sec. recycling
PL1250DR 500W/s 500 with 3.8 sec. recycling
PL2500DR 1000W/s 360 with 7.5 sec. recycling
PL500DR 500W/s 570 with 3.8 sec. recycling
PL1000DR 1000W/s 300 with 5.5 sec. recycling | | Cooling Fan | Yes | | Dimensions | 6.0 x 4.4 x 1.8" (15.2 x 1.2 x 4.6 cm) | | Weight | Battery only: 2.0 lb (0.9 kg) | | | | Power | Input range: 100 to 265VAC, 50/60Hz
Max. output: 16.8VDC / 3A
Charging time: 3.0 to 4.0 hours
Full charge voltage from charger: 16.8VDC | | | | Box Dimensions (LxWxH) | 11.55 x 9.5 x 6.05" | - AKC320 StudioMax III 320 Watt/Second Constant Color Monolight (120VAC)
| | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3.0 lb / 1.36 kg | | | | Box Dimensions (LxWxH) | 12.677 x 10.394 x 10.236" | - 24" Square Softbox and Mounting Ring for Photogenic Studiomax
| Shape | Square | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 24.0" / W: 61.0 x H: 61.0 cm | | | | Box Dimensions (LxWxH) | 30.0 x 8.0 x 4.5" | - Talon TALS8 Heavy-Duty Air-Cushioned Stand (8')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 8' / 2.4 m | | Collapsed Height | 29" / 73.7 cm | | Footprint Diameter | 31.5" / 80 cm | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Silver | | Weight | 2.3 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 26.9 x 3.8 x 3.7" |
