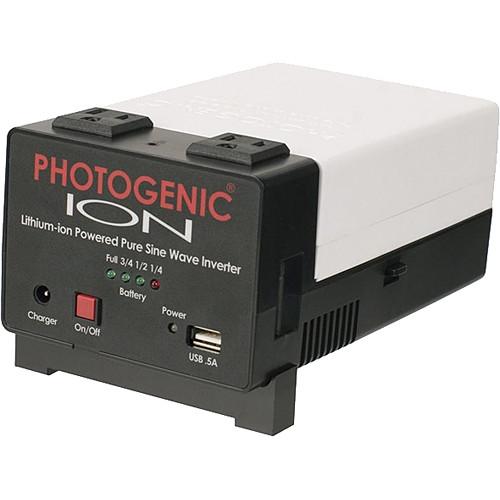

Product description The Photogenic Ion Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. For example, Photogenic's 1,000W/s PL1000DR gets 300 full power flashes on a fully charged battery while their AKC160 will get a whopping 2,050 flashes from the same battery. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. Convenience features include a USB port to power computers and other electronic devices and an LED "fuel gauge" that allows you to check on remaining power at a glance. The system includes the ION Inverter, battery, charger, light stand clamp and strap. Note: flash capacity specs are based on Photogenic flash heads but other brands of flash heads may be used with the inverter. Power input is 100 to 265VAC, 50/60Hz but output is 120V only.For complete specs on the items included in this system please click on the links below: ION Inverter Module
ION Battery
ION Charger
ION Multi-Clamp
ION Strap UPC: 689670192538 In the Box Photogenic Ion Lithium-ion Pure Sine Wave Inverter System Ion Lithium-ion Pure Sine Wave Inverter Module without Battery Lithium-ion Battery for ION Inverter Battery Charger for ION Inverter Multi-Clamp for ION Inverter Strap for ION Inverter Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic Ion Lithium-ion Pure Sine Wave Inverter System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic 956055 Specs | | | Construction | High-impact ABS-PC | | Waveform Type | Pure sine wave | | Power Output | 120W Maximum continuous power
USB: 5VDC, 500mA | | Output Voltage | 120VAC +/-3%, 60Hz | | Outlets | 2x 3-Prong 120V female sockets
1x 0.5A USB port | | Dimensions | 7.5 x 4.4 x 3.3" (19 x 11.2 x 8.4 cm) | | Weight | 3.5 lb (1.58 kg) including battery | | | | Type | LiCox NiyMnzO2 Lithium-ion | | Power | Volt/Amp-hour: 14.8V / 8.8Ah
Watt-hours (energy): 130
Current: 30ADC Peak / 15ADC average
Cutoff Voltage: 12VDC | | Protection Circuits | Overload, over temperature, overcharge/discharge, over current, short circuit | | Flashes per Charge | Photogenic monolights @ full power
AKC160 160W/s: 2,050 with 1.3 sec. recycling
AKC320 320W/s: 1,200 with 2.8 sec. recycling
PL625DR 250W/s 900 with 1.8 with sec. recycling
PL1250 500W/s 430 with 4.5 sec. recycling
PL1250DR 500W/s 500 with 3.8 sec. recycling
PL2500DR 1000W/s 360 with 7.5 sec. recycling
PL500DR 500W/s 570 with 3.8 sec. recycling
PL1000DR 1000W/s 300 with 5.5 sec. recycling | | Cooling Fan | Yes | | Dimensions | 6.0 x 4.4 x 1.8" (15.2 x 1.2 x 4.6 cm) | | Weight | Battery only: 2.0 lb (0.9 kg) | | | | Power | Input range: 100 to 265VAC, 50/60Hz
Max. output: 16.8VDC / 3A
Charging time: 3.0 to 4.0 hours
Full charge voltage from charger: 16.8VDC | | | | Package Weight | 5.625 lb | | Box Dimensions (LxWxH) | 11.55 x 9.5 x 6.05" |
