User manual

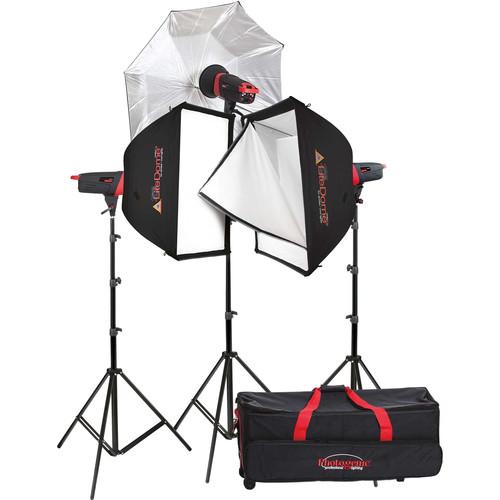

Photogenic Matrix MCD400R 400Ws Monolight 3-Light

User Manual for Photogenic Matrix MCD400R 400Ws Monolight 3-Light Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• Matrix MCD400R 400Ws Monolight with Transmitter The Matrix MCD400R 400Ws Monolight with Transmitter from Photogenic offers speed, lightweight, and core and convenience features usually found in flash heads twice its price.The 400Ws Matrix recycles to full power in a fast 1.7 seconds with short flash durations that capture even the most fleeting gestures. Power is variable over 6 stops from 1/32 to full power, adjustable on the flash head's digital display in 1/10 stop increments. The bright 150W modeling light can be set to proportional to let you pre-visualize your final shot, a great benefit especially when using multiple light setups. The MCD400R's UV-corrected, user-replaceable flash tube ensures accurate rendition of colors right down to the subtlest of hues. The lifetimes of both the flashtube and modeling lamp are lengthened by the fan cooling in the high-impact polymer head.The MCD400R comes with a 12' sync cord, but its integrated radio receiver allows wireless triggering even through walls and other obstacles using the included transmitter. Convenience features include soft push button back panel control and a ratcheting tilt handle that ensures precise, secure placement of your flash head. The Matrix MCD400R comes with a 7" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes, and umbrellas.
  • Flash power control range of 5 stops from 1/32 to full power in 1/10 stop increments
  • Preflash sync capable
  • User-replaceable UV corrected flashtube
  • Fan-cooled, high impact housing
  • Integrated wireless radio receiver and remote transmitter
  • Optical slave with on/off control
  • Easy to read digital control panel
  • Overheat/overcharge protection
  • Audible on/off flash indicator
  • Digital flash and modeling lamp power display
  • Convenient ratchet-handle tilt adjustment
  • Low noise, high performance fan to keep the flash head's electronics cool, lengthening the flash tube and modeling light lifespans
  UPC: 689670194563
• EC45BC Eclipse 45" White Flat-Panel Umbrella This Photogenic EC45BC Eclipse 45" White Flat-Panel Umbrella with its removable black cover has an extra white satin panel added during construction. The result is the elimination of the reflection of the metal frame of the umbrella in the eyes of your subject, or on highly reflective surfaces, such as chrome or brass.
  This size is perfect for portraits of 1 or 2 people, and small product set ups.
  This umbrella is designed for use with strobe lighting.Note: Using this umbrella with modeling lights or constant lights brighter than 300 watts for prolonged sessions will result in eventual discoloration or scorching.
  • Softens and broadens the light output of any strobe or lower wattage constant light.
  • Removable black cover allows the light source to "shoot-through", as a more direct light.
  Note:Ribs are hidden in bounce mode. Removing black cover for shoot-through exposes the ribs. UPC: 689670060110
• 24 x 32" Rectangular Softbox with Mounting Ring The Photogenic 24 x 32" Rectangular Softbox with Mounting Ring for Photogenic Studiomax II and III Monolights softens the light output from these fixtures. It has an internal diffusion panel, rods, speed ring for Studiomax heads, and a storage case.
  • Suitable for 2 or 3 person head shot.
  UPC: 689670111157
• Talon TALS8 Heavy-Duty Air-Cushioned Stand (8') The Photogenic Talon TALS8 Heavy-Duty Air-Cushioned Stand is a combination of design quality and practicality, achieving superior stability and longer service life even under constant, rigorous use.This is an air-cushioned aluminum stand that rises to a maximum height of 8'. Air cushioning gently lowers the light, preventing damage to both the fixture and fingers when section locks have not been properly tightened.
  • Optional casters are available for added convenience.
  • Folds down to a size that is easy to pack into a location case.
  UPC: 689670130158
• AK3419W Wheeled Soft Case with Pull Handle (Black) Store, protect, and transport two Photogenic PowerLights or similar sized lights, stands, umbrellas, and related accessories with the black AK3419W Wheeled Soft Case with Pull Handle from Photogenic. The case features a spacious, zippered main compartment, two padded touch-fastening dividers, and a large divider for creating an upper deck to accommodate your stands and umbrellas. Photographers will appreciate the large, exterior, zippered front pocket for storing cables and other accessories. Complementing this pocket is an interior clear-mesh pocket under the lid for gels, diffusers, and more.

  Carry your Photogenic AK3419W by the dual connecting strap handles, or with the included, padded shoulder strap. The case has a telescoping handle and built-in, two-inch wheels for travel over flat ground. Photographers will appreciate the bottom feet and sturdy handle construction that serves double-duty as a skid plate. When extended, the wheel-to-handle length is a comfortable 43". The case is constructed of strong nylon for durability. UPC: 689670184168

• Reflector (7")

• Flash Tube

• Modeling Lamp (150W)

• Remote Transmitter

• Protective Bulb Cover

• Power Cord (12')

• Sync Cord (12')

• Limited 2-Year Warranty

• Black, Removable Cover

• Limited 30-Day Warranty

• Internal Diffuser

• Rods

• Carry Case

• Limited 30-Day Warranty

• Limited 1-Year Warranty

• 2 x Padded Dividers

• Upper Deck Divider

• Padded Shoulder Strap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Matrix MCD400R 400Ws Monolight with Transmitter

  Maximum Power	400 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	80' / 24.4 m at 10' / 3 m, ISO100 160' / 48.8 m at 10' / 3 m, ISO100 with Reflector
  Recycle Time	0.4 to 1.7 Sec ()
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	150 W

  Sync Type	Optical, Radio
  Wireless Channels / Groups	16 / X
  Sync Voltage	4.5 V

  AC Input Voltage	100to130 VAC, 60 Hz

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 9.5 x W: 7.0 x L: 15.5" / H: 24.0 x W: 17.8 x L: 39.4 cm, Including Reflector
  Weight	4.0 lb / 1.8 kg

• EC45BC Eclipse 45" White Flat-Panel Umbrella

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	29.5 x 2.4 x 0.6"

• 24 x 32" Rectangular Softbox with Mounting Ring

  Shape	Rectangular
  Interior	Silver
  Requires Speed Ring	Yes, Included
  Accepts Grids	Yes
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 24.0 x H: 32.0" / W: 61.0 x H: 81.0 cm

  Box Dimensions (LxWxH)	30.0 x 7.6 x 5.0"

• Talon TALS8 Heavy-Duty Air-Cushioned Stand (8')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	8' / 2.4 m
  Collapsed Height	29" / 73.7 cm
  Footprint Diameter	31.5" / 80 cm
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Silver
  Weight	2.3 lb / 1.0 kg

  Box Dimensions (LxWxH)	26.9 x 3.8 x 3.7"

• AK3419W Wheeled Soft Case with Pull Handle (Black)

  Compartment Dimensions (W x H x D)	32 x 8 x 9" / 81.3 x 20.3 x 22.9 cm 35 x 3.5 x 9" / 81.3 x 8.9 x 22.9 cm 33 x 5.5" / 83.8 x 13.9 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Shoulder Strap Telescoping Handle
  Casters	2
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	33 x 14 x 10" / 83.8 x 35.6 x 25.4 cm
  Weight	13 lb / 5.9 kg

  Box Dimensions (LxWxH)	34.0 x 18.0 x 15.0"
