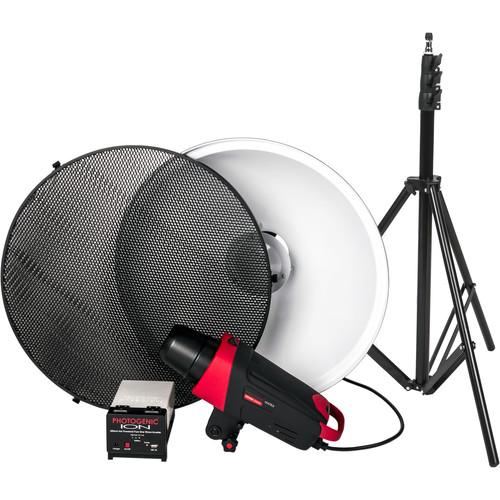

Product description The Matrix MCD400R Monolight with Ion Inverter, Beauty Dish, Grid, and Stand from Photogenic is a great way to take studio quality lighting on the road in situations that don't offer access to AC power. The kit includes the 400Ws AC-powered Matrix MCD400R monolight with integrated receiver and wireless transmitter. A lightweight 3.5 lb Ion Pure Sine Wave Inverter with battery is included to let you use the MCD400R without AC power. The kit is rounded out by a 22" White Beauty Dish for distinctive lighting with a honeycomb grid to control the beam spread of the dish. It's supported by the kit's 7' light stand. - Matrix MCD400R 400Ws Monolight with Transmitter The Matrix MCD400R 400Ws Monolight with Transmitter from Photogenic offers speed, lightweight, and core and convenience features usually found in flash heads twice its price.The 400Ws Matrix recycles to full power in a fast 1.7 seconds with short flash durations that capture even the most fleeting gestures. Power is variable over 6 stops from 1/32 to full power, adjustable on the flash head's digital display in 1/10 stop increments. The bright 150W modeling light can be set to proportional to let you pre-visualize your final shot, a great benefit especially when using multiple light setups. The MCD400R's UV-corrected, user-replaceable flash tube ensures accurate rendition of colors right down to the subtlest of hues. The lifetimes of both the flashtube and modeling lamp are lengthened by the fan cooling in the high-impact polymer head.The MCD400R comes with a 12' sync cord, but its integrated radio receiver allows wireless triggering even through walls and other obstacles using the included transmitter. Convenience features include soft push button back panel control and a ratcheting tilt handle that ensures precise, secure placement of your flash head. The Matrix MCD400R comes with a 7" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes, and umbrellas.
- Flash power control range of 5 stops from 1/32 to full power in 1/10 stop increments
- User-replaceable UV corrected flashtube
- Fan-cooled, high impact housing
- Integrated wireless radio receiver and remote transmitter
- Optical slave with on/off control
- Easy to read digital control panel
- Overheat/overcharge protection
- Audible on/off flash indicator
- Digital flash and modeling lamp power display
- Convenient ratchet-handle tilt adjustment
- Low noise, high performance fan to keep the flash head's electronics cool, lengthening the flash tube and modeling light lifespans
UPC: 689670194563 - Ion Lithium-ion Pure Sine Wave Inverter System The Photogenic Ion Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. For example, Photogenic's 1,000W/s PL1000DR gets 300 full power flashes on a fully charged battery while their AKC160 will get a whopping 2,050 flashes from the same battery. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. Convenience features include a USB port to power computers and other electronic devices and an LED "fuel gauge" that allows you to check on remaining power at a glance. The system includes the ION Inverter, battery, charger, light stand clamp and strap. Note: flash capacity specs are based on Photogenic flash heads but other brands of flash heads may be used with the inverter. Power input is 100 to 265VAC, 50/60Hz but output is 120V only.For complete specs on the items included in this system please click on the links below: ION Inverter Moduleexsrfqsdws
ION Battery
ION Charger
ION Multi-Clamp
ION Strap UPC: 689670192538 - MCD 22" White Beauty Dish for Matrix MCD400R Monolight Take your portraits to the next level by embracing the soft, yet crisp light provided by the MCD 22" White Beauty Dish from Photogenic, designed for use with the Matrix MCD400R monolight. The white beauty dish will diffuse the light and soften shadows while creating natural round catchlights in your subject's eyes. Additionally, it can accept an optional diffuser or honeycomb grid.
- Honeycomb Grid for MCD 22" Beauty Dish Limit light spill and control the width of your light's beam with this Honeycomb Grid from Photogenic, which is designed specifically for use with the MCD 22" Beauty Dish. UPC: 689670195447
In the Box Bundle Items Matrix MCD400R 400Ws Monolight with Transmitter exsrfqsdws Ion Lithium-ion Pure Sine Wave Inverter System - Ion Lithium-ion Pure Sine Wave Inverter Module without Battery
- Lithium-ion Battery for ION Inverter
- Battery Charger for ION Inverter
- Multi-Clamp for ION Inverter
MCD 22" White Beauty Dish for Matrix MCD400R Monolight Honeycomb Grid for MCD 22" Beauty Dish
Also Includes User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic Matrix MCD400R Monolight with Ion Inverter, Beauty Dish, Grid, and Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Matrix MCD400R 400Ws Monolight with Transmitter
| | | Maximum Power | 400 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 80' / 24.4 m at 10' / 3 m, ISO100
160' / 48.8 m at 10' / 3 m, ISO100 with Reflector | | Recycle Time | 0.4 to 1.7 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Optical, Radio | | Wireless Channels / Groups | 16 / X | | Sync Voltage | 4.5 V | | | | AC Input Voltage | 100to130 VAC, 60 Hz | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 9.5 x W: 7.0 x L: 15.5" / H: 24.0 x W: 17.8 x L: 39.4 cm, Including Reflector | | Weight | 4.0 lb / 1.8 kg | - Ion Lithium-ion Pure Sine Wave Inverter System
| | | Construction | High-impact ABS-PC | | Waveform Type | Pure sine wave | | Power Output | 120W Maximum continuous power
USB: 5VDC, 500mA | | Output Voltage | 120VAC +/-3%, 60Hz | | Outlets | 2x 3-Prong 120V female sockets
1x 0.5A USB port | | Dimensions | 7.5 x 4.4 x 3.3" (19 x 11.2 x 8.4 cm) | | Weight | 3.5 lb (1.58 kg) including battery | | | | Type | LiCox NiyMnzO2 Lithium-ion | | Power | Volt/Amp-hour: 14.8V / 8.8Ah
Watt-hours (energy): 130
Current: 30ADC Peak / 15ADC average
Cutoff Voltage: 12VDC | | Protection Circuits | Overload, over temperature, overcharge/discharge, over current, short circuit | | Flashes per Charge | Photogenic monolights @ full power
AKC160 160W/s: 2,050 with 1.3 sec. recycling
AKC320 320W/s: 1,200 with 2.8 sec. recycling
PL625DR 250W/s 900 with 1.8 with sec. recycling
PL1250 500W/s 430 with 4.5 sec. recycling
PL1250DR 500W/s 500 with 3.8 sec. recycling
PL2500DR 1000W/s 360 with 7.5 sec. recycling
PL500DR 500W/s 570 with 3.8 sec. recycling
PL1000DR 1000W/s 300 with 5.5 sec. recycling | | Cooling Fan | Yes | | Dimensions | 6.0 x 4.4 x 1.8" (15.2 x 1.2 x 4.6 cm) | | Weight | Battery only: 2.0 lb (0.9 kg) | | | | Power | Input range: 100 to 265VAC, 50/60Hz
Max. output: 16.8VDC / 3A
Charging time: 3.0 to 4.0 hours
Full charge voltage from charger: 16.8VDC | | | | Box Dimensions (LxWxH) | 11.55 x 9.5 x 6.05" | - MCD 22" White Beauty Dish for Matrix MCD400R Monolight
| Interior | White | | Size | 22" / 55.9 cm | - Honeycomb Grid for MCD 22" Beauty Dish
| | | Box Dimensions (LxWxH) | 23.0 x 22.9 x 1.2" |
