Product description

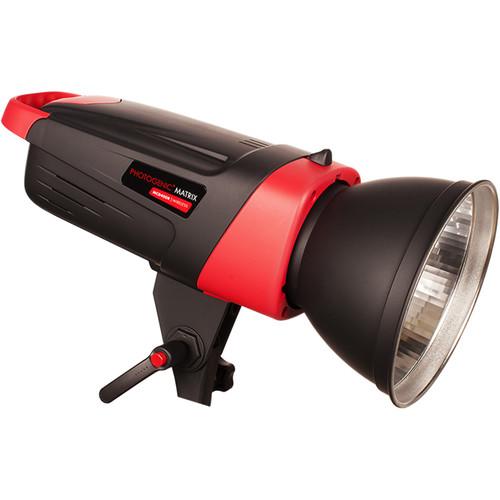

• Matrix MCD400R 400Ws Monolight with Transmitter The Matrix MCD400R 400Ws Monolight with Transmitter from Photogenic offers speed, lightweight, and core and convenience features usually found in flash heads twice its price.The 400Ws Matrix recycles to full power in a fast 1.7 seconds with short flash durations that capture even the most fleeting gestures. Power is variable over 6 stops from 1/32 to full power, adjustable on the flash head's digital display in 1/10 stop increments. The bright 150W modeling light can be set to proportional to let you pre-visualize your final shot, a great benefit especially when using multiple light setups. The MCD400R's UV-corrected, user-replaceable flash tube ensures accurate rendition of colors right down to the subtlest of hues. The lifetimes of both the flashtube and modeling lamp are lengthened by the fan cooling in the high-impact polymer head.The MCD400R comes with a 12' sync cord, but its integrated radio receiver allows wireless triggering even through walls and other obstacles using the included transmitter. Convenience features include soft push button back panel control and a ratcheting tilt handle that ensures precise, secure placement of your flash head. The Matrix MCD400R comes with a 7" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, softboxes, and umbrellas.
  • Flash power control range of 5 stops from 1/32 to full power in 1/10 stop increments
  • Preflash sync capable

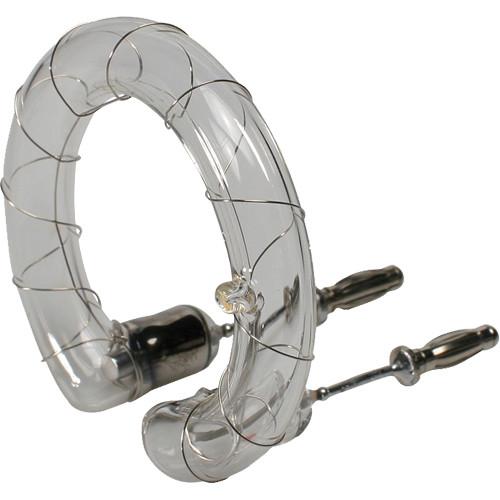

  • User-replaceable UV corrected flashtube
  • Fan-cooled, high impact housing
  • Integrated wireless radio receiver and remote transmitter
  • Optical slave with on/off control
  • Easy to read digital control panel
  • Overheat/overcharge protection
  • Audible on/off flash indicator
  • Digital flash and modeling lamp power display
  • Convenient ratchet-handle tilt adjustment
  • Low noise, high performance fan to keep the flash head's electronics cool, lengthening the flash tube and modeling light lifespans
  UPC: 689670194563

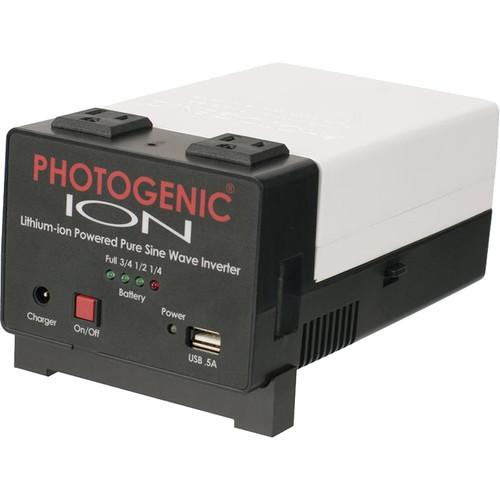

• Ion Lithium-ion Pure Sine Wave Inverter System The Photogenic Ion Lithium-ion Pure Sine Wave Inverter System allows you to take your studio strobes on the road or off the road without electricity and without noisy generators or bulky old-style inverters. Weighing in at only 3.5 lb including its battery, the Ion measures only 7.5 x 4.4 x 3.3" but is able to deliver hundreds or even thousands of full power flashes depending on the flash head in use. For example, Photogenic's 1,000W/s PL1000DR gets 300 full power flashes on a fully charged battery while their AKC160 will get a whopping 2,050 flashes from the same battery. Of course, you can double or triple your capacity by simply purchasing extra batteries which can be charged apart from the inverter. Extra chargers are available to charge more than 1 battery concurrently. Convenience features include a USB port to power computers and other electronic devices and an LED "fuel gauge" that allows you to check on remaining power at a glance. The system includes the ION Inverter, battery, charger, light stand clamp and strap. Note: flash capacity specs are based on Photogenic flash heads but other brands of flash heads may be used with the inverter. Power input is 100 to 265VAC, 50/60Hz but output is 120V only.For complete specs on the items included in this system please click on the links below: ION Inverter Module
  ION Battery
  ION Charger
  ION Multi-Clamp
  ION Strap UPC: 689670192538
• Small OctoDome Softbox (White, 3') The white 3' Small OctoDome Softbox from Photoflex is an octagonal light modifier with a unique quality of light that makes a favorite of portrait and fashion shooters. The OctoDome has a removable front diffuser and internal baffle to give you contrast options. The 3' size is ideal for working in tight spaces. With this softbox you begin to see the wrap-around quality of light that this shaped modifier is known for. The octagonal shape also reflects natural-looking catchlights in the eyes of your subject.
  Benefits
  • Circular design provides diffused light that is as wide as it is tall
  • Narrow profile gives you more versatility in small rooms
  • The unique internal baffle eliminates highlights and hot spots, creating even, natural lighting
  • Easily change your lighting effects using removable, interchangeable silver and gold panels
  • Convenient carry bag
  UPC: 689670191852
• Speed Ring - Basic Ring Only This is the Photoflex Basic Speed Ring ONLY. It does not include an adapter for a specific light. OctoDome rotating connectors are made from heat resistant cast aluminum for durability, and allow rotation while mounted to your fixture with your choice of any shaped softbox. UPC: 799245005849
• Speed Ring Adapter for MCD400R Monolight Mount a softbox to your MCD400R Monolight with this Speed Ring from Photogenic. This ring is made of metal for strength and durability. UPC: 689670195454
• LS-2210 Compact LiteStand The LS-2210 Compact LiteStand from Photoflex is suitable for use when you need to travel light and fast. With reverse leg folding technology, this LiteStand will fit in a backpack or small carry case. The LiteStand adds creative functionality to your line of softboxes, umbrellas, and reflectors in your on-location kit.
  • All metal construction
  • Sturdy oversized tubing
  • Ultra-compact and light weight design
  • Suitable for location / Strobist applications
  • Fits the Photoflex TransPac Gig Bag (sold separately)
  UPC: 799245015817

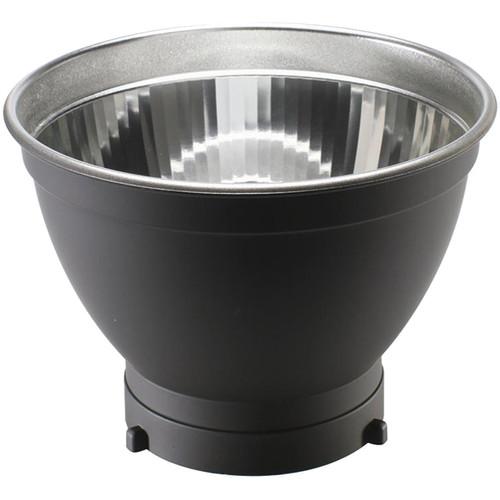

• Reflector (7")

• Flash Tube

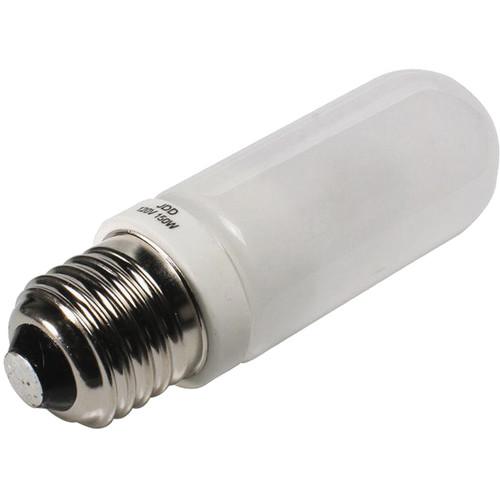

• Modeling Lamp (150W)

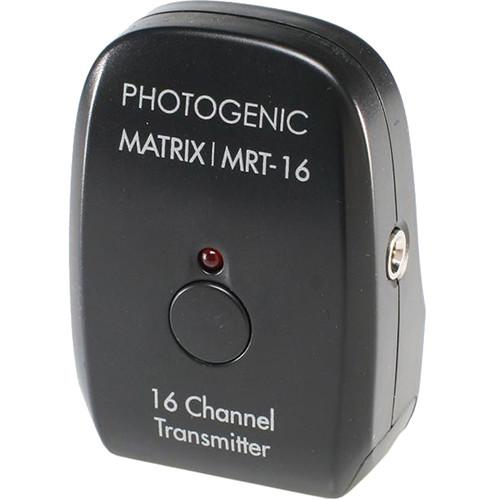

• Remote Transmitter

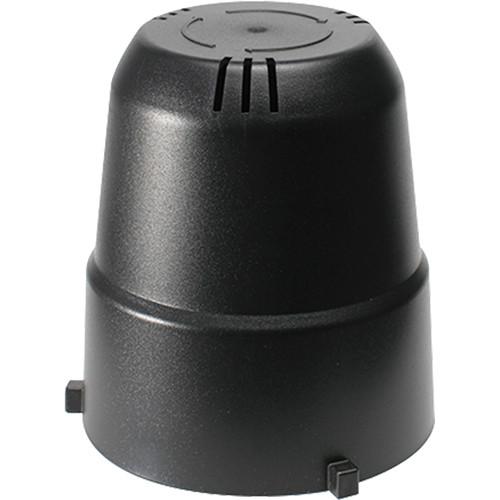

• Protective Bulb Cover

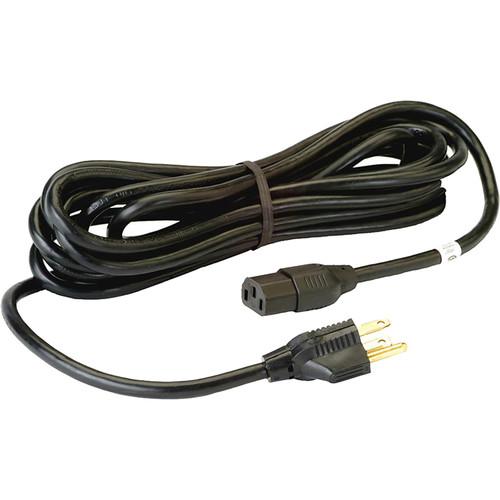

• Power Cord (12')

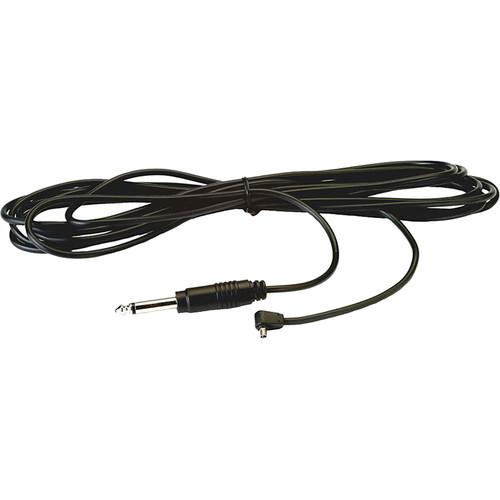

• Sync Cord (12')

• Limited 2-Year Warranty

• Ion Lithium-ion Pure Sine Wave Inverter Module without Battery

• Lithium-ion Battery for ION Inverter

• Battery Charger for ION Inverter

• Multi-Clamp for ION Inverter

• Strap for ION Inverter

• Front Diffuser

• Inner Baffle

• Carry Bag

• Limited 10-Year Warranty

• 5 Year Manufacturer's Warranty

• Limited 2-Year Warranty

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Matrix MCD400R 400Ws Monolight with Transmitter

  Maximum Power	400 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Guide Number	80' / 24.4 m at 10' / 3 m, ISO100 160' / 48.8 m at 10' / 3 m, ISO100 with Reflector
  Recycle Time	0.4 to 1.7 Sec ()
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	150 W

  Sync Type	Optical, Radio
  Wireless Channels / Groups	16 / X
  Sync Voltage	4.5 V

  AC Input Voltage	100to130 VAC, 60 Hz

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 9.5 x W: 7.0 x L: 15.5" / H: 24.0 x W: 17.8 x L: 39.4 cm, Including Reflector
  Weight	4.0 lb / 1.8 kg

• Ion Lithium-ion Pure Sine Wave Inverter System

  Construction	High-impact ABS-PC
  Waveform Type	Pure sine wave
  Power Output	120W Maximum continuous power USB: 5VDC, 500mA
  Output Voltage	120VAC +/-3%, 60Hz
  Outlets	2x 3-Prong 120V female sockets 1x 0.5A USB port
  Dimensions	7.5 x 4.4 x 3.3" (19 x 11.2 x 8.4 cm)
  Weight	3.5 lb (1.58 kg) including battery

  Type	LiCox NiyMnzO2 Lithium-ion
  Power	Volt/Amp-hour: 14.8V / 8.8Ah Watt-hours (energy): 130 Current: 30ADC Peak / 15ADC average Cutoff Voltage: 12VDC
  Protection Circuits	Overload, over temperature, overcharge/discharge, over current, short circuit
  Flashes per Charge	Photogenic monolights @ full power AKC160 160W/s: 2,050 with 1.3 sec. recycling AKC320 320W/s: 1,200 with 2.8 sec. recycling PL625DR 250W/s 900 with 1.8 with sec. recycling PL1250 500W/s 430 with 4.5 sec. recycling PL1250DR 500W/s 500 with 3.8 sec. recycling PL2500DR 1000W/s 360 with 7.5 sec. recycling PL500DR 500W/s 570 with 3.8 sec. recycling PL1000DR 1000W/s 300 with 5.5 sec. recycling
  Cooling Fan	Yes
  Dimensions	6.0 x 4.4 x 1.8" (15.2 x 1.2 x 4.6 cm)
  Weight	Battery only: 2.0 lb (0.9 kg)

  Power	Input range: 100 to 265VAC, 50/60Hz Max. output: 16.8VDC / 3A Charging time: 3.0 to 4.0 hours Full charge voltage from charger: 16.8VDC

  Box Dimensions (LxWxH)	11.55 x 9.5 x 6.05"
