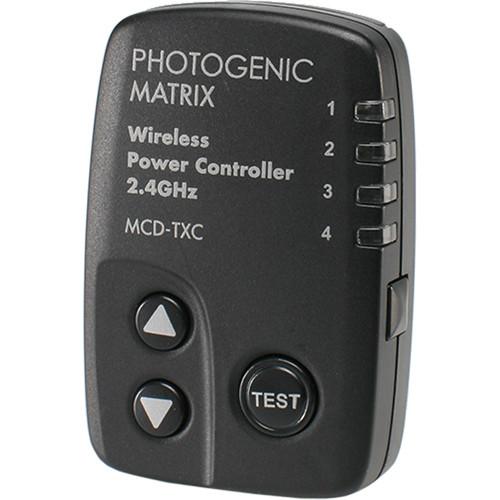

User Manual for Photogenic MCDTXC 16-Channel Digital Wireless Transmitter with Power Controller for Matrix MCD400R Monolight Click to enlarge the picture
Contents of the user manual for the Photogenic MCDTXC 16-Channel Digital Wireless Transmitter
- Product category: Remote Controls Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Remote Controls
|
User manual for the Photogenic MCDTXC 16-Channel Digital Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The MCD-TXC 16-Channel Digital Wireless Transmitter from Photogenic allows you to wirelessly trigger and control the Matrix MCD400 Monolight. It uses 2.4GHz radio frequency. It can control the flash power settings in 1/10 f-stop increments and modeling lamp intensity in one f-stop increments. This transmitter allows you to control up to four groups of MCD400 Monolights within a range of 250 feet. The unit features a standard camera hot shoe connector and comes with a 3.5mm jack for a PC cable and 3V lithium coin battery (CR2032). - Compatibility
- Photogenic Matrix MCD400R Monolight
UPC: 689670195553 In the Box Photogenic MCDTXC 16-Channel Digital Wireless Transmitter with Power Controller for Matrix MCD400R Monolight CR2032 3V Lithium Coin Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic MCDTXC 16-Channel Digital Wireless Transmitter with Power Controller for Matrix MCD400R Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic 907011 Specs | Range | Up to 250' (75 m) depending on orientation and environment | | Channels | 16 radio channels, selected by setting 4 dip switches
Dip switches are located in the battery compartment | | Flash Sync | Standard camera Hot Shoe connector, with 3.5 mm jack for a PC cable (included) | | Battery | CR2032 3 V lithium coin battery (included) | | Switch / Buttons | Test Switch:
To transmit a signal to the MCD400R flash unit on a selected radio channel number
Group Switch:
Allows you to select the group number
Four LED numbered 1 to 4 (Group 1, 2, 3, 4) indicate which MCD400R group (GA, Gb, Gc, Gd) is selected
Up & Down Push Buttons:
Adjust the flash or model light output levels (1.0 to 6.0 f-stops) of the selected MCD400R Group | | Dimensions (L x W x H) | 2.36 x 1.57 x 0.90" (60 x 40 x 23 mm) | | Weight | 1.1 oz (30 g) with the battery |
