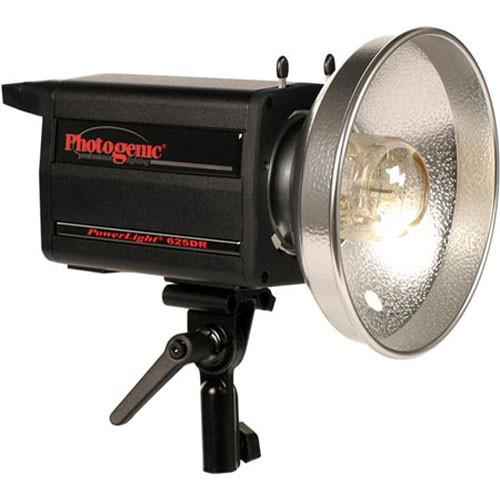

User Manual for Photogenic PL625DRC 250W s PowerLight Monolight Click to enlarge the picture
Contents of the user manual for the Photogenic PL625DRC 250W s PowerLight Monolight
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic PL625DRC 250W s PowerLight Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The Photogenic PL625DRC 250W/s PowerLight Monolight (UV) offers speed, power and control, a wide choice of accessories and intuitive operation backed by impressive specs at a very reasonable price. What good is a light if it keeps you in the dark? The PL625DRC keeps you fully informed of your power levels via its large highly readable digital display. Power settings are adjustable in 1/10 or ½ stop increments across 6 stops. The modeling light can be set to Proportional to let you pre-visualize your final shot when using multiple lights. Other settings include Full On, OFF and manual control of the modeling light output. The PL625DRC recycles to full power in a lightning-fast 1.2 seconds with short flash durations that help you stop every gesture, an attribute which is extremely valuable when working with kinetic subjects like dancers or athletes. The included UV color-corrected flash tube renders accurate skin tones and prevents blue from creeping in to the color balance. Convenience features include a test button, optical slave and integral handle. The PL625DRC comes with a 7.5" reflector and is compatible with a wide range of optional accessories including grids, snoots, parabolic reflectors, wireless IR triggering and control units. - Six Stop Power Range
- Power settings Power levels are diplayed in easy-to-read LED digits allowing settings from 7.8W/s to 250W/s in 1/10 or 1/2 stop increments
- Fast Recycling
- The PL625DRC recycles to full power in only 1.25 seconds to catch even the most fleeting gestures
- Modeling Light
- The PL625DRC can take up to 250W quartz modeling lamps with independent power control that are adjustable from full to 1/32 power in 1/10 or 1/2 stop increments. It can be set to Proportional, to pre-visualize the lighting effects, to Manual adjustment or Full On or Off.
- Low Trigger Voltage
- Digital cameras can be used with Photogenic PowerLights without fear of damage to the electronics
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Ready Indication
- Dims the modeling light while charging the capacitors. When the capacitors are at 100%, the modeling lamp re-lights
- Auto Dump Function
- When reducing the power output, excess flash power in the capacitors is released before exposure to insure consistent performance
- Fan Cooled
- A low noise, high performance fan keeps the flash head's electronics cool while lengthening the fash tube's and the modeling light's lives
- Safety Features
- The PL625DRC incorporates surge protection to handle power spikes and internal thermal protection which monitors heat generated during intense use
- System Compatibility
- The PL625DRC is compatible with all Photogenic Quick-Change light shaping accessories
- Color Corrected Flash Tube
- The PL625DRC's UV-coated, color-corrected flash tube renders accurate flesh tones and removes blue from the color balance. Wedding shooters will appreciate the resulting neutral rendition in the bride's gown
UPC: 689670160841 In the Box Photogenic PL625DRC 250W/s PowerLight Monolight (UV) C4-15 Flashtube ESR (100W/120V) Lamp 7-1/2" High Gain Reflector C4-15C Flashtube Protective Cap for Powerlight AC Line Cord - 110V, for PL and PM Sync Cord - Monoplug to PC Limited 2-Year Warranty User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic PL625DRC 250W s PowerLight Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic PL625DRC Specs | | | Maximum Power | 7.8 to 250 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Guide Number | 130' / 39.6 m at 10' / 3 m, ISO100 with Reflector | | Flash Duration | 1/2000 to 1/640 Sec | | Recycle Time | 0.5 to 1.25 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | Sync Type | Optical | | Interface | 1/4" Sync | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 10 A (Operating)
15 A (Charging)
0.2 A (Idle) | | Circuit Protection | Fuse | | Fuse | 16 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 4.9 lb / 2.25 kg | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 15.1 x 11.8 x 10.3" |
