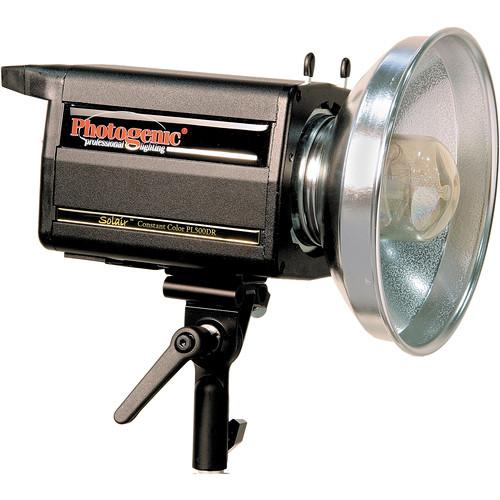

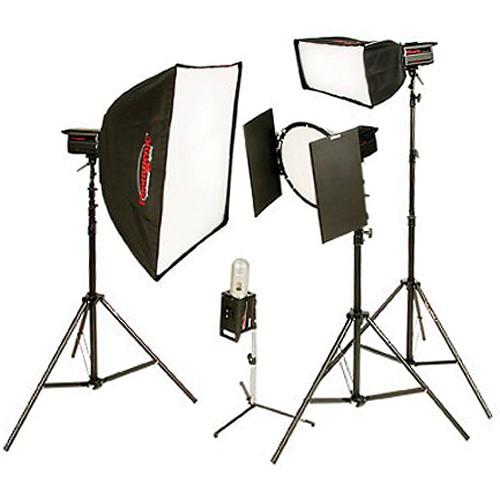

Product description The Solair 500 w/s PowerLight provides constant color at all power levels. There is no color shift when powering the Solair up or down. A microprocessor provides consistent power output, preventing Kelvin degree shifts and variances in power output that may have happened on previous Powerlights.All the conveniences and features found on the previous PowerLight DR series are still here, plus the addition of 2 more stops exposure range, for a total of an 8-Stop range. This is a Photogenic Simone Solair 4 Monolight Kit complete with 2 different size softboxes for softening the light, light stands for support up to 13', a 14" reflector with barndoors and diffuser, and a background reflector, for creating a "glow" behind portrait subjects. - 8 F-Stop Power Range
- Push-button controls provide infinite flash power settings from 4 w/s to 500 w/s.
Power levels are visible in easy-to-read LED digits. - Auto-Bracketing
- Automatically gives a normal, higher and lower exposure, in increments that you choose.
- Remote Operation
- Optional Remote Digital Display and Flash Adjustment (PLDRC-1), Remote Digital Display and Infrared Receiver (PLDIR-1) and the Wireless Studio System Controller Software.
- Low Trigger Voltage
- Even today's sensitive digital cameras can be used with the Photogenic PowerLights.
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes.
- Auto Dump Function
- Gives access to lower power selections without the need to manually dump a higher power first.
- Modeling Light
- Features a 250W adjustable quartz modeling light with independent power control, and is infinitely adjustable from full to 1/32 power.
- Ready Indication
- Dims the modeling light while charging the capacitors.
When the capacitors are at 100%, the modeling lamp relights. - User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Fan Cooled
- Low noise, high performance fan offers increased protection during the most demanding applications.
- UV Coated Flashtube
- Lowers the color temperature to 5500°, which is the color of noon daylight on a clear day.
- Air Cushioned Light Stands
- Air cushioning gently lowers the light, preventing damage to light fixtures and fingers when section locks have not been properly tightened.
UPC: 689670182942 In the Box Photogenic Simone Solair 4 Monolight Kit (120V) 4 x 500 W/S Solair Monolights, each with Flashtube (C415C),

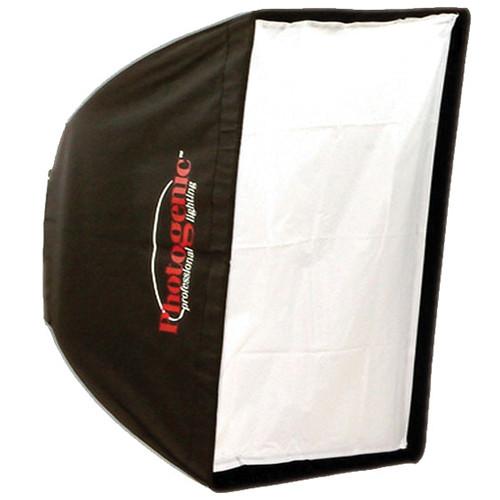

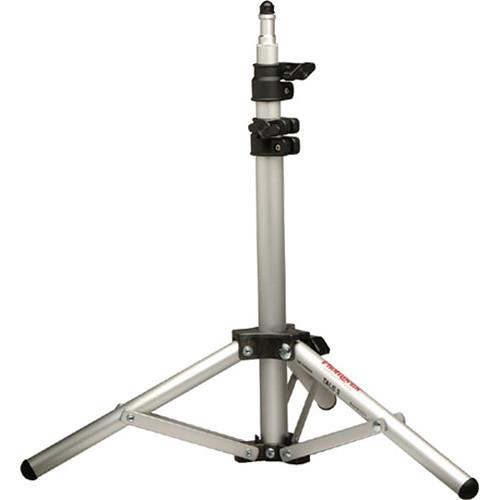

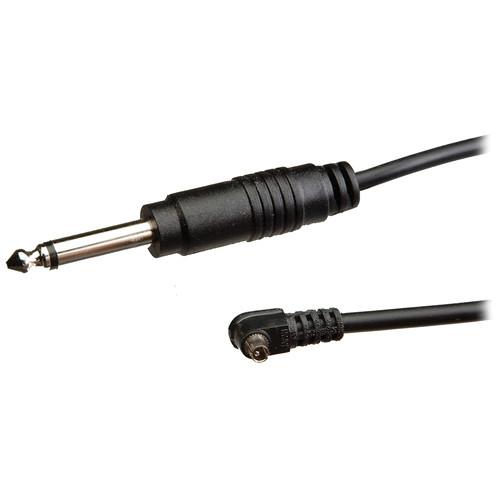

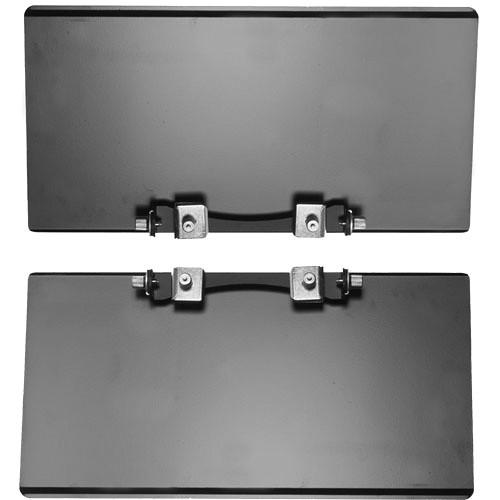

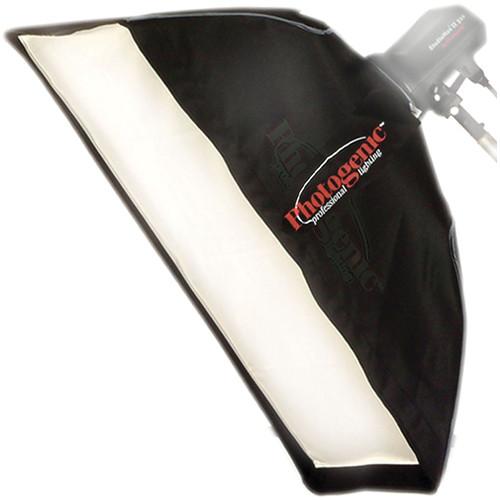

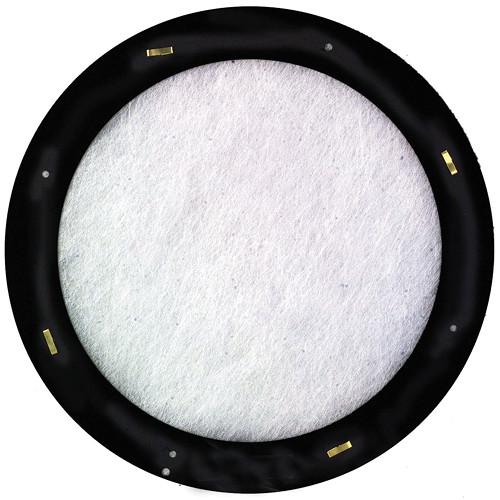

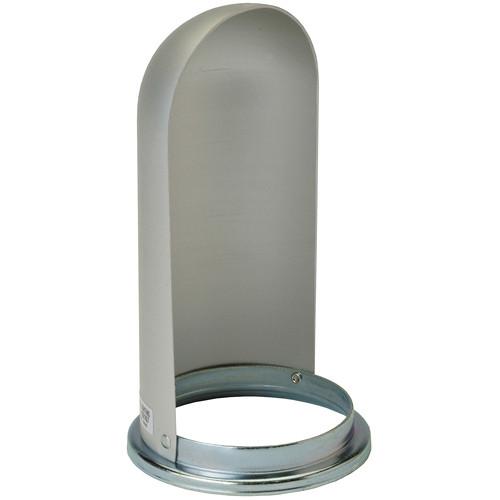

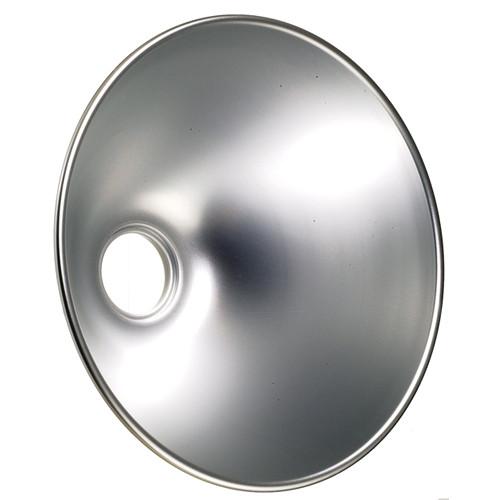

Modeling Light (ESS), 110V AC Power Cord (PL500DRC) 15' Mono to PC Sync Cord (PLTC) 3 x 13' Black Air Cushioned Light Stands (TAHS13) Background Light Stand (TLU3K) 24 x 32" Softbox with Adapter Ring (SB2432) 12 x 36" Softbox with Adapter Ring (SB1236) 16" Reflector with 2 Leaf Barndoor Set (PL16R, PL16BD) 16" Diffuser for 16" Reflector (PL16D) Background Reflector (PL3R) 2 Year Manufacturer's Warranty on Monolights 1 Year Manufacturer's Warranty on Light Stands and Accessories 30 Day Manufacturer's Warranty on Softboxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic Simone Solair 4 Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic PL500DRC Specs | | | Maximum Power | 4 to 500 Ws | | Power Control | 8 Stops in 1/10-Stop Increments | | Guide Number | 365' / 111.3 m at ISO100 | | Flash Duration | t.5: 1/770 Sec (Full Power) | | Recycle Time | 0.5 to 1.5 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Infrared, Optical | | Sync Voltage | 5 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 15 A (Operating) | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 4.5 x W: 4.5 x L: 6.8" / H: 11.0 x W: 11.0 x L: 17.0 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 79.05 lb | | Box Dimensions (LxWxH) | 46.0 x 13.0 x 11.0" |
