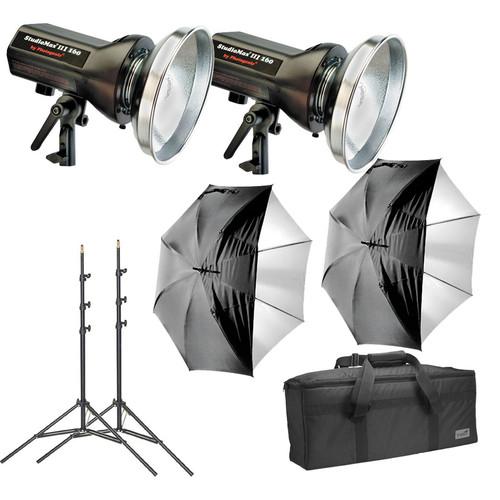

Photogenic StudioMax III 2-Light Basic Studio

User Manual for Photogenic StudioMax III 2-Light Basic Studio Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• 2 x Photogenic AKC160 Studiomax III 160W/s Monolight The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work. The AKC160 comes with a UV color corrected, user-replaceable flash tube that renders fabrics and flesh tones accurately. The monolight comes with a 7.5" high-gain reflector but accepts the entire line of Photogenic Quick-Change reflectors, grids, snoots, and diffusers. An AC cord, sync cord, 100W quartz modeling lamp and a protective cap are also included.
  Six Stop Power Range
  • Power levels, accessed on the rear panel, are adjustable from 5.0 to 160W/s with a simple twist of a knob
  Fast Recycling
  • The AKC160 recycles to full power (160W/s) in only 1.5 seconds, and 0.5 sec. at minimum power to catch even the most fleeting gestures
  Modeling Light
  • The AKC160's 100W quartz modeling light allows you to preview the effect of your lights before tripping the shutter
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
  User Replaceable UV Flashtube
  • Replacing this "plug & play" flashtube is a snap. The UV coating ensures clean whites and flattering flesh tones
  Ready Indication
  • A ready light lets you know when the flash is fully charged
  Power off Auto-discharge
  • As a safety precaution, the AKC160 drains the capacitors when you turn it off
  Surge Protection
  • The AKC160 incorporates surge protection to handle power spikes
  System Compatibility
  • The AKC160 is compatible with all Photogenic Quick-Change light shaping accessories
  UPC: 689670111195
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292

• 2 x AKC160 Studiomax III 160W/s Monolight dyszucyatuarzryb
• ESR (100W/120V) Lamp
• 7-1/2" High Gain Reflector
• C4-12C Color Corrected Flash Tube
• AC Line Cord - 110V, for PL and PM
• Protective Cap for Powerlight
• PC to Mini Sync Cord - 10' (3m)
• Limited 1-Year Warranty

• Impact - Light Kit Bag #2 (34 x 13.5 x 12")

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

• 2 x Impact - Umbrella - White Translucent (43")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Photogenic AKC160 Studiomax III 160W/s Monolight

  Maximum Power	5 to 160 Ws
  Power Control	6 Stops
  Guide Number	25' / 7.6 m at 10' / 3 m, ISO100 81' / 24.7 m at 10' / 3 m, ISO100 with Reflector
  Flash Duration	1/7400 to 1/175 Sec
  Recycle Time	0.1 to 1.5 Sec ()
  Color Temperature	5400K ± 200K
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	100 W

  Sync Type	Optical
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	3 A (Operating) 5 A (Charging) 1 A (Idle)
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 5.2 x W: 5.2 x L: 7.0" / H: 13.3 x W: 13.3 x L: 17.8 cm
  Weight	2.6 lb / 1.17 kg

  Box Dimensions (LxWxH)	12.8 x 10.35 x 10.2"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• 2 x Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"
