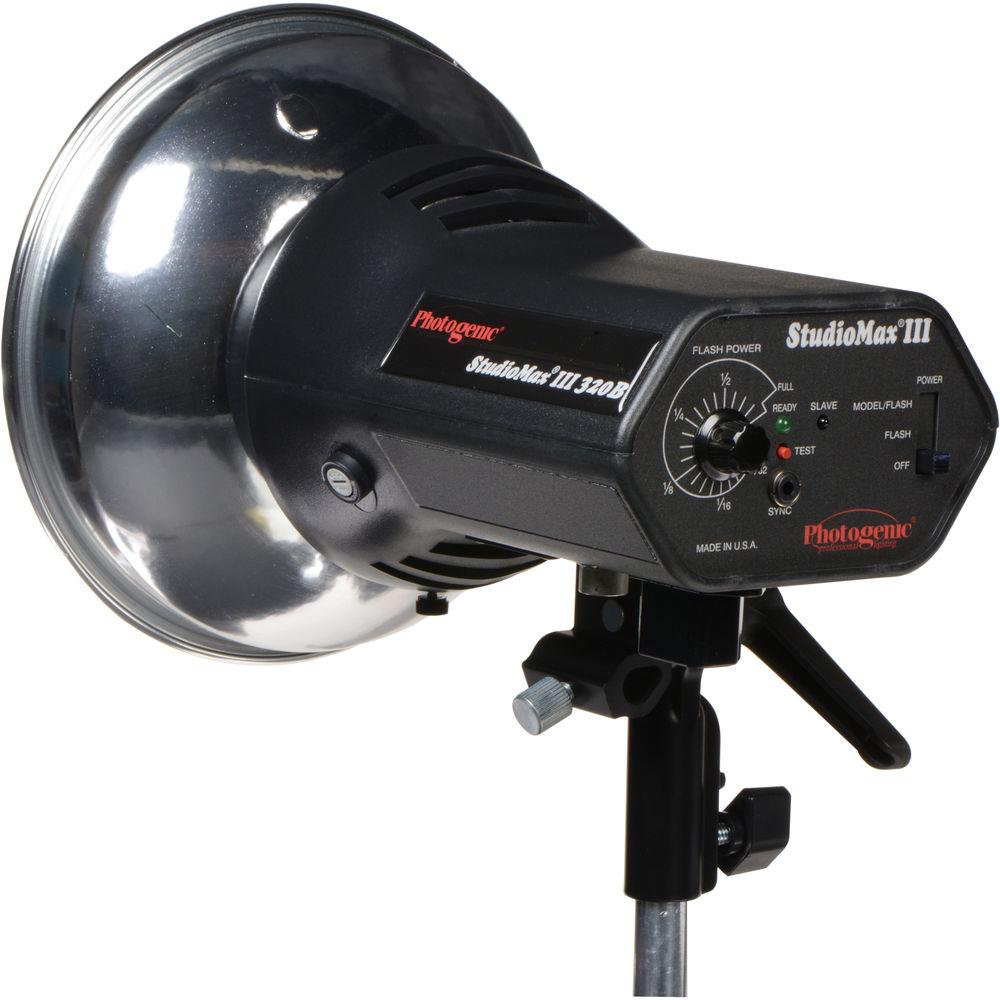

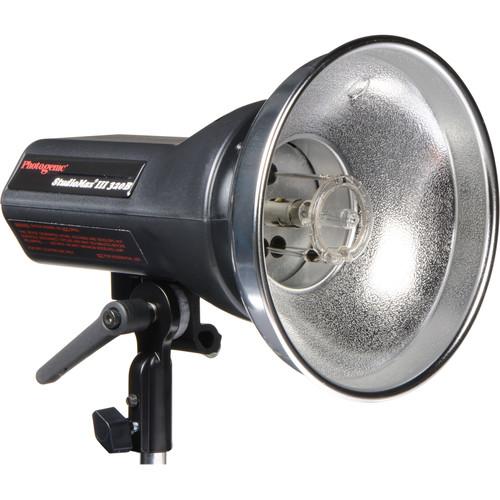

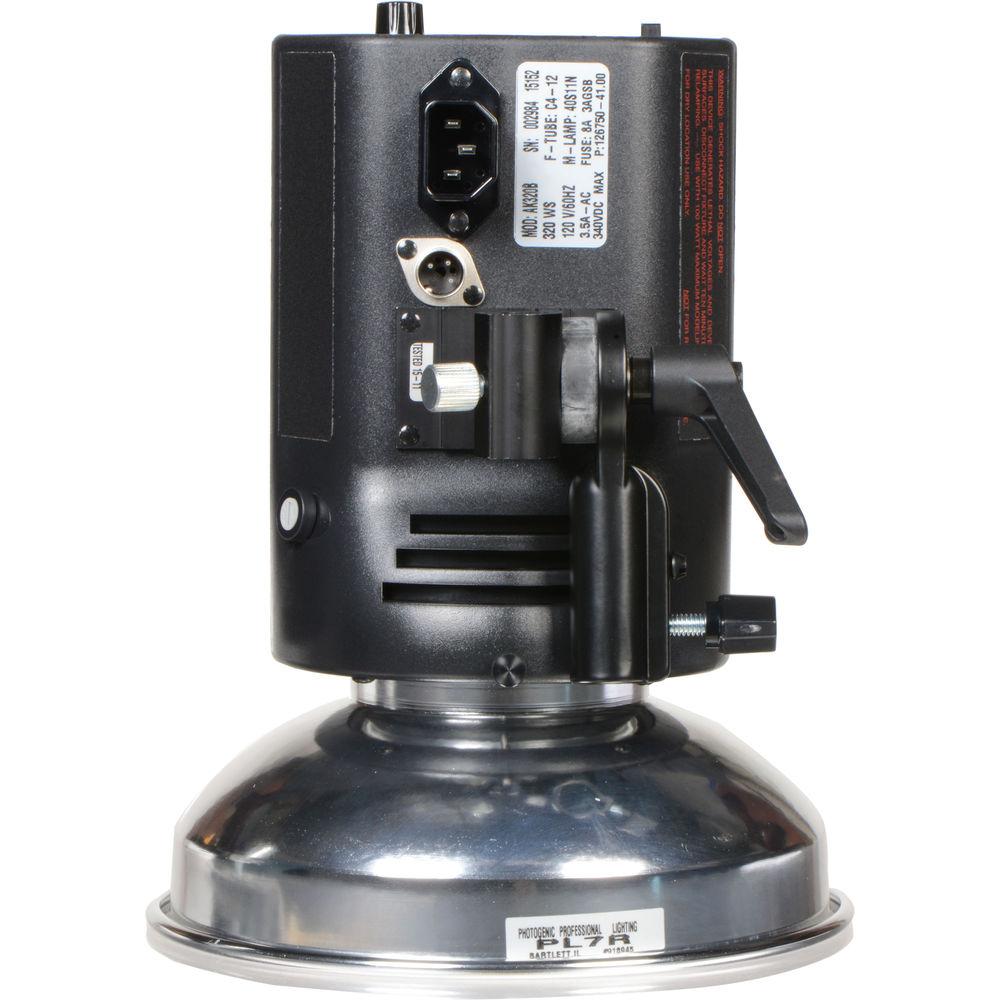

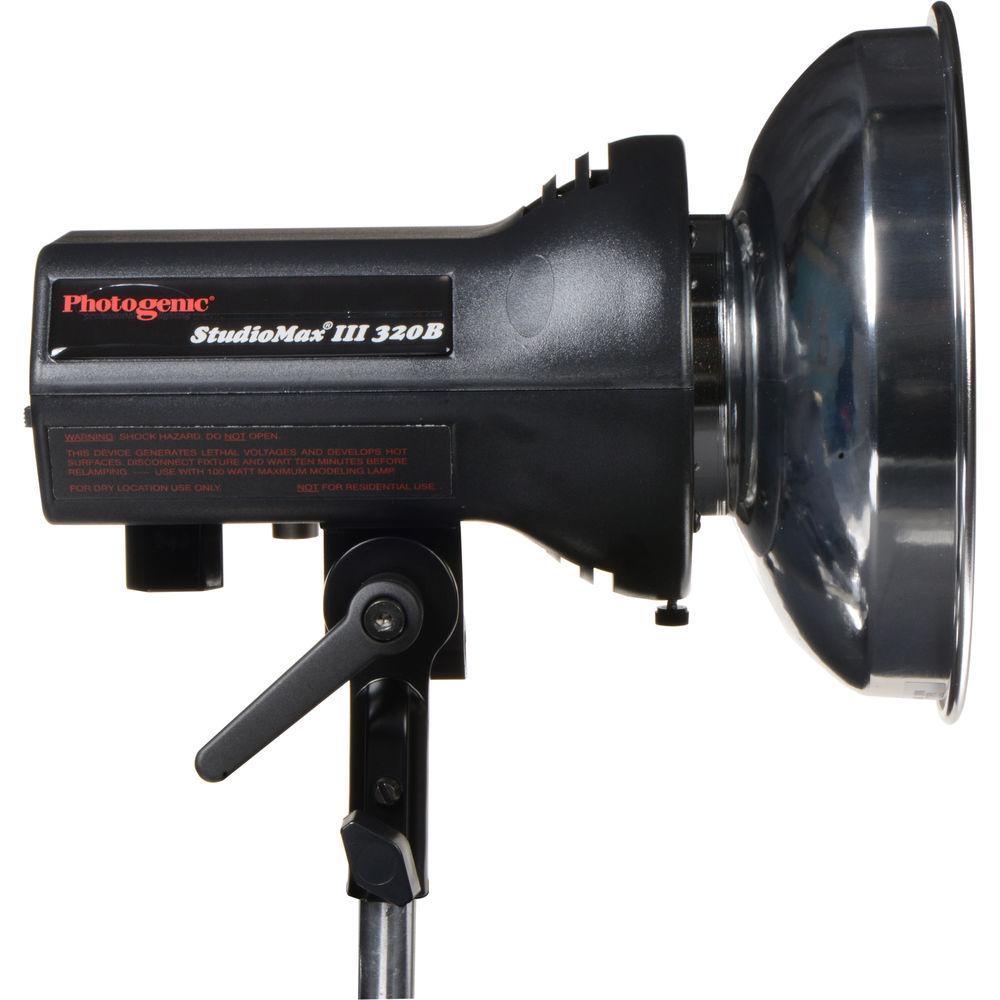

Product description The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power. - Six F/Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- Modeling Light
- Independently Switched, to aid in positioning and focus
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Compact Design
- Easy to transport; umbrella socket and stand mount built on
UPC: 689670111188 In the Box Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) C4-12C Color Corrected Flash Tube ddsxuqvywqzbvfaxwvcc ESR Lamp - 100 Watts/120 Volts 7-1/2" High Gain Reflector PC to Mini Sync Cord - 10' (3m) AC Power Cord Flash Tube Protector Battery Cable for StudioMax AC/DC Monolight Limited 1-Year Warranty Note: Battery Pack not included User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic StudioMax III Constant Color 320 W S Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic AKC320B Specs | | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Maximum Output Voltage | 12.0 VDC | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3.0 lb / 1.36 kg | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 12.7 x 10.3 x 10.3" |
