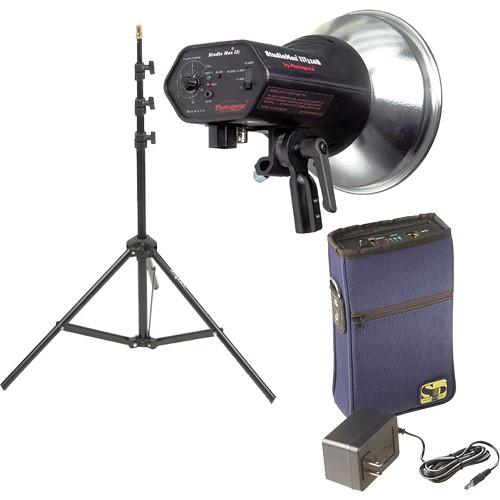

User Manual for Photogenic StudioMax III Monolight Kit Click to enlarge the picture
Contents of the user manual for the Photogenic StudioMax III Monolight Kit
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
|
User manual for the Photogenic StudioMax III Monolight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|
Product description The Photogenic StudioMax III AC/DC Monolight allows use of the light away from sources of AC power, when a high voltage battery, such as the included Photogenic 12VDC Power Battery Pack or the optional Quantum Turbo Battery is added.The StudioMax III offers a full 6 f/stop power range, Making it an excellent choice as a secondary or background light. It can even be used as a main light for the photographer who wishes to add more lights later on. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment - Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power.
- Six F/Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes
- Modeling Light
- Independently Switched, to aid in positioning and focus
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube
- Compact Design
- Easy to transport; umbrella socket and stand mount built on
UPC: 689670111188 - Photogenic Battery for Studiomax AC/DC Monolights The Photogenic 12VDC Power Battery Pack works with the Studiomax 160 and 320 ACDC monolights, SP Excalibur C1600ACDC monolight, SPC920ACDC, 147ACDC and 100ACDC units. This pack also works with most flashes that can use the Quantum Turbo, and Lumedyne Mini Cycler battery packs. Power cords for these strobes made by Quantum and Paramount may be ordered from separately.
- A more economical alternative to the Quantum Turbo battery.
- Recycle time is about 4 seconds when used @ full power with the Studiomax 160AC/DC.
UPC: 689670050289 - Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) fqxrcaeavtdtfvbrzwxxuyxw
- C4-12C Color Corrected Flash Tube
- ESR Lamp - 100 Watts/120 Volts
- 7-1/2" High Gain Reflector
- PC to Mini Sync Cord - 10' (3m)
- AC Power Cord
- Flash Tube Protector
- Battery Cable for StudioMax AC/DC Monolight
- Limited 1-Year Warranty
- Battery for Studiomax AC/DC Monolights fqxrcaeavtdtfvbrzwxxuyxw
- Impact - Air-Cushioned Light Stand (Black, 8')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic StudioMax III Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)
| | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Maximum Output Voltage | 12.0 VDC | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3.0 lb / 1.36 kg | | | | Box Dimensions (LxWxH) | 12.7 x 10.3 x 10.3" | - Photogenic Battery for Studiomax AC/DC Monolights
| Number of Flashes per Charge | 110 @ 270 w/s, 190 @ 160 w/s
320 @ 100 w/s, 380 @ 70 w/s | | Charge Rate | 6 hours | | Connectors | 1- multi-pin to battery, 1- DC charging input | | Memory | None, battery is lead-acid | | Dimensions | 5 x 3 x 7" (12.7 x 7.6 x 17.8cm) | | Weight | 3 lbs (1.4kg) | | | | Box Dimensions (LxWxH) | 13.9 x 8.6 x 3.3" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
