Photogenic StudioMax III Pro 3 Light

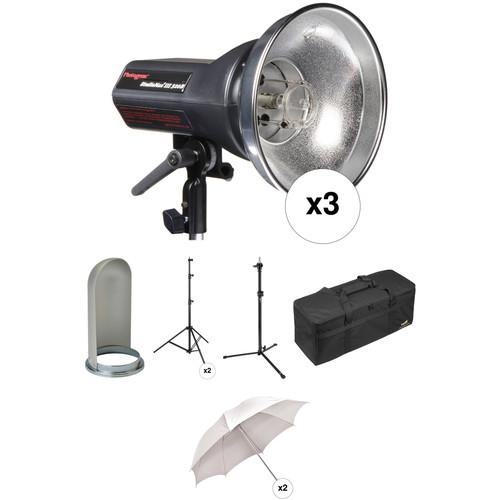

User Manual for Photogenic StudioMax III Pro 3 Light Kit

• Product category: Monolights Photogenic
• Brand: Photogenic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Photogenic Monolights

Product description

• 3 x Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) The Photogenic StudioMax III Constant Color Monolight offers a full six f/stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or background light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This monolight is capable of operating with its optional battery pack, for working outdoors away from AC power.
  Six F/Stop Power Range
  • Dial provides infinite flash power settings from full to 1/32 power
  Built In Slave
  • Highly sensitive, switchable optical slave for synchronization with other flashes
  Modeling Light
  • Independently Switched, to aid in positioning and focus
  User Replaceable Flashtube
  • No tools are required to replace this "plug & play" flashtube
  Compact Design
  • Easy to transport; umbrella socket and stand mount built on
  UPC: 689670111188
• Photogenic Shallow Satin Reflector The ability to shape and control the light from a flash source is essential. This is one of many different reflectors available for the Photogenic line of flash heads and monolights. It is used for lighting a background evenly, and softly. UPC: 689670070188
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Two Section Back Light Stand (3') This 3' Impact Back Light Stand consists of a base and riser. Use the lower part as a base to place a mounted light at floor or table level, as low as 5.5". Add the extension to the base to raise the height of the light from 22.8" (57.9 cm) to a maximum of 3' (90 cm). The stand is constructed of black anodized aluminum.
  Quick Set Up
  • Sets up easily in the matter of seconds
  Very Stable
  • Stable under recommended loads
  5/8" Reversible Stand Mount
  • Fitted with a reversible 5/8" top stud, with 1/4"-20 and 3/8" threads
  UPC: 847628011939
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619
• 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292

• 3 x StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC) vyevsqewvxcsfd
• C4-12C Color Corrected Flash Tube
• ESR Lamp - 100 Watts/120 Volts
• 7-1/2" High Gain Reflector
• PC to Mini Sync Cord - 10' (3m)
• AC Power Cord
• Flash Tube Protector
• Battery Cable for StudioMax AC/DC Monolight
• Limited 1-Year Warranty

• Quick Change Shallow Satin Reflector for Photogenic vyevsqewvxcsfd

• 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Impact - Two Section Back Light Stand (3')

• Impact - Light Kit Bag #2 (34 x 13.5 x 12")

• 2 x Impact - Umbrella - White Translucent (43")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Photogenic StudioMax III Constant Color 320 W/S Monolight (120VAC/12VDC)

  Maximum Power	10 to 320 Ws
  Power Control	6 Stops
  Guide Number	170' / 51.8 m at
  Flash Duration	1/4300 to 1/125 Sec
  Recycle Time	0.2 to 3 Sec ()
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	100 W

  Sync Type	Optical

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	5 A (Operating)
  Circuit Protection	Fuse

  Maximum Output Voltage	12.0 VDC

  Display	None
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm
  Weight	3.0 lb / 1.36 kg

  Box Dimensions (LxWxH)	12.7 x 10.3 x 10.3"

• Photogenic Shallow Satin Reflector

  Box Dimensions (LxWxH)	8.4 x 6.6 x 4.75"

• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Two Section Back Light Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Number of Sections	2
  Maximum Working Height	3' / 0.9 m
  Minimum Working Height	5.5" / 14 cm
  Collapsed Height	20" / 51 cm
  Footprint Diameter	23.6" / 60 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	2.9 lb / 1.3 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	20.55 x 3.3 x 3.25"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"

• 2 x Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"
