User Manual for Photogenic StudioMax III Softbox Portrait Kit Click to enlarge the picture
Contents of the user manual for the Photogenic StudioMax III Softbox Portrait Kit
- Product category: Monolights Photogenic
- Brand: Photogenic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photogenic Monolights
 |
User manual for the Photogenic StudioMax III Softbox Portrait Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photogenic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photogenic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photogenic product will considerably shorten its lifespan!
|

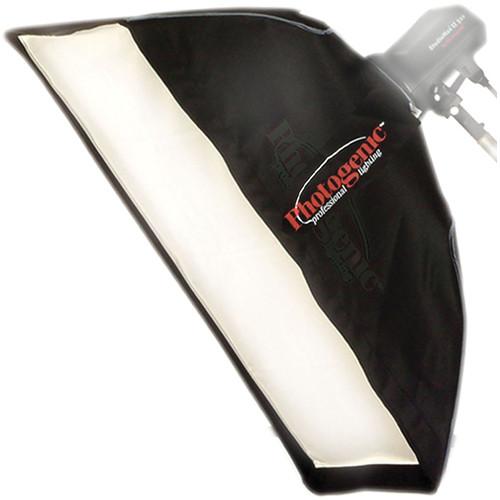

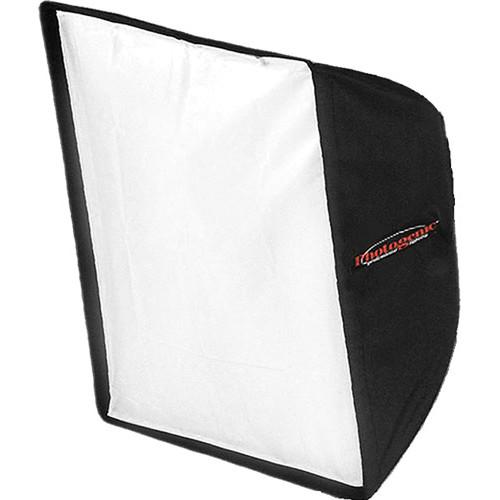

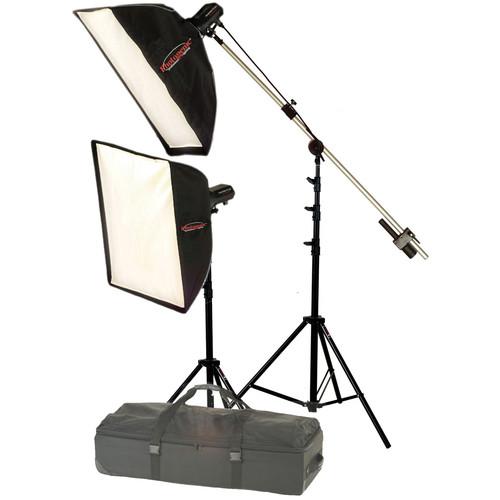

Product description The StudioMax III constant color offers a full 6 F-Stop power range over 320 watt/seconds. It has internal control to ensure the same Kelvin temperature output, no matter what level of output is chosen.This light is an excellent choice as a main, secondary, or hair light. Since it accepts the entire line of the PowerLight reflectors, grids, snoots, and diffusers, the StudioMax III is a good investment.This Photogenic StudioMax III Softbox Portrait Kit includes 2 heavy duty 13' air cushioned light stands, a counterweighted Boom Arm, 36 x 36" and 10 x 24" Softbox. The wheeled, partitioned case stores and carries it all. - 6 F-Stop Power Range
- Dial provides infinite flash power settings from full to 1/32 power.
- Built In Slave
- Highly sensitive, switchable optical slave for synchronization with other flashes.
- Modeling Light
- Independently Switched, to aid in positioning and focus.
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Compact Design
- Easy to transport. Umbrella socket and stand mount built on.

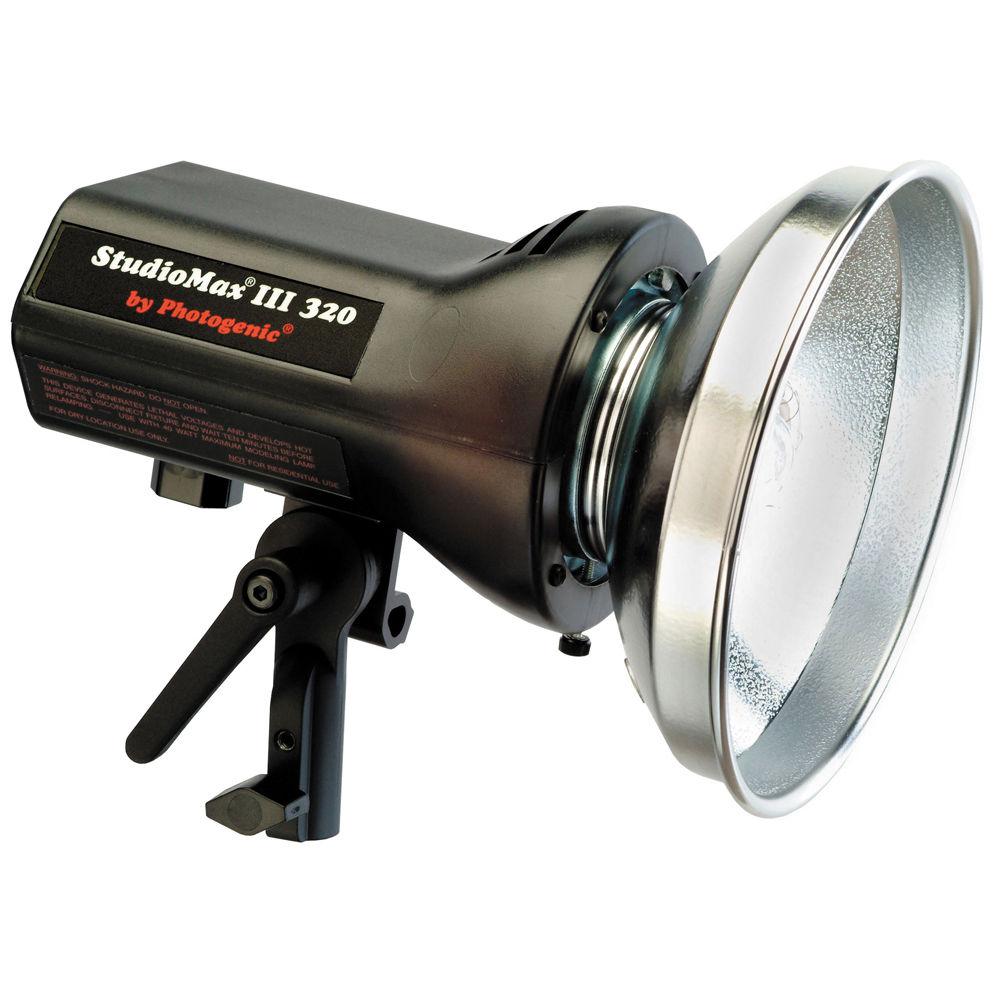

UPC: 689670111324 In the Box Photogenic StudioMax III Softbox Portrait Kit (120V) 2 x StudioMax III 320 W/S Monolights (AKC320), each including:
UV Corrected Flashtube (C4-12C)
100W Modeling Light (ESR)
7.5" Reflector

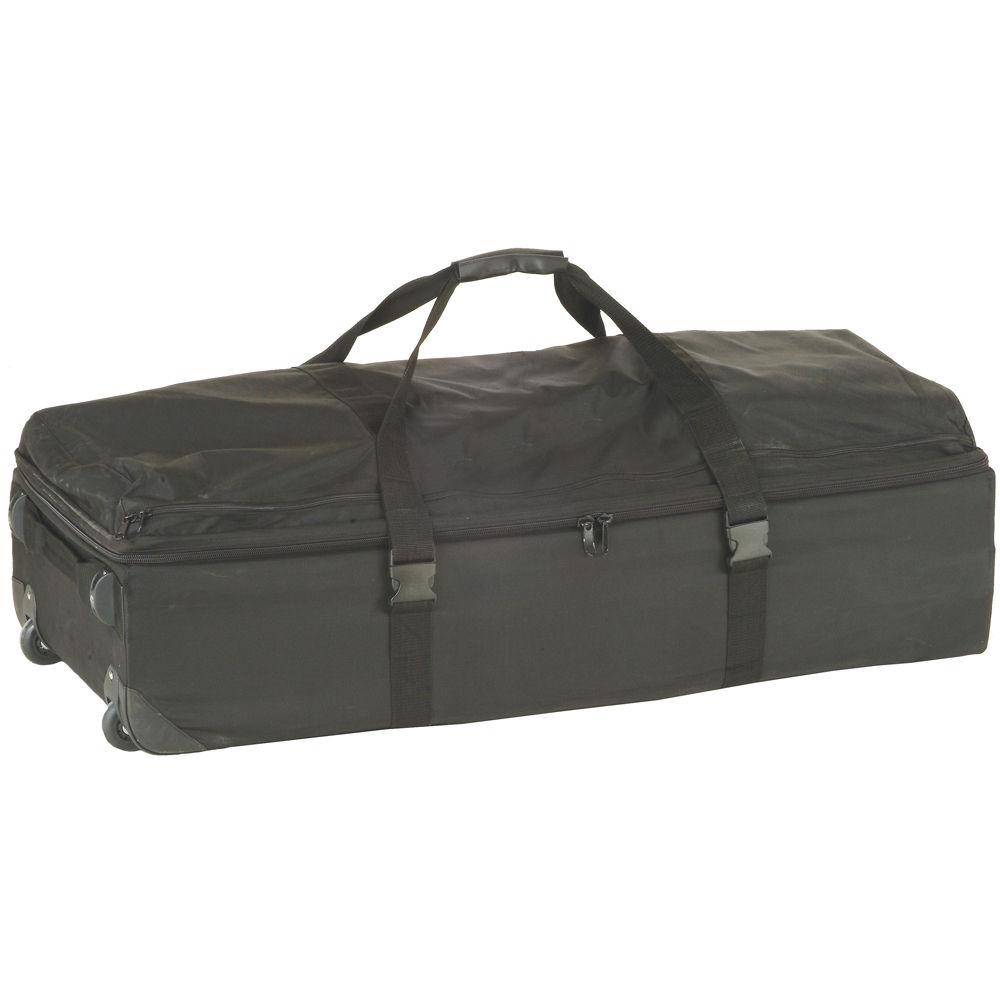

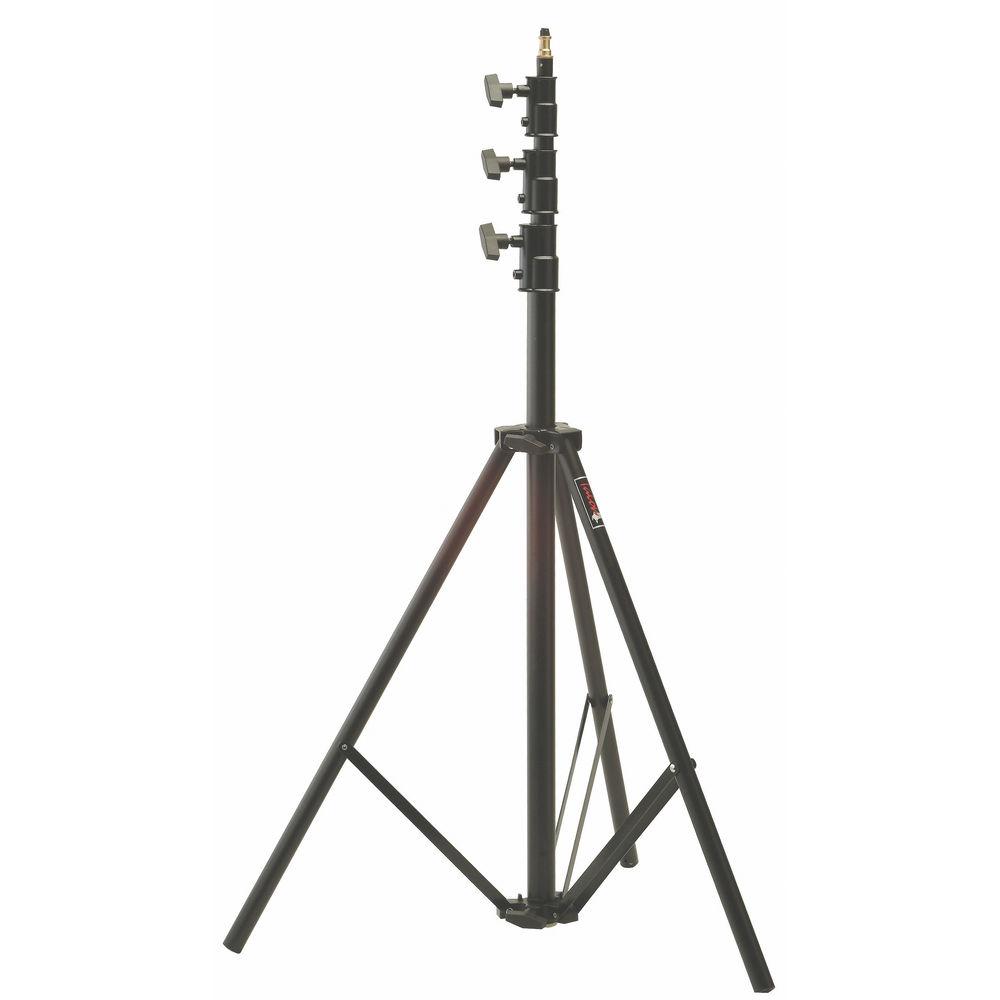

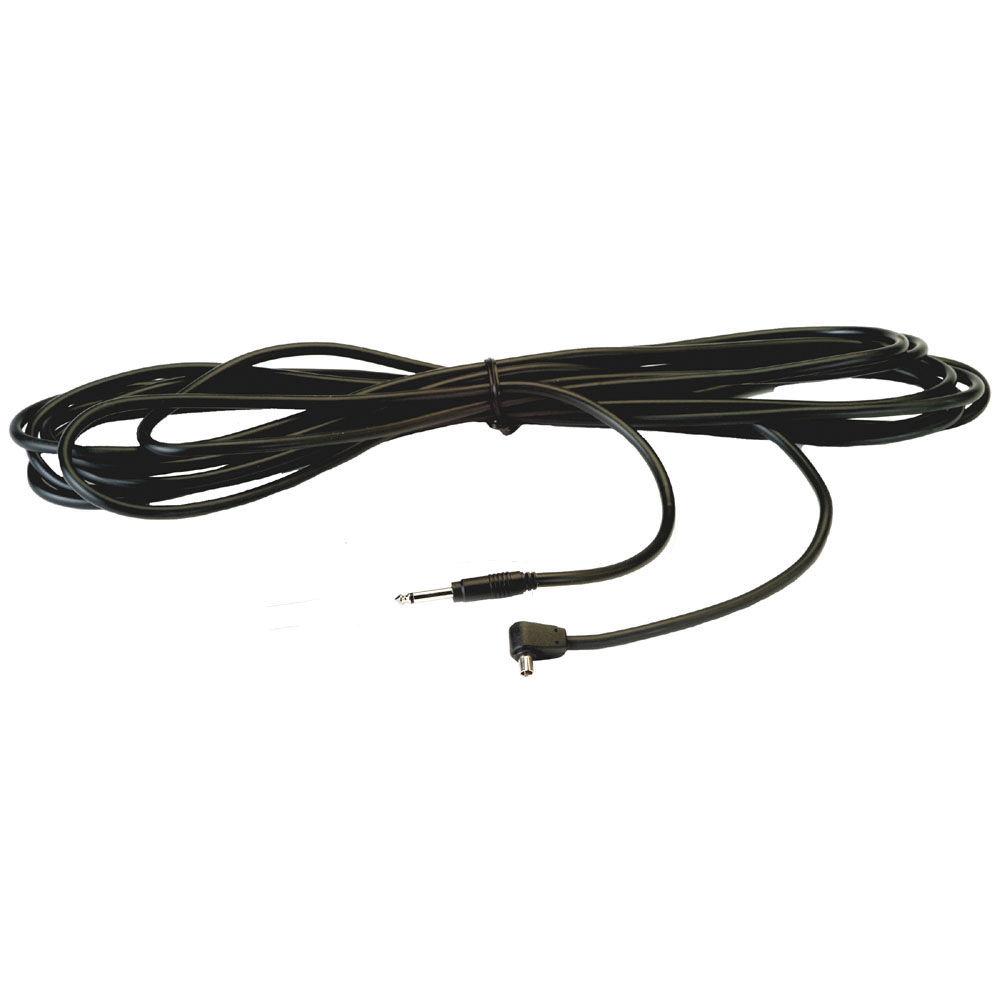

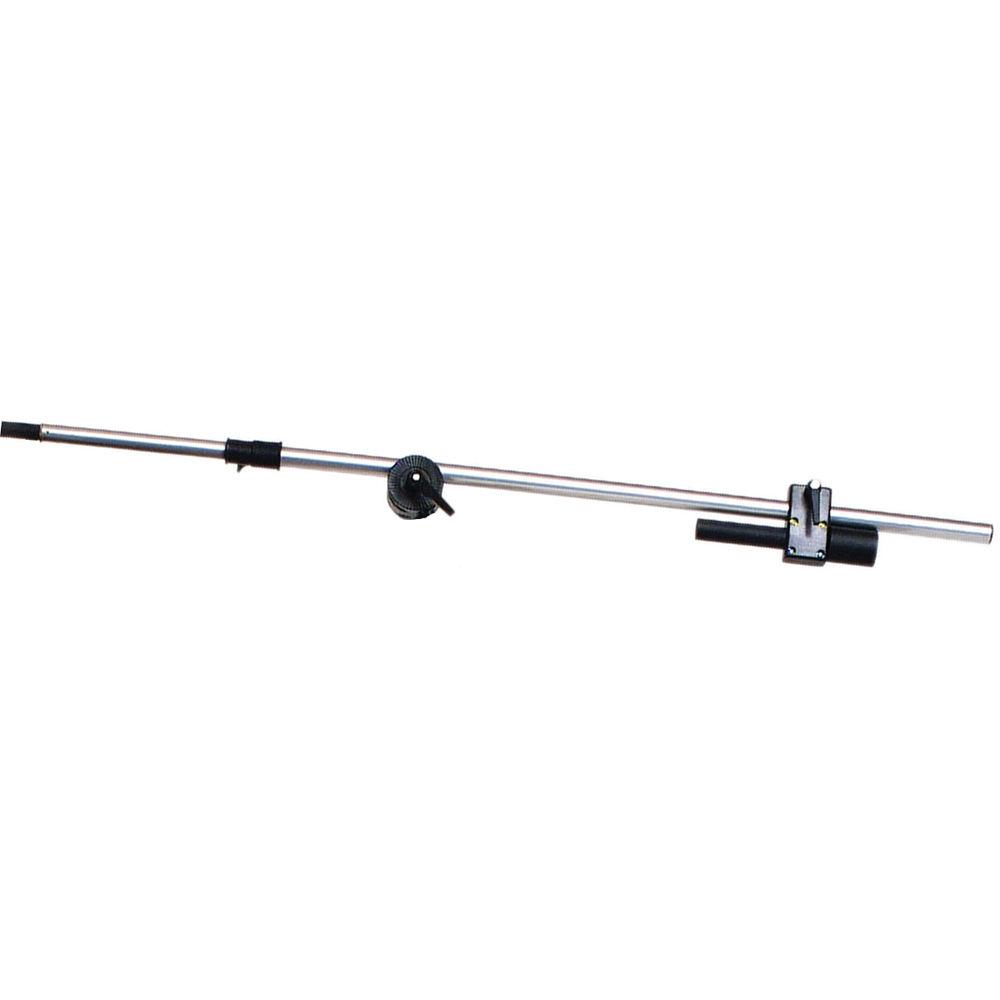

AC Power Cord Sync Cord 2 x 13' Air Cushioned Light Stands (TAHS13) Boom Arm with Swivel and Counterweight (7500BA) 10 x 24" Strip Softbox (AK1024) 36 x 36" Softbox (AK36) Wheeled Kit Case (PL03CS) 1 Year Manufacturer's Warranty on Lights, Stands, Case 30 Day Manufacturer's Warranty on Softboxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Photogenic StudioMax III Softbox Portrait Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotogenic AKC320 Specs | | | Maximum Power | 10 to 320 Ws | | Power Control | 6 Stops | | Guide Number | 170' / 51.8 m at | | Flash Duration | 1/4300 to 1/125 Sec | | Recycle Time | 0.2 to 3 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 100 W | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Current | 5 A (Operating) | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 4.5 x W: 4.5 x L: 8.8" / H: 11.0 x W: 11.0 x L: 22.0 cm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 36.0 x 15.5 x 9.5" |
