Product description

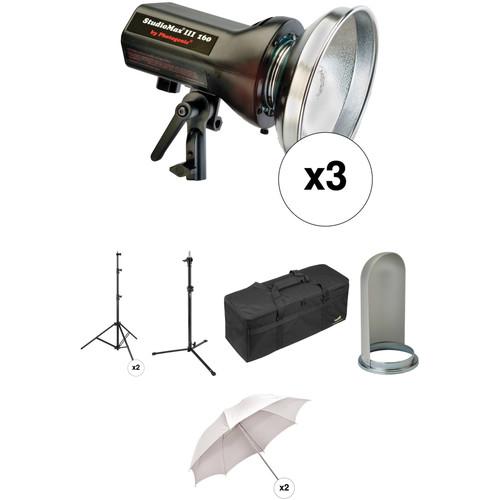

• 3 x Photogenic AKC160 Studiomax III 160W/s Monolight The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work. The AKC160 comes with a UV color corrected, user-replaceable flash tube that renders fabrics and flesh tones accurately. The monolight comes with a 7.5" high-gain reflector but accepts the entire line of Photogenic Quick-Change reflectors, grids, snoots, and diffusers. An AC cord, sync cord, 100W quartz modeling lamp and a protective cap are also included.
  Six Stop Power Range
  • Power levels, accessed on the rear panel, are adjustable from 5.0 to 160W/s with a simple twist of a knob
  Fast Recycling
  • The AKC160 recycles to full power (160W/s) in only 1.5 seconds, and 0.5 sec. at minimum power to catch even the most fleeting gestures
  Modeling Light
  • The AKC160's 100W quartz modeling light allows you to preview the effect of your lights before tripping the shutter
  Low Trigger Voltage
  • Digital cameras can be used with Photogenic monolights without fear of damage to the camera's electronics
  User Replaceable UV Flashtube
  • Replacing this "plug & play" flashtube is a snap. The UV coating ensures clean whites and flattering flesh tones
  Ready Indication
  • A ready light lets you know when the flash is fully charged
  Power off Auto-discharge
  • As a safety precaution, the AKC160 drains the capacitors when you turn it off
  Surge Protection
  • The AKC160 incorporates surge protection to handle power spikes
  System Compatibility
  • The AKC160 is compatible with all Photogenic Quick-Change light shaping accessories
  UPC: 689670111195
• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5') This Impact Heavy-Duty Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 9.5' and folds down to 42" for storage and transport. The stand will handle up to 22 lb and is topped with a removable 5/8" spigot with 1/4"-20 and 3/8"-16 threads. It has a wide footprint of 52" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628012004
• Impact Two Section Back Light Stand (3') This 3' Impact Back Light Stand consists of a base and riser. Use the lower part as a base to place a mounted light at floor or table level, as low as 5.5". Add the extension to the base to raise the height of the light from 22.8" (57.9 cm) to a maximum of 3' (90 cm). The stand is constructed of black anodized aluminum.
  Quick Set Up
  • Sets up easily in the matter of seconds
  Very Stable
  • Stable under recommended loads
  5/8" Reversible Stand Mount
  • Fitted with a reversible 5/8" top stud, with 1/4"-20 and 3/8" threads
  UPC: 847628011939
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619
• Photogenic Shallow Satin Reflector The ability to shape and control the light from a flash source is essential. This is one of many different reflectors available for the Photogenic line of flash heads and monolights. It is used for lighting a background evenly, and softly. UPC: 689670070188
• 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292

• 3 x AKC160 Studiomax III 160W/s Monolight uwaqavvsf
• ESR (100W/120V) Lamp
• 7-1/2" High Gain Reflector
• C4-12C Color Corrected Flash Tube
• AC Line Cord - 110V, for PL and PM
• Protective Cap for Powerlight
• PC to Mini Sync Cord - 10' (3m)
• Limited 1-Year Warranty

• 2 x Impact - Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

• Impact - Two Section Back Light Stand (3')

• Impact - Light Kit Bag #2 (34 x 13.5 x 12")

• Quick Change Shallow Satin Reflector for Photogenic

• 2 x Impact - Umbrella - White Translucent (43")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 3 x Photogenic AKC160 Studiomax III 160W/s Monolight

  Maximum Power	5 to 160 Ws
  Power Control	6 Stops
  Guide Number	25' / 7.6 m at 10' / 3 m, ISO100 81' / 24.7 m at 10' / 3 m, ISO100 with Reflector
  Flash Duration	1/7400 to 1/175 Sec
  Recycle Time	0.1 to 1.5 Sec ()
  Color Temperature	5400K ± 200K
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	100 W

  Sync Type	Optical
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Current	3 A (Operating) 5 A (Charging) 1 A (Idle)
  Circuit Protection	Fuse
  Fuse	8 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 5.2 x W: 5.2 x L: 7.0" / H: 13.3 x W: 13.3 x L: 17.8 cm
  Weight	2.6 lb / 1.17 kg

  Box Dimensions (LxWxH)	12.8 x 10.35 x 10.2"

• 2 x Impact Heavy-Duty Air-Cushioned Light Stand (Black, 9.5')

  Maximum Load	22 lb (10 kg)
  Maximum Height	114" (290 cm)
  Minimum Height	48" (123 cm)
  Closed Length	42" (106.7 cm)
  Footprint Diameter	52" (132 cm)
  Leg Tip	0.98" (25 mm)
  Attachment Size	Removable 5/8" (16 mm) spigot with 1/4"-20 and 3/8"-16 threaded ends
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	4.4 lb (2.0 kg)

  Box Dimensions (LxWxH)	42.8 x 5.5 x 5.2"

• Impact Two Section Back Light Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Number of Sections	2
  Maximum Working Height	3' / 0.9 m
  Minimum Working Height	5.5" / 14 cm
  Collapsed Height	20" / 51 cm
  Footprint Diameter	23.6" / 60 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	2.9 lb / 1.3 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	20.55 x 3.3 x 3.25"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"

• Photogenic Shallow Satin Reflector

  Box Dimensions (LxWxH)	8.4 x 6.6 x 4.75"

• 2 x Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"
