User Manual for Photoseiki Macro Focusing Rail Click to enlarge the picture
Contents of the user manual for the Photoseiki Macro Focusing Rail
- Product category: Other Macro Accessories Photoseiki
- Brand: Photoseiki
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Photoseiki Other Macro Accessories
 |
User manual for the Photoseiki Macro Focusing Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Photoseiki product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Photoseiki user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Photoseiki product will considerably shorten its lifespan!
|

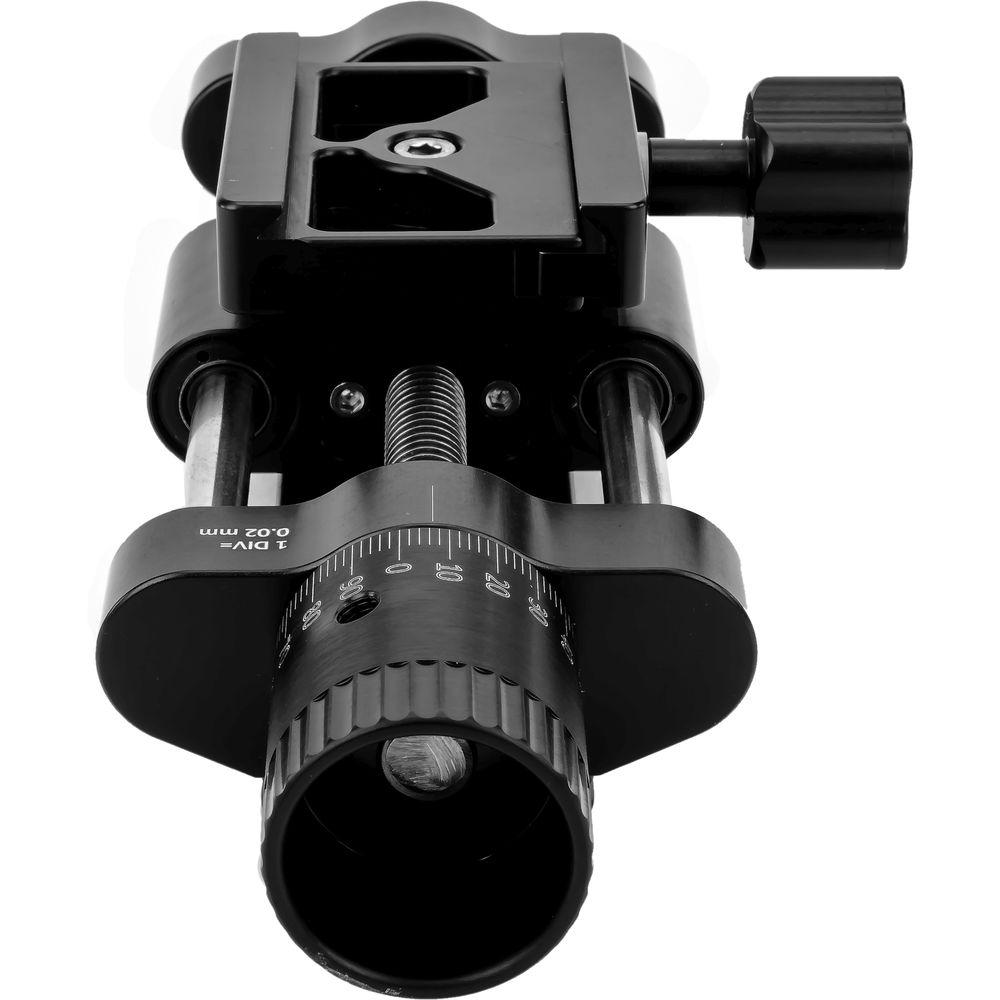

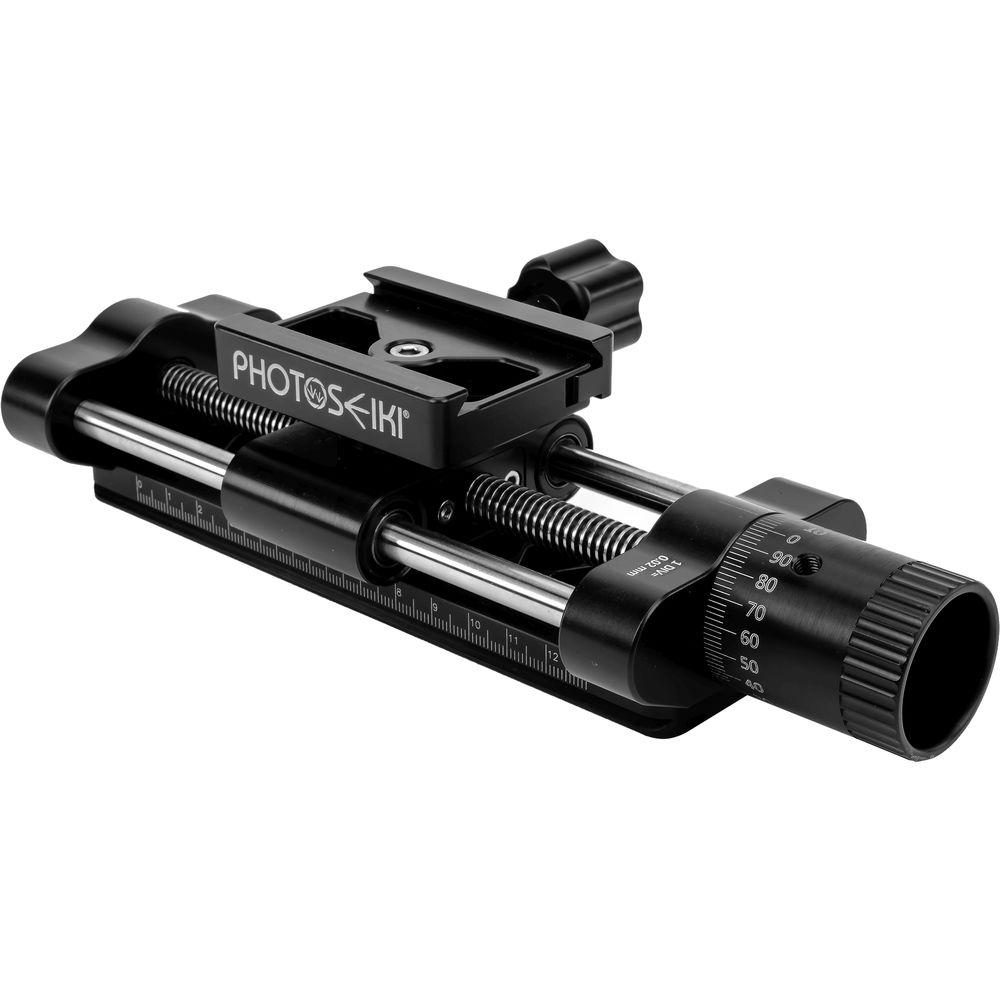

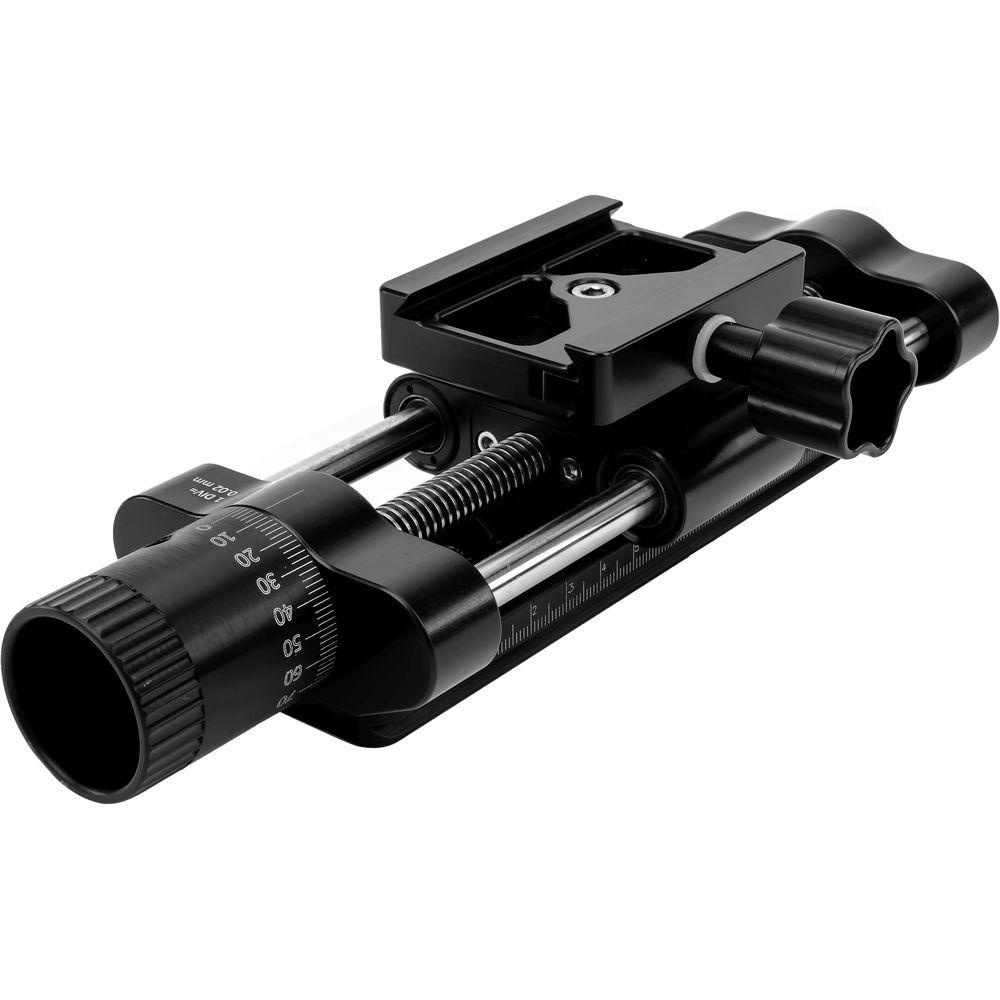

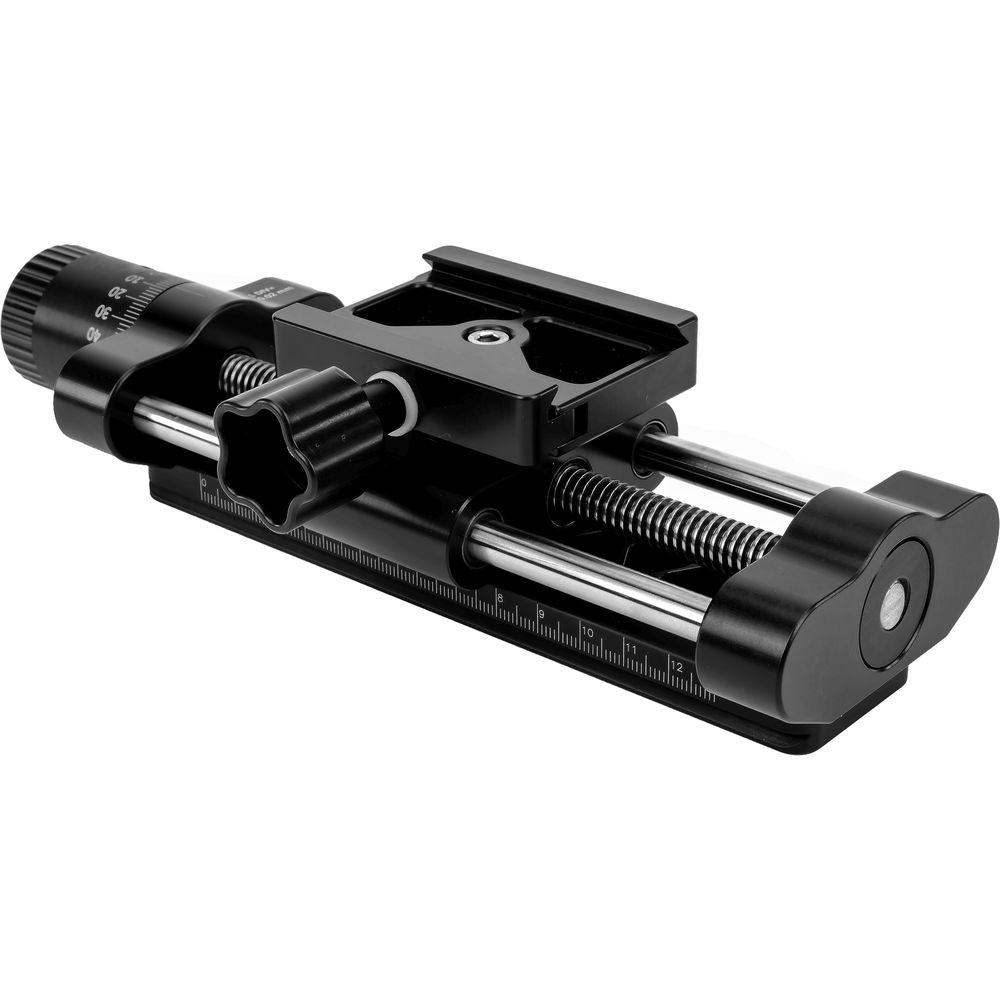

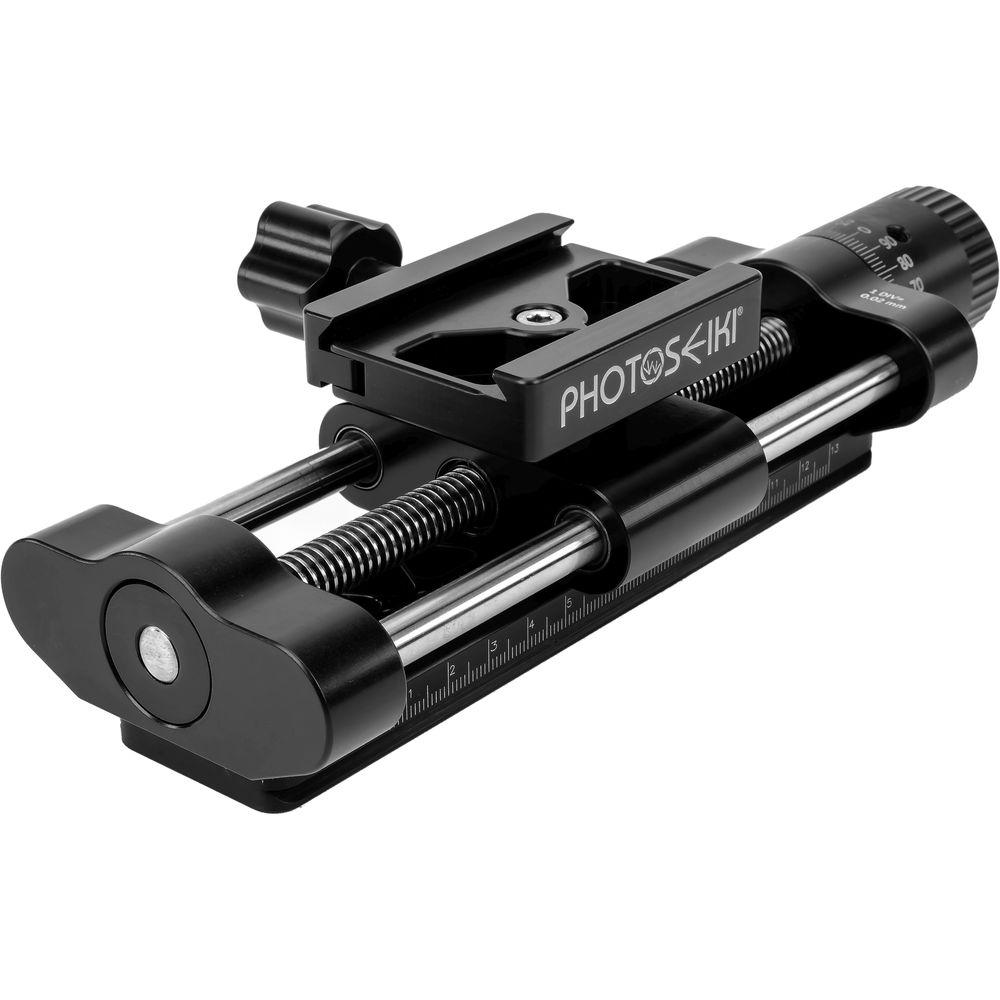

Product description The Macro Focusing Rail from Photoseiki is a precise focusing rail designed for fine adjustments of camera-to-subject position as small as 0.02mm along an axis. It is well-suited for focus stacking and can be used for critical applications such as architecture photography. The clamp mount fits Arca-type quick release plates and can support gear as heavy as 77 lb when used with other Photoseiki equipment. Moving the gear along the 4.1" adjustment range is simple with the use of a rotating knob. Adjustments can be made precisely with the use of the scaled base, which features marked intervals at tenths of a centimeter. The mounting plate can be rotated 90° to allow movement control on a second axis, widening the range of possible shots. The rail has an Arca-type base that allows you to mount it to any compatible tripod or stand, and also fits standard equipment via a 3/8"-16 threaded screw mount at the bottom. An adapter for 1/4"-20 screws is included for additional compatibility. The product is made out of machined aluminum and comes with a limited lifetime warranty. Note: the rail does not come with the quick release plate for the bottom of your lens, which needs to be purchased separately for use. In the Box Photoseiki Macro Focusing Rail 3/8"-16 to 1/4"-20 Screw Mount Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Photoseiki Macro Focusing Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhotoseiki MR-101 Specs | Adjustment Range | 4.1" (10.5 cm) | | Load Capacity | 77 lb (35 kg) | | Quick Release | Yes, Arca-type | | Attachment Options | Arca-type base
3/8"-16 threaded screw mount
1/4"-20 threaded screw adapter | | Material of Construction | 7075 aluminum alloy | | Dimensions (H x W x D) | 2.3 x 3.9 x 8.6" (5.8 x 10.0 x 22.0 cm) | | Weight | 1.68 lb (0.76 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.2 x 10.7 x 2.6" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
