User Manual for Phottix Ares II Wireless Flash Trigger Kit Click to enlarge the picture
Contents of the user manual for the Phottix Ares II Wireless Flash Trigger
- Product category: Radio & Infrared Transmitters Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Radio & Infrared Transmitters
 |
User manual for the Phottix Ares II Wireless Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|

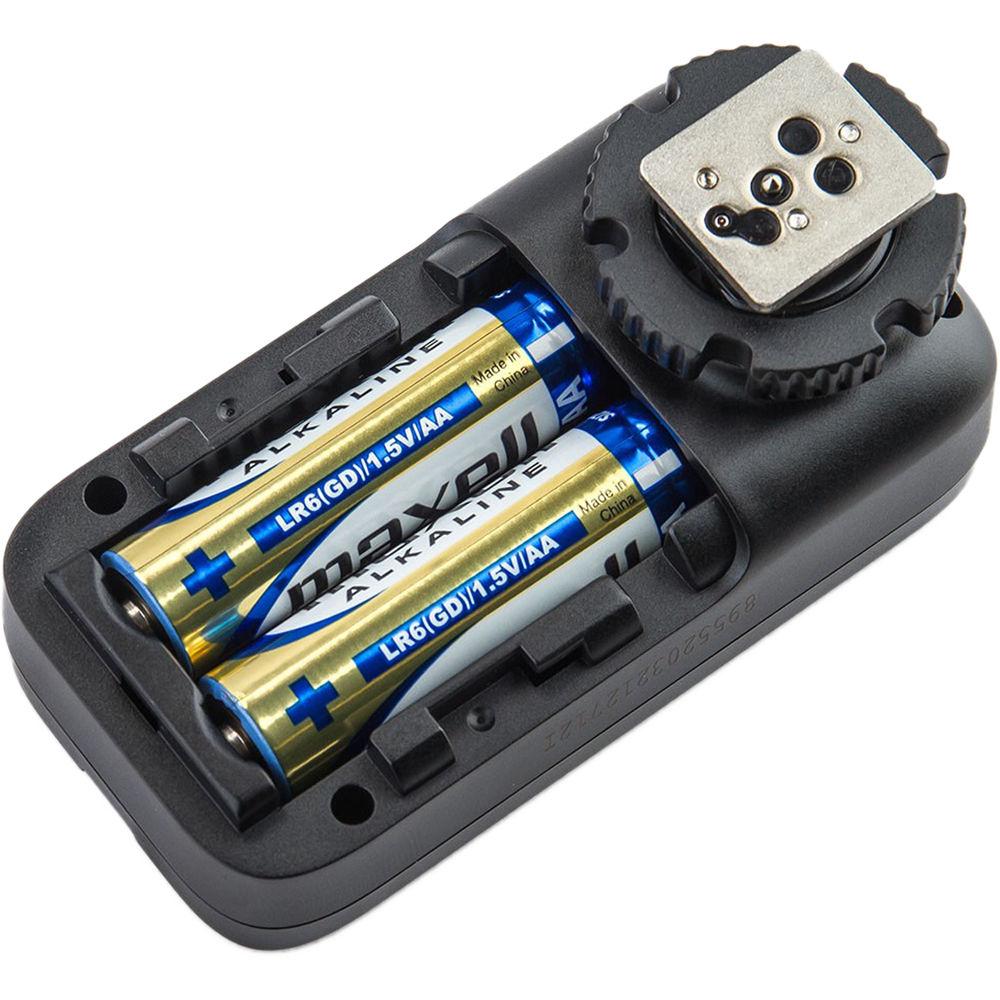

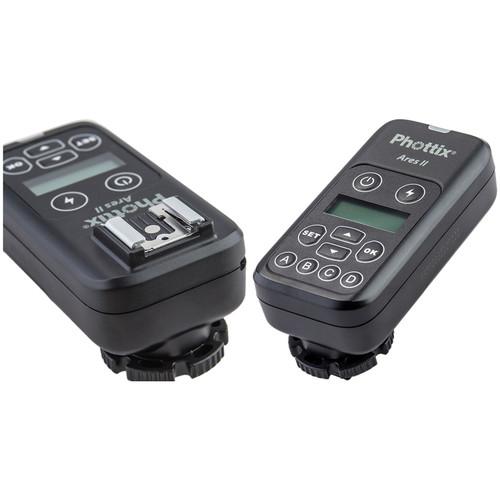

Product description Embrace wireless flash triggering with the Ares II Wireless Flash Trigger Kit from Phottix. This kit includes both a transmitter and receiver which enable triggering of a shoe-mounted flash or studio strobe from up to 492' away. Also, the Ares II system benefits from a 2.4 GHz frequency for limited interference, and it is compatible with Strato II receivers. - Ares II Flash Trigger Receiver Bring your flashes into the wireless triggering world with this Ares II Flash Trigger Receiver from Phottix. This receiver features both a hot shoe and a 3.5mm sync port for connecting to both on-camera flashes and studio strobes. Once connected, this receiver can then be triggered by a separately available Ares II transmitter from a distance of up to 492'. This system also uses a 2.4 GHz frequency to limit interference as well as access to 16 channels, 4 groups, and digital ID codes so that it won't be accidentally tripped by nearby photographers. It is also easy to mount on a stand or bracket due to a cold shoe mount with 1/4"-20 thread on the base, and it runs on two AA batteries. Additionally, the system has a max sync speed of 1/250 second and is equipped with a backlit LCD for checking and changing settings.

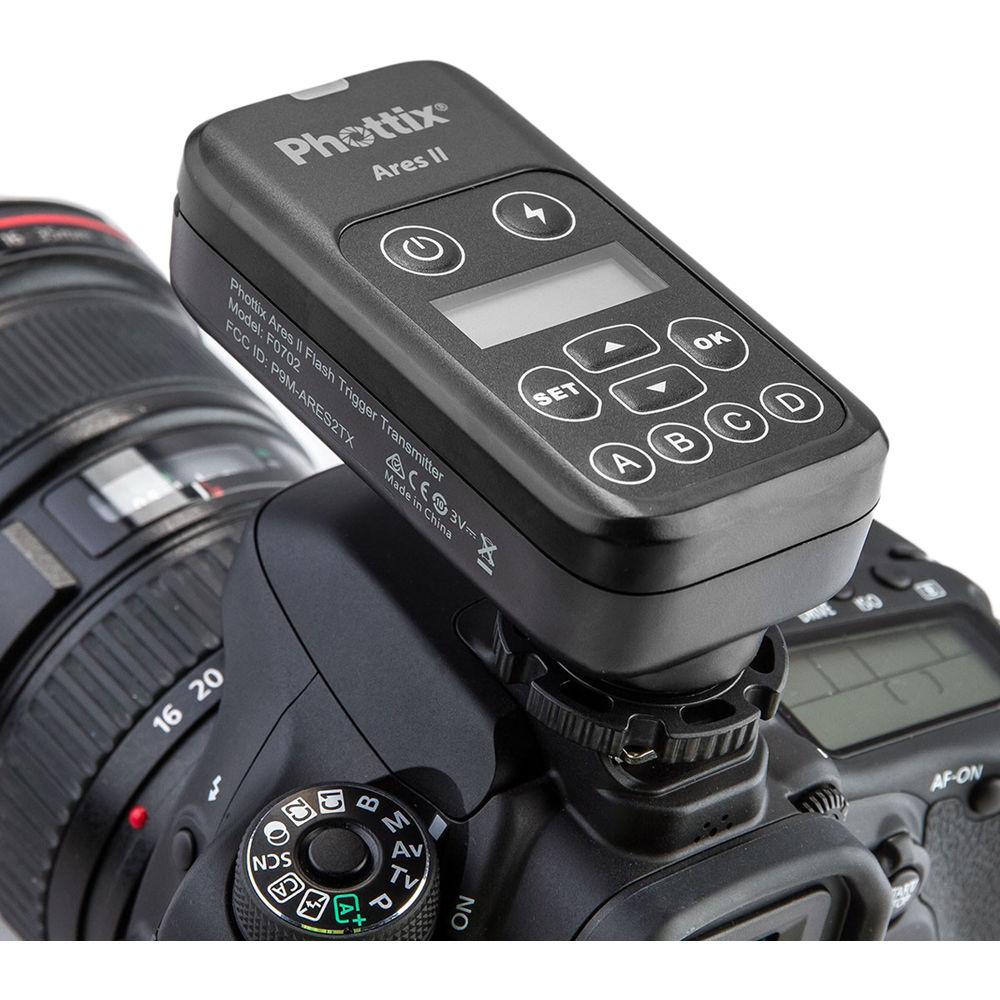

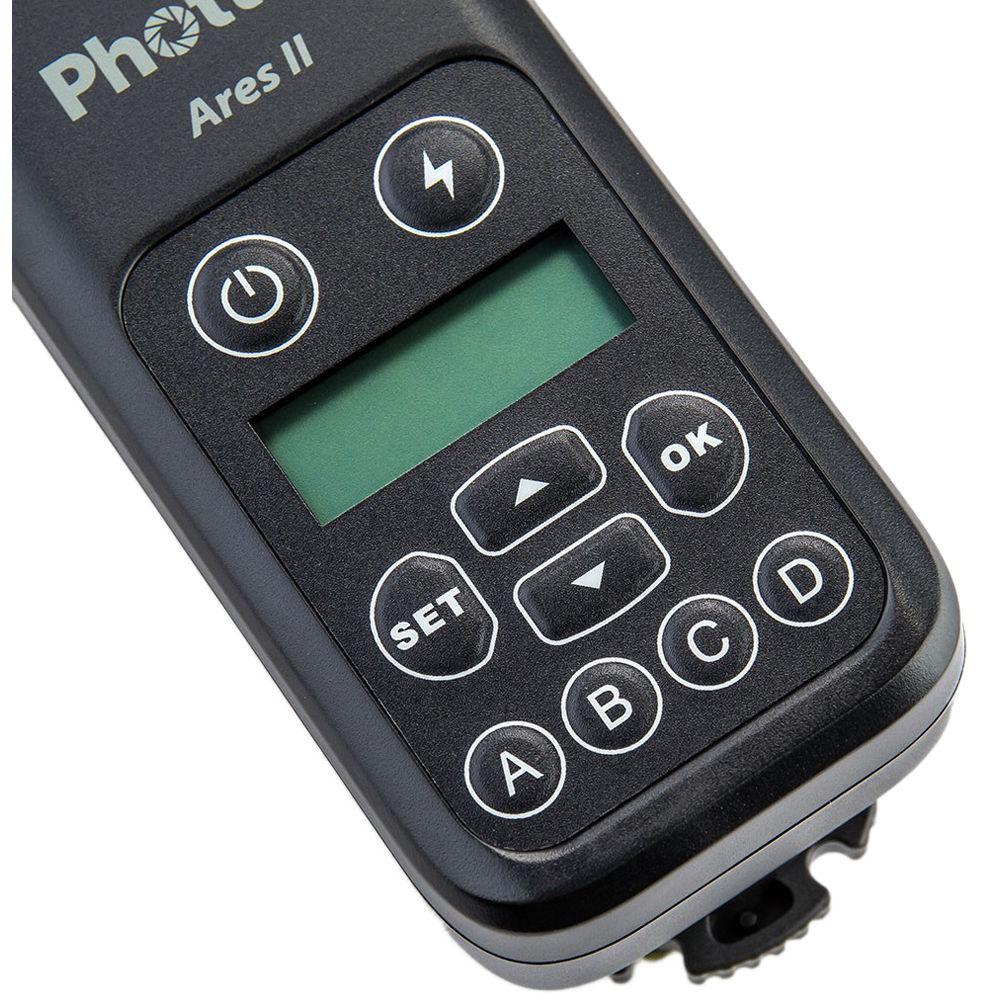

- Ares II Flash Trigger Transmitter Embrace reliable wireless triggering of your flashes with this Ares II Flash Trigger Transmitter from Phottix. This system offers an incredible range of 492' along with a 2.4 GHz frequency to help limit interference. Users will also have access to 16 channels, the first four of which will support Strato II receivers as well, and four groups. Users can also set a digital ID code in order to ensure there is no interference from other users in the area. All of these settings can easily be set and checked via the backlit LCD screen for convenience. The Ares II system has a maximum sync speed of 1/250 second and attaches easily to most camera's hot shoe. Additionally, it runs on two AA batteries.
In the Box Bundle Items Ares II Flash Trigger Receiver - 3.5mm to 3.5mm Sync Cord (15.7")
- Limited 2-Year Warranty with 1-Year Extension upon Registration
Ares II Flash Trigger Transmitter - Limited 2-Year Warranty with 1-Year Extension upon Registration
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Ares II Wireless Flash Trigger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ares II Flash Trigger Receiver
| | | Channels | 16 | | Groups | 4 | | Wireless Range | 492' / 150 m | | Radio Frequency | 2.4 GHz | | | | Bottom Mount | Cold Foot with 1/4"-20 Thread | | Top Mount | Hot Shoe | | | | Dimensions | 3.6 x 1.8 x 1.7" / 92 x 46 x 44 mm (Receiver) | | Weight | 2.5 oz / 70.9 g | | | | Box Dimensions (LxWxH) | 5.4 x 4.95 x 2.35" | - Ares II Flash Trigger Transmitter
| | | Channels | 16 | | Groups | 4 | | Wireless Range | 492' / 150 m | | Radio Frequency | 2.4 GHz | | | | Dimensions | 3.6 x 1.8 x 1.6" / 92 x 46 x 42 mm (Transmitter) | | Weight | 2.3 oz / 65 g | | | | Box Dimensions (LxWxH) | 5.5 x 5.0 x 2.3" |
