User Manual for Phottix Indra500 TTL Battery Powered Studio Light Click to enlarge the picture
Contents of the user manual for the Phottix Indra500 TTL Battery Powered Studio
- Product category: Monolights Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Monolights
 |
User manual for the Phottix Indra500 TTL Battery Powered Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|

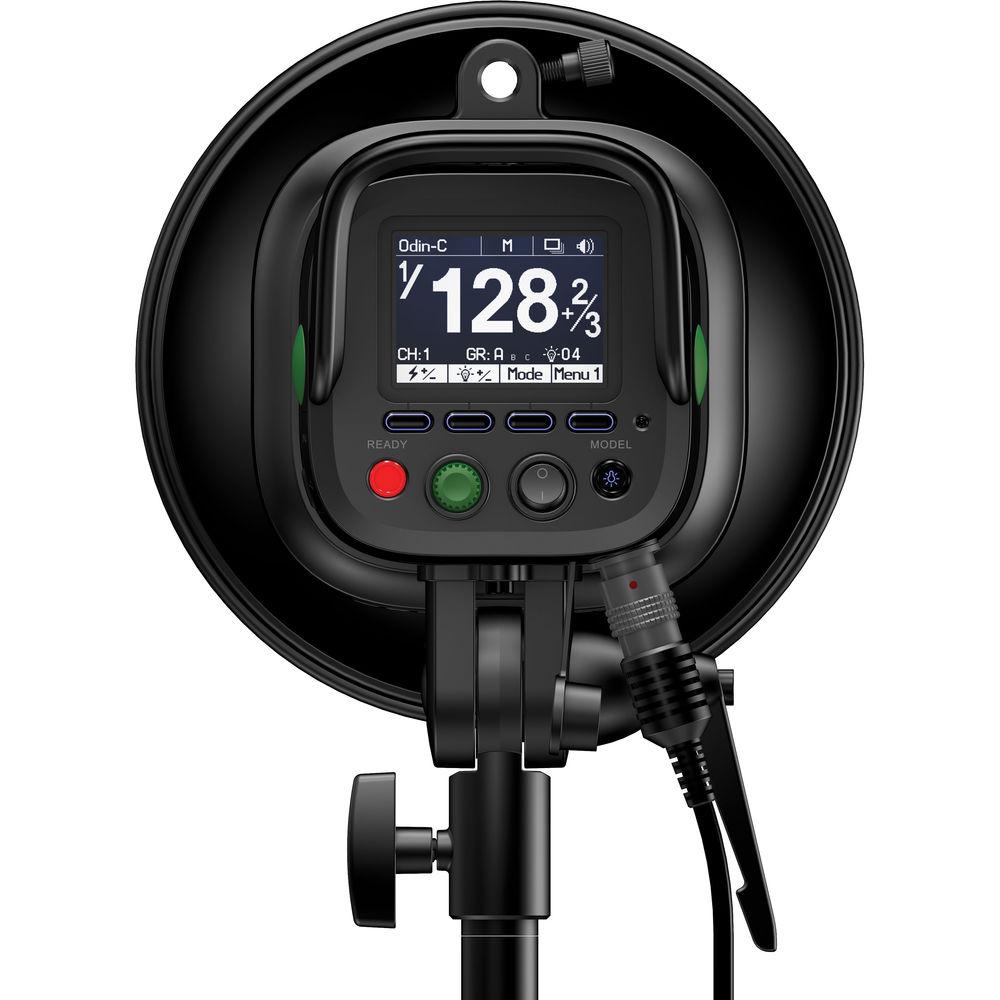

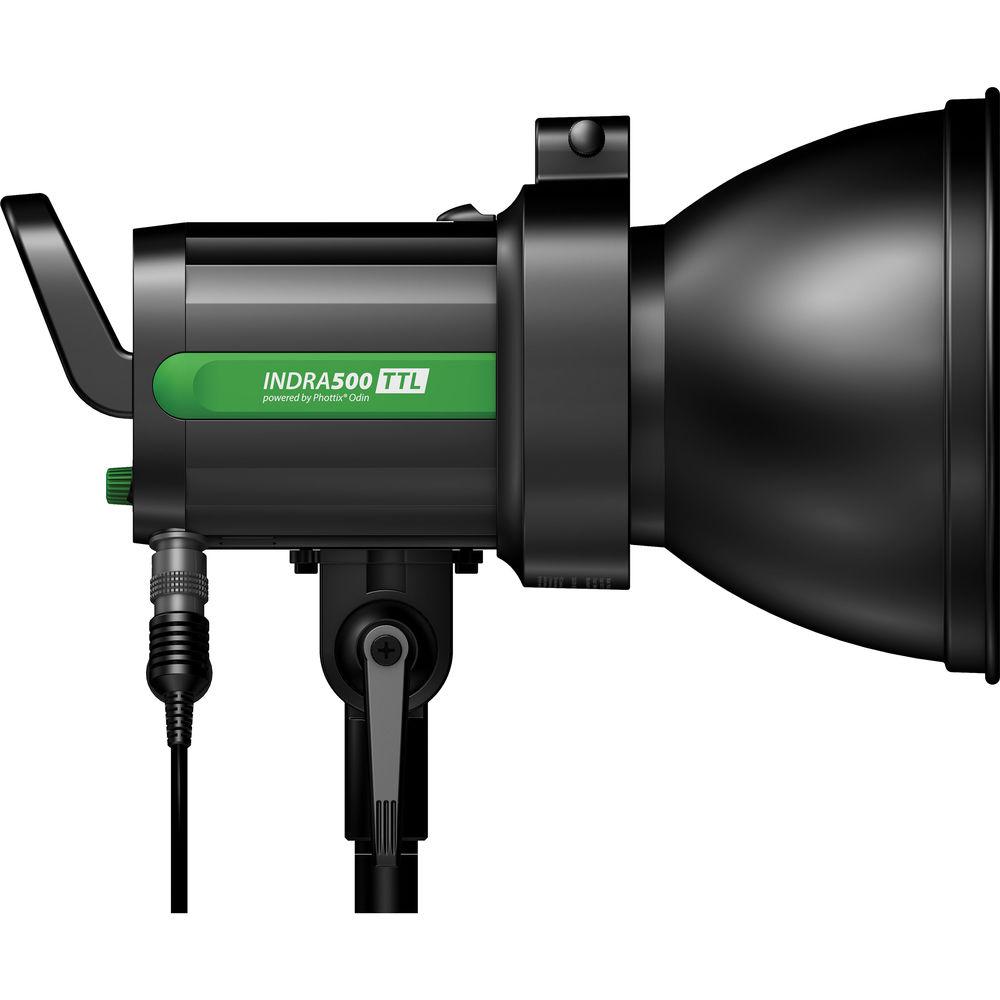

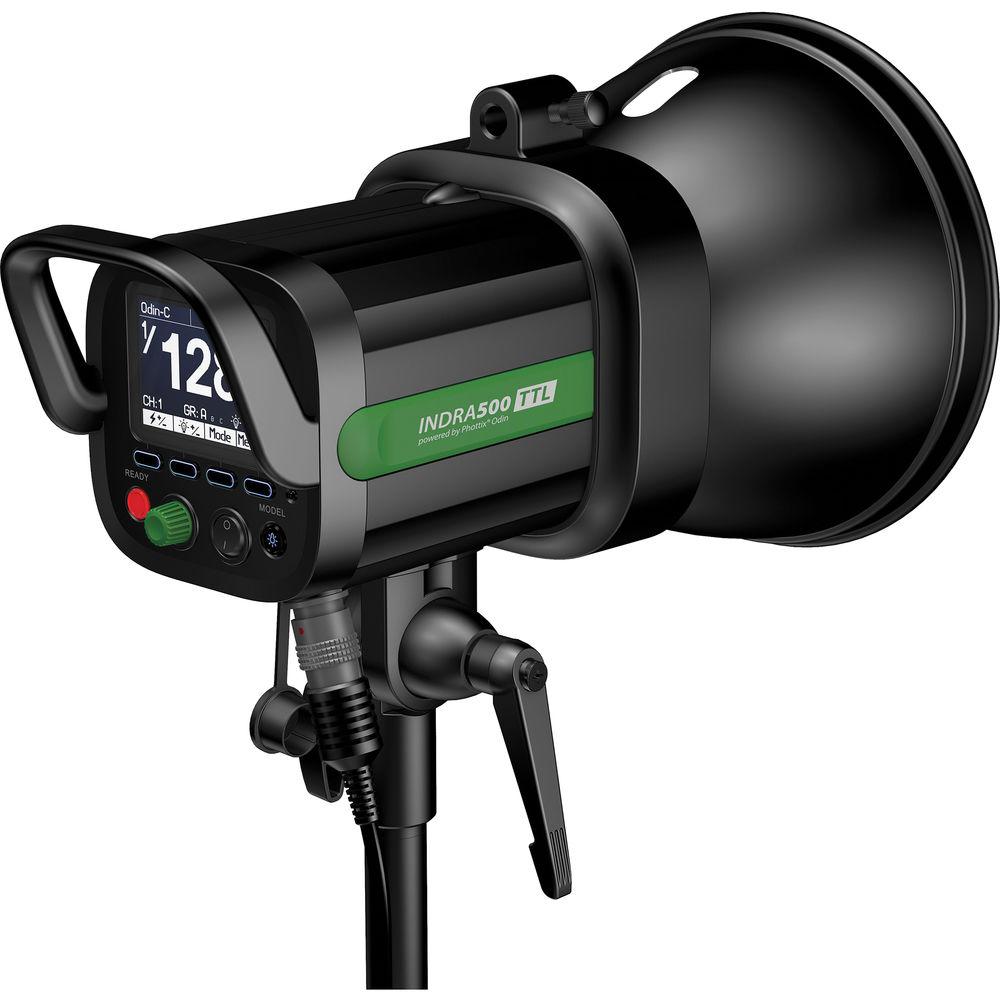

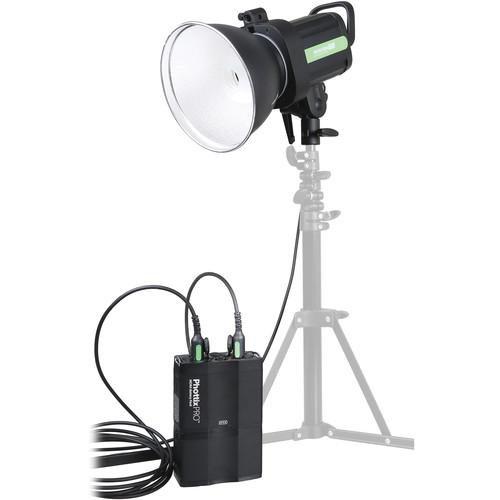

Product description Intended for photographers on the road, the Indra500 TTL Battery Powered Studio Light from Phottix offers a design driven by portability, flexibility and power. Both power cord-free and sync cord-free, the Indra500 is also hassle-free thanks to the Odin receivers for Nikon and Canon cameras built-into every unit.Phottix starts with a flash head with all the qualities of a studio flash such as 500Ws of power, adjustable from 1/128 to full power over an 8-stop range. Recycling time is 0.1 to 2 seconds with the included Li-ion polymer battery and 0.1 - 1 second with the optional AC adapter. Action-stopping flash durations as short as 1/15,000 (t.1) sec. are possible at reduced power settings for freezing splashes or peak-moment sports shots.The Indra500's battery is the key to taking studio quality light out into the field. Photo sessions can have a fluid quality not possible when tethered to an AC cord; setups change in seconds rather than minutes - assistants can even handhold the lights. This can be done at distances up to 328' thanks to built-in radio receivers for Nikon and Canon cameras and use of the optional Odin 4-channel transmitter. The battery gets 400 full-power flashes on a 5-hour charge and thousands at minimum power.This would be an impressive flash head if Phottix had just stopped there but the Indra500 is also TTL capable with Nikon and Canon cameras, allowing photographers to seamlessly transition in rapidly changing light conditions using their camera's auto-exposure technology. Using the optional transmitter, TTL power can be adjusted remotely +/- 3 EV, while manual mode has an expanded 8-stop range.The Indra500 TTL ships with a Li-ion polymer battery, charger and reflector. A 110-220 VAC adapter is available for separate purchase. - TTL
- Most studio lights function only in manual camera modes, limiting their use in fast-moving environments. The Indra500 TTL opens up new creative possibilities, allowing photographers to shoot in shutter and aperture priority modes while taking advantage of their camera's auto-exposure technology
- High Sync Speeds
- Traditional studio lights have sync speeds limited to 1/200-1/250 sec., making balancing flash and ambient light levels problematic. The Phottix Indra's High Speed Sync function allows speeds up to 1/8,000 sec. for a much wider exposure latitude
- Second Curtain Sync
- The Second Curtain Sync function fires the flash at the end of the exposure rather than the beginning, allowing use of slow shutter speeds to create a natural looking blur trail behind subjects in progressive motion
- Flash Bracketing
- Instead of altering the look of your shot by changing your aperture or shutter speed, let the Indra automatically vary its power to get lighter and darker shots around your prime exposure
- Stroboscopic Mode
- This mode allows you to capture sequential action by varying the Hertz rate from 1-100 Hz and the flash frequency from 1-100 times per exposure
- Built-in Triggering
- Adjust TTL exposure compensation +/- 3 EV or adjust power 1/3 or full stops over an 8-stop range in manual mode from up to 328' away with the optional Odin transmitter. The Indra has built-in Odin receivers for Nikon and Canon cameras. Phottix Strato II users can trigger the Indra 500 too, but in manual mode only
- Upgradeable
- The Indra500 TTL offers a USB port for future firmware upgrades. As camera technology changes the Indra can change along with it
- Bowens Reflector Mount
- The Indra500 comes with an umbrella reflector with a Bowens mount. It is also compatible with the other brand accessories that use this mount
In the Box Phottix Indra500 TTL Battery Powered Studio Light Reflector Bag Shoulder Strap Battery Pack (5,000mAh) Multi-Voltage Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Indra500 TTL Battery Powered Studio Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix Indra500 Specs | | | Maximum Power | 4 to 500 Ws | | Power Control | 8 Stops in 1/3-Stop Increments | | Flash Duration | t.1: 1/15,000 to 1/250 Sec | | Recycle Time | 0.1 to 2.0 Sec () | | Color Temperature | 5500K ± 200K | | Flash Ready Indicator | Audio, Visual | | Accessory Fitting Type | Bowens S Type | | | | Sync Type | Optical, Radio | | Sync Speed | 1/1/8000 Sec | | Wireless Channels / Groups | 4 / X | | Wireless Range | 328' / 100 m (Radio)
39.4' / 12 m (Optical) | | | | AC Input Voltage | 110to220 VAC, 50 / 60 Hz | | | | Maximum Output Voltage | 14.4 VDC | | Capacity (mAh) | 5000 mAh | | Flashes Per Charge | 400 Flashes (Full Power) | | Recharge Time | 5 Hours | | | | Display | LCD | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.5 x W: 7.5 x L: 10.5" / H: 14.0 x W: 19.0 x L: 26.7 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 15.6 lb | | Box Dimensions (LxWxH) | 16.2 x 14.4 x 9.7" |
